Adaptive Lamp Monitor Control Module C2

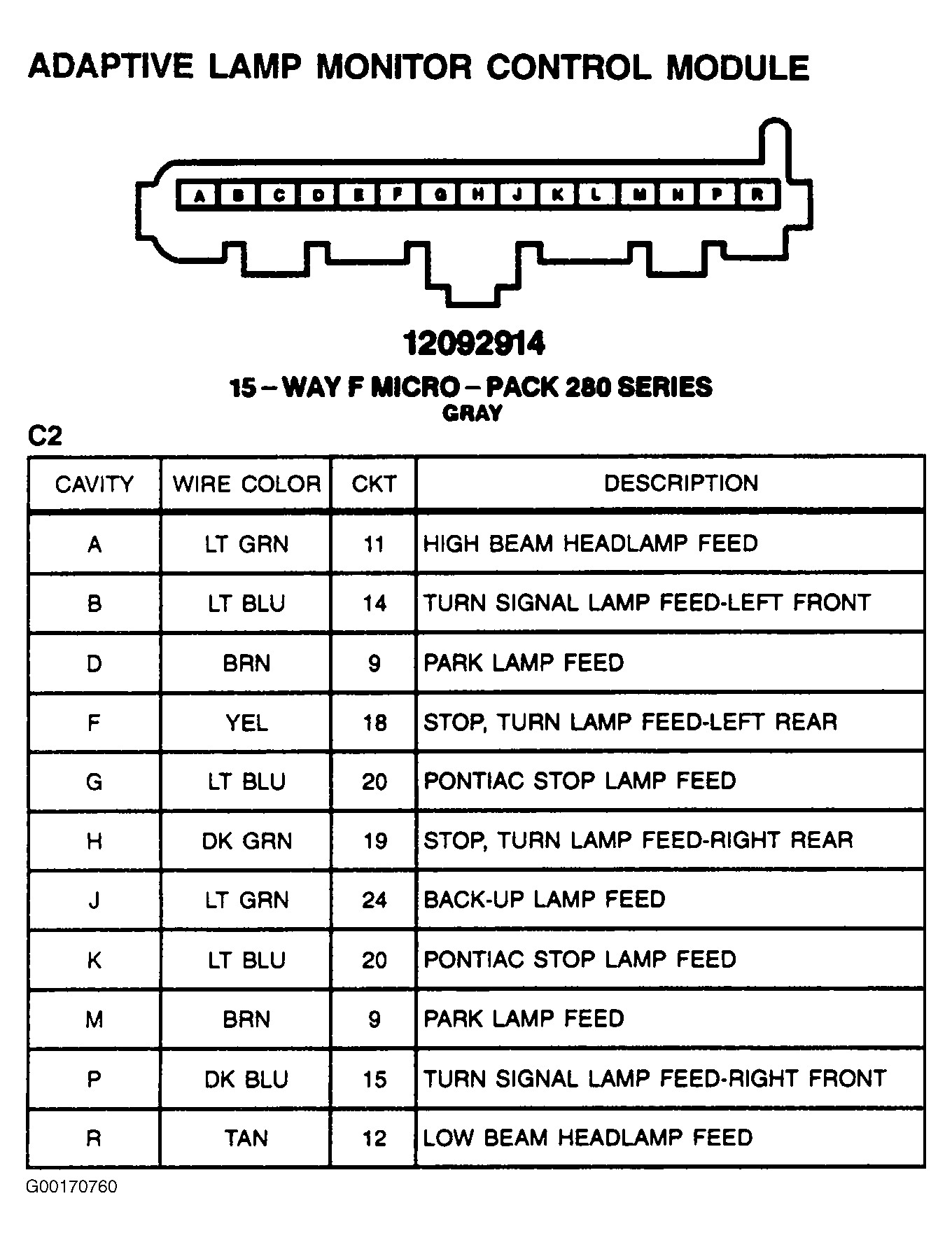

Fig 1: Adaptive Lamp Monitor Control Module C2 - 15-Pin Connector (Gray)
G00170760Courtesy of GENERAL MOTORS CORP.
