Amplifier (With Speaker System 8)

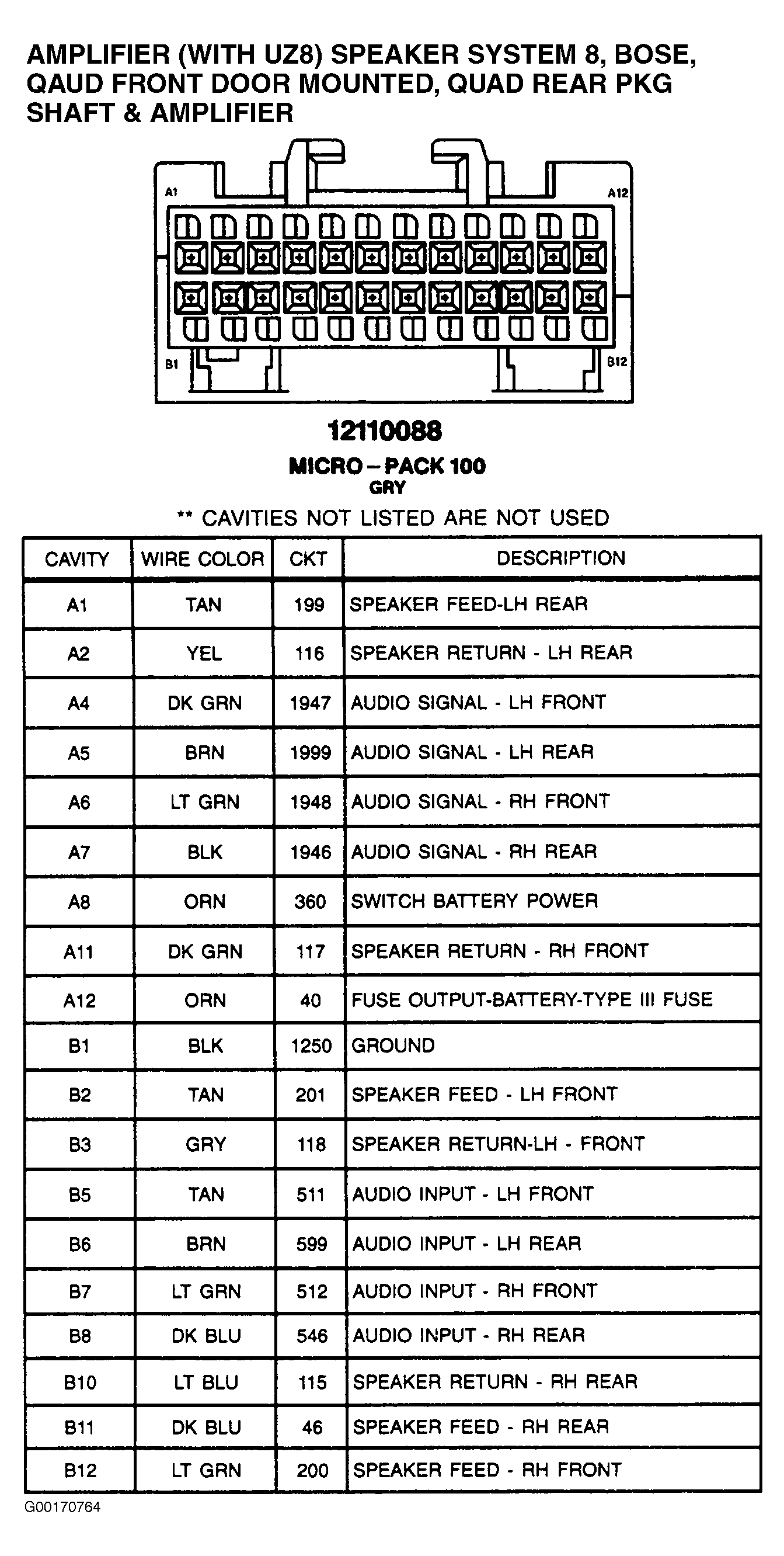

Fig 1: Amplifier (With Speaker System 8) - 24-Pin Connector (Gray)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
