Computer Command Ride Control Module

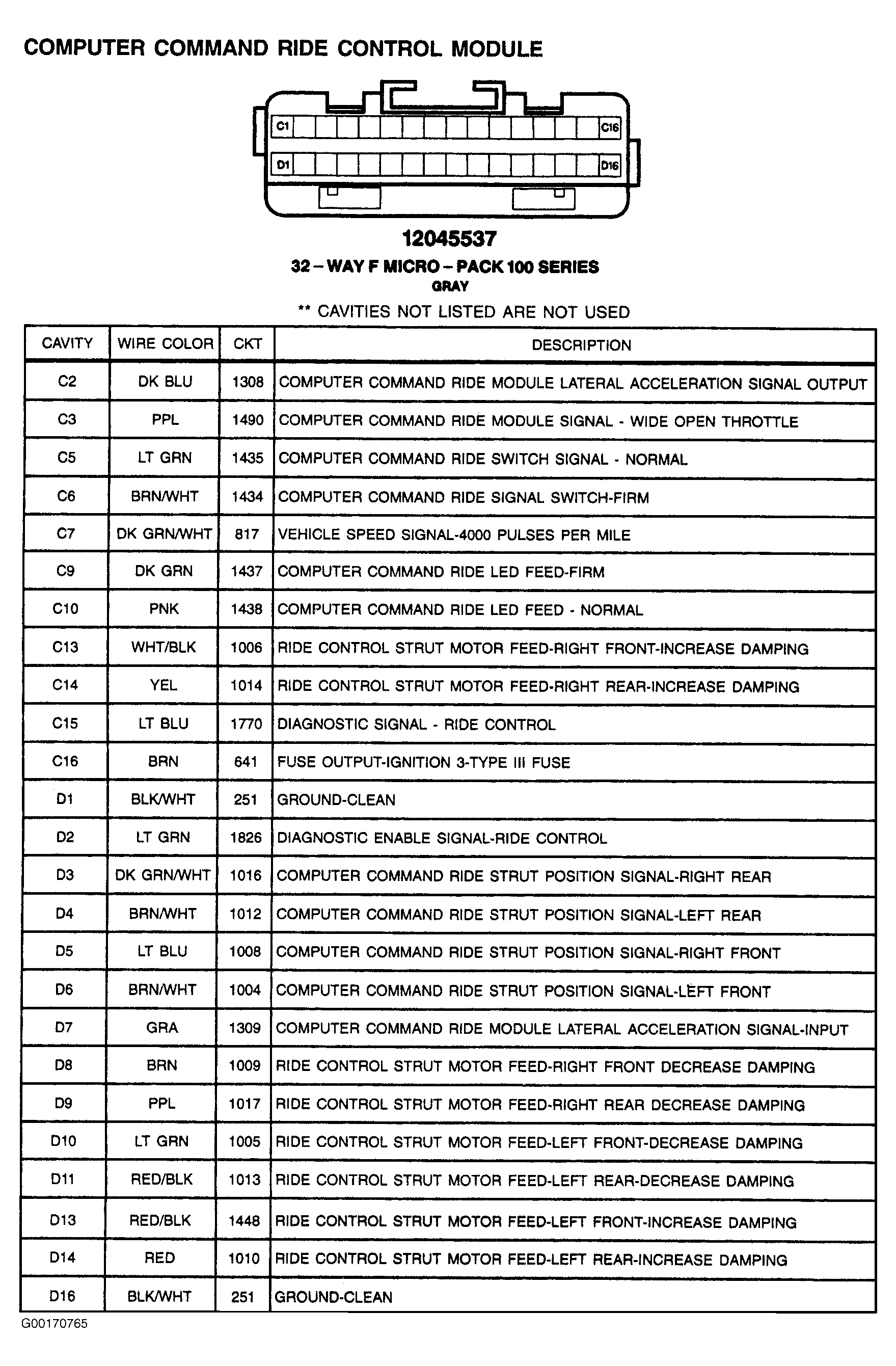

Fig 1: Computer Command Ride Control Module - 32-Pin Connector (Gray)
G00170765Courtesy of GENERAL MOTORS CORP.
