Electronic Brake (& Traction) Control Module (EBCM/EBTCM)

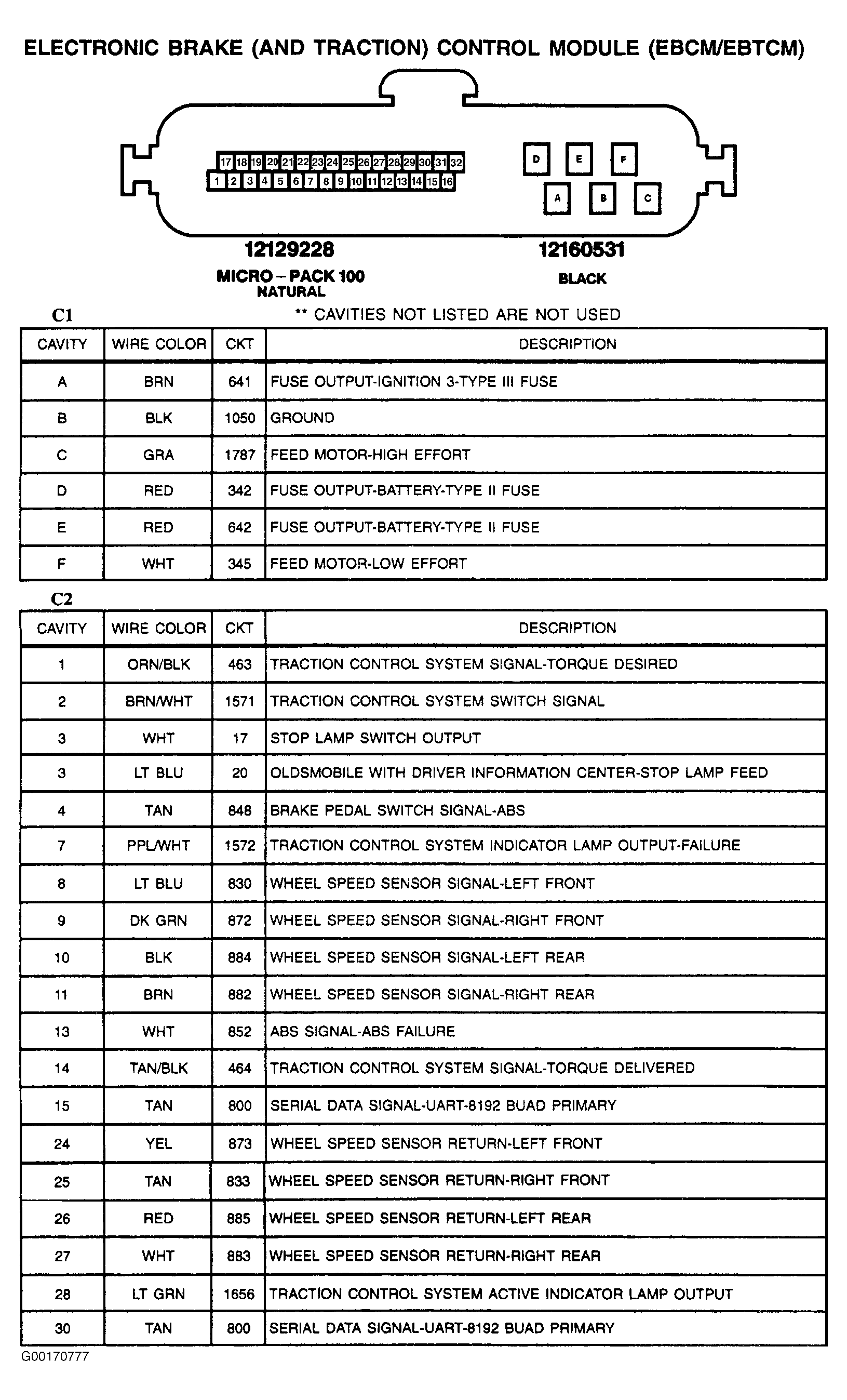

Fig 1: Electronic Brake (& Traction) Control Module (EBCM/EBTCM) C1 & C2 - 6-Pin Connector (Black) & 32-Pin Connector (Natural)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
