HVAC Programmer (PONTIAC)

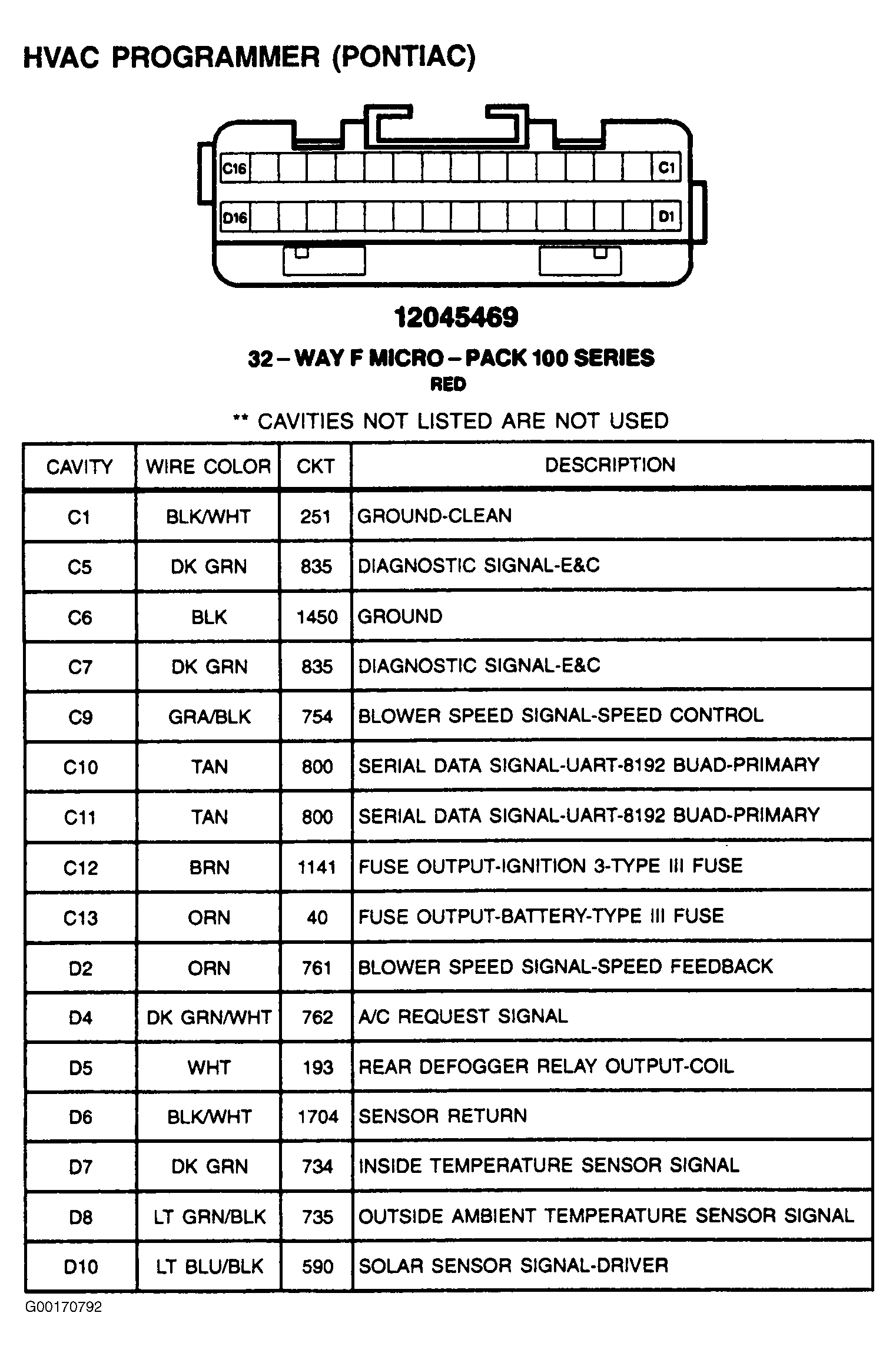

Fig 1: HVAC Programmer (Pontiac) - 32-Pin Connector, Red
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
