Head-Up Display Control Module

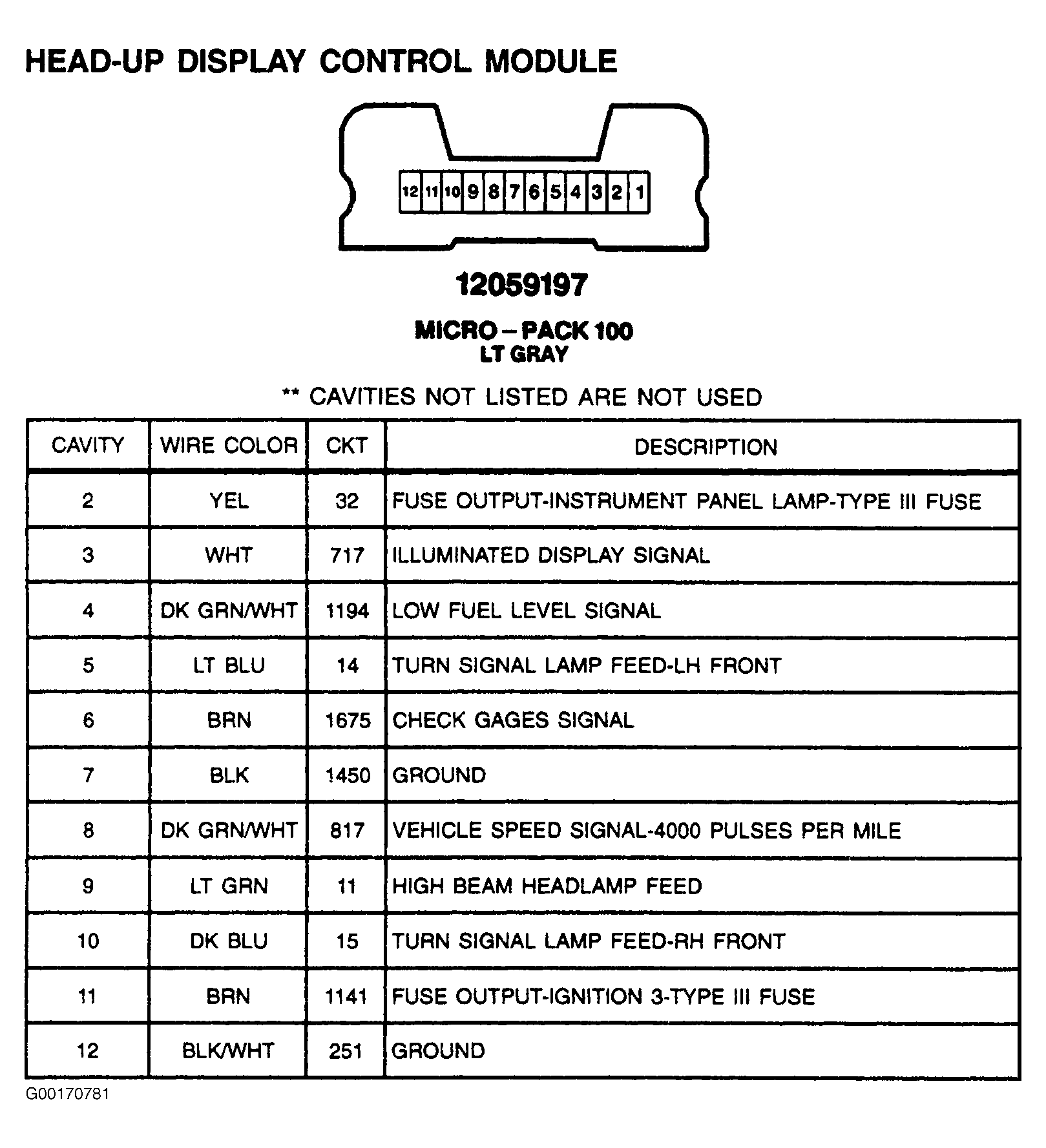

Fig 1: Head-Up Display Control Module - 12-Pin Connector (Light Gray)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
