Headlamp Switch (OLDSMOBILE)

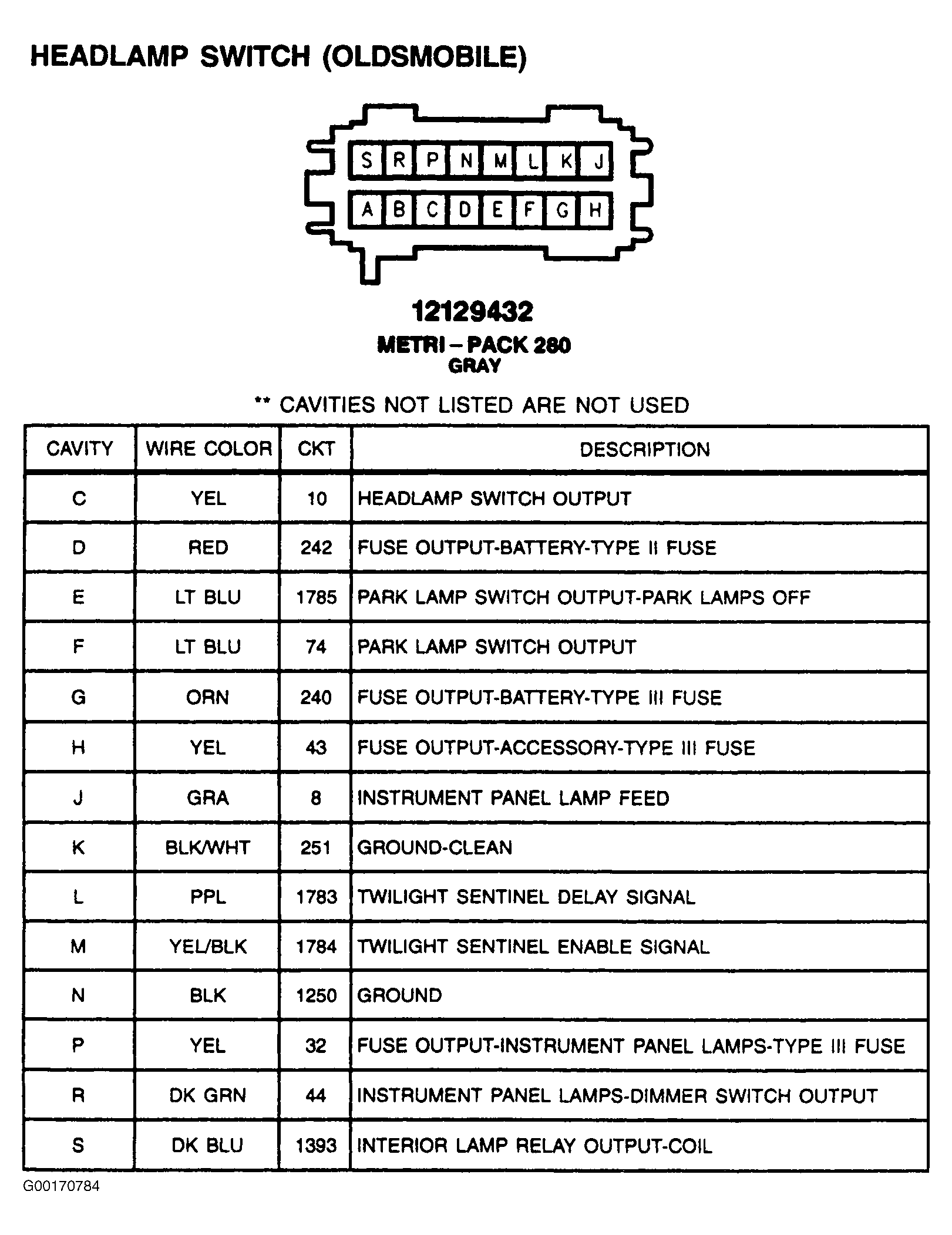

Fig 1: Headlamp Switch (Oldsmobile) - 16-Pin Connector (Gray)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
