Power Window Master Switch Assembly C2

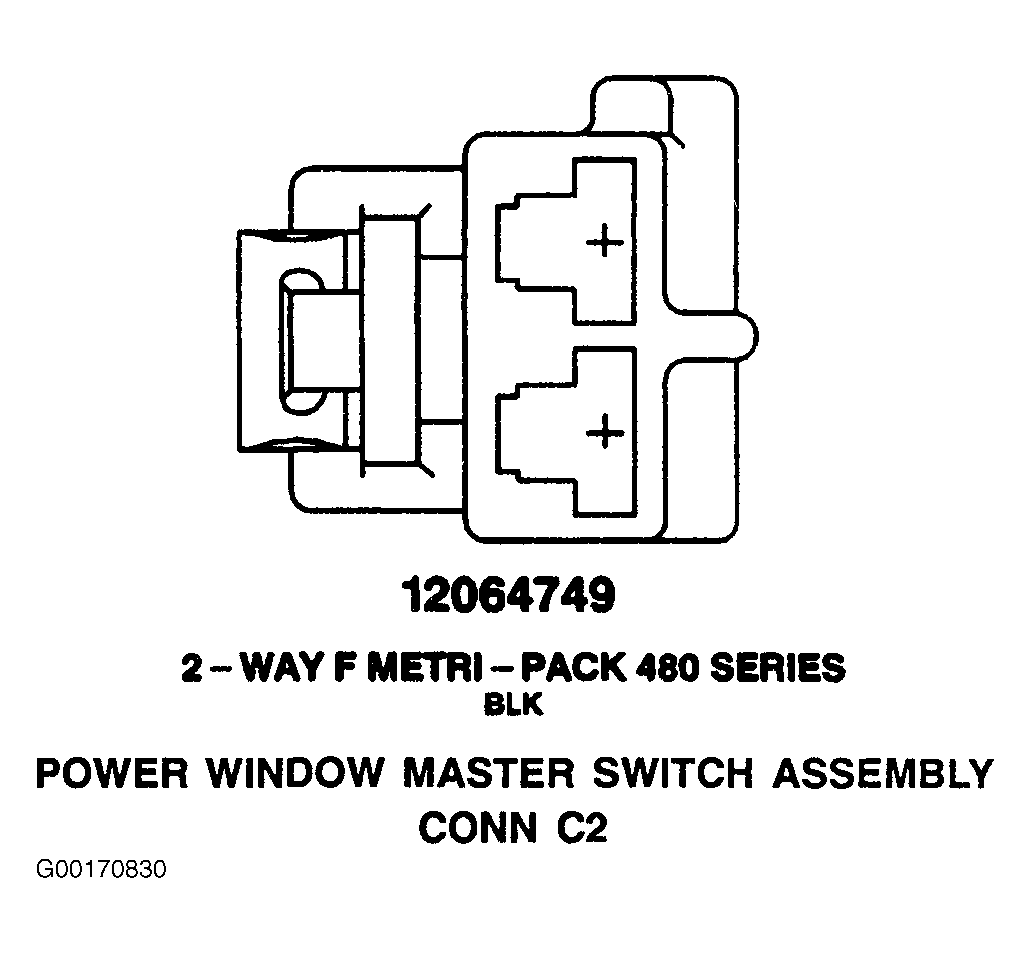

Fig 1: Power Window Master Switch Assembly C2 - 2-Pin Connector (Black)
G00170830Courtesy of GENERAL MOTORS CORP.
