Sensing & Diagnostic Module (SDM)

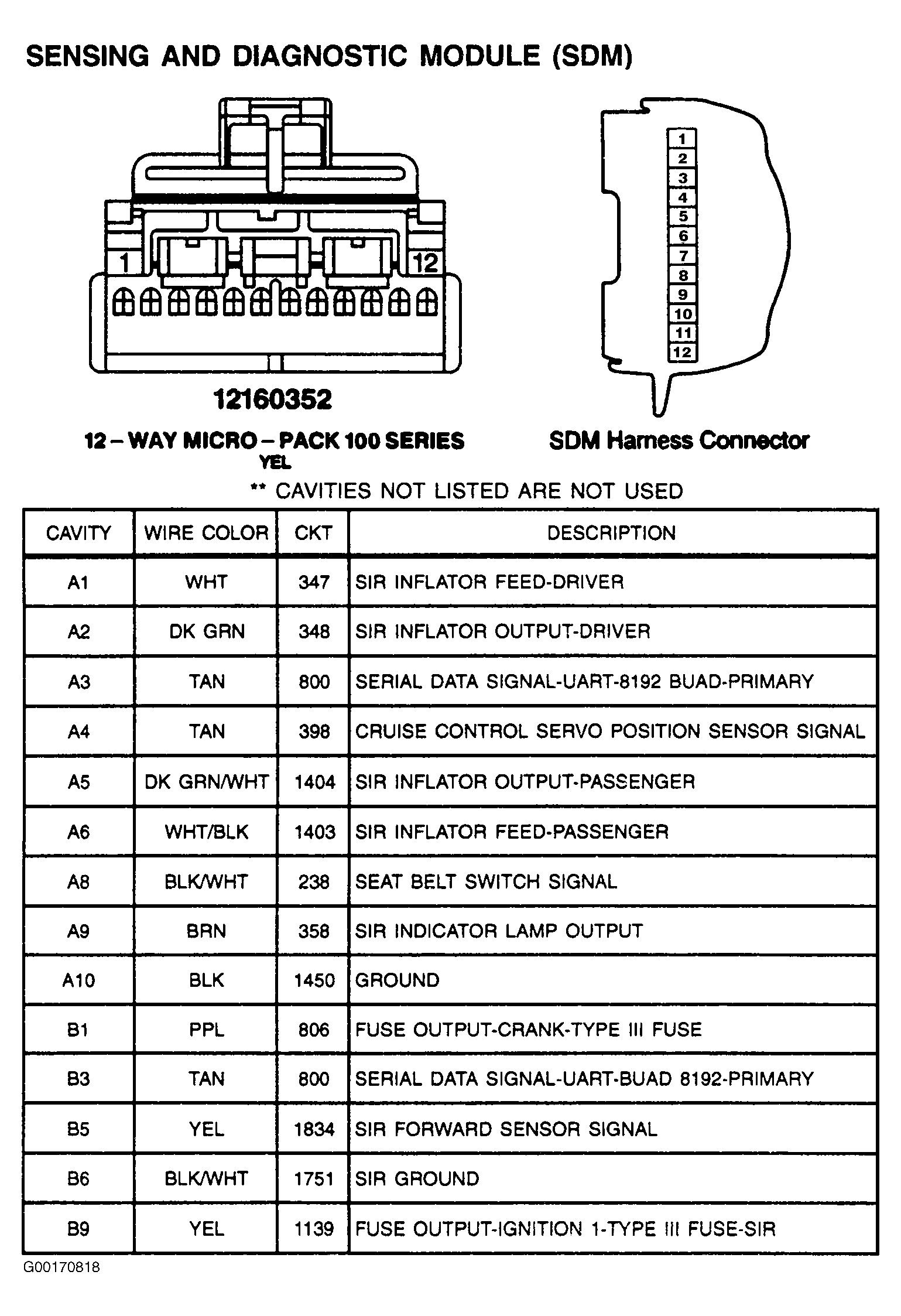

Fig 1: Sensing & Diagnostic Module (SDM) - 12-Pin Connector (Yellow)
G00170818Courtesy of GENERAL MOTORS CORP.
