PCM Connector C2 (Clear)

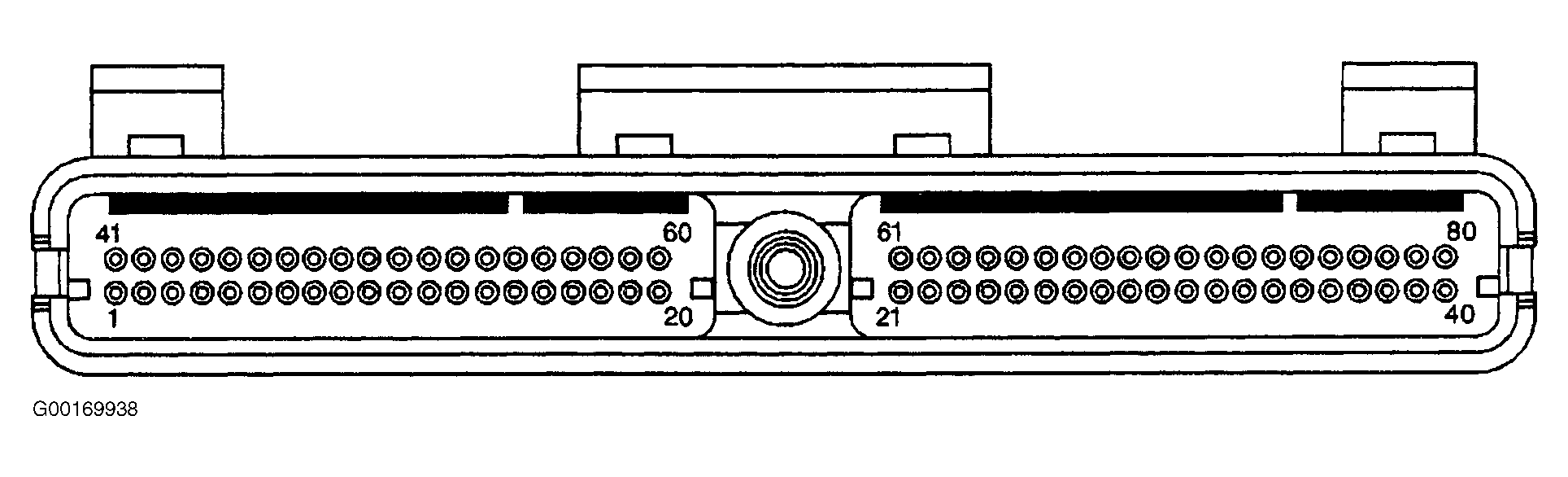

For terminal identification, see
Figure
.

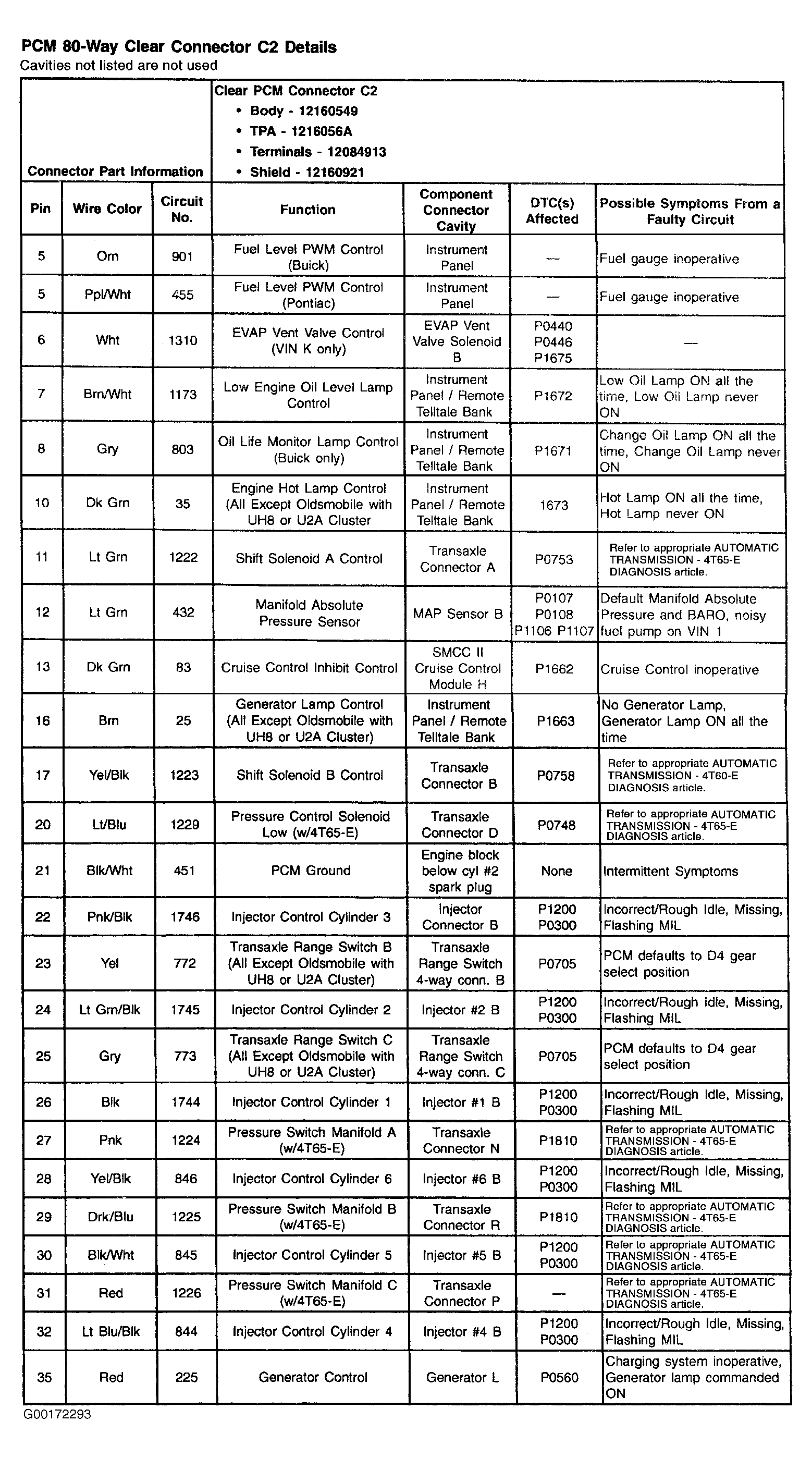

Fig 1: PCM 80-Pin Connector C2 (Clear) - Legend (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

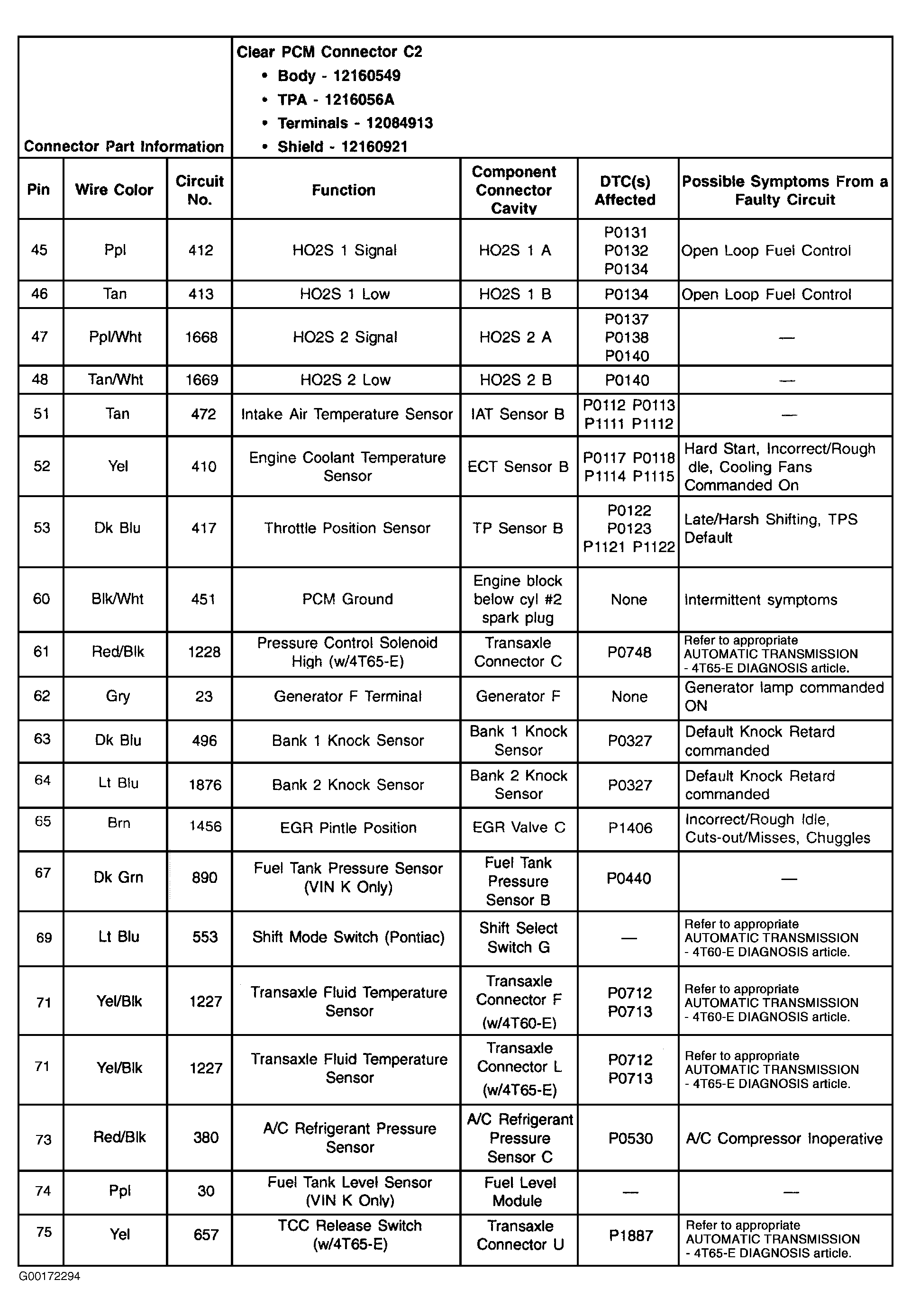

Fig 2: PCM 80-Pin Connector C2 (Clear) - Legend (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
