Component Locations
NOTE:

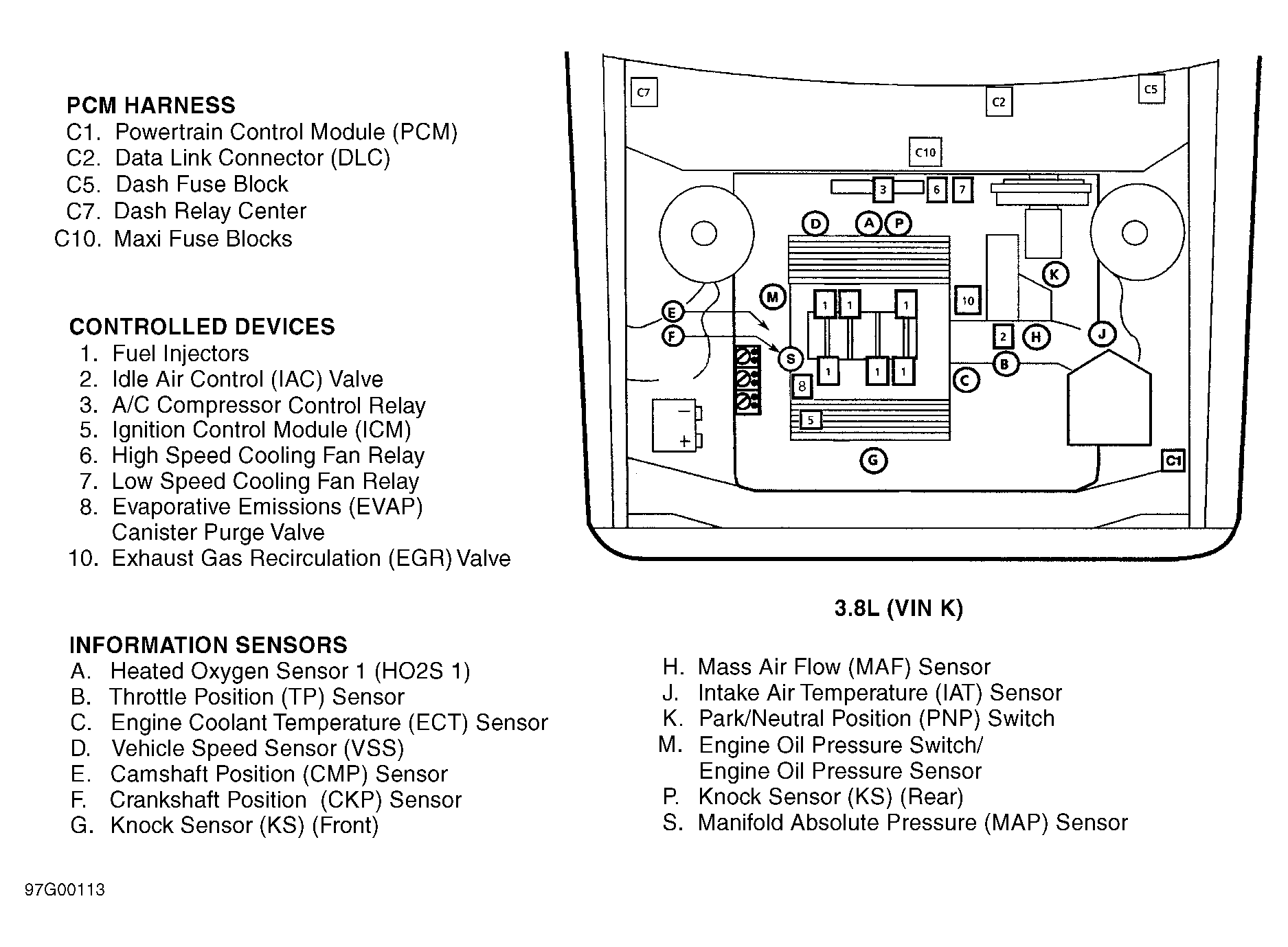

See Fig 1
for LeSabre component locations.
COMPONENT LOCATIONS
| Component | Location |
|---|---|
| A/C Compressor Relay | In Underhood Electrical Center, At Right Side Of Engine Compartment |
| A/C Pressure Sensor | Right Side Of Engine Compartment, Below Accumulator |
| Camshaft Position (CMP) Sensor | Right Side Of Engine, Above Crankshaft Pulley |
| Crankshaft Position (CKP) Sensor | Lower Right Side Of Engine, At Crankshaft |
| Data Link Connector | Under Left Side Of Instrument Panel, Right Of Steering Column |
| EGR Valve | At Left Side Of Engine, Near Throttle Body |
| Engine Coolant Temperature (ECT) Sensor | Top Left Side Of Engine, Below Throttle Body |
| Engine Oil Level Sensor | Front Of Engine On Oil Pan, Near A/C Compressor |
| EVAP Canister Purge Solenoid | At Left Front Of Engine Compartment, On Top Of Canister |
| EVAP Canister Vacuum Switch | At Left Rear Of Engine |
| Fuel Injectors | In Intake Manifold |
| Fuel Pressure Regulator | Top Left Side Of Engine On Fuel Injector Rail |
| Fuel Pump Relay | In Underhood Electrical Center, At Right Side Of Engine Compartment |
| Fuel Pump Speed Control Module | Left Center Of Trunk |
| Idle Air Control (IAC) Valve | Top Of Engine, Attached To Throttle Body |
| Ignition Control Module | Top Right Front Of Engine |
| Intake Air Temperature (IAT) Sensor | Left Side Of Engine Compartment, Attached To Air Intake Duct |
| Knock Sensors | At Front Of Engine Near Starter, Or At Lower Right Rear Of Engine |
| Manifold Absolute Pressure (MAP) Sensor | Top Rear Of Engine, On Intake Manifold |
| Mass Airflow (MAF) Sensor | Left Front Of Engine Compartment, In Air Intake Duct |
| Oxygen Sensors (O2S) | Rear Of Engine, In Exhaust Manifold & In Exhaust Pipe Rear Of Catalytic Converter |
| Powertrain Control Module (PCM) | At Right Side Of Instrument Panel |
| Primary Cooling Fan Relay | Rear Center Of Engine Compartment |
| Secondary Cooling Fan Relay | In Underhood Electrical Center, At Right Side Of Engine Compartment |
| Throttle Position (TP) Sensor | Top Of Engine, On Throttle Body |
| Transaxle Range Switch | Rear Left Side Of Engine Compartment, Mounted To Top Of Transaxle |
| Underhood Electrical Center | Right Side Of Engine Compartment |
| Vehicle Speed Sensor | Lower Right Rear Of Engine, Attached To Transaxle |
