Pass-Key(R) II Decoder Module

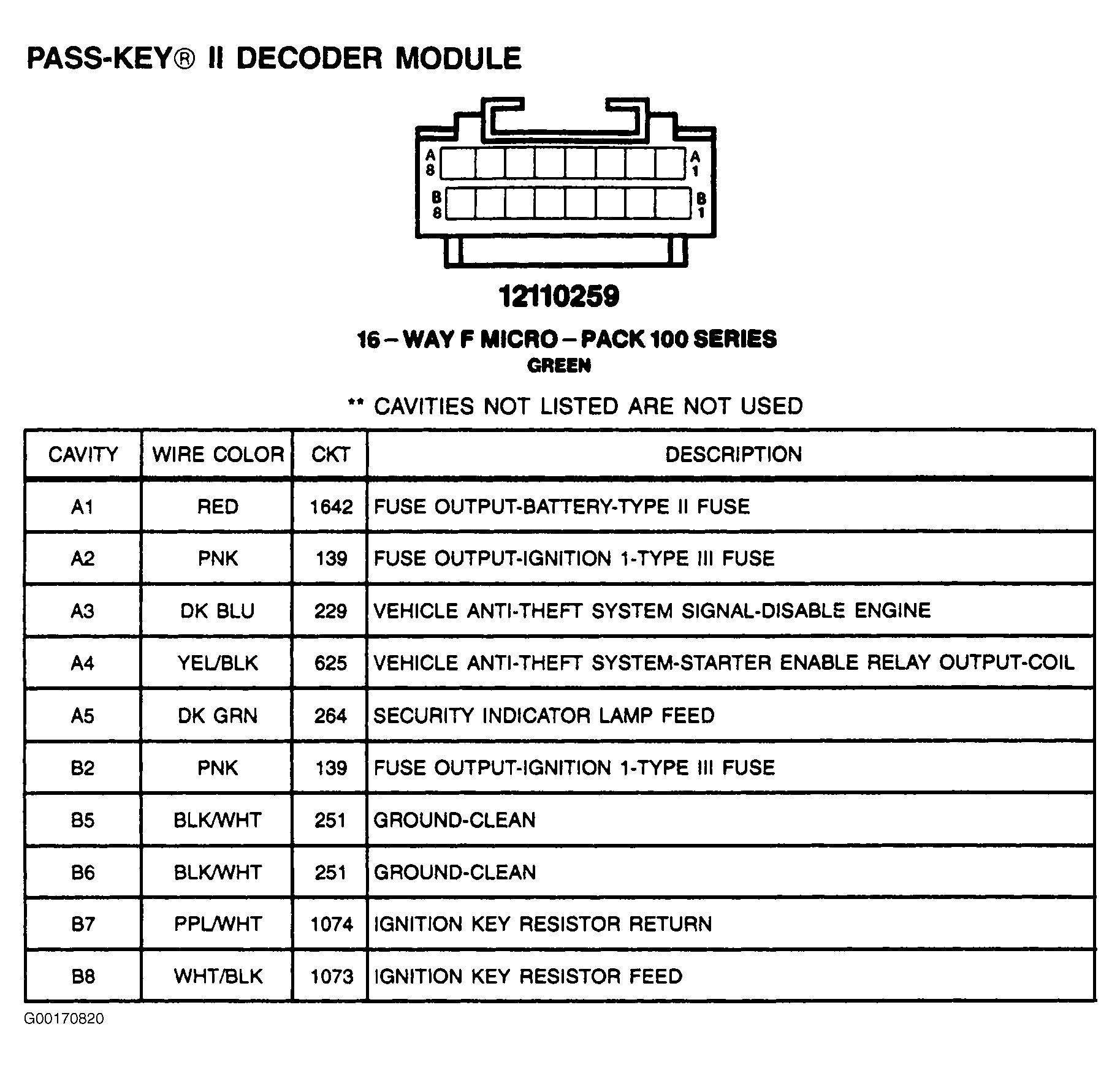

Fig 1: Pass-Key(R) II Decoder Module - 16-Pin Connector (Green)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
