Window Switch: Installation

Install the switches to the mounting plate. See Fig 2.
Connect the electrical connectors.
Snap the switch and mounting plate into the trim panel. See Fig 1.

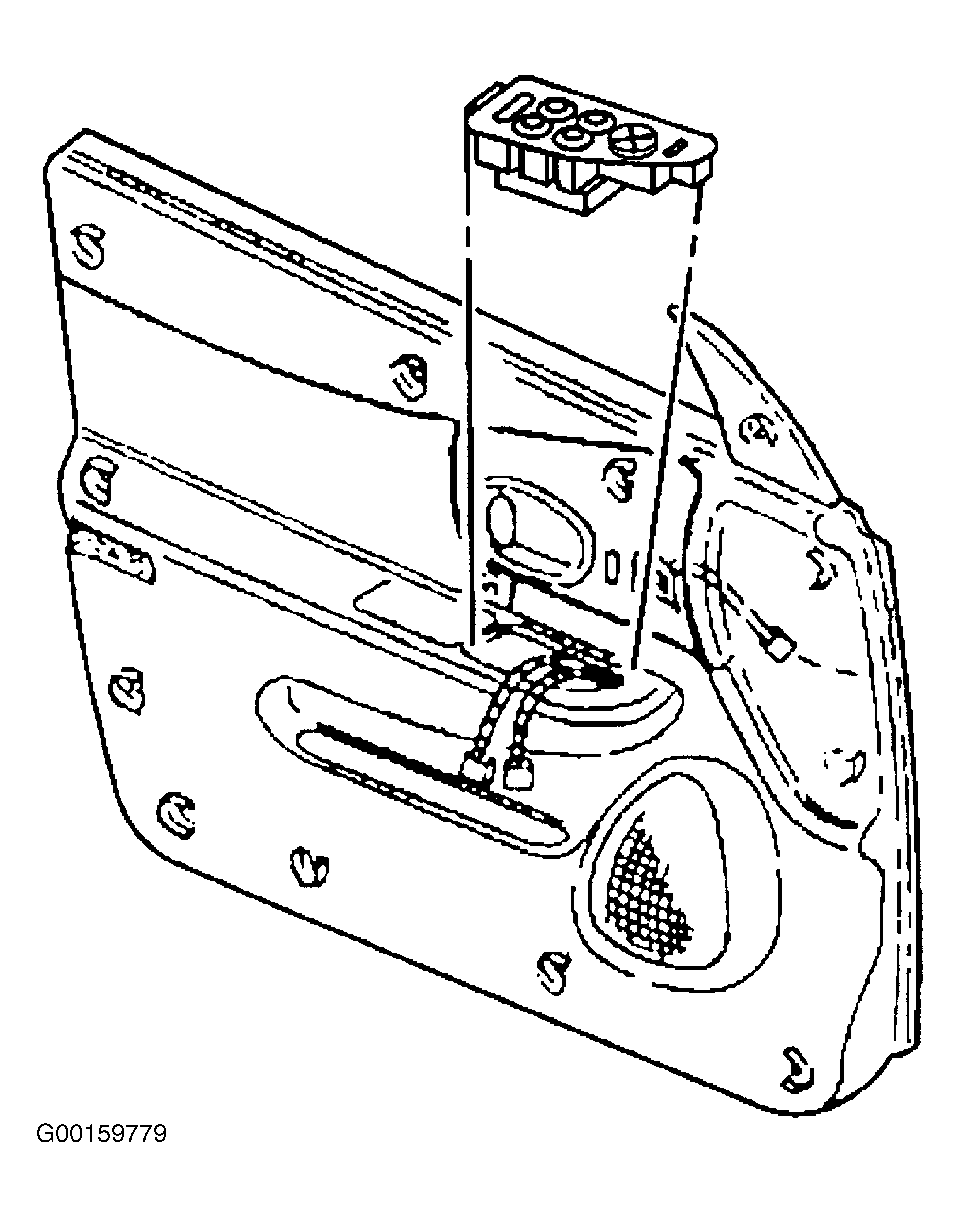

Fig 1: Front Door Window Switch

G00159779

Courtesy of GENERAL MOTORS CORP.

Fig 2: Front Power Window Switches & Mounting Plate

G00159780

Courtesy of GENERAL MOTORS CORP.

Install the switch tabs into the bezel slots. See Fig 2.
Press down on the tabs in order to secure the switch. See Fig 1.
Connect the electrical connector to the window switch.
Align the bezel to the door trim panel opening and press into place to secure.

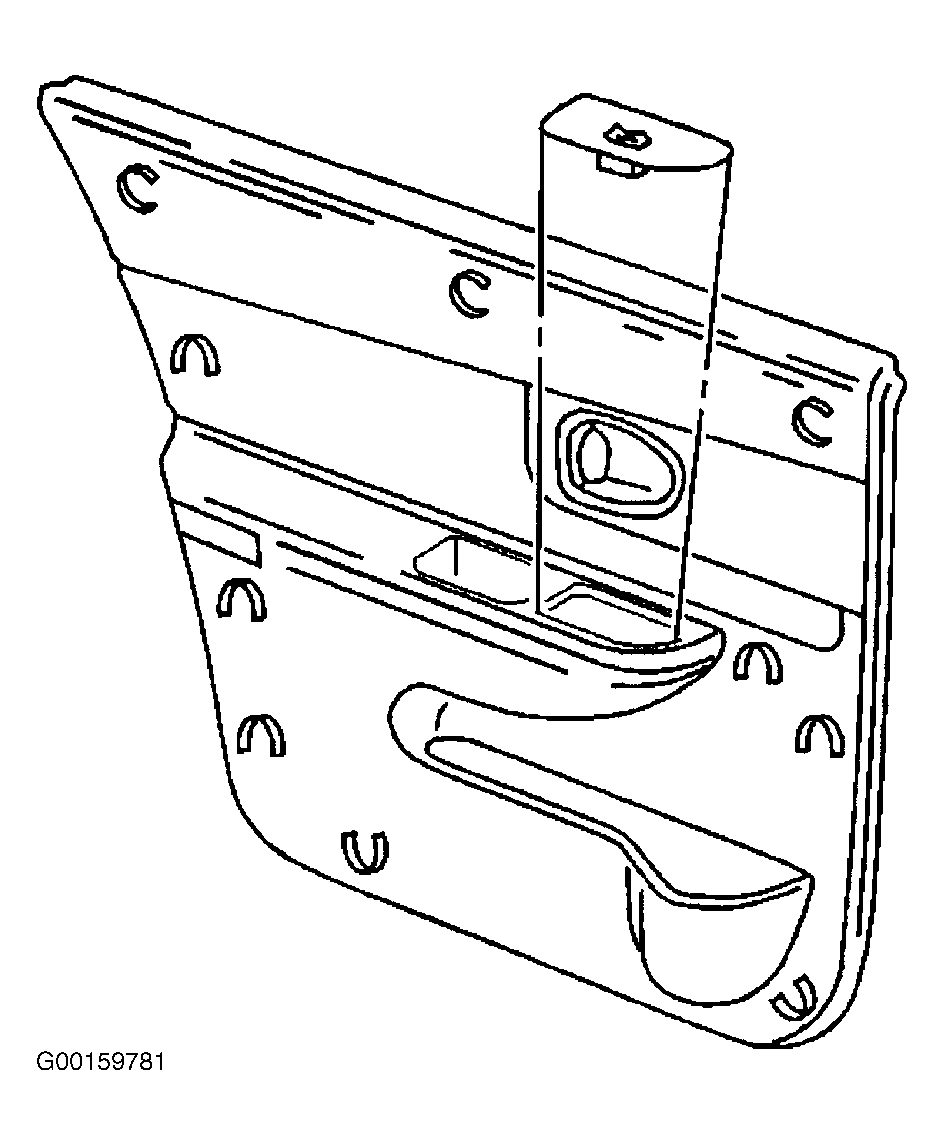

Fig 1: Rear Door Power Window Switch

G00159781

Courtesy of GENERAL MOTORS CORP.

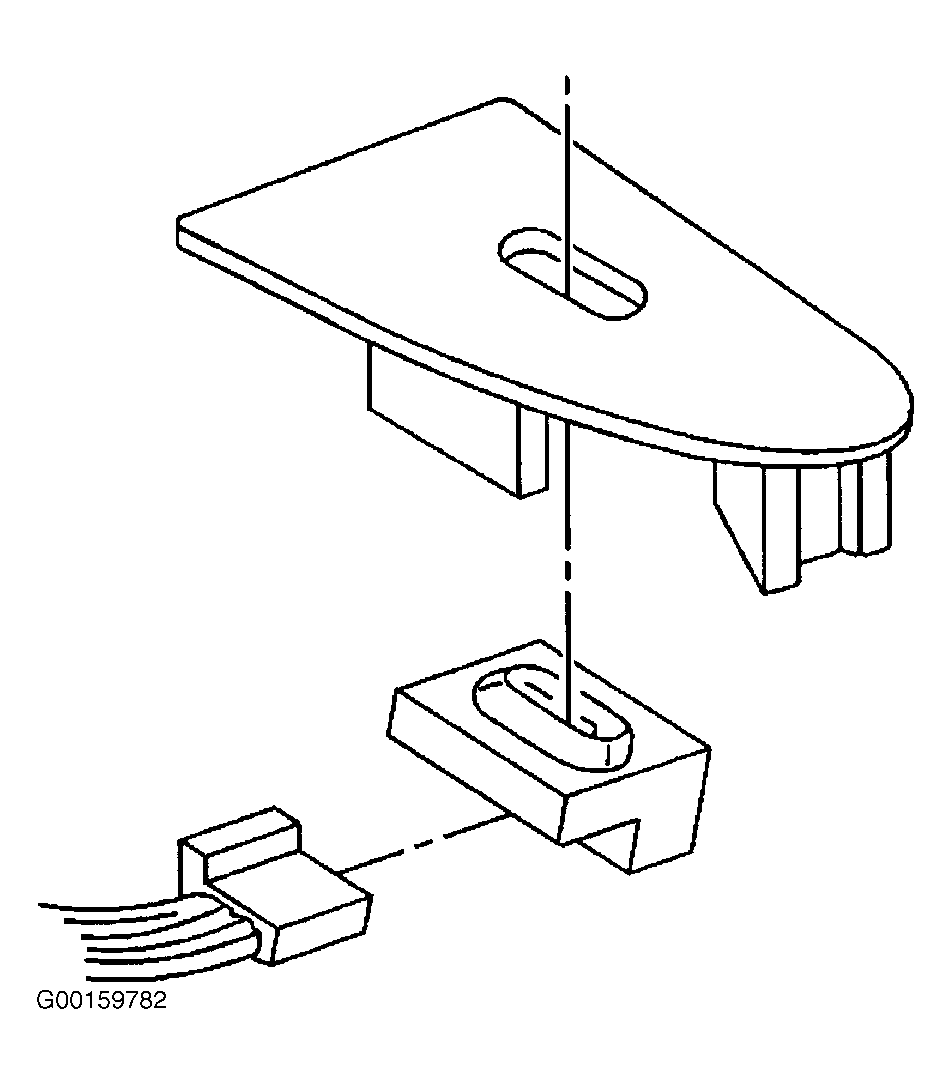

Fig 2: Rear Door Power Window Switch And Switch Plate

G00159782

Courtesy of GENERAL MOTORS CORP.
