Fuse Panel Identification

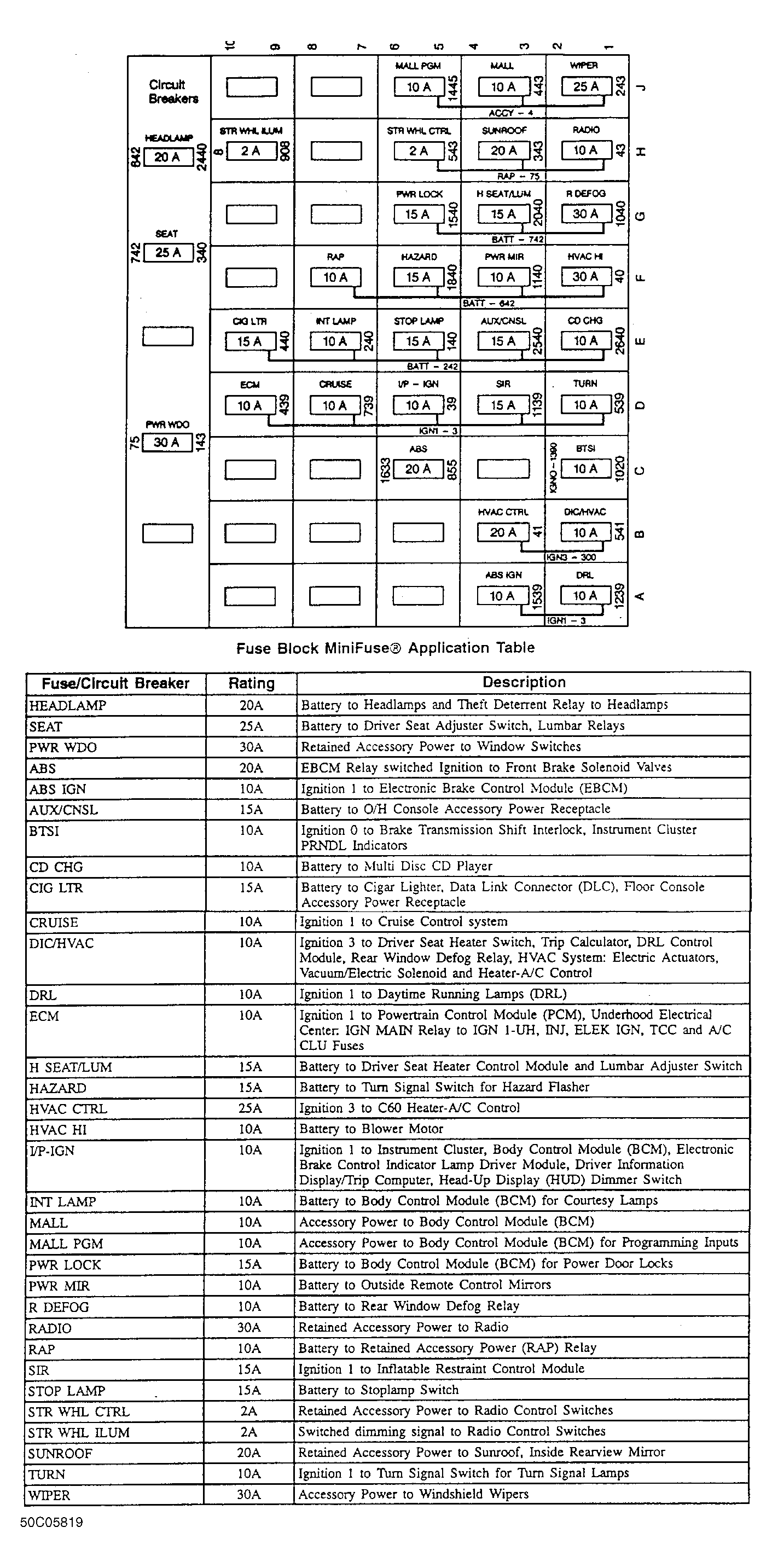

Fig 1: Instrument Panel Fuse Box Id. - 97 Pontiac Grand Prix
G50C05819Courtesy of GENERAL MOTORS CORP.

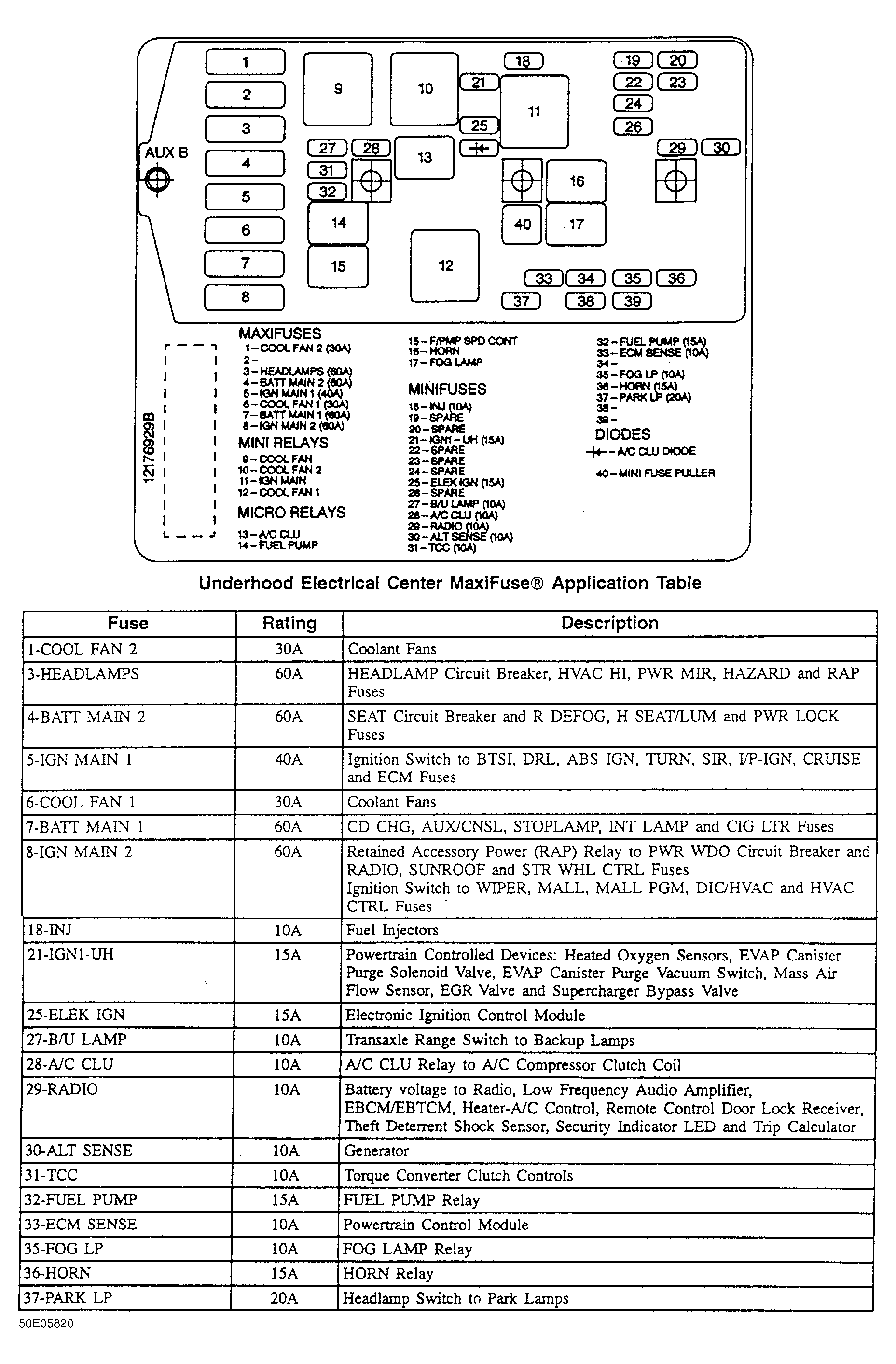

Fig 2: Underhood Electrical Center Id. - 97 Pontiac Grand Prix
G50E05820Courtesy of GENERAL MOTORS CORP.

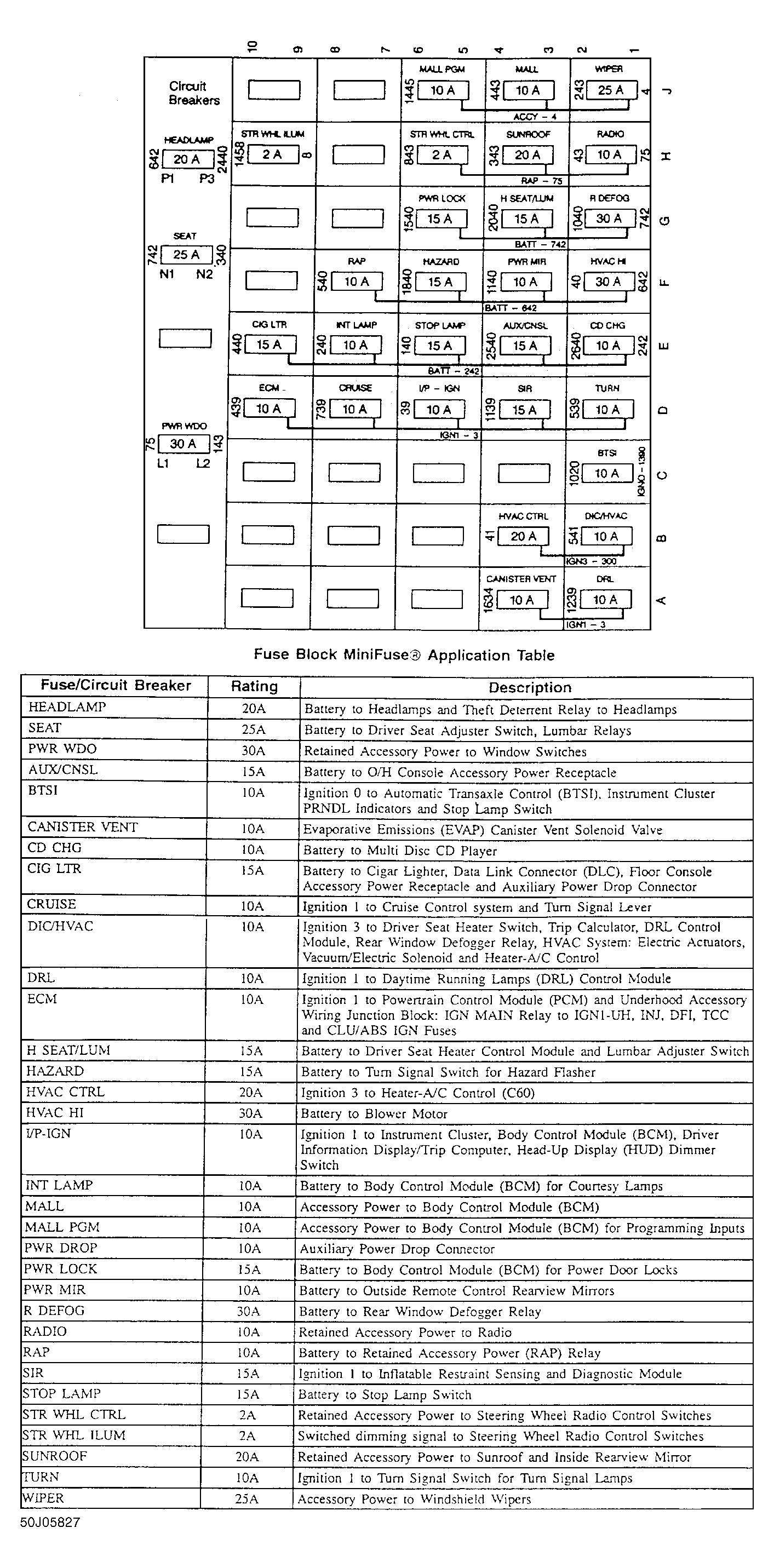

Fig 3: Instrument Panel Fuse Box Id. - 98/99 Pontiac Grand Prix
G50J05827Courtesy of GENERAL MOTORS CORP.

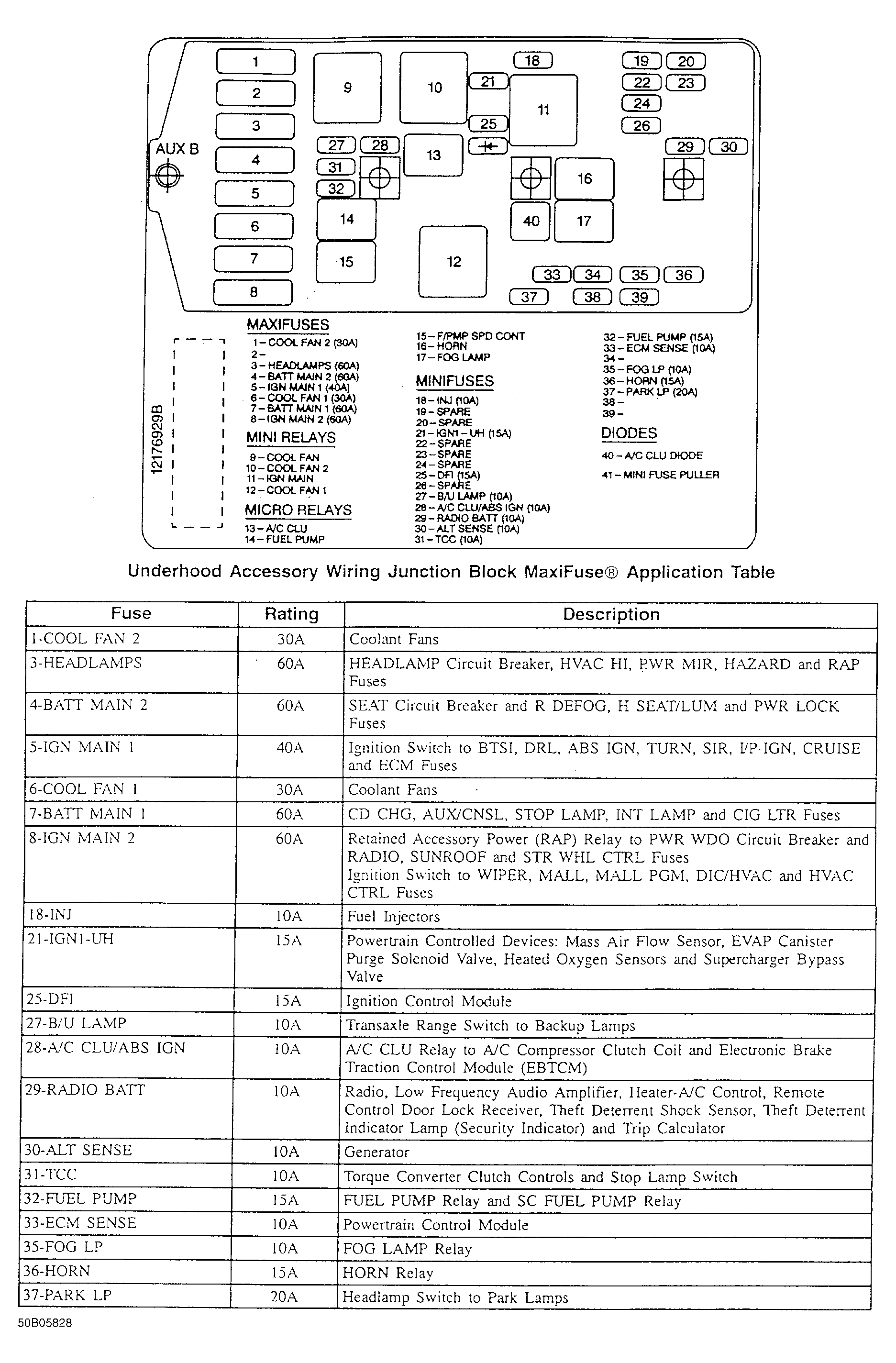

Fig 4: Underhood Electrical Center Id. - 98/99 Pontiac Grand Prix
G50B05828Courtesy of GENERAL MOTORS CORP.

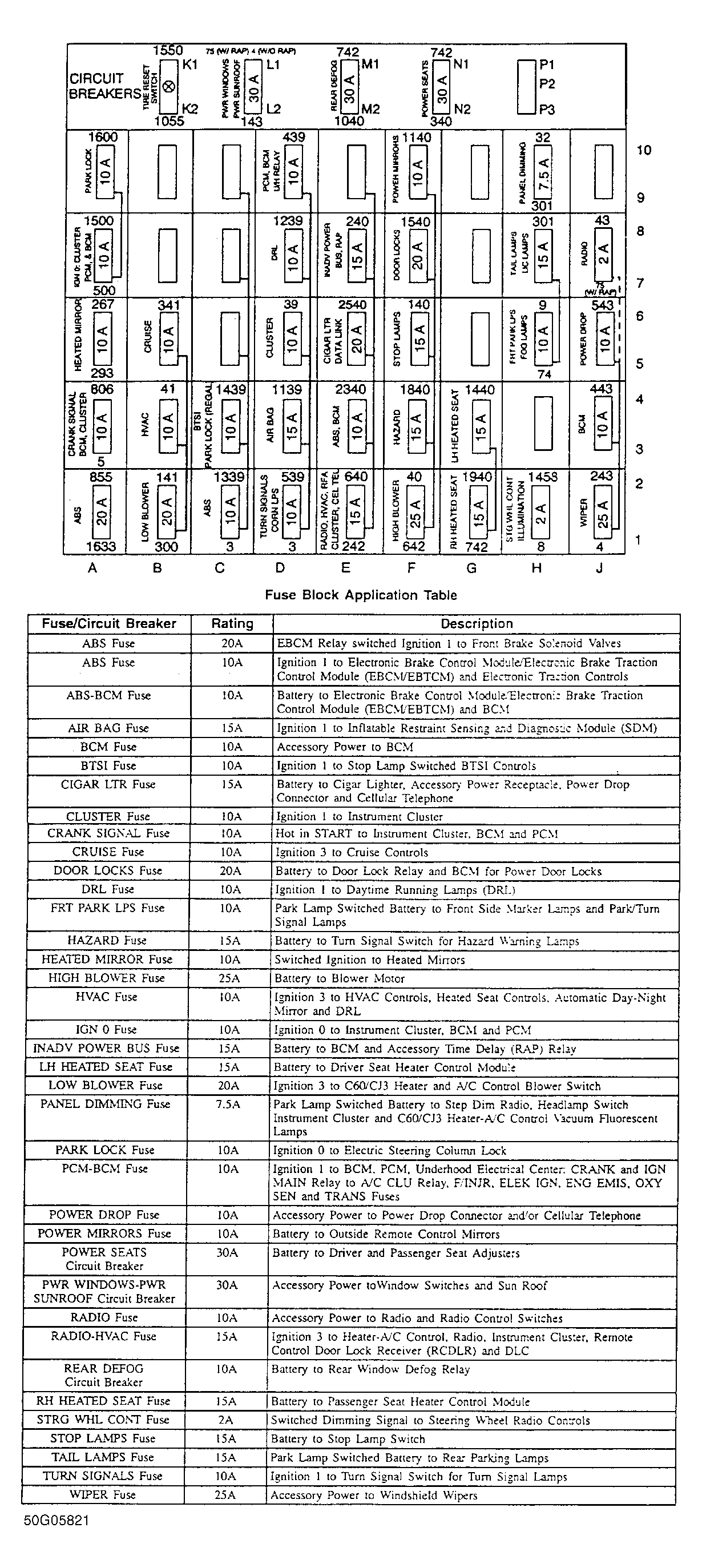

Fig 5: Instrument Panel Fuse Box Id. - 97 Buick Century/Regal
G50G05821Courtesy of GENERAL MOTORS CORP.

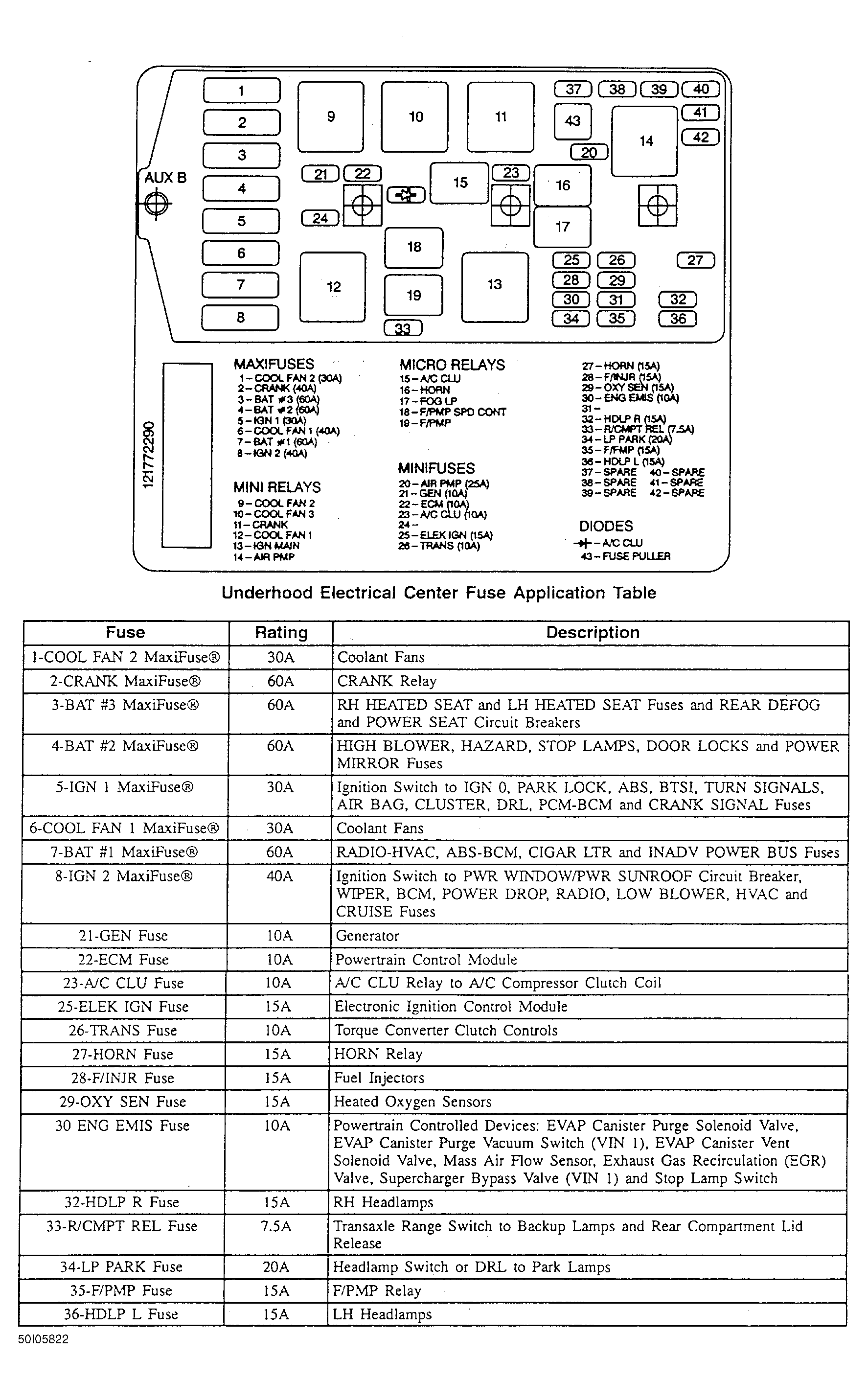

Fig 6: Underhood Electrical Center Id. - 97 Buick Century/Regal
G50I05822Courtesy of GENERAL MOTORS CORP.

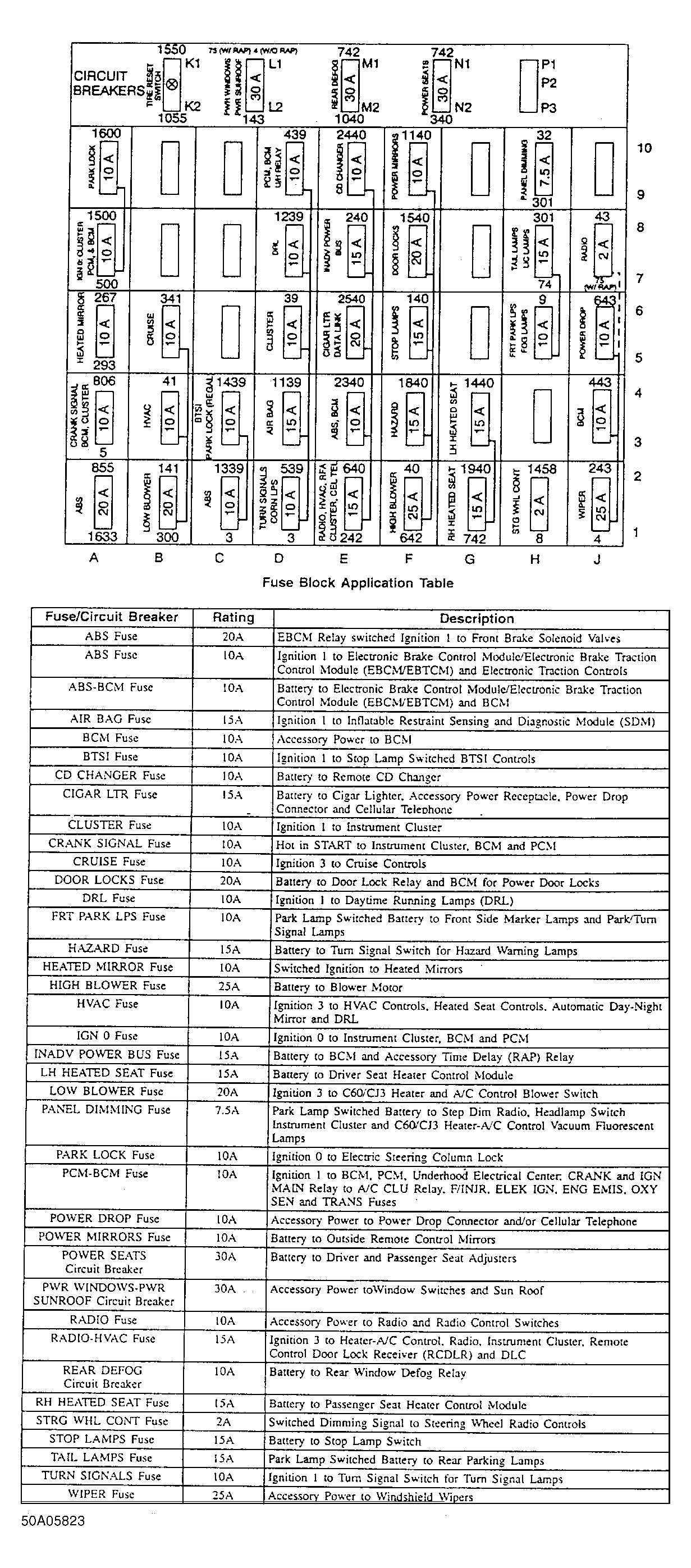

Fig 7: Instrument Panel Fuse Box Id. - 98/99 Buick Century/Regal
G50A05823Courtesy of GENERAL MOTORS CORP.

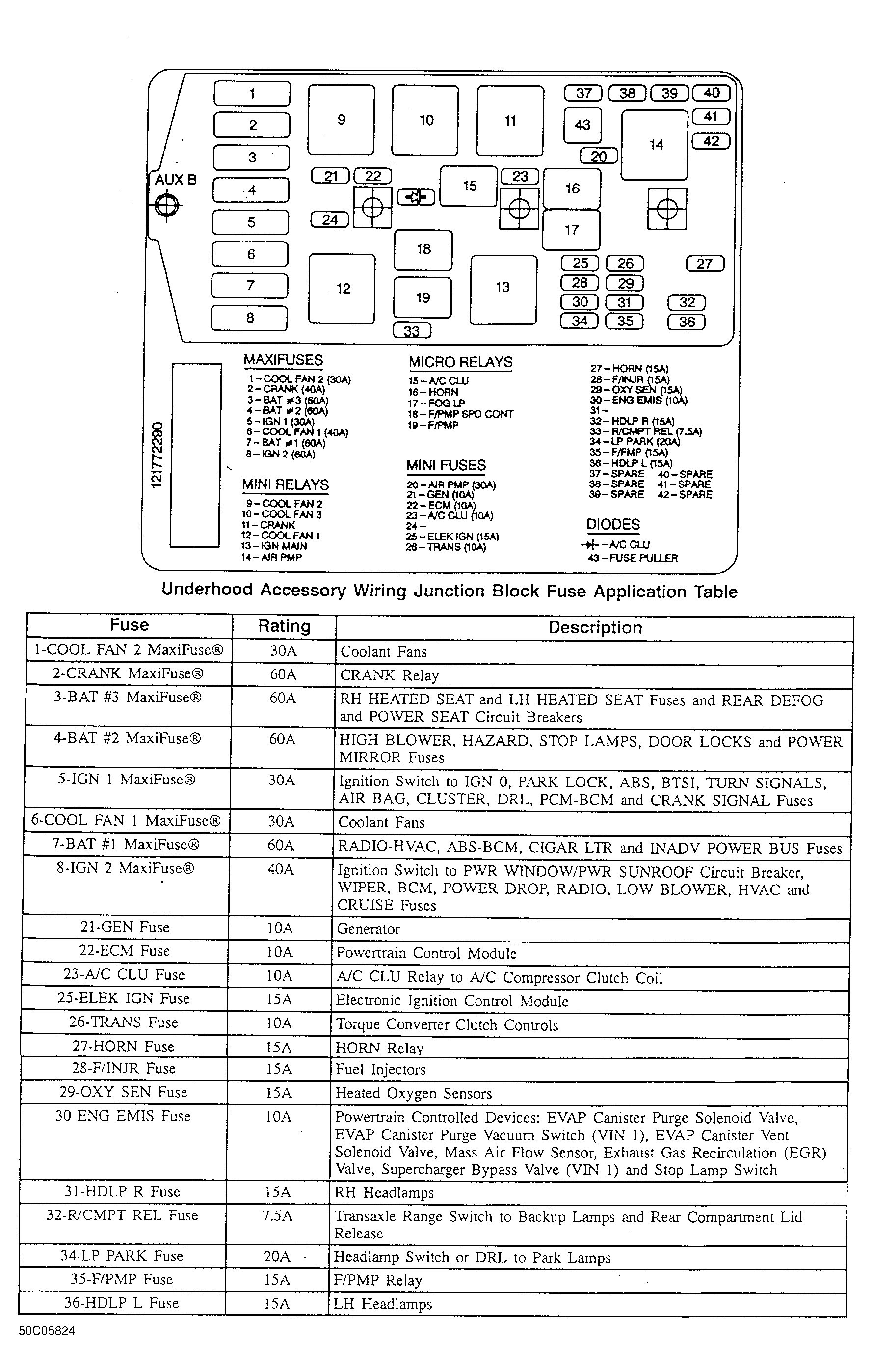

Fig 8: Underhood Electrical Center Id. - 98/99 Buick Century/Regal
G50C05824Courtesy of GENERAL MOTORS CORP.

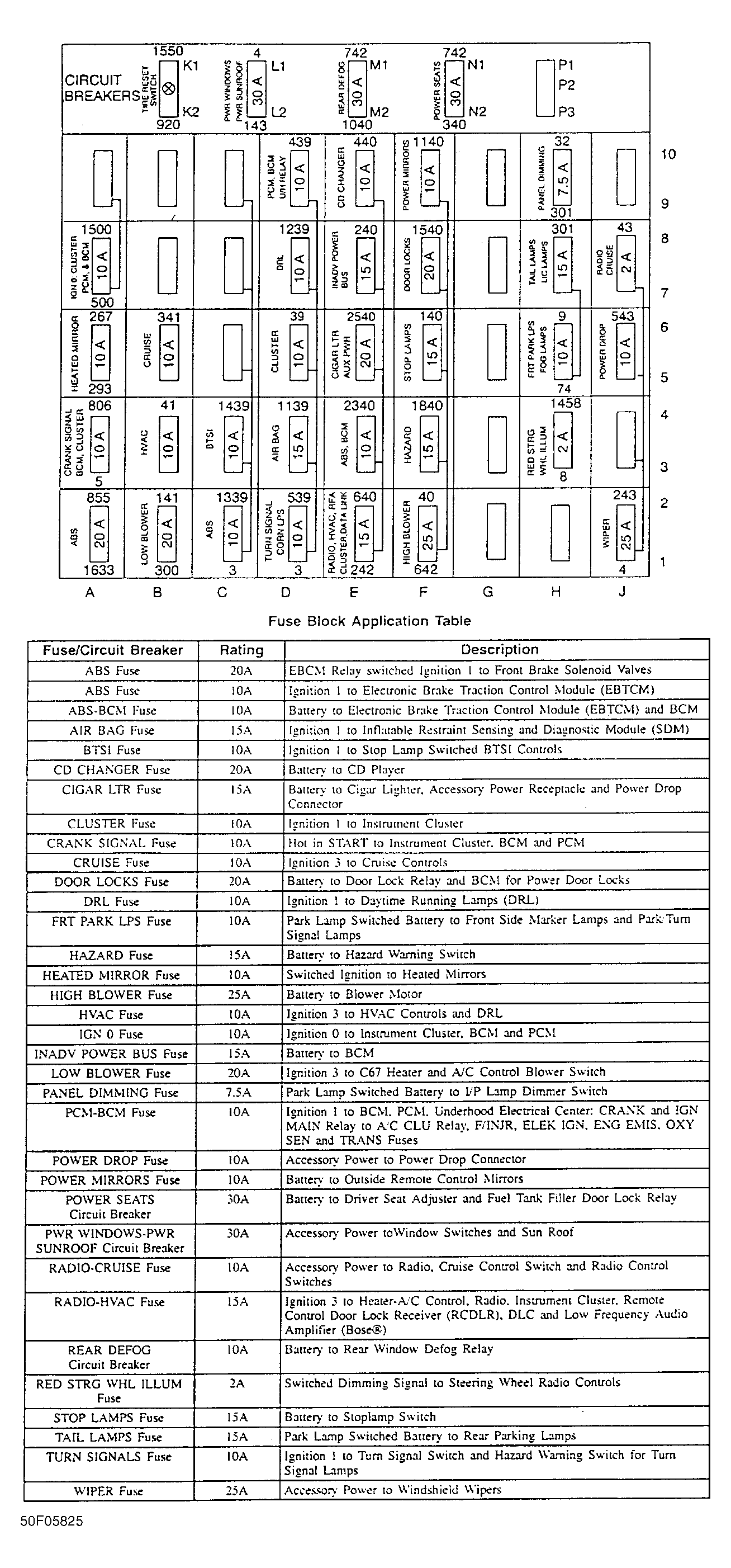

Fig 9: Instrument Panel Fuse Box Id. - 98/99 Oldsmobile Intrigue
G50F05825Courtesy of GENERAL MOTORS CORP.

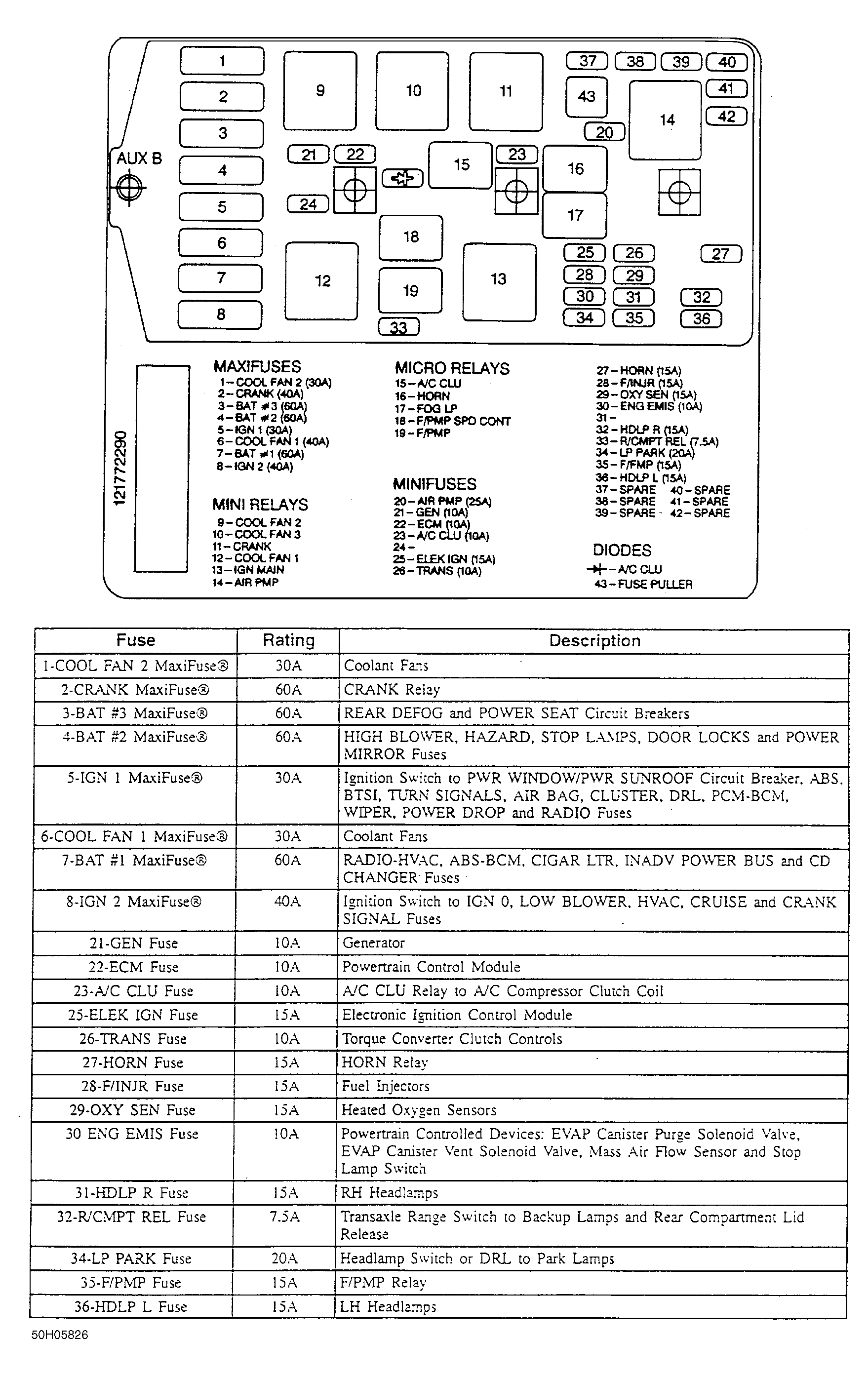

Fig 10: Underhood Electrical Center Id. - 98/99 Oldsmobile Intrigue
G50H05826Courtesy of GENERAL MOTORS CORP.
