Circuit Protection Devices
WARNING: This page is about a different car, the 2004 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
CIRCUIT PROTECTION DEVICES LOCATION
| Component |
Location |

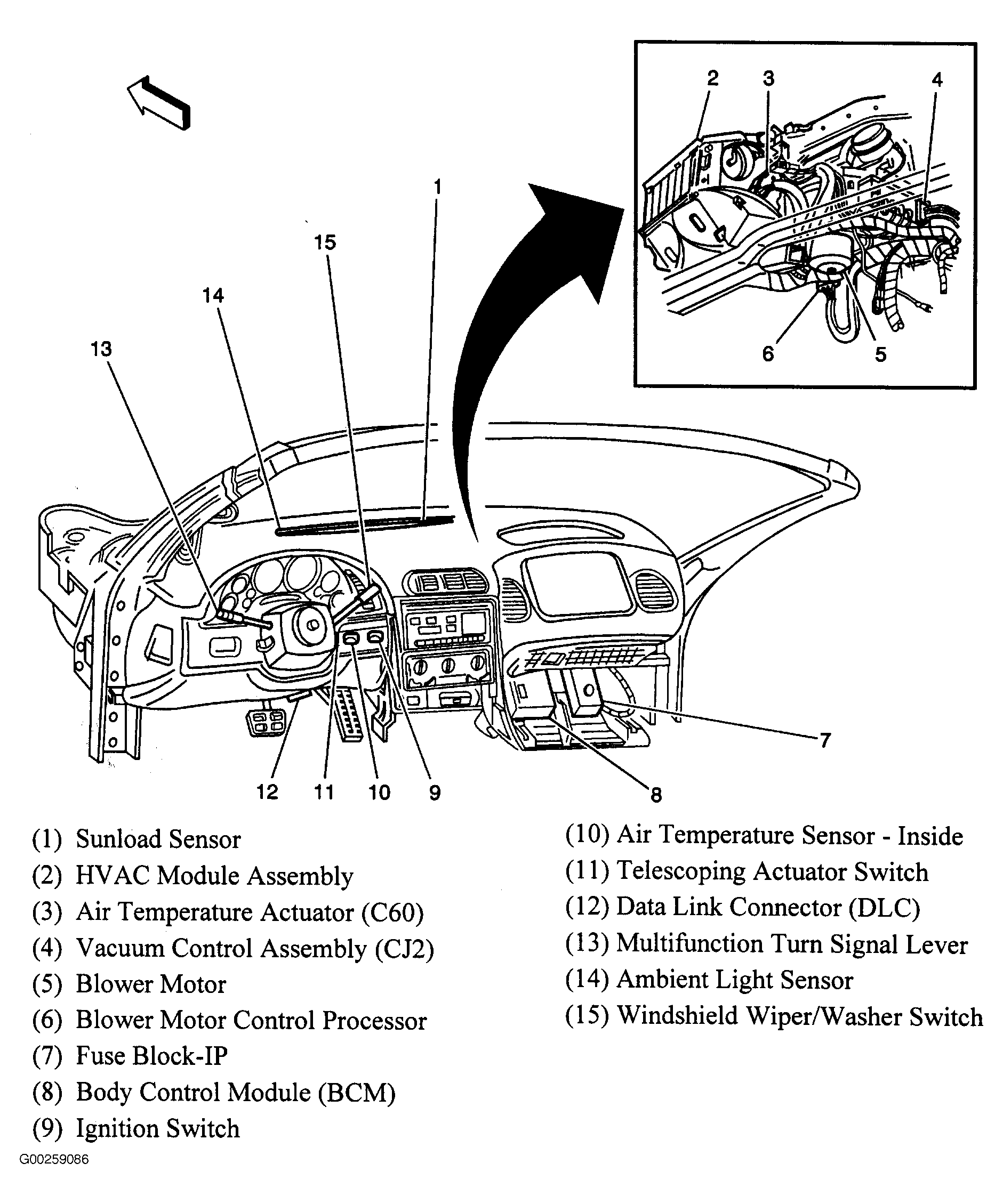

| I/P Fuse Block |
In right front footwell, mounted to toe board. See Figure
. |

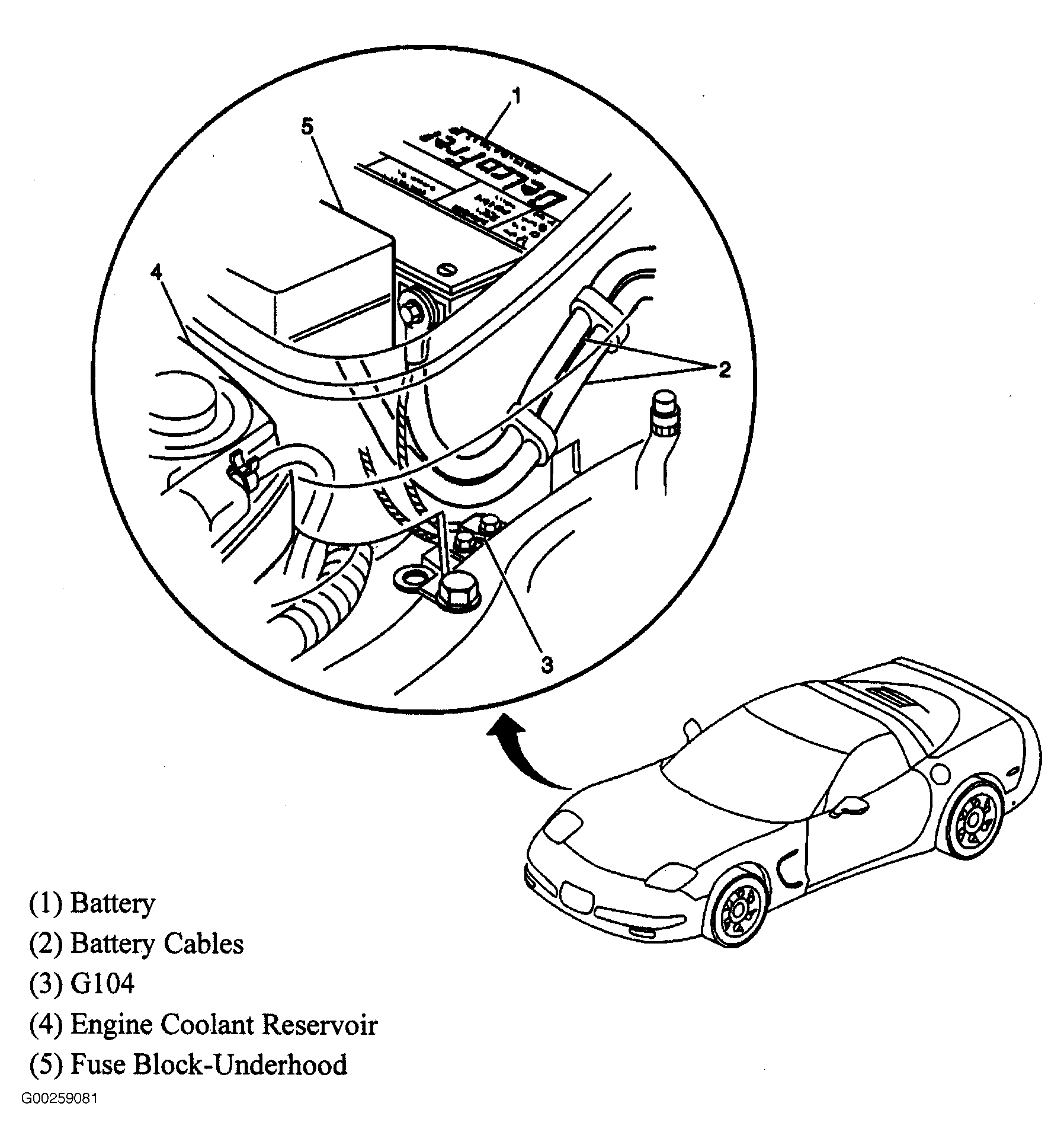

| Underhood Fuse Block |
On right side of engine compartment. See Figure
. |
