CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| Blower Motor Control Processor | Behind right side of dash. See Figure . |
| Body Control Module (BCM) | Mounted on toe board, in right footwell. See Figure . |

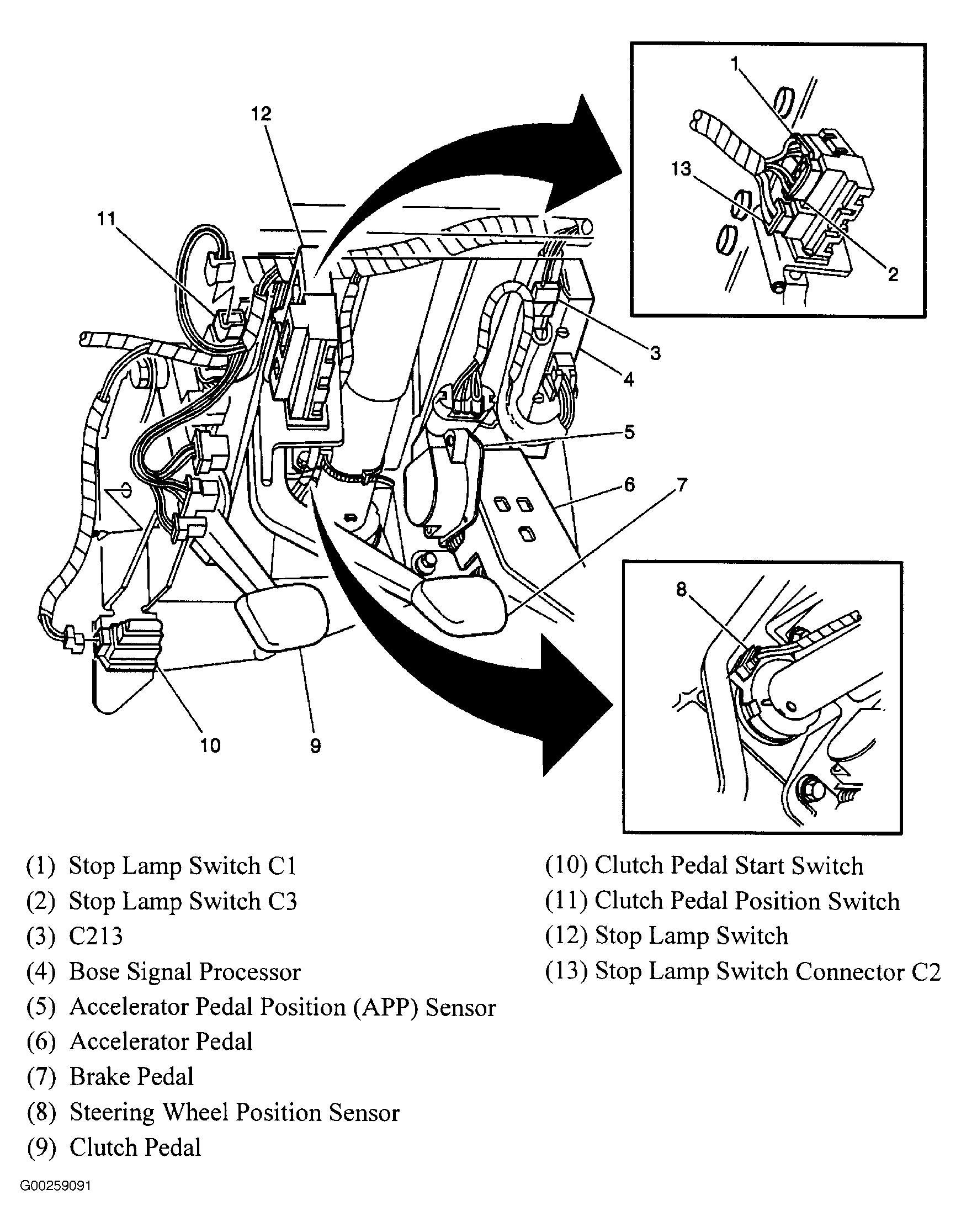

| BOSE Signal Processor | Under left side of dash, above accelerator pedal. See Figure . |

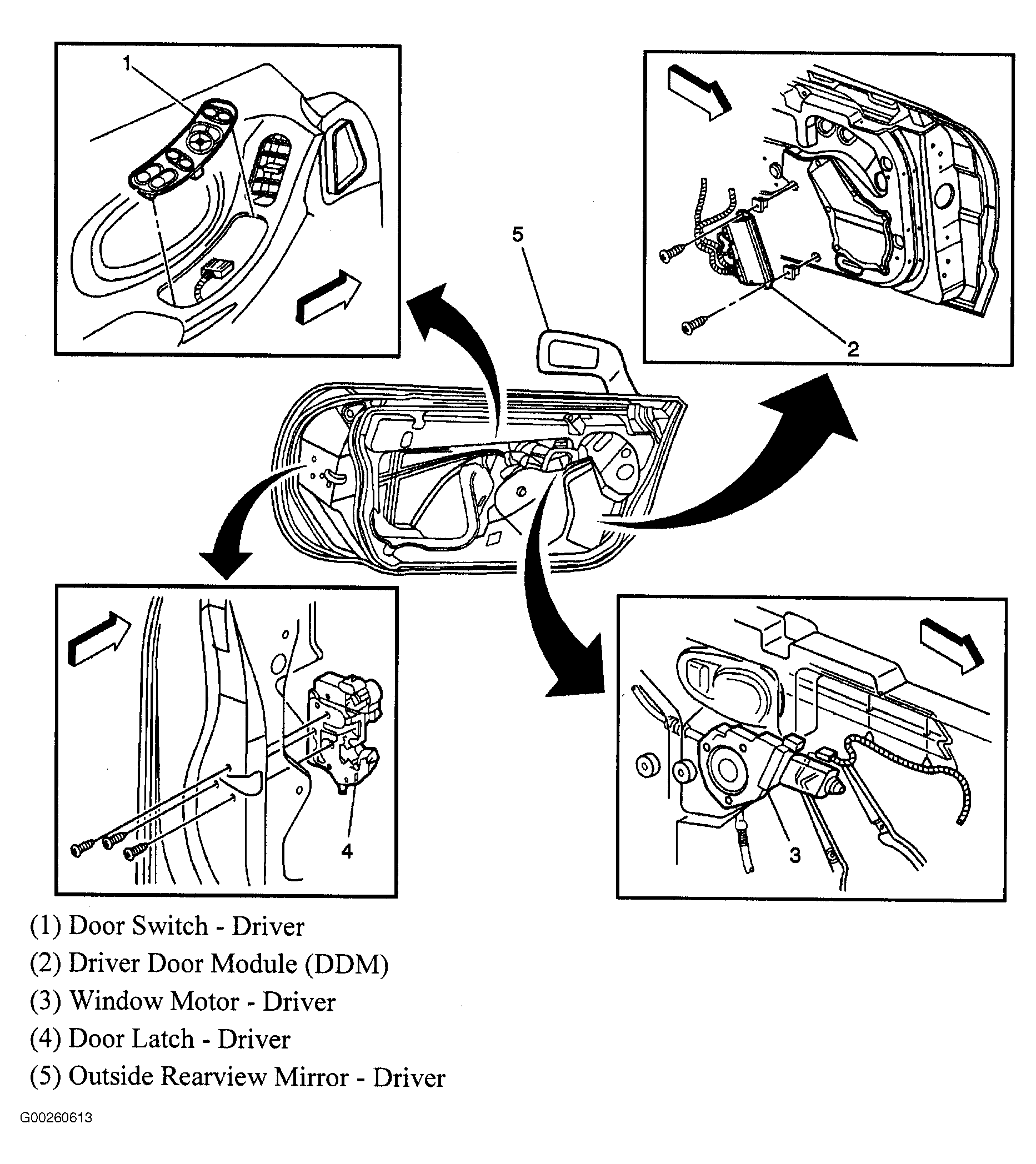

| Driver Door Module (DDM) | In lower center of respective door. See Figure . |

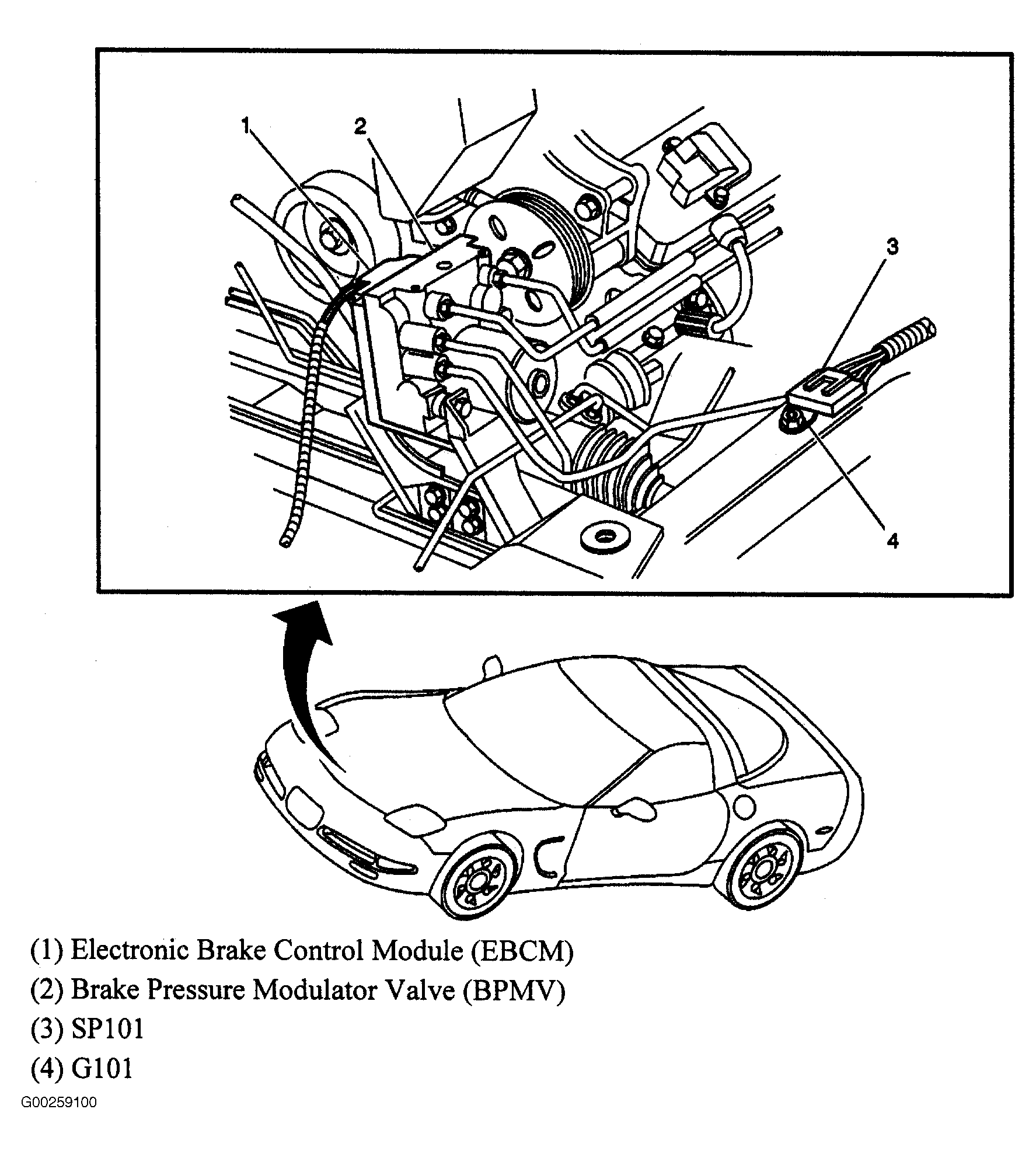

| Electronic Brake Control Module (EBCM) | At left front side of engine compartment, on frame rail. See Figure . |

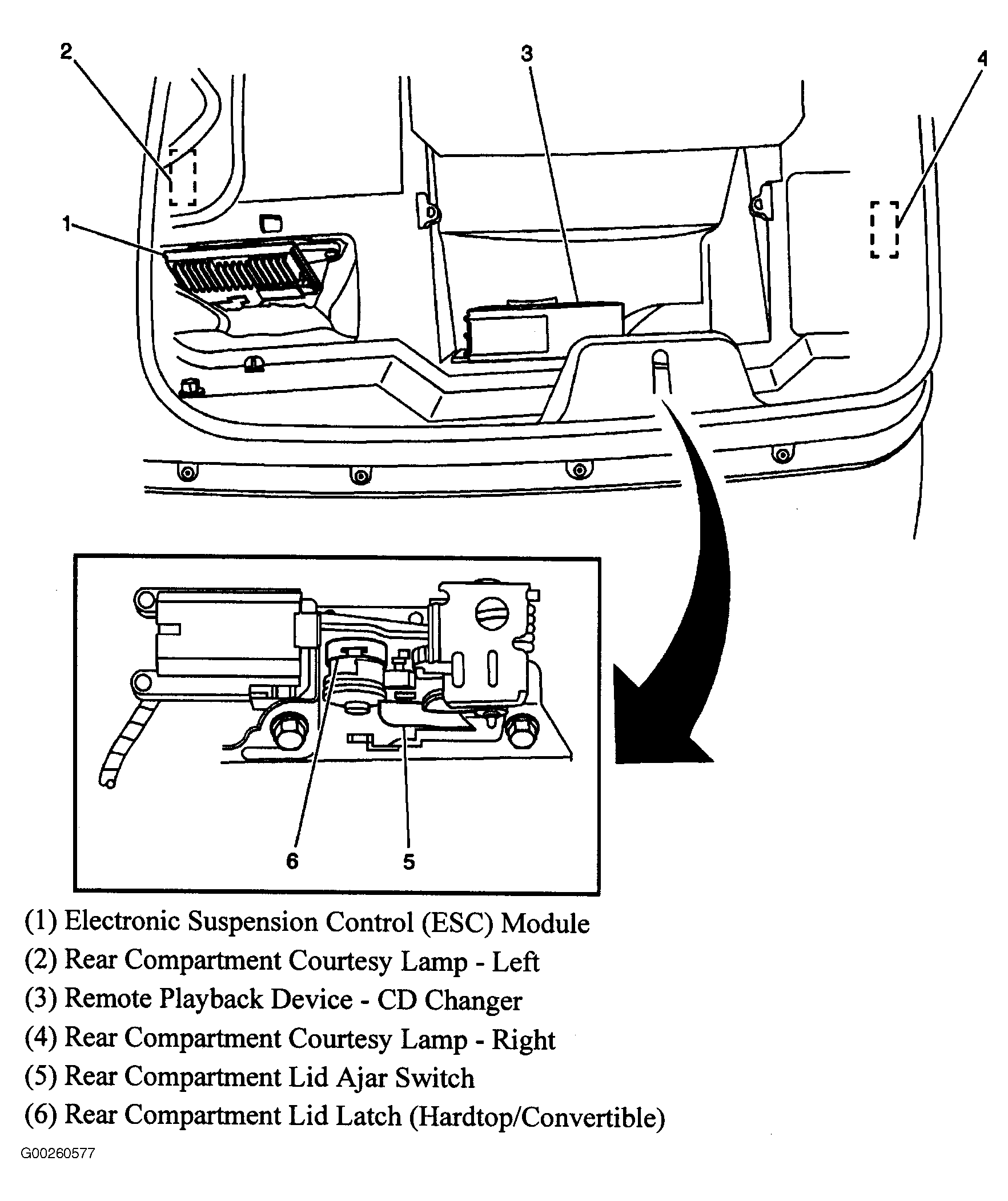

| Electronic Suspension Control (ESC) Module | In rear compartment, inside left storage compartment. See Figure . |
| HVAC Module Assembly | Center of dash, under radio. See Figure . |

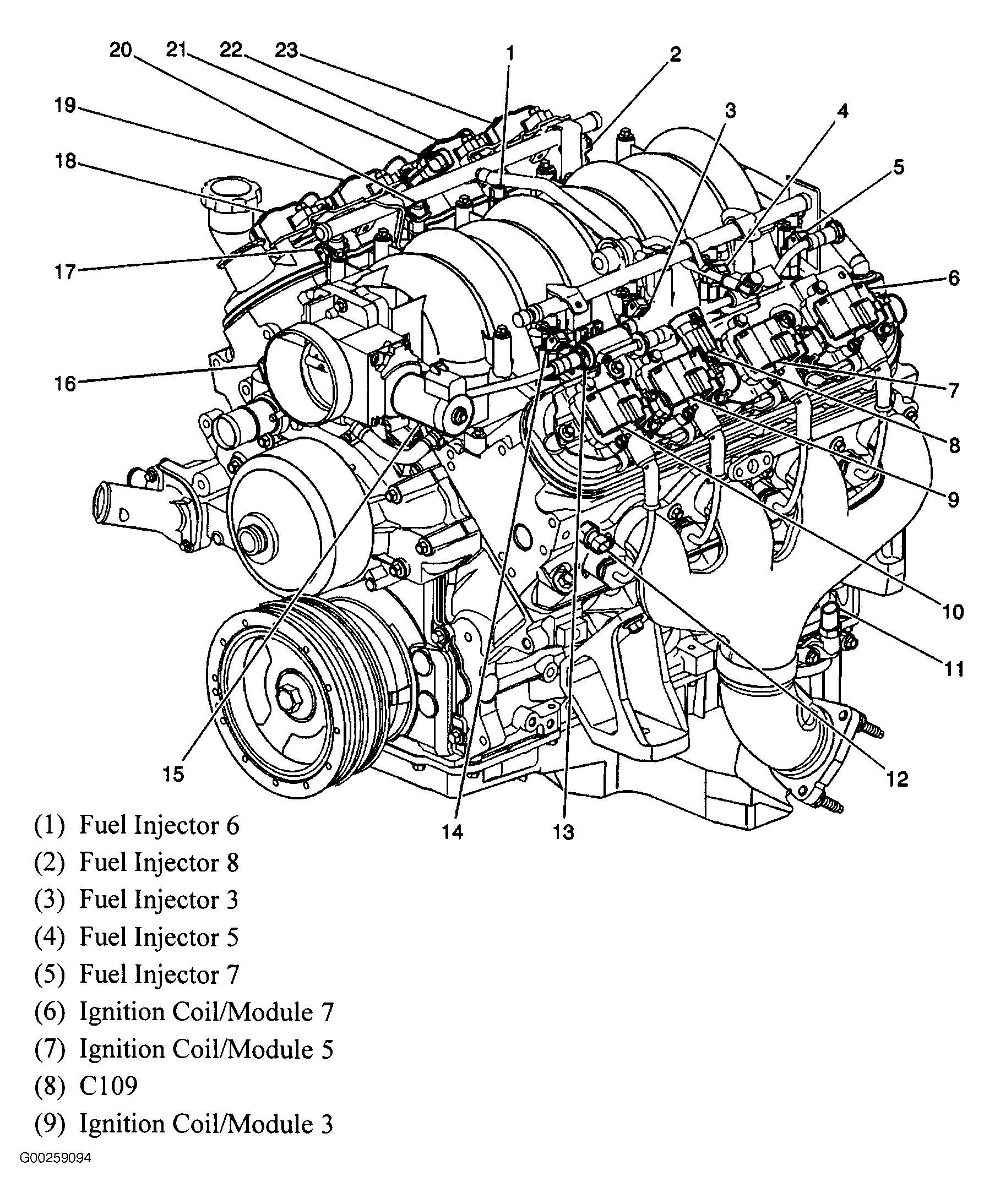

| Ignition Coil/Module | On valve cover, top of respective cylinder. See Figure . |
| Ignition Coil/Module 1 | On valve cover, top of respective cylinder. See Figure . |
| Ignition Coil/Module 2 | On valve cover, top of respective cylinder. See Figure . |
| Ignition Coil/Module 3 | On valve cover, top of respective cylinder. See Figure . |
| Ignition Coil/Module 4 | On valve cover, top of respective cylinder. See Figure . |
| Ignition Coil/Module 5 | On valve cover, top of respective cylinder. See Figure . |
| Ignition Coil/Module 6 | On valve cover, top of respective cylinder. See Figure . |
| Ignition Coil/Module 7 | On valve cover, top of respective cylinder. See Figure . |
| Ignition Coil/Module 8 | On valve cover, top of respective cylinder. See Figure . |

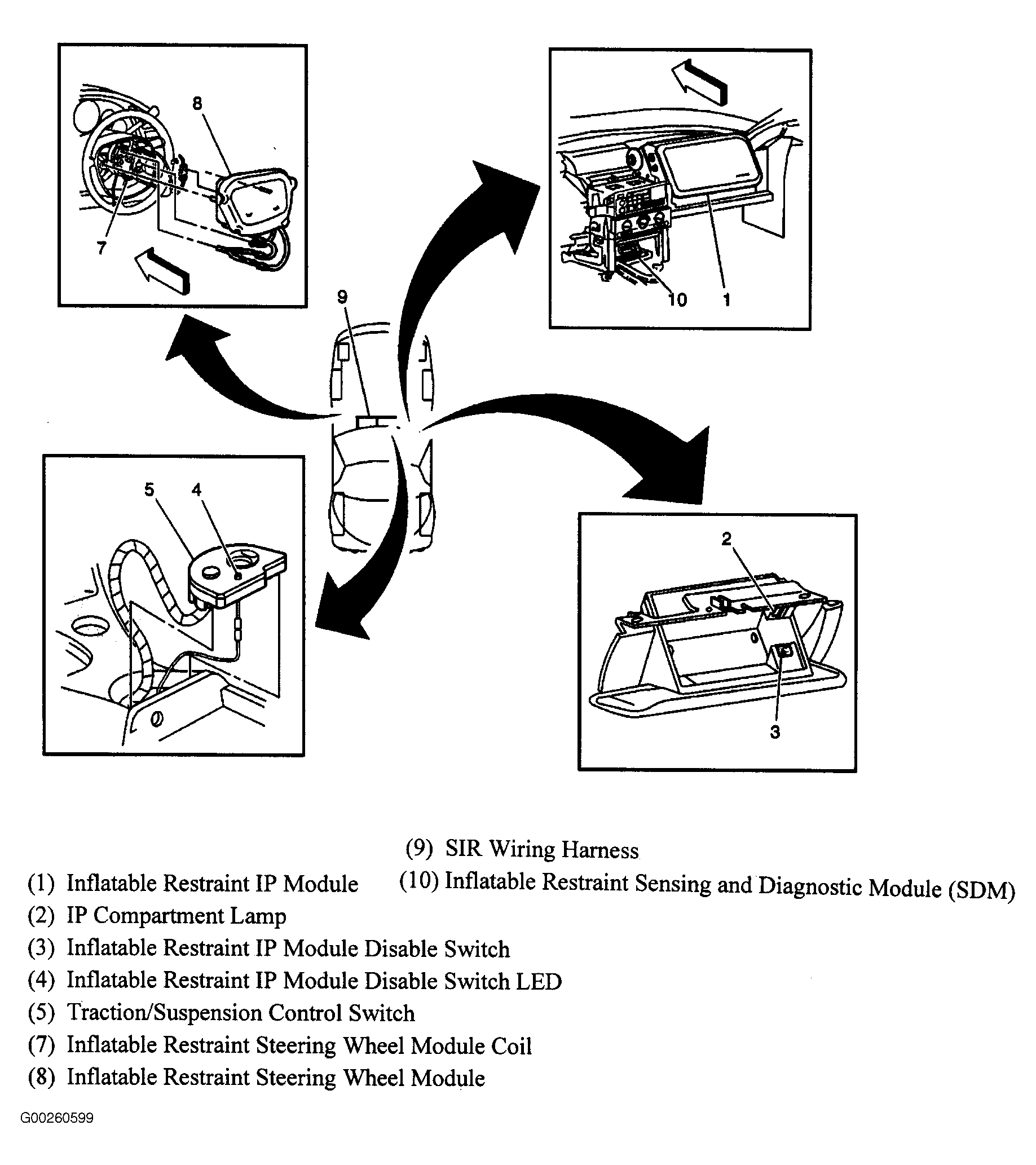

| Inflatable Restraint IP Module | At right side of dash. See Figure . |
| Inflatable Restraint Sensing & Diagnostic Module (SDM) | Below center of dash, under HVAC control head. See Figure . |
| Inflatable Restraint Steering Wheel Module | Top of steering wheel. See Figure . |
| Inflatable Restraint Steering Wheel Module Coil | Top of steering column. See Figure . |
| Passenger Door Module | Bottom center of door, rear of speaker. See Figure . |

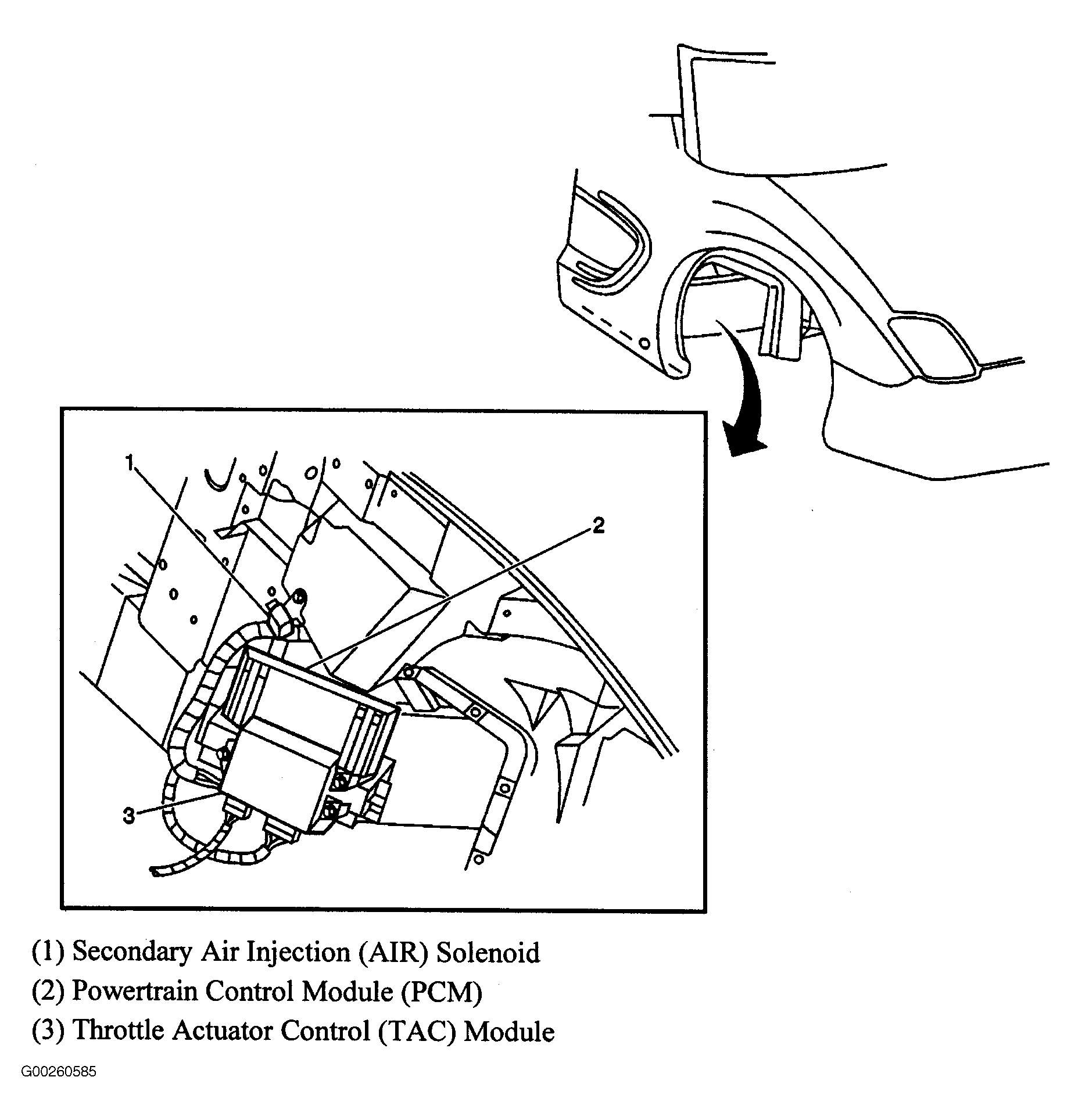

| Powertrain Control Module (PCM) | Behind right front fender, between wheelhouse & dash panel. See Figure . |

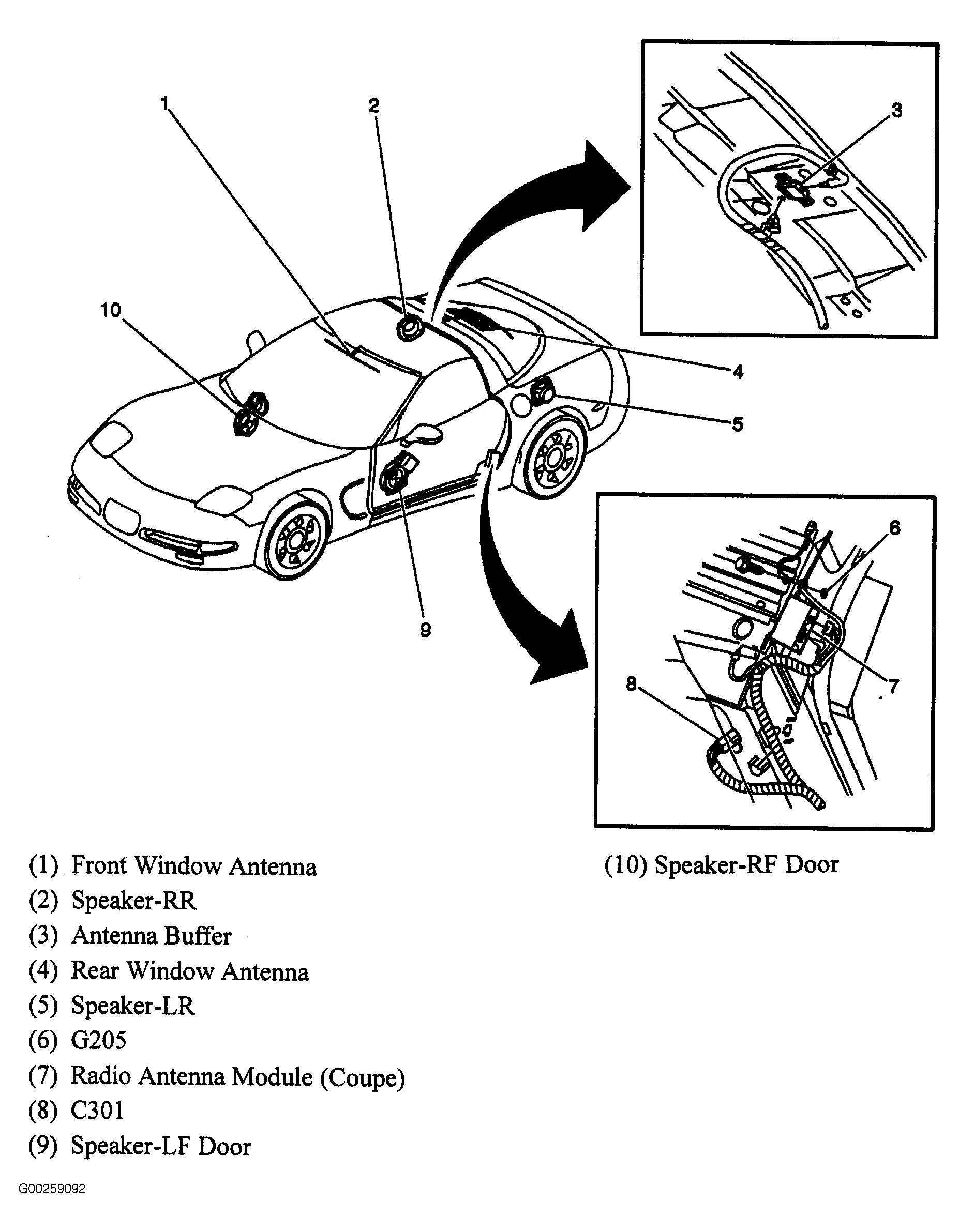

| Radio Antenna Module (Coupe) | Behind lower "B" pillar trim panel. See Figure . |

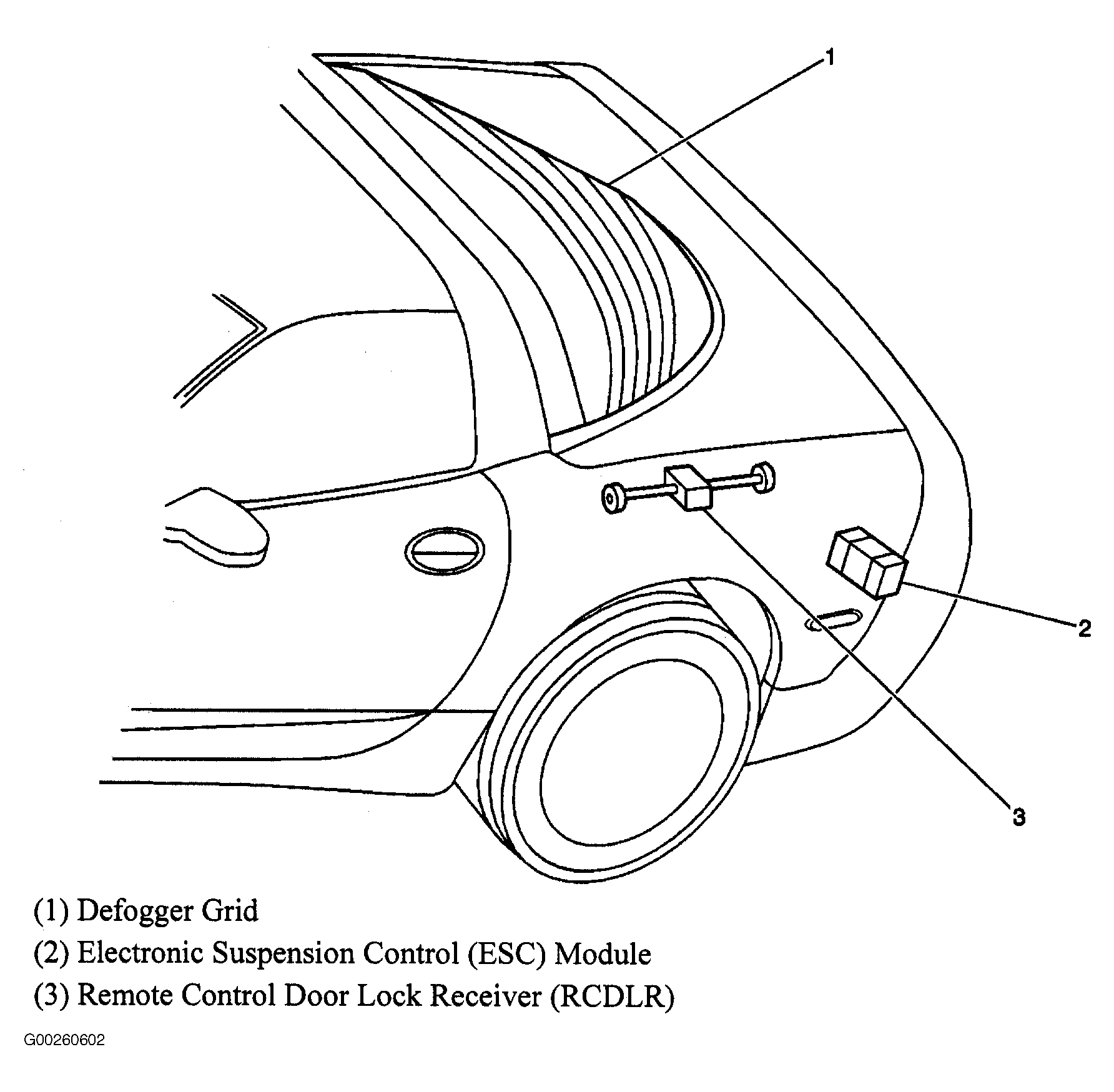

| Remote Control Door Lock Receiver (RCDLR) | On left side of rear compartment. See Figure . |

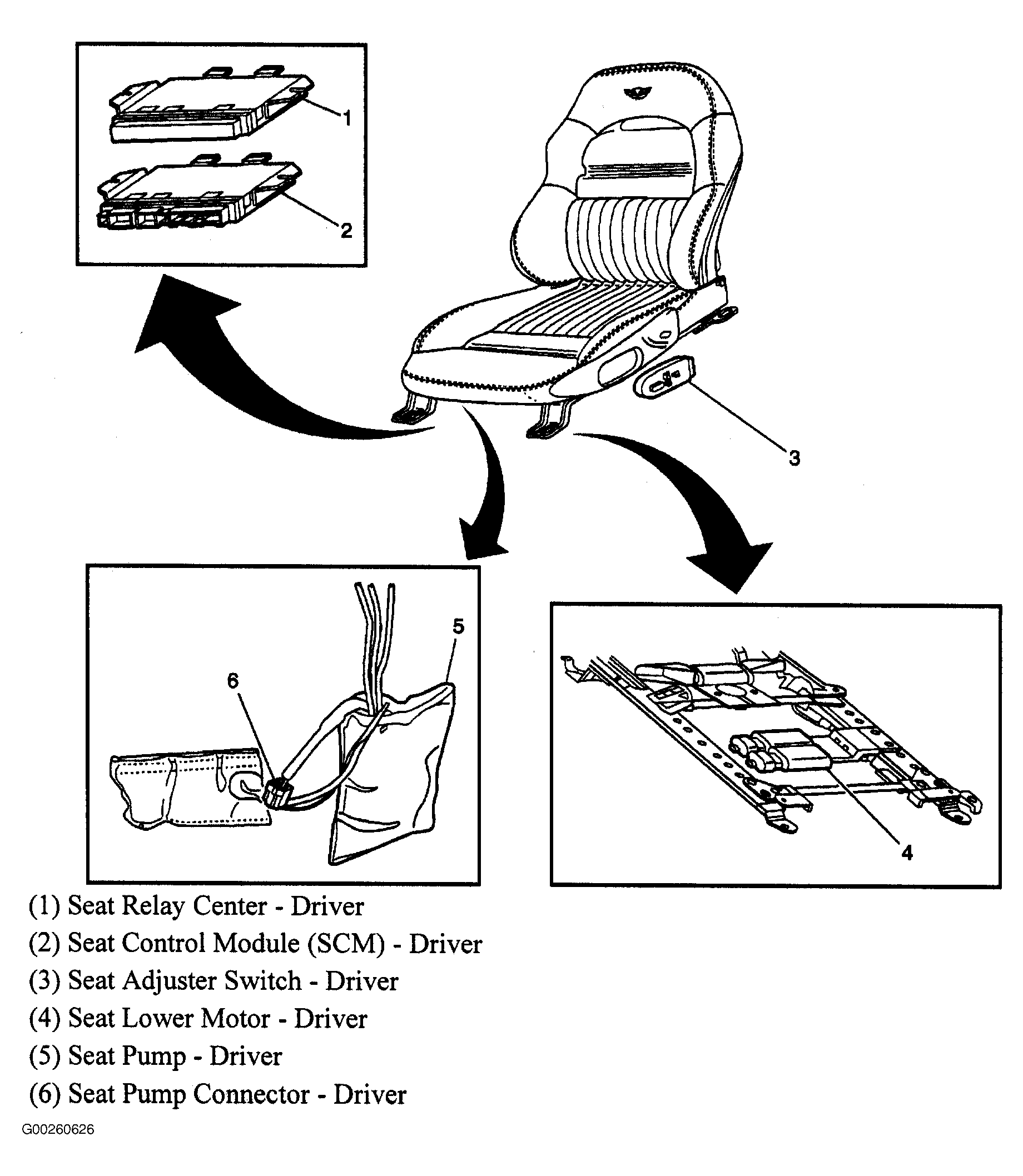

| Seat Control Module (SCM) (Driver) | Under driver seat. See Figure . |
| Seat Control Module (SCM) (Passenger) | Under passenger seat. See Figure . |
| Throttle Actuator Control (TAC) Module | On PCM, below battery. See Figure . |
| Vacuum Control Assembly | On right side of HVAC unit, right of blower motor. See Figure . |
