ABS Connector End Views

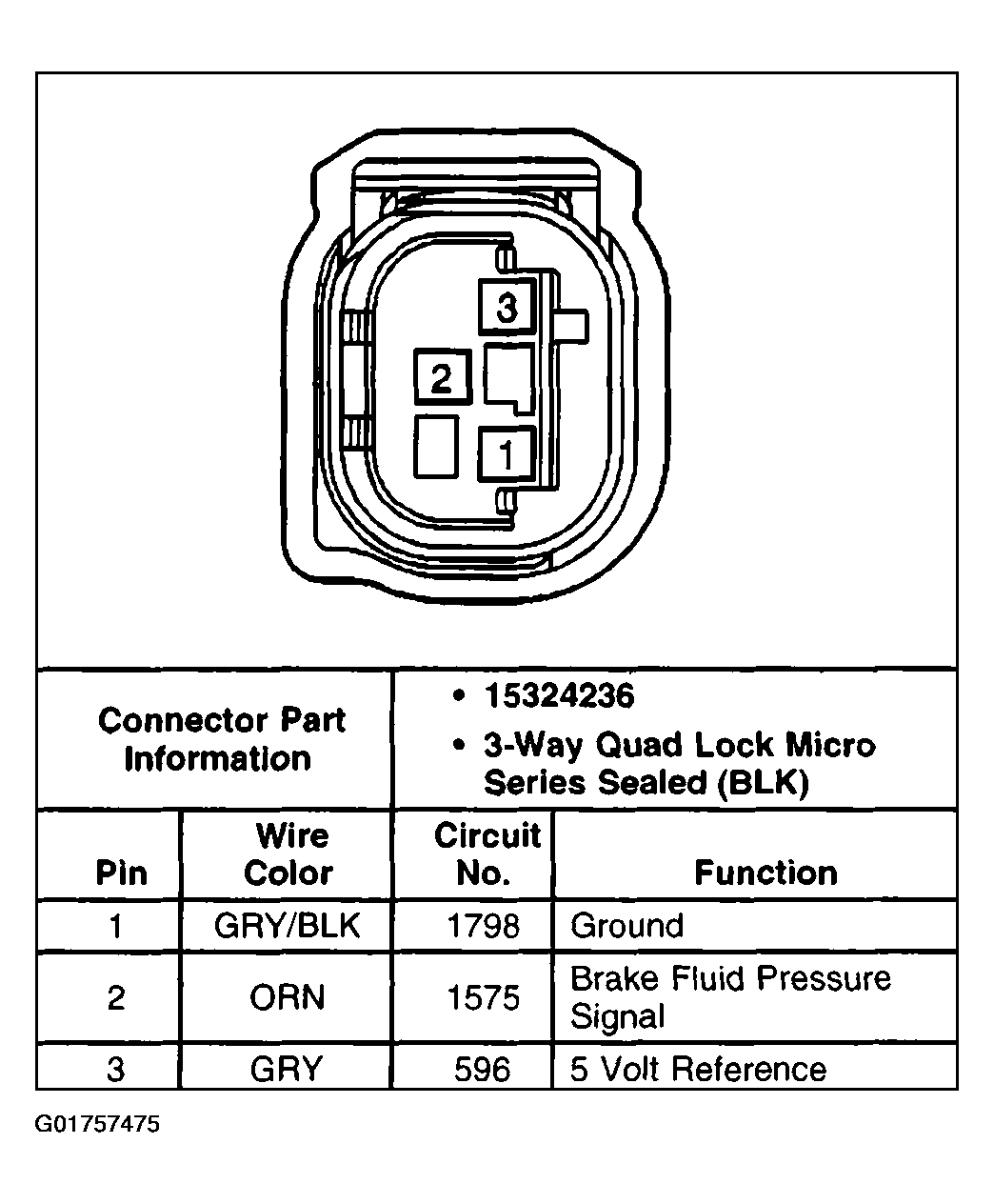

Fig 1: Brake Fluid Pressure Sensor (w/JL4)

Courtesy of GENERAL MOTORS CORP.

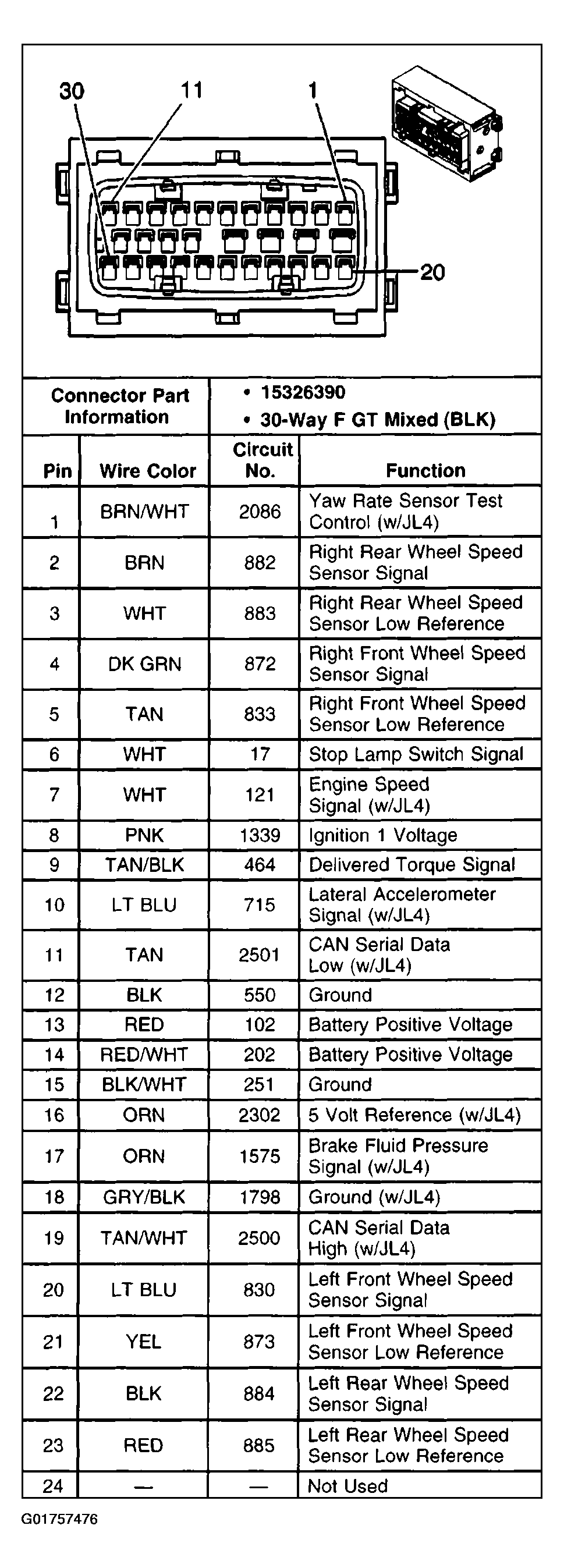

Fig 2: Electronic Brake Control Module (EBCM) (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

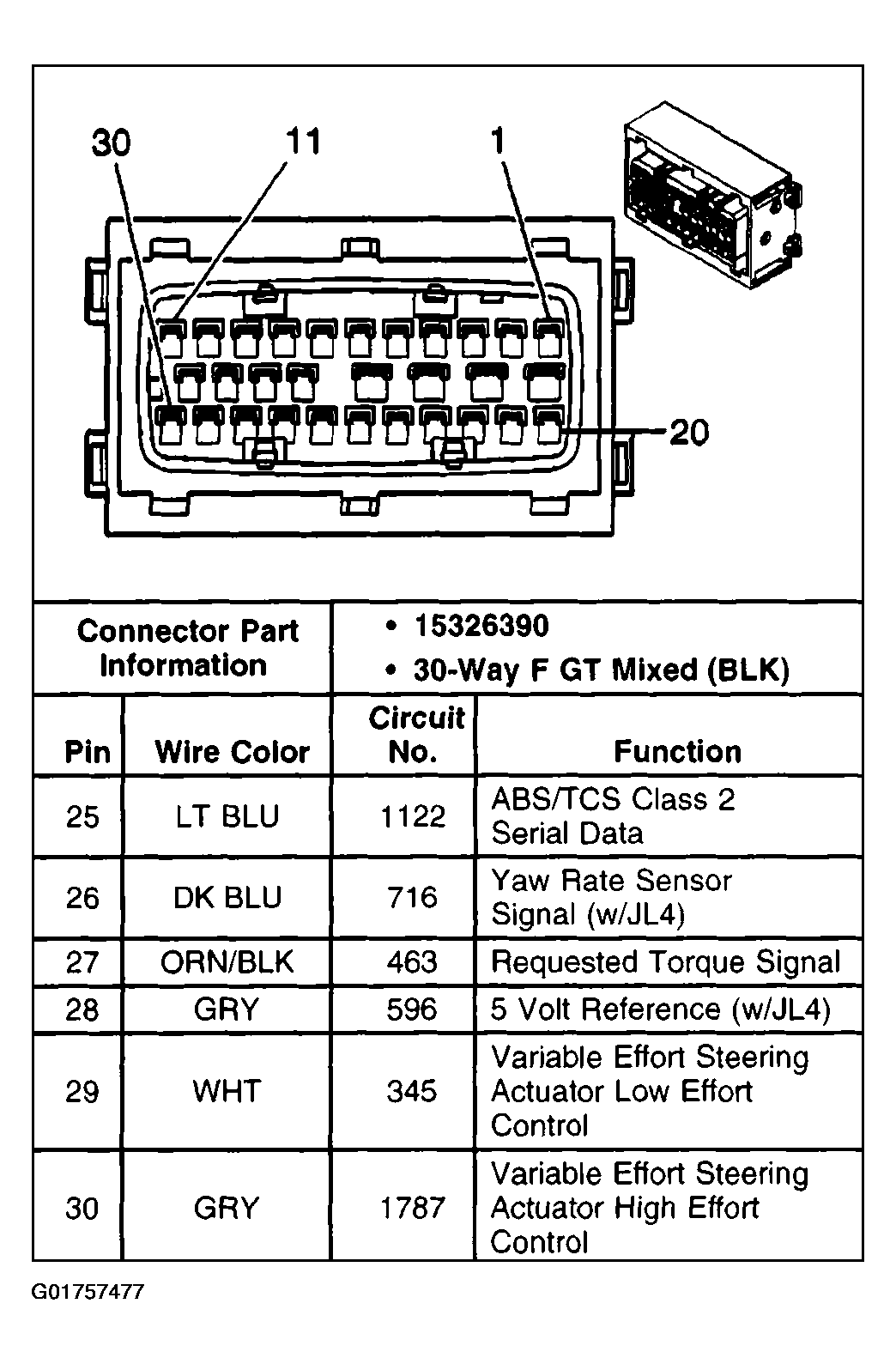

Fig 3: Electronic Brake Control Module (EBCM) (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

Fig 4: Traction Control Switch

Courtesy of GENERAL MOTORS CORP.

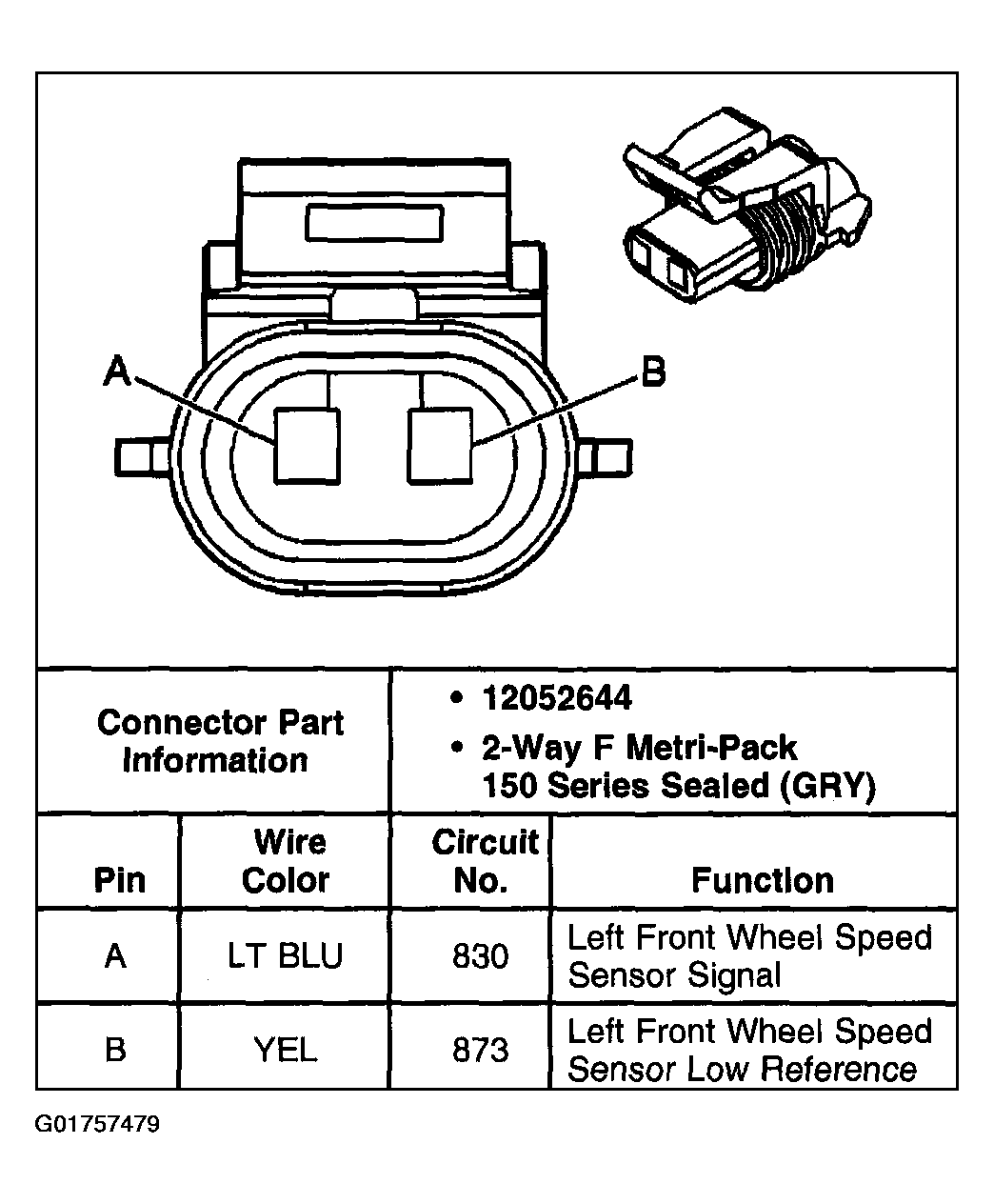

Fig 5: Wheel Speed Sensor (WSS) - LF

Courtesy of GENERAL MOTORS CORP.

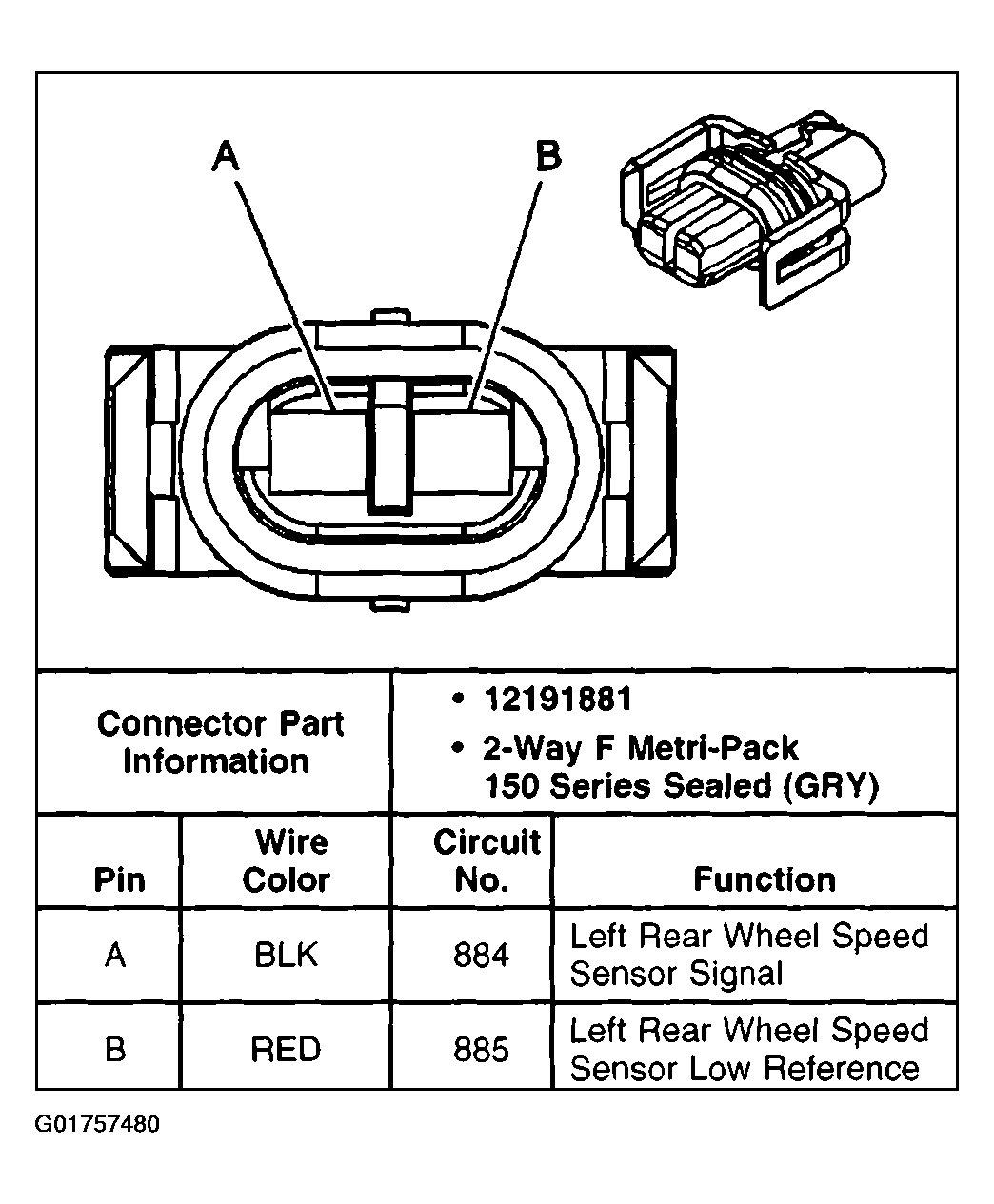

Fig 6: Wheel Speed Sensor (WSS) - LR

Courtesy of GENERAL MOTORS CORP.

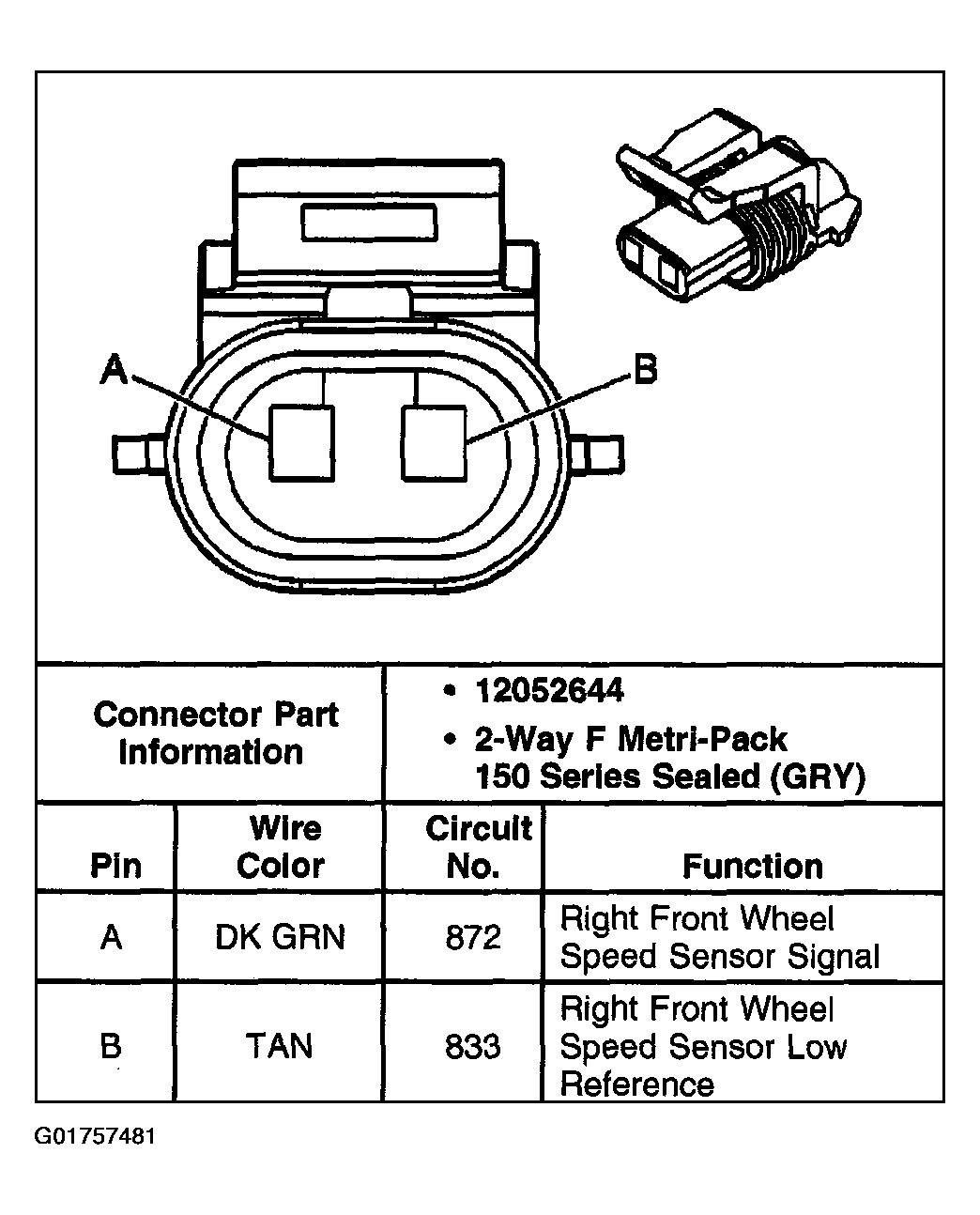

Fig 7: Wheel Speed Sensor (WSS) - RF

Courtesy of GENERAL MOTORS CORP.

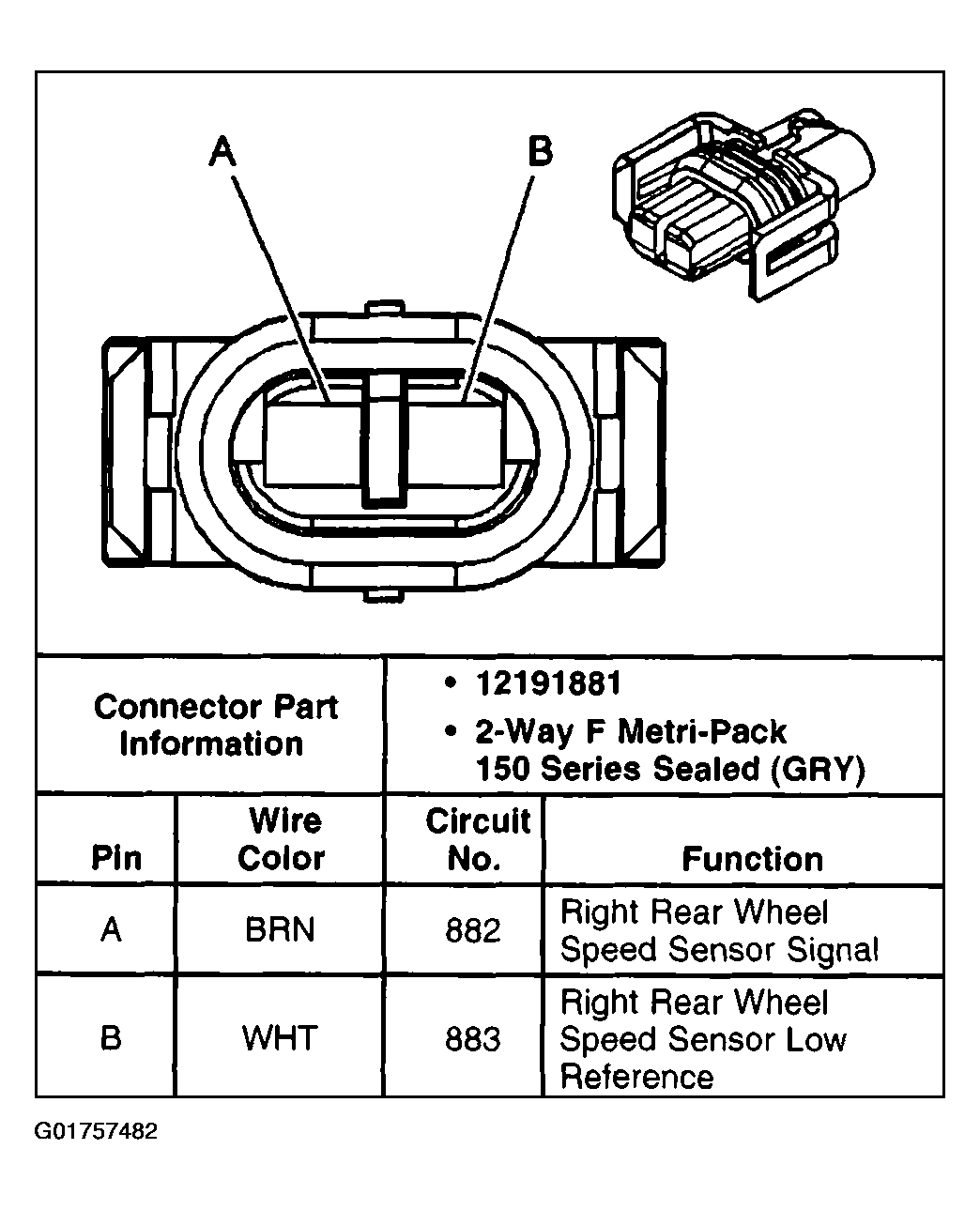

Fig 8: Wheel Speed Sensor (WSS) - RR

Courtesy of GENERAL MOTORS CORP.

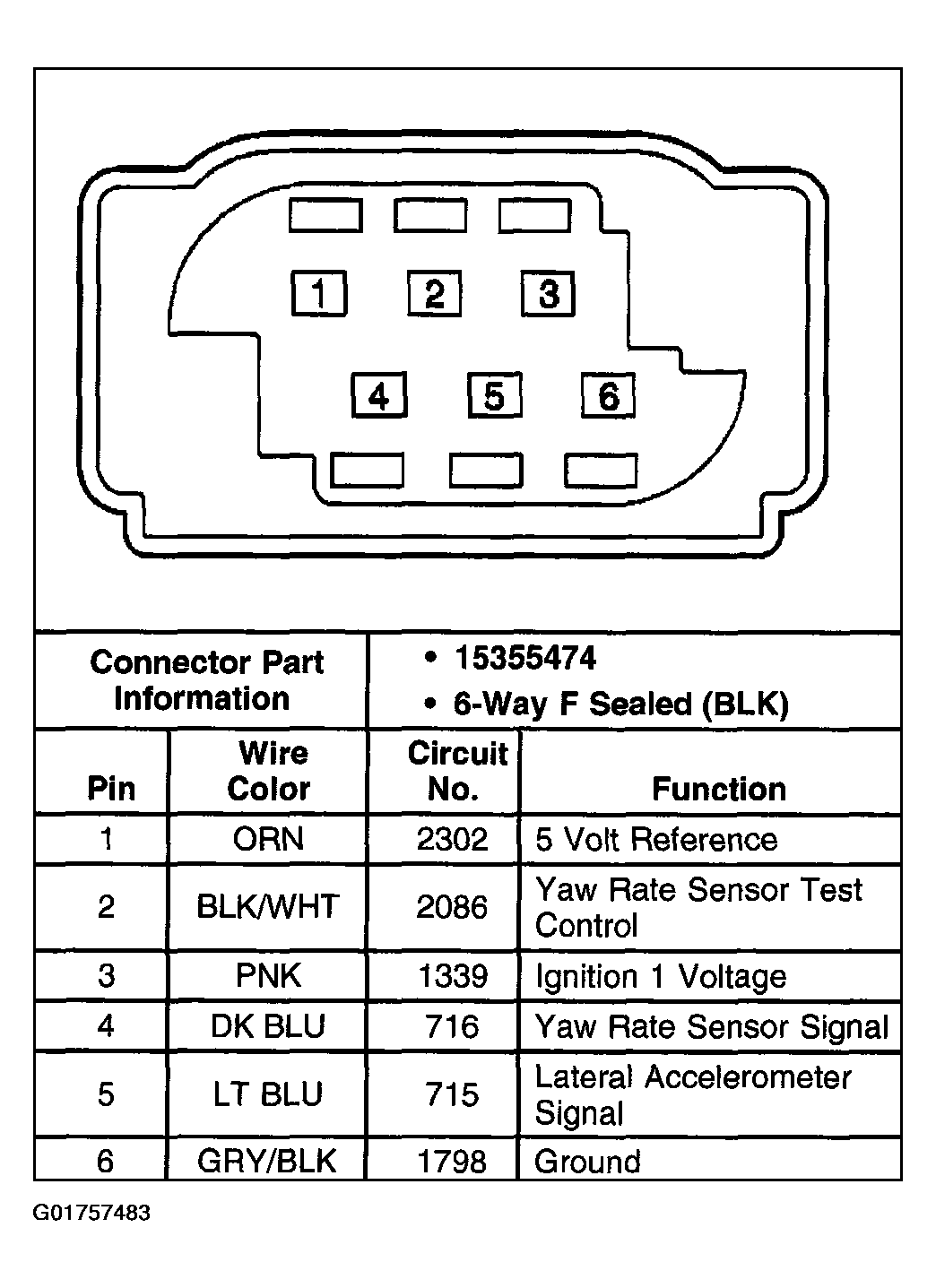

Fig 9: Yaw and Lateral Acceleration Sensor (w/JL4)

Courtesy of GENERAL MOTORS CORP.
