Removal Procedure

NOTE: To prevent equipment damage, never connect or disconnect the wiring harness connection from the EBCM with the ignition switch in the ON position.
  1. Turn the ignition switch to the OFF position.
  2. Remove the fuel injector sight shield. Refer to FUEL INJECTOR SIGHT SHIELD REPLACEMENT in Engine Mechanical-3.5L.
  3. Remove the front fender upper diagonal brace. Refer to BRACE REPLACEMENT - SHEET METAL DIAGONAL in Body Front End.
  4. Disconnect the accelerator and cruise control cable from the accelerator control cable bracket.
  5. Disconnect the cruise control module from the left strut tower. It is not necessary to remove the cable from the module. Refer to CRUISE CONTROL MODULE REPLACEMENT In Cruise Control. Position the module and cables aside.
  6. Remove the air cleaner intake duct.
  7. Disengage the locking tab (1) from the EBCM harness connector.
  8. Disconnect the EBCM harness connector.
  9. Remove any dirt/debris from the assembly.
  10. Remove the 6 EBCM to BPMV retainers (2).

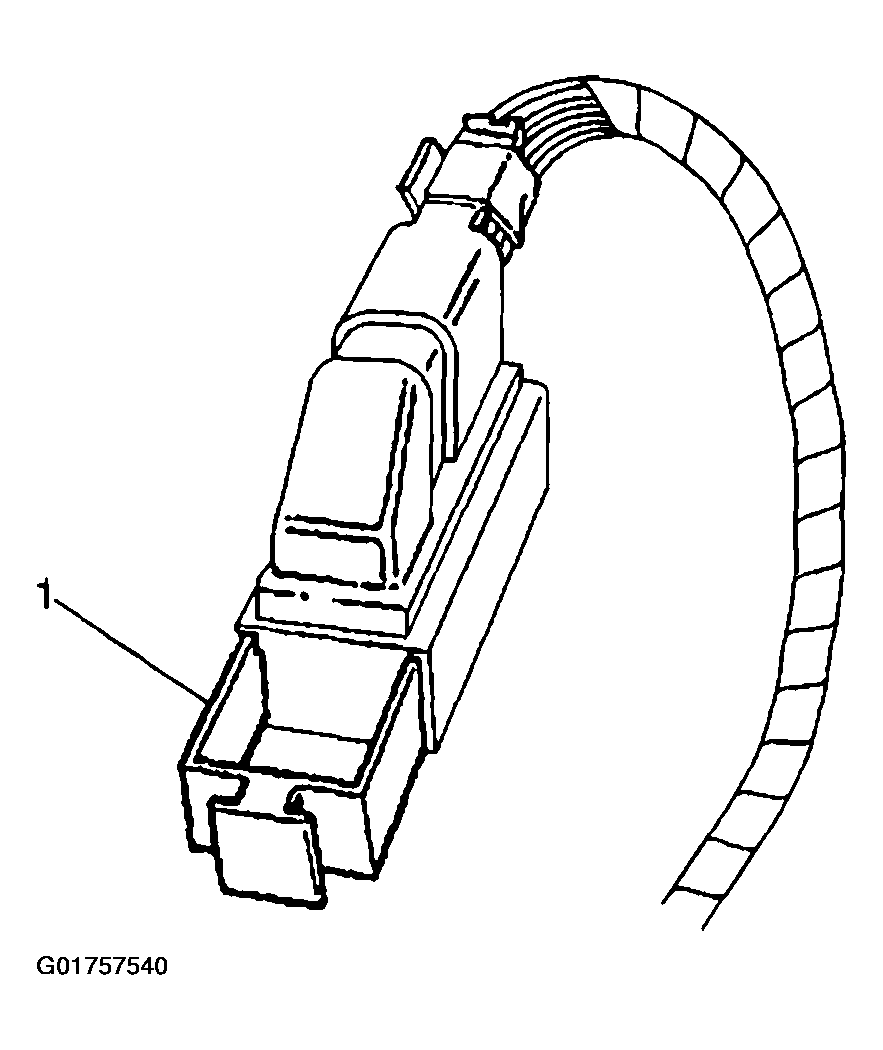

    Fig 1: Disengage Locking Tab From EBCM Harness Connector
    G01757540Courtesy of GENERAL MOTORS CORP.

    Important:  Do not pry apart using a tool. Be careful not to damage BPMV surface.

    Important:  Care must be taken not to damage the solenoid valves when the EBCM is removed from the BPMV.

  11. Separate the EBCM (1) from the BPMV (4) by gently pulling apart until separated.
  12. Disconnect the pump motor connector (3) at the bottom of the EBCM.

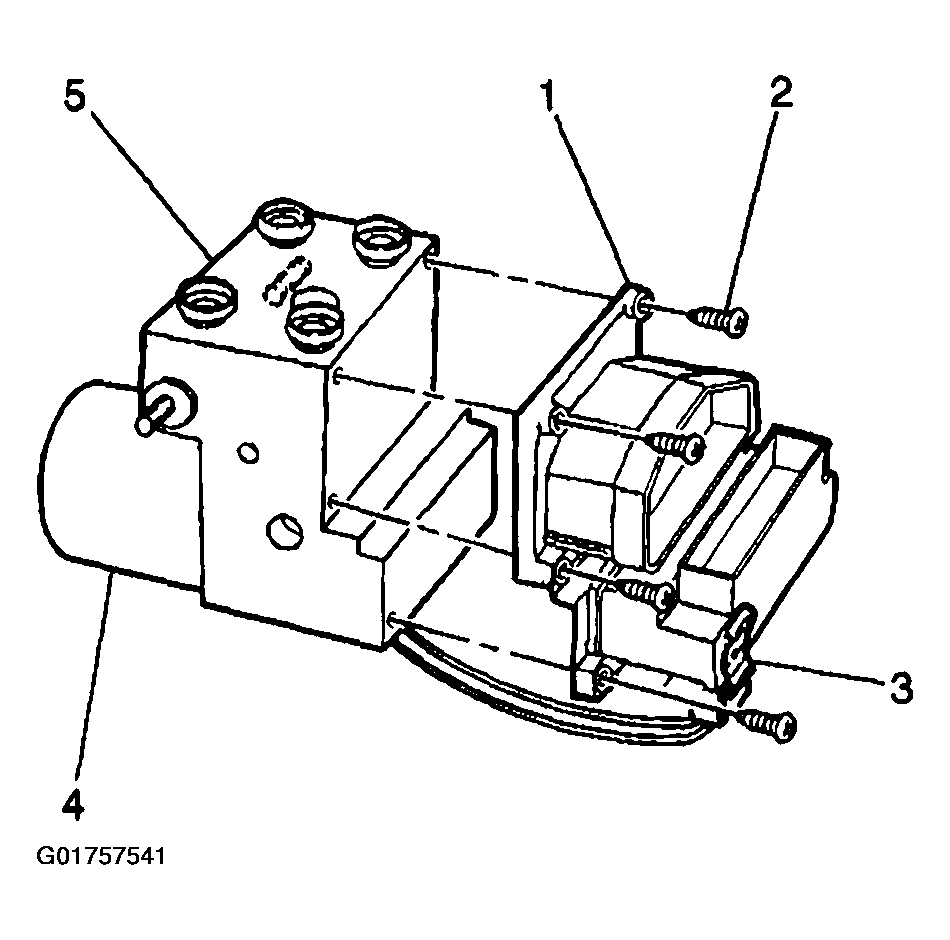

    Fig 2: Separate EBCM From BPMV
    G01757541Courtesy of GENERAL MOTORS CORP.
