Installation Procedure

  1. Install the hub and bearing assembly (2) to the vehicle. Refer to WHEEL BEARING/HUB REPLACEMENT - FRONT in Front Suspension.
    Fig 1: Install Hub And Bearing Assembly To Vehicle
    G01757556Courtesy of GENERAL MOTORS CORP.
  2. Install the front wheel speed sensor jumper harness electrical connector (1).
  3. Install the wheel and tire assembly. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION in Tires and Wheels.
  4. Lower the vehicle.
  5. Turn the ignition switch to the ON position with the engine off.
  6. Perform the Diagnostic System Check - ABS .

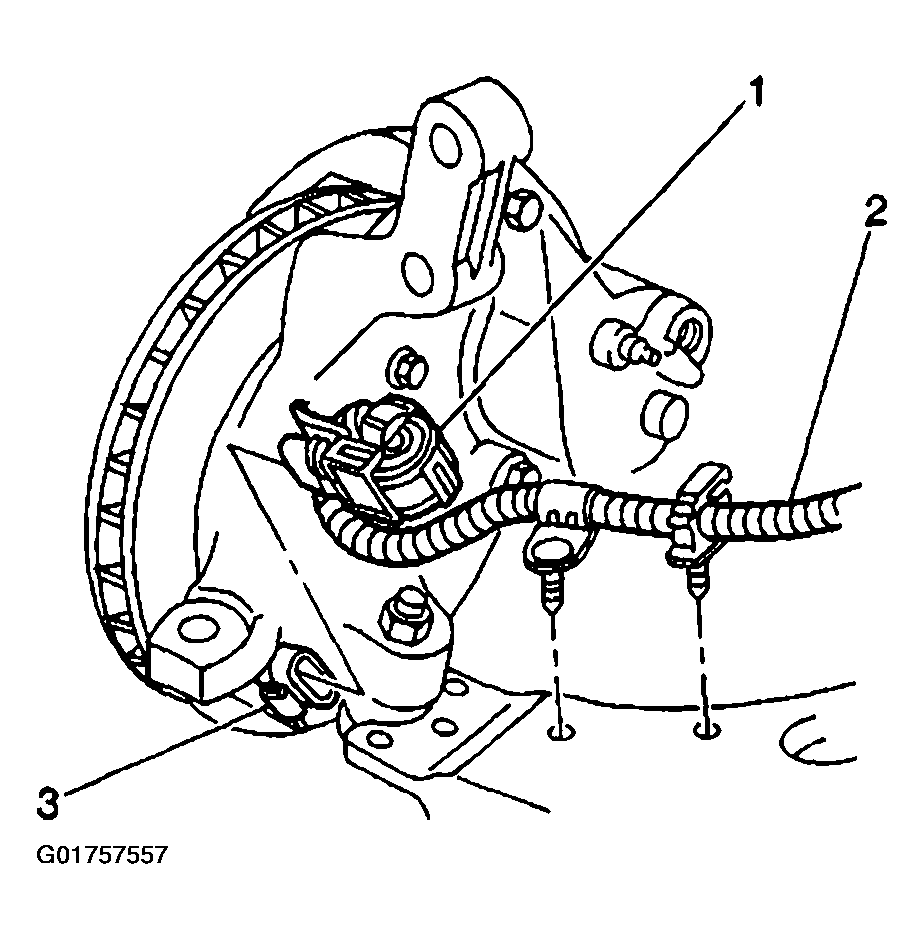

    Fig 2: Install Front Wheel Speed Sensor Jumper Harness Electrical Connector
    G01757557Courtesy of GENERAL MOTORS CORP.
