Installation Procedure

  1. Install the battery insulator to the battery.

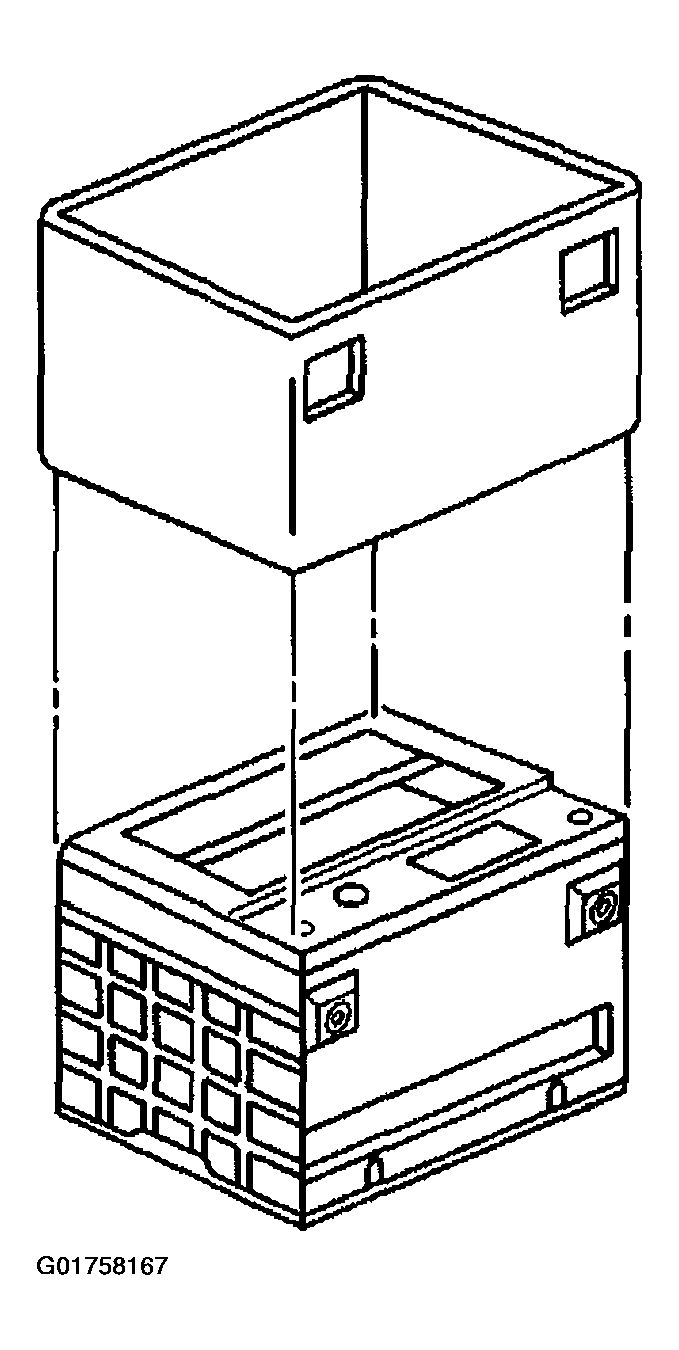

    Fig 1: Installing Battery Insulator To Battery
    G01758167Courtesy of GENERAL MOTORS CORP.

    Important:  Do not tip the battery more than 40 degrees during installation.

  2. Install the battery (3).
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the battery hold down retainer (2).
  4. Install the battery hold down retainer bolt (1).

    Tighten

    Tighten the bolt to 18 N.m (13 lb ft).

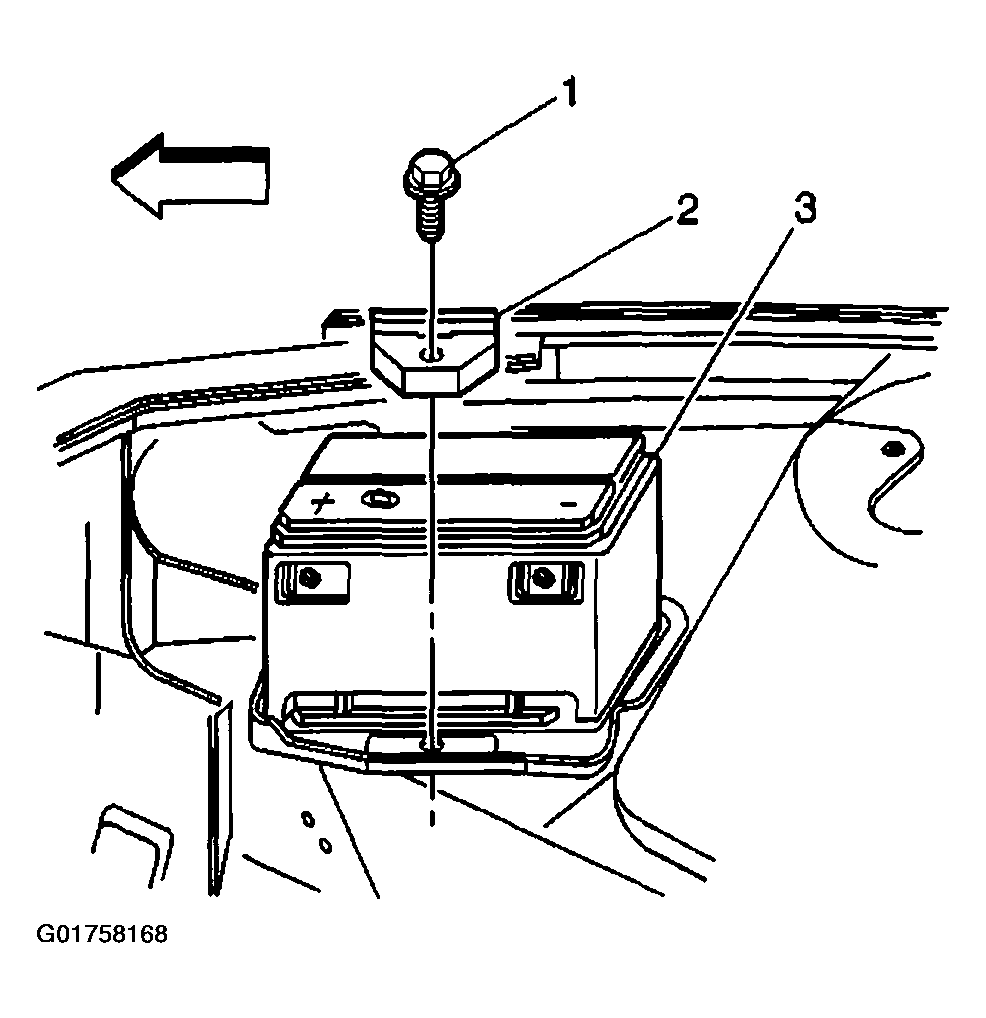

    Fig 2: Installing Battery, Battery Hold Down Retainer And Bolt
    G01758168Courtesy of GENERAL MOTORS CORP.
  5. Connect the positive battery cable.

    Tighten

    Tighten the bolt to 15 N.m (11 lb ft).

  6. Install the right front diagonal brace. Refer to BRACE REPLACEMENT - SHEET METAL DIAGONAL in Body Front End.
  7. Connect the negative battery cable. Refer to Battery Negative Cable Disconnect/Connect Procedure .

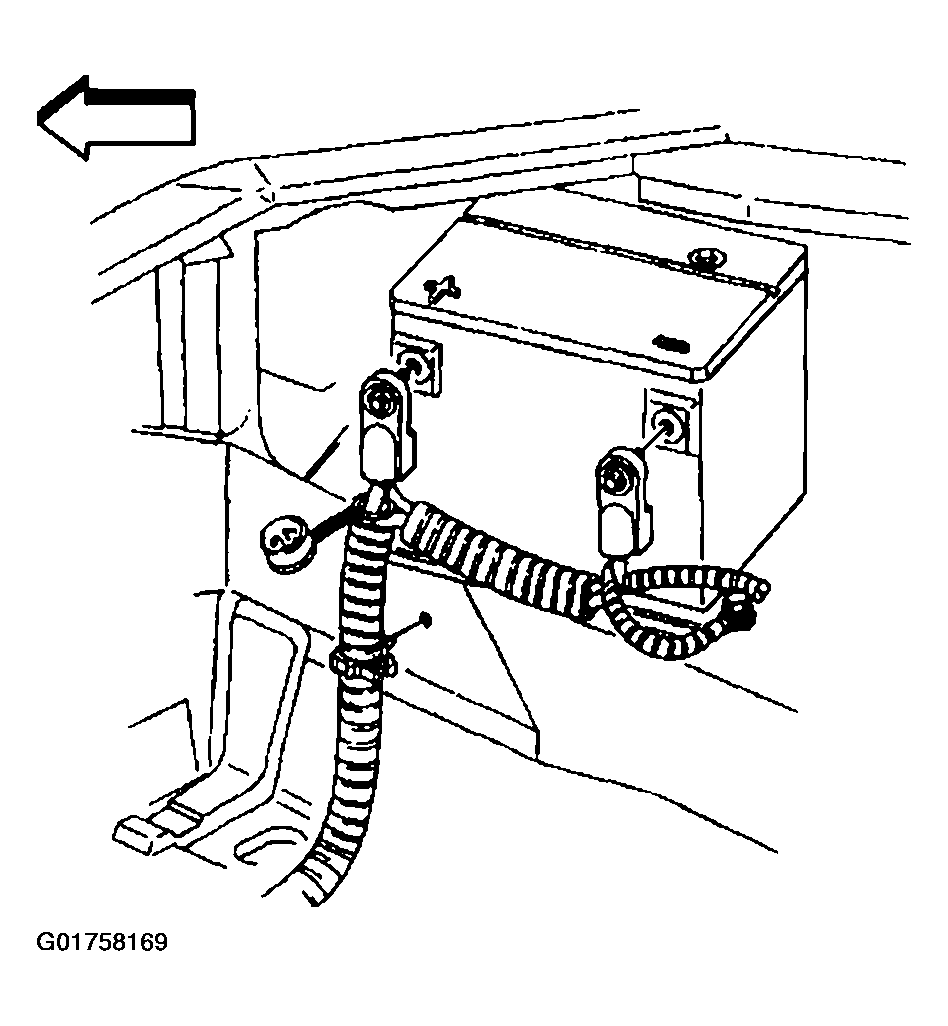

    Fig 3: Connecting Positive Battery Cable
    G01758169Courtesy of GENERAL MOTORS CORP.
