Installation Procedure

Install the seat belt retractor into the T-slot in the lower center pillar.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Install the seat belt retractor bolt.
Tighten

Tighten the bolt to 68 N.m (50 lb ft).

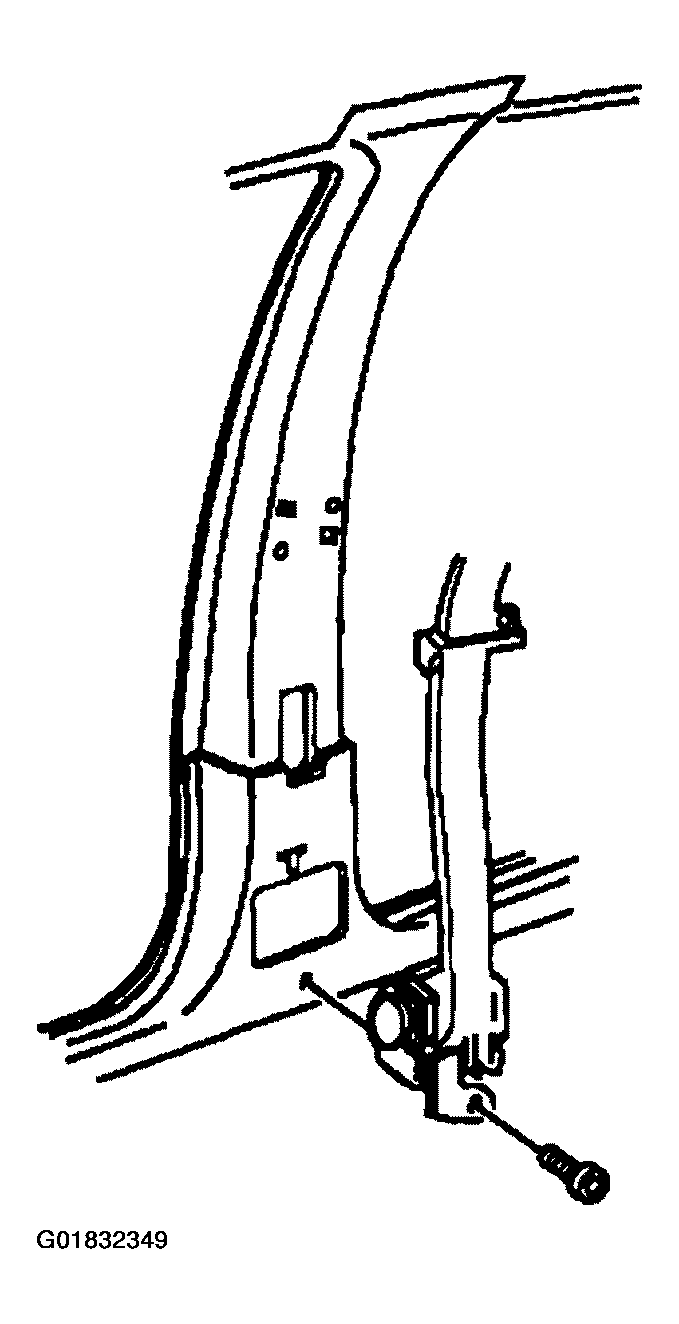

Fig 1: Installing Seat Belt Retractor Bolt - Left Front
Courtesy of GENERAL MOTORS CORP.
Position the anchor plate to the seat stud.
Install the anchor plate nut to the seat stud.
Tighten

Tighten the nut to 42 N.m (31 lb ft).

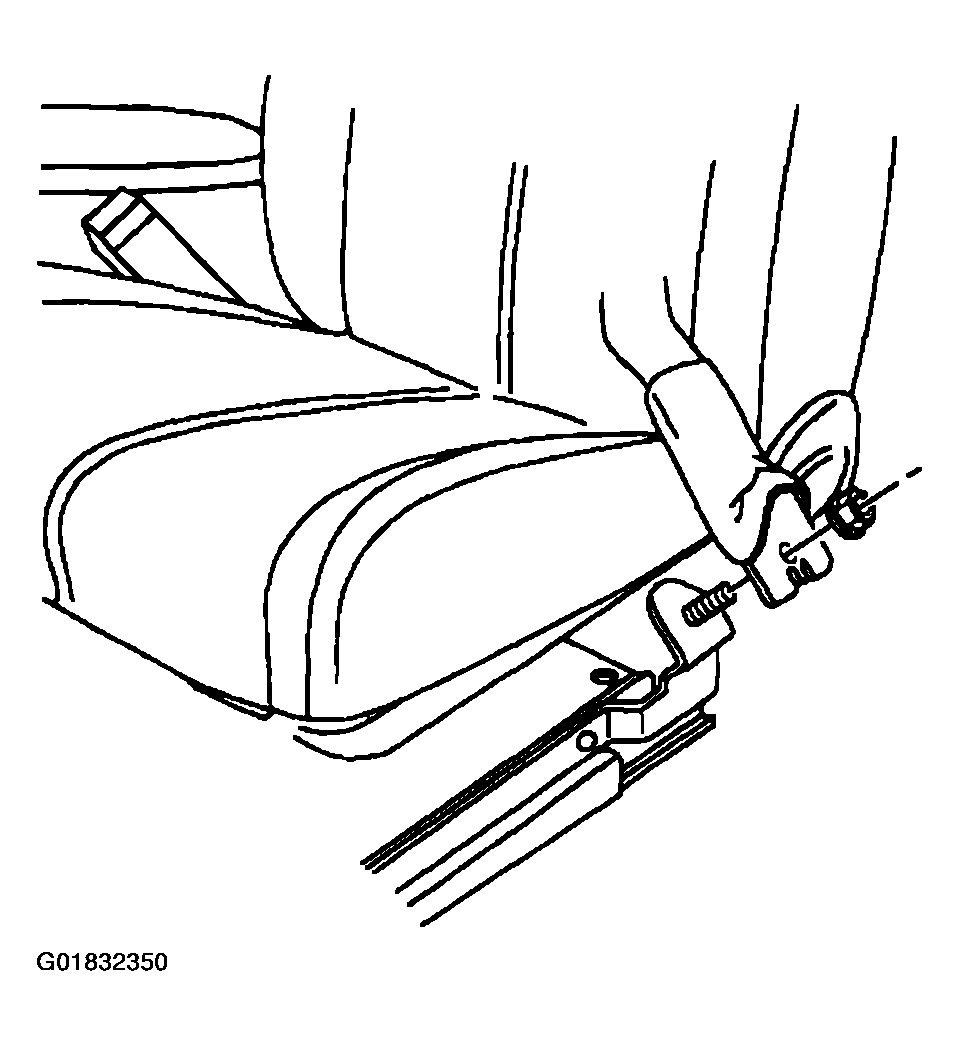

Fig 2: Installing Anchor Plate Nut To Seat Stud - Left Front
Courtesy of GENERAL MOTORS CORP.
Install the intermediate guide bolts.
Tighten

Tighten the bolts to 10 N.m (89 lb in).
Install the lower center pillar trim. Refer to TRIM PANEL REPLACEMENT - LOWER CENTER PILLAR in Interior Trim.

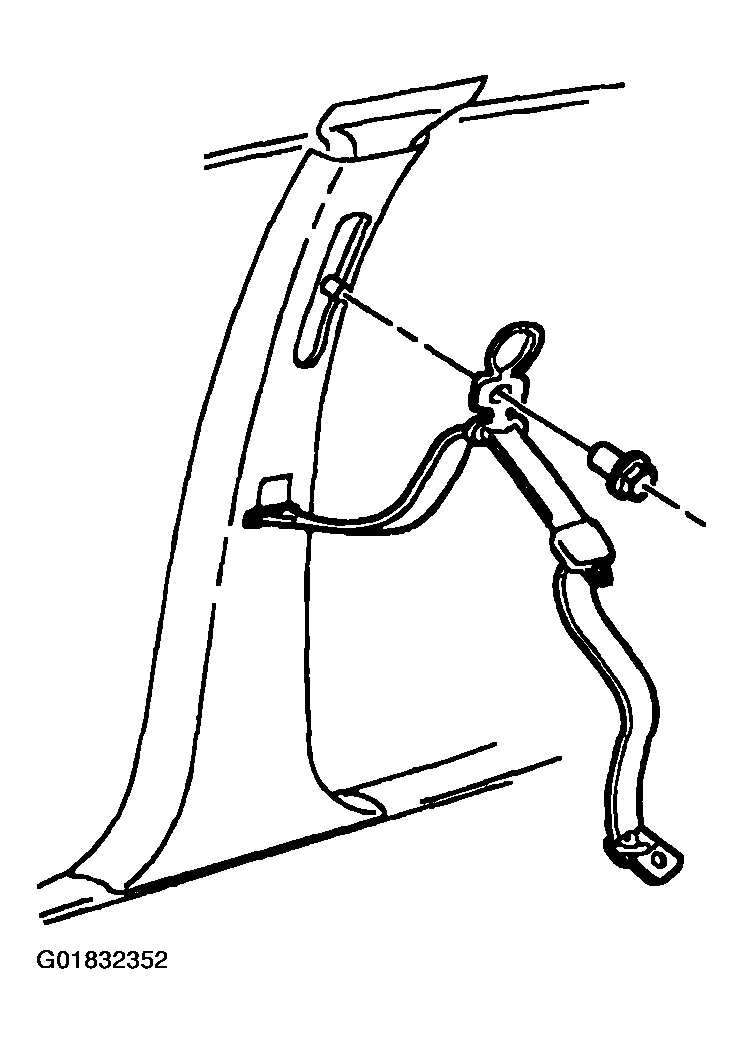

Fig 3: Installing Intermediate Guide Bolts - Left Front
Courtesy of GENERAL MOTORS CORP.
Position the guide loop to the guide adjuster bracket.
Install the guide loop nut.
Tighten

Tighten the nut to 42 N.m (31 lb ft).
Close the guide loop cover.

Fig 4: Installing Guide Loop To Guide Adjuster Bracket - Left Front
Courtesy of GENERAL MOTORS CORP.
