Power Accessory Port: Installation

  1. Position the power accessory port retainer with the key to the slot into the power accessory port hole. See Fig 4 .
  2. Install the power accessory port retainer pressing into place until fully seated. See Fig 5 .
  3. Connect the electrical connector to the front floor console power accessory port. See Fig 2 .
  4. Position the power accessory port to the retainer. See Fig 6 .
  5. Install the power accessory port into the front floor console pressing into place until fully seated.
  6. Install the power accessory port fuse.
  7. Inspect the power accessory port for proper operation.

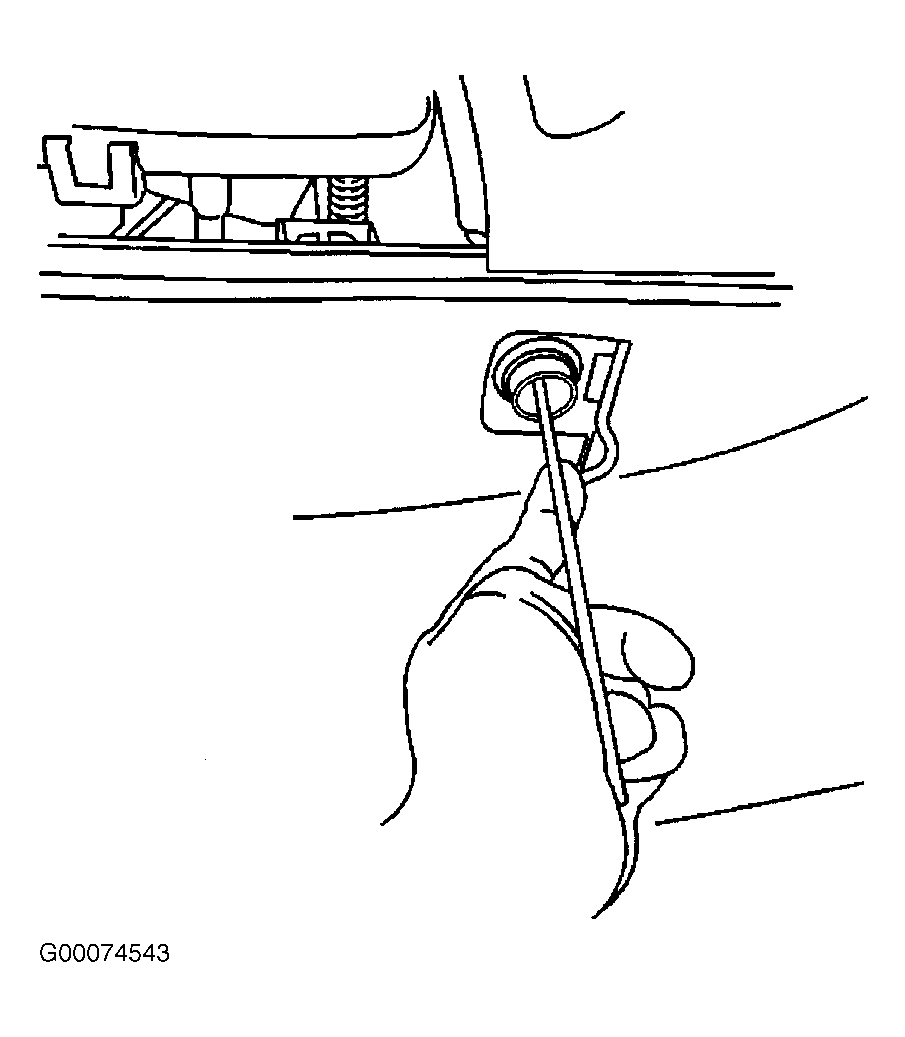

Fig 1: Removing Power Port
G00074543Courtesy of GENERAL MOTORS CORP.

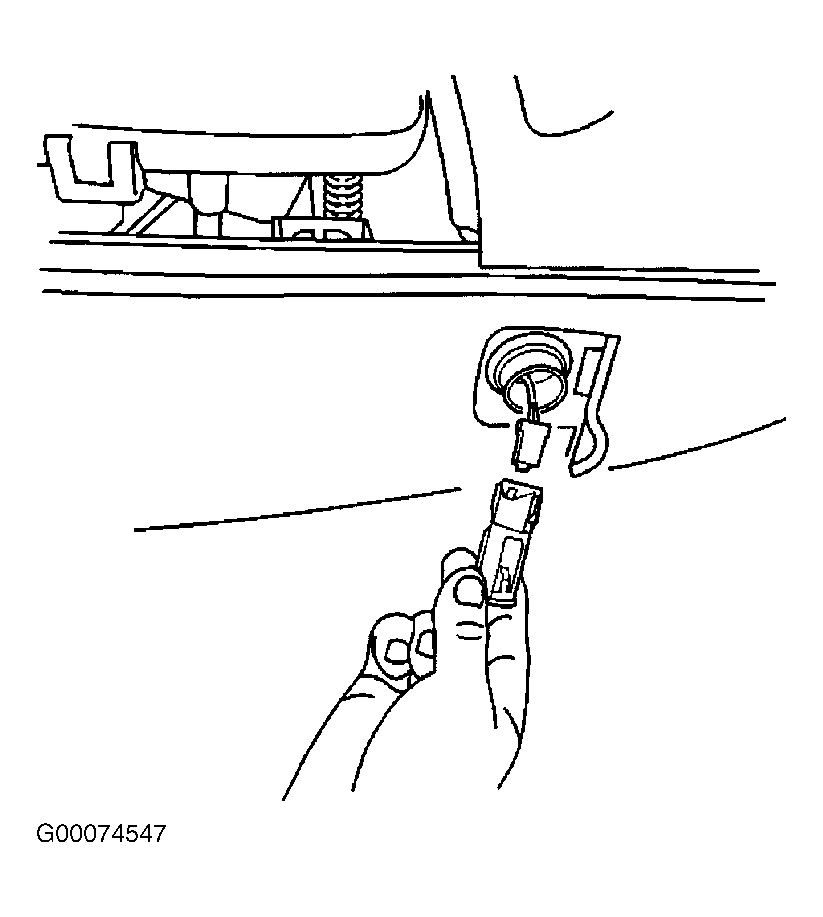

Fig 2: Disconnecting & Connecting Power Port Connector
G00074547Courtesy of GENERAL MOTORS CORP.

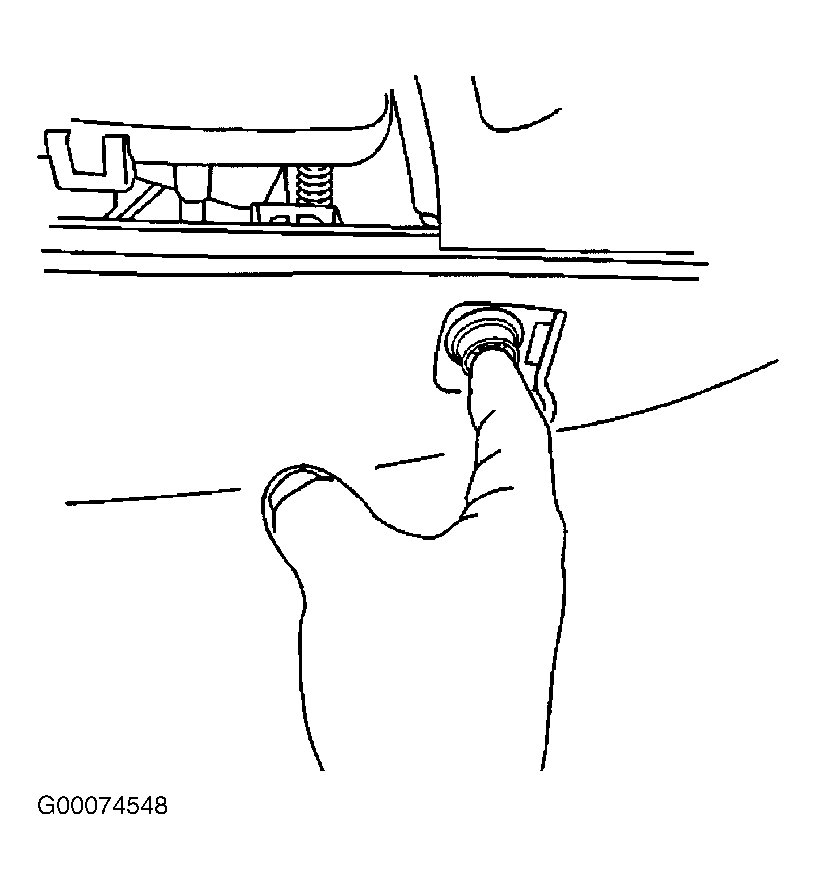

Fig 3: Removing Power Port Socket
G00074548Courtesy of GENERAL MOTORS CORP.

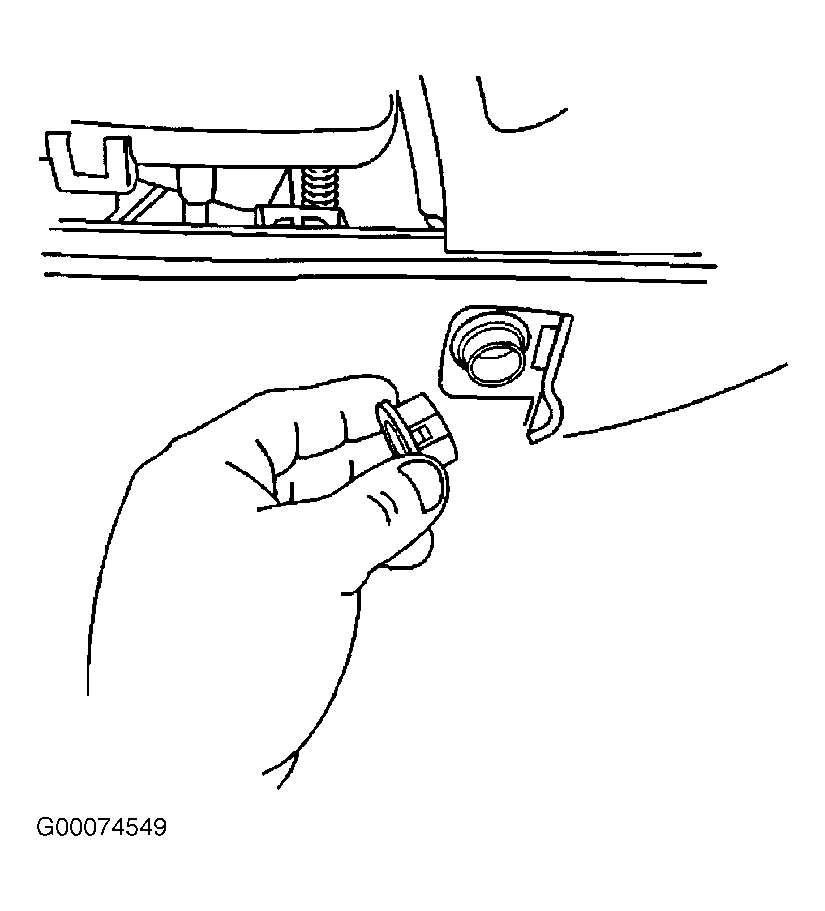

Fig 4: Installing Power Port Retainer
G00074549Courtesy of GENERAL MOTORS CORP.

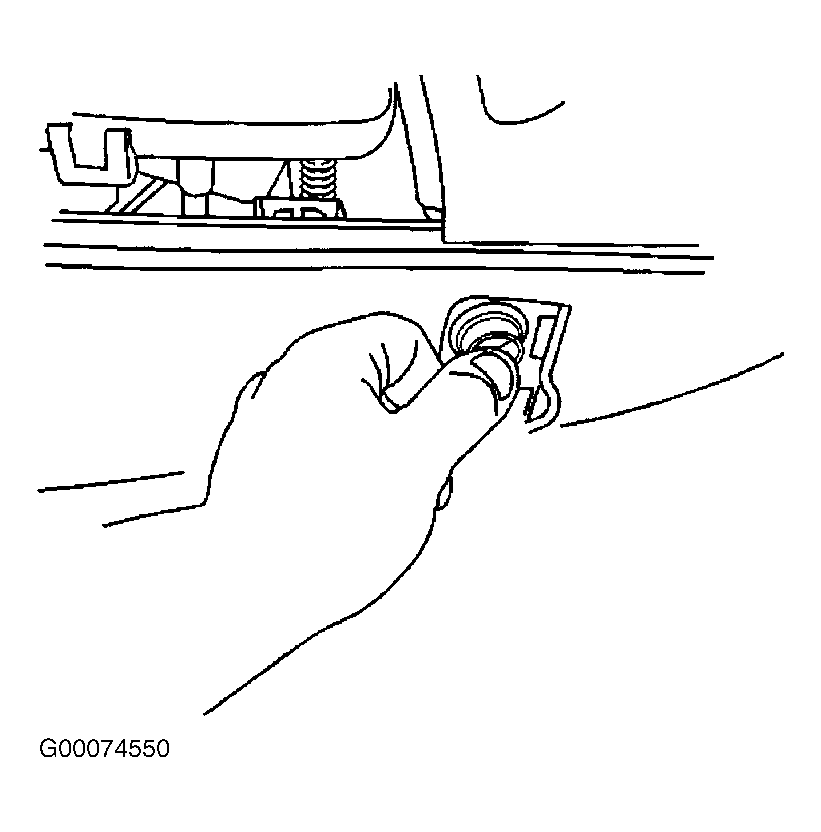

Fig 5: Securing Power Port Retainer
G00074550Courtesy of GENERAL MOTORS CORP.

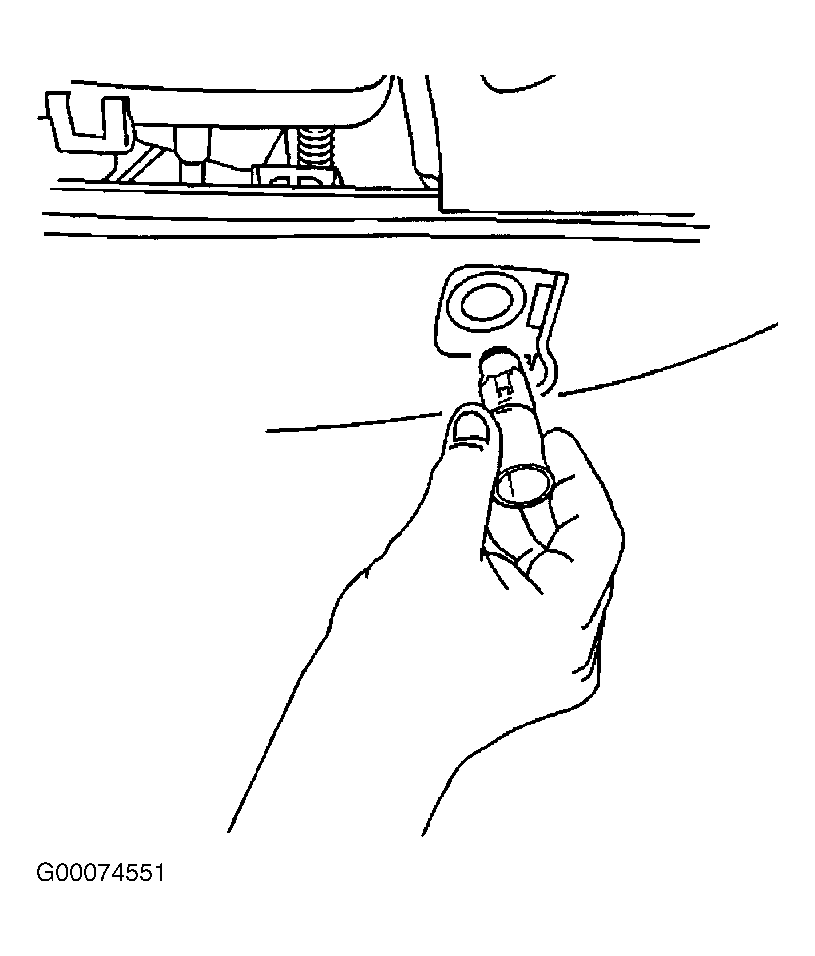

Fig 6: Installing Power Port Socket
G00074551Courtesy of GENERAL MOTORS CORP.
