Keyless Entry System Inoperative

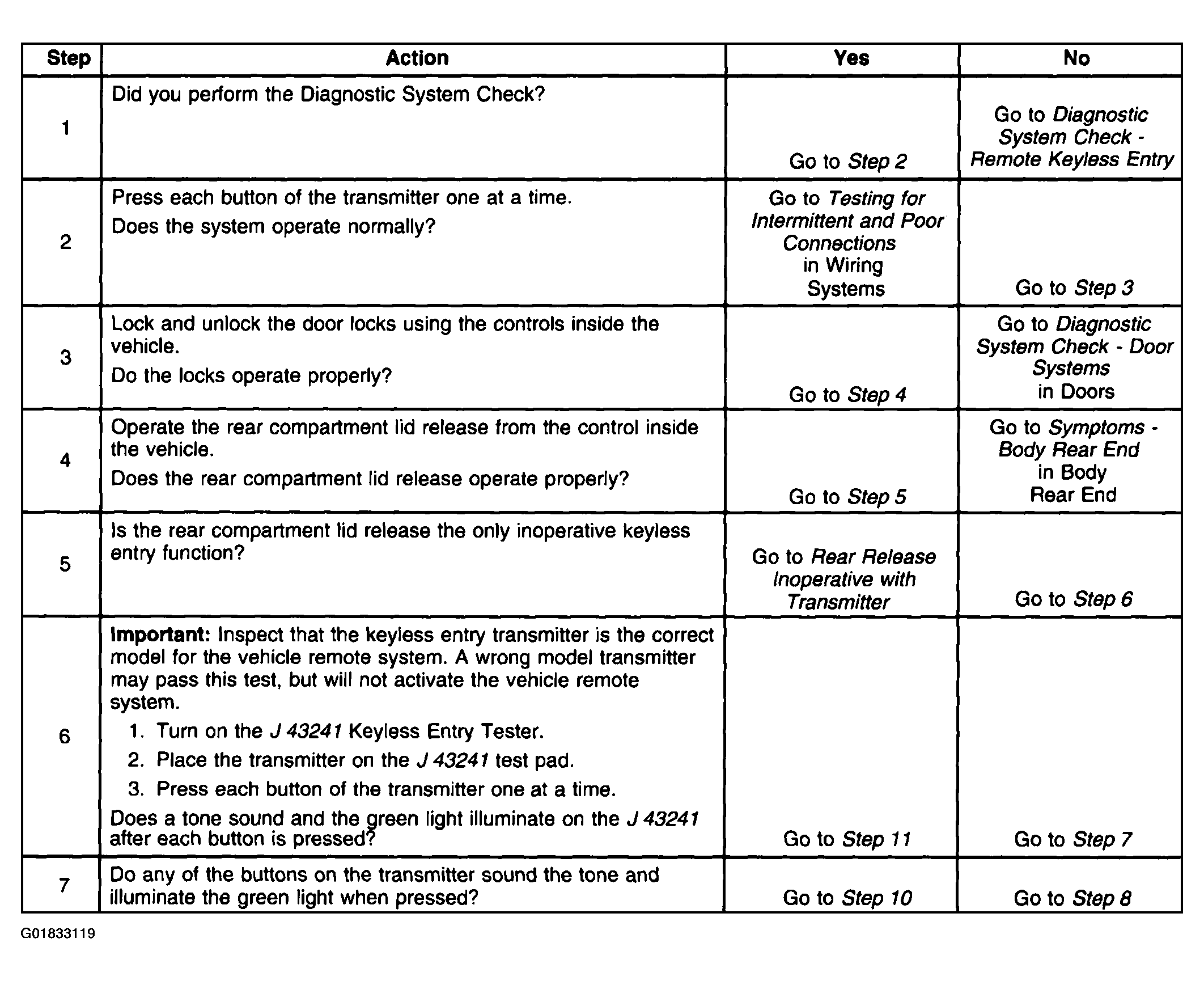

Fig 1: Keyless Entry System Inoperative (1 Of 3)
Courtesy of GENERAL MOTORS CORP.

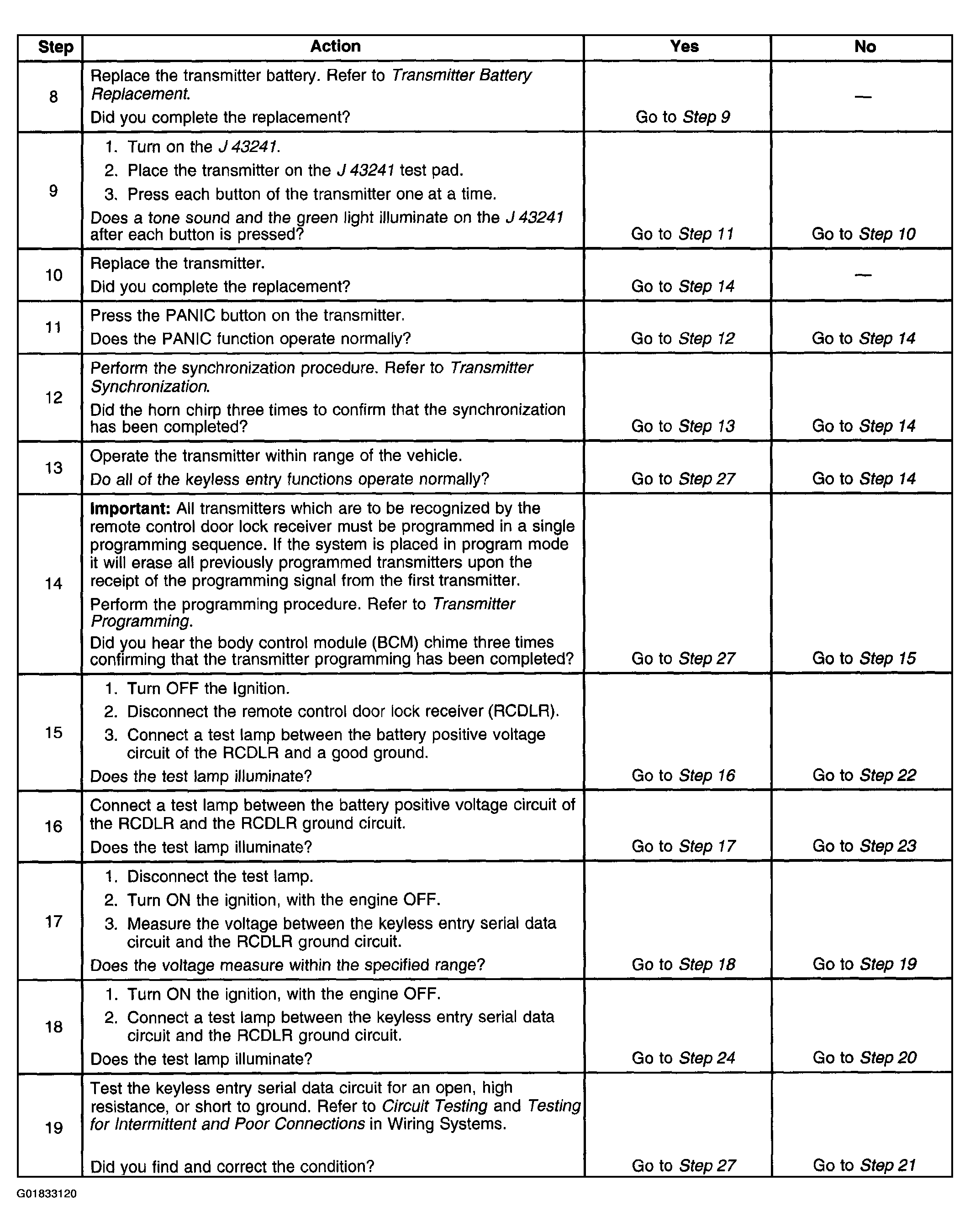

Fig 2: Keyless Entry System Inoperative (2 Of 3)
Courtesy of GENERAL MOTORS CORP.

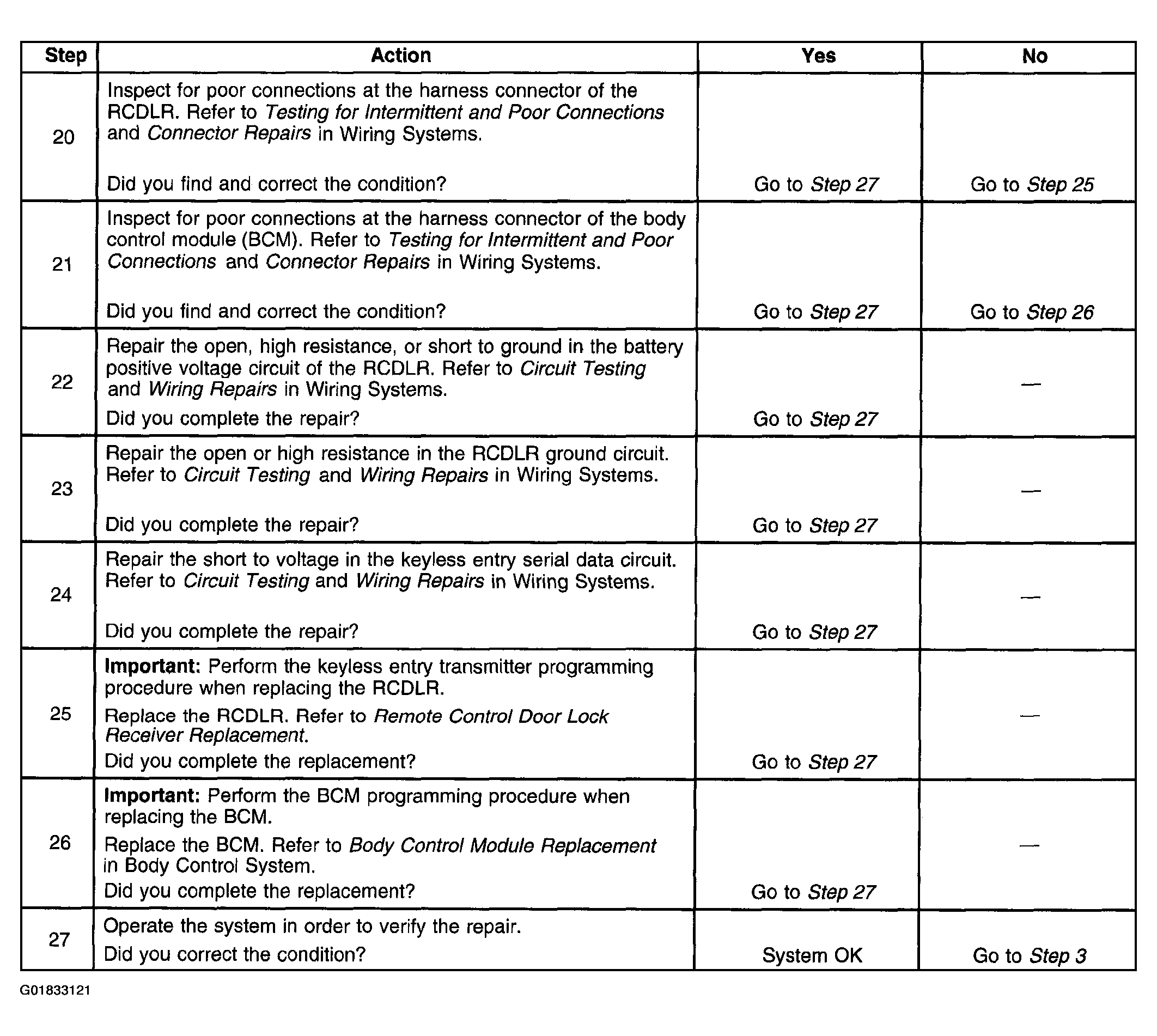

Fig 3: Keyless Entry System Inoperative (3 Of 3)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
