Installation Procedure

  1. Connect the electrical connector.
  2. Install the door lock receiver to the IP.

    Press into place until the retainers are fully seated.

  3. Install the IP upper trim panel. Refer to TRIM PANEL REPLACEMENT - INSTRUMENT PANEL (IP) Upper
  4. Program the transmitter to the new receiver. Refer to Transmitter Programming

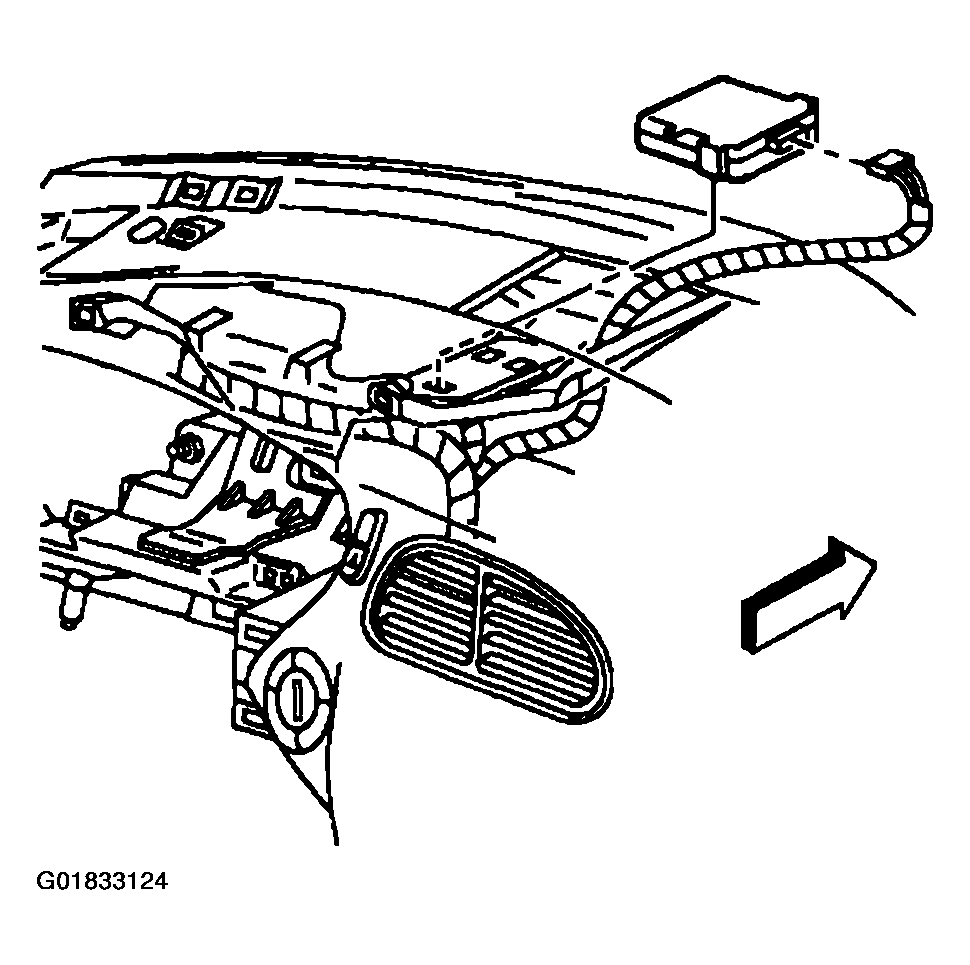

    Fig 1: Install IP Upper Trim Panel, Door Lock Receiver & Electrical Connector
    G01833124Courtesy of GENERAL MOTORS CORP.
