Removal Procedure

NOTE: To prevent equipment damage, never connect or disconnect the wiring harness connection from the EBCM with the ignition switch in the ON position.
  1. Raise the front floor center console armrest.
  2. Remove the 2 retainers that attach the front floor console trim plate to the front floor console.
  3. Open the front floor console cupholder.
  4. Gently pull up on the front floor console trim plate to gain access to the traction control switch.
  5. Disconnect the traction control switch wiring harness connector from the traction control switch.

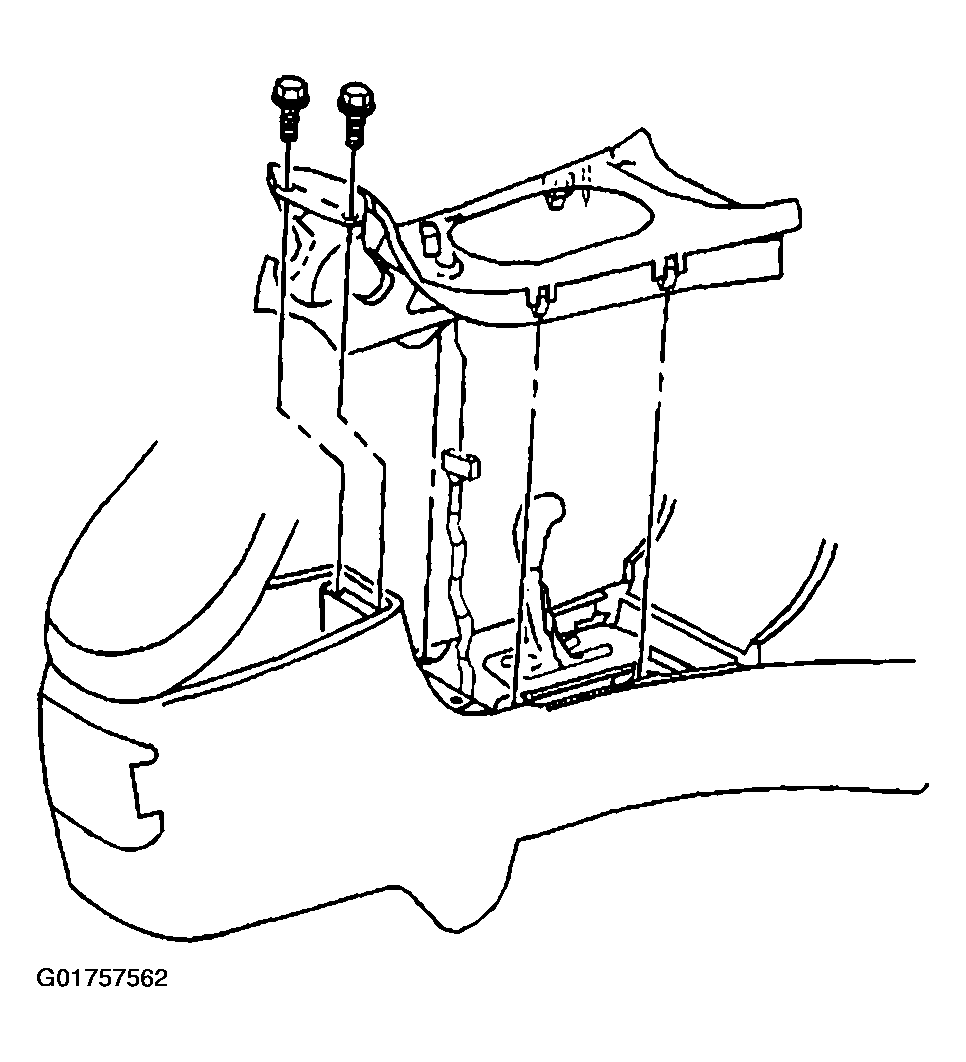

    Fig 1: Remove Retainers That Attach Front Floor Console Trim Plate To Front Floor Console
    G01757562Courtesy of GENERAL MOTORS CORP.
  6. Remove the traction control switch from the front floor console trim plate. To avoid damage to the front floor console trim plate, use a small flat bladed tool on the back side of the traction control switch to release the retaining clips.

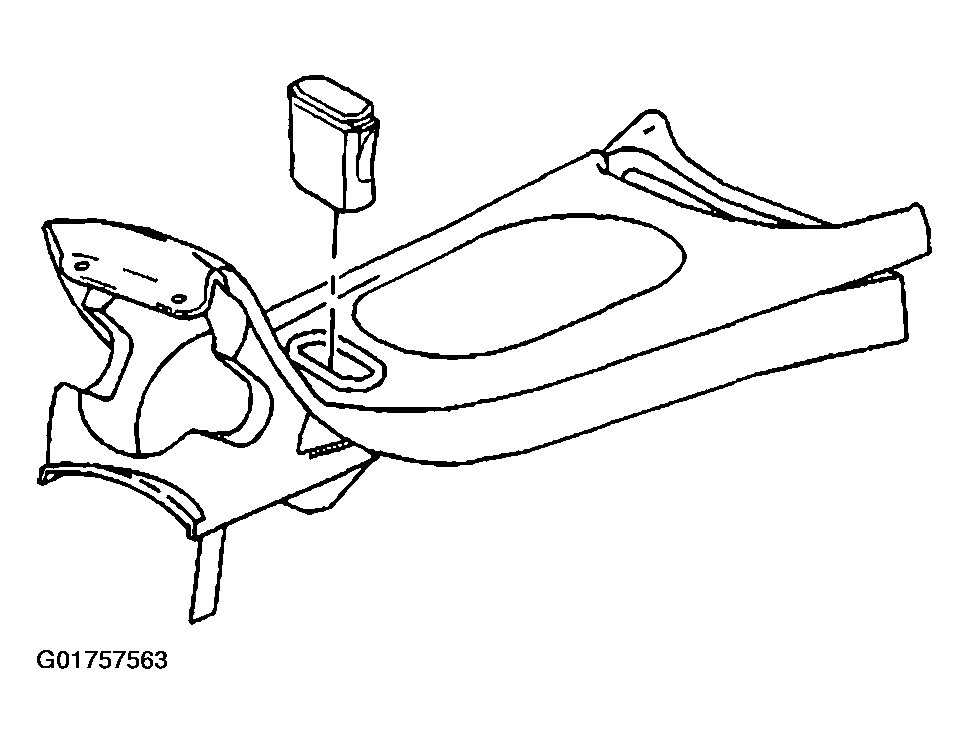

    Fig 2: Remove Traction Control Switch From Front Floor Console Trim Plate
    G01757563Courtesy of GENERAL MOTORS CORP.
