Removal Procedure

  1. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnect/Connect Procedure .
  2. Remove the right front diagonal brace. Refer to BRACE REPLACEMENT - SHEET METAL DIAGONAL in Body Front End.
  3. Disconnect the positive battery cable.

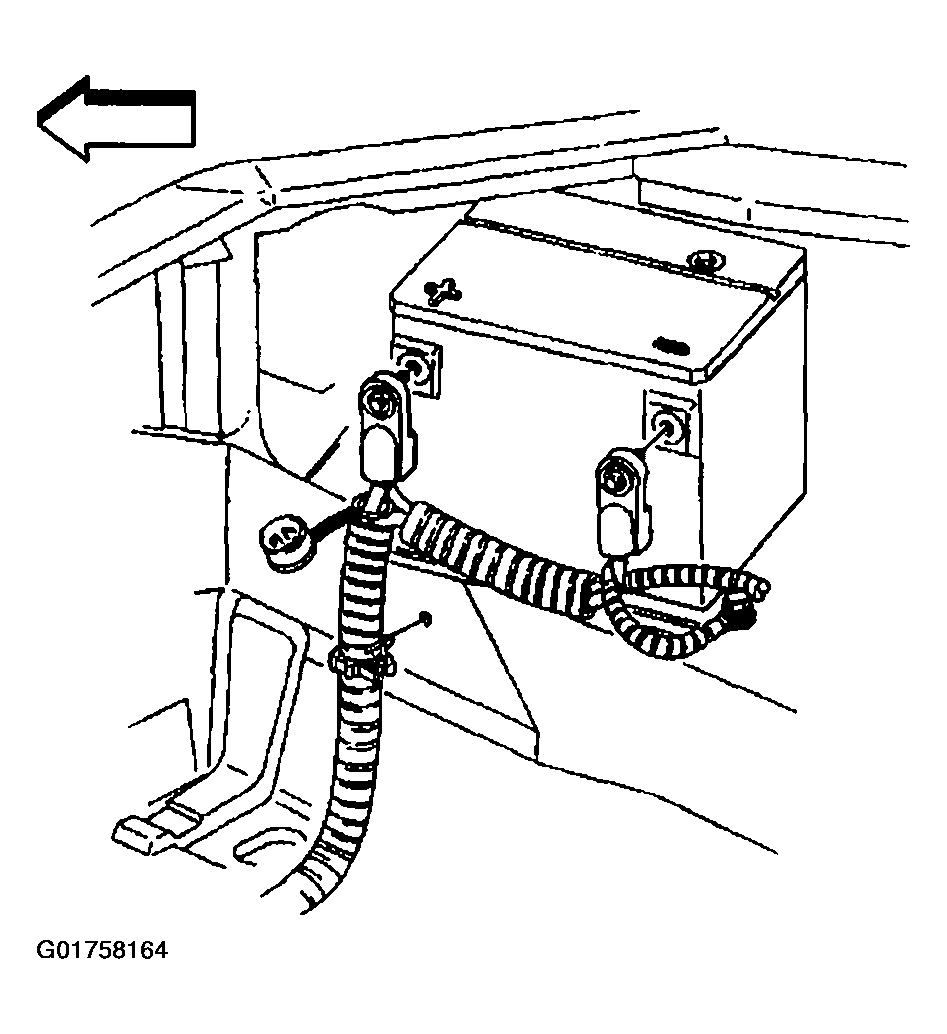

    Fig 1: Disconnecting Positive Battery Cable
    G01758164Courtesy of GENERAL MOTORS CORP.
  4. Remove the battery hold down retainer bolt (1).
  5. Remove the battery hold down retainer (2).

    Important:  Do not tip the battery more than 40 degrees during removal.

  6. Remove the battery (3).
    Fig 2: Removing Battery, Battery Hold Down Retainer And Bolt
    G01758165Courtesy of GENERAL MOTORS CORP.
  7. Remove the battery insulator from the battery.

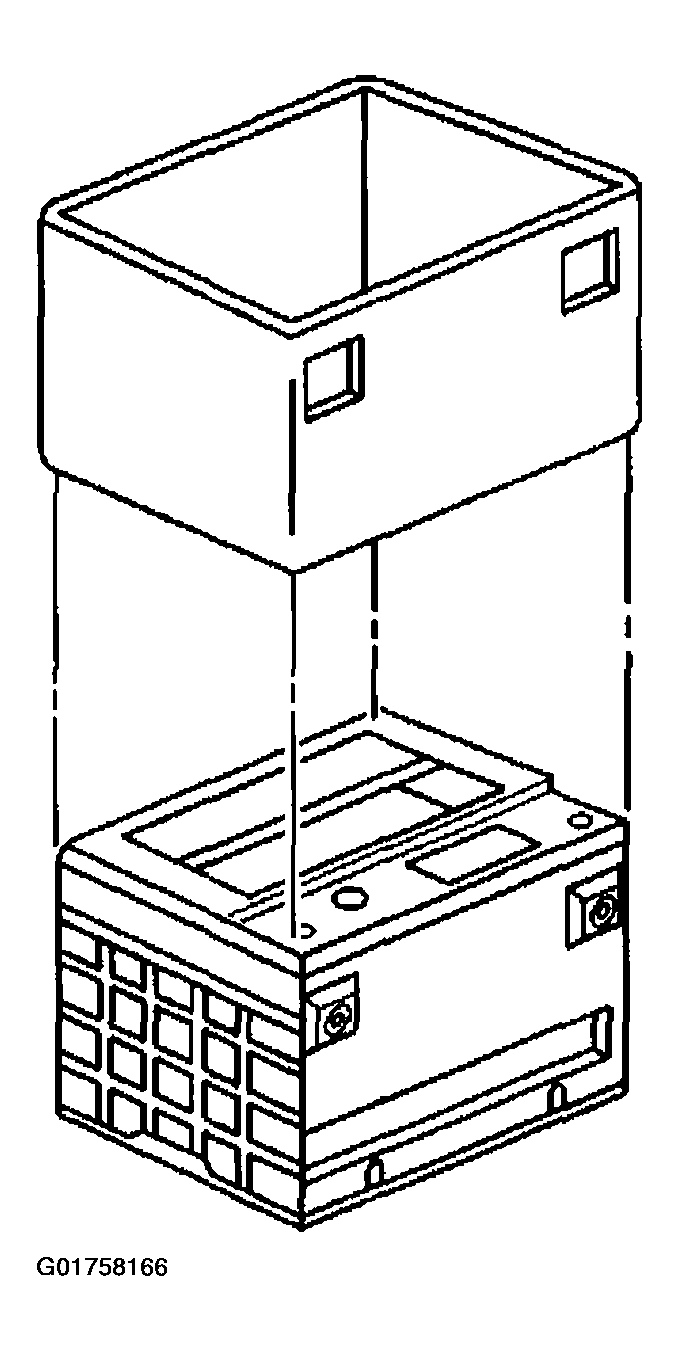

    Fig 3: Removing Battery Insulator From Battery
    G01758166Courtesy of GENERAL MOTORS CORP.
