Installation Procedure

  1. Install the battery tray.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the battery tray bolts.

    Tighten

    Tighten the bolts to 5 N.m (44 lb in).

  3. Install the battery. Refer to Battery Replacement .
  4. Connect the negative battery cable. Refer to Battery Negative Cable Disconnect/Connect Procedure .

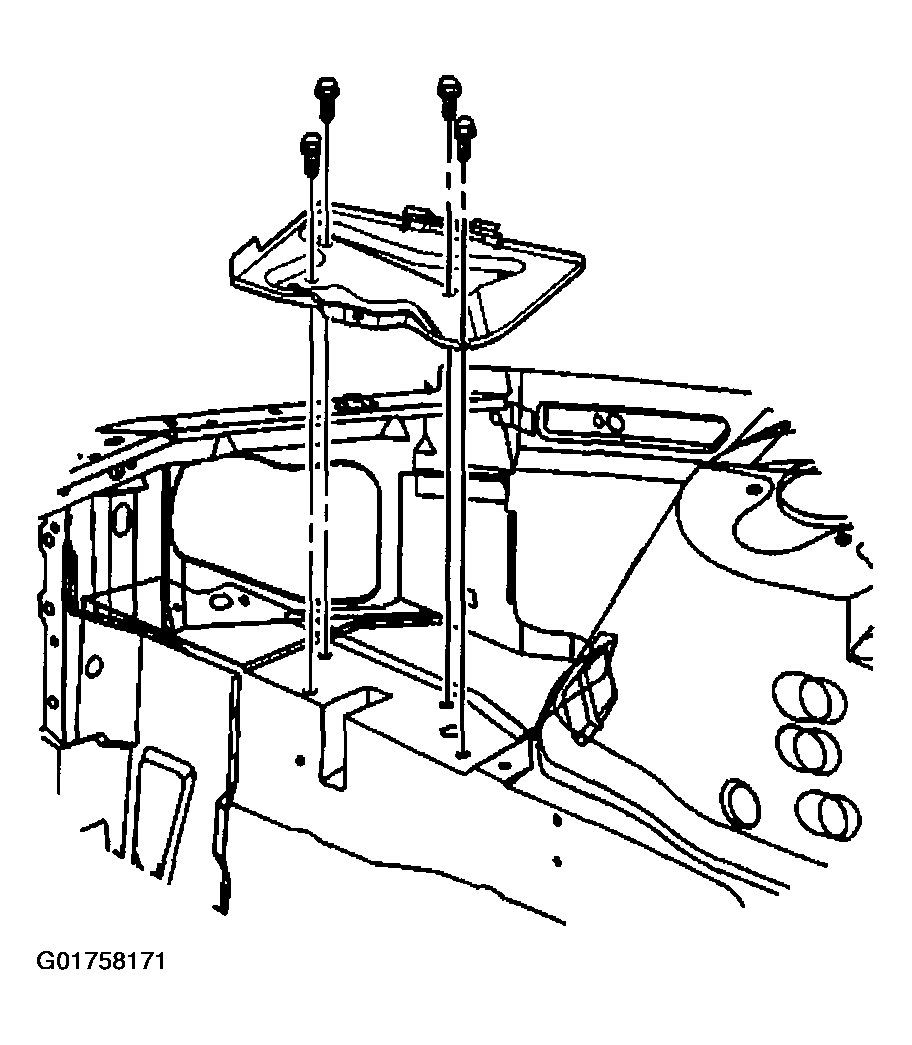

    Fig 1: Installing Battery Tray
    G01758171Courtesy of GENERAL MOTORS CORP.
