Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

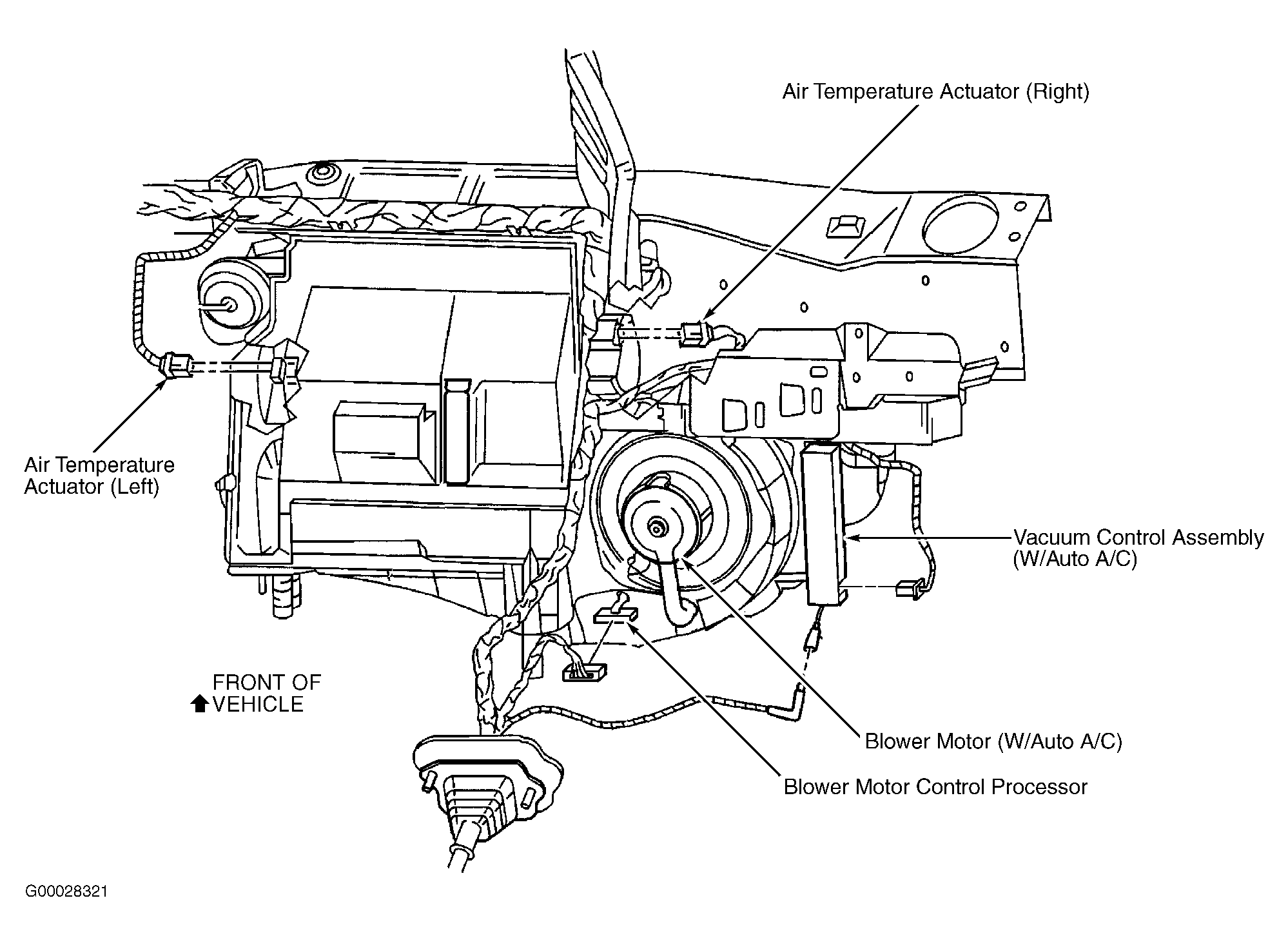

| Blower Motor Control Processor (W/ Auto A/C) | In right side of heater-A/C module. See Figure . |
| Body Control Module (BCM) | Behind left side of dash, left of steering column. |

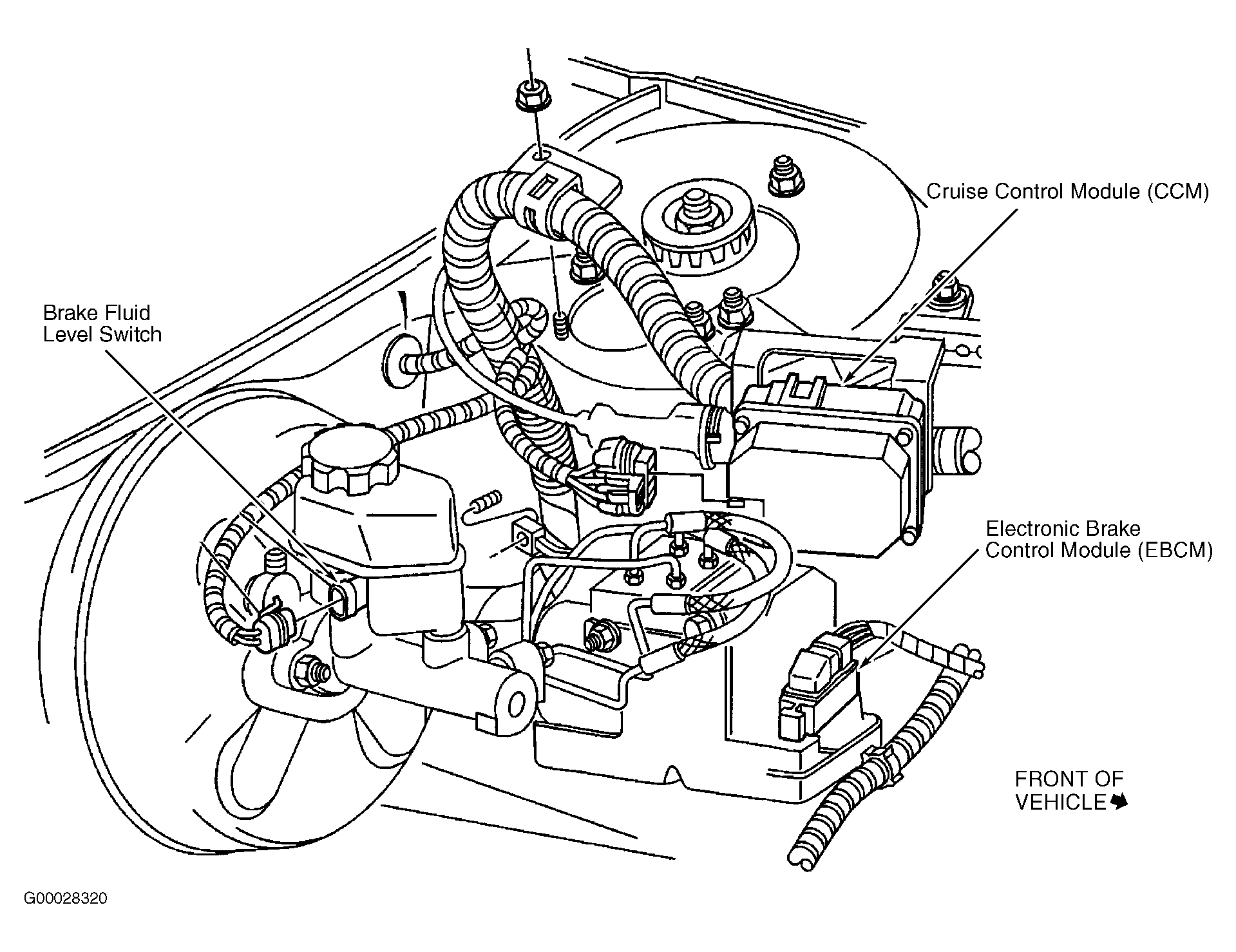

| Cruise Control Module (CCM) | Front of left strut tower. See Figure . |
| Electronic Brake Control Module (EBCM) | At left side of engine compartment, integral to BPMV. See Figure . |
| Heated Seat Control Module (Driver) | Below driver's seat. |
| Heated Seat Control Module (Front Passenger) | Below right front seat. |

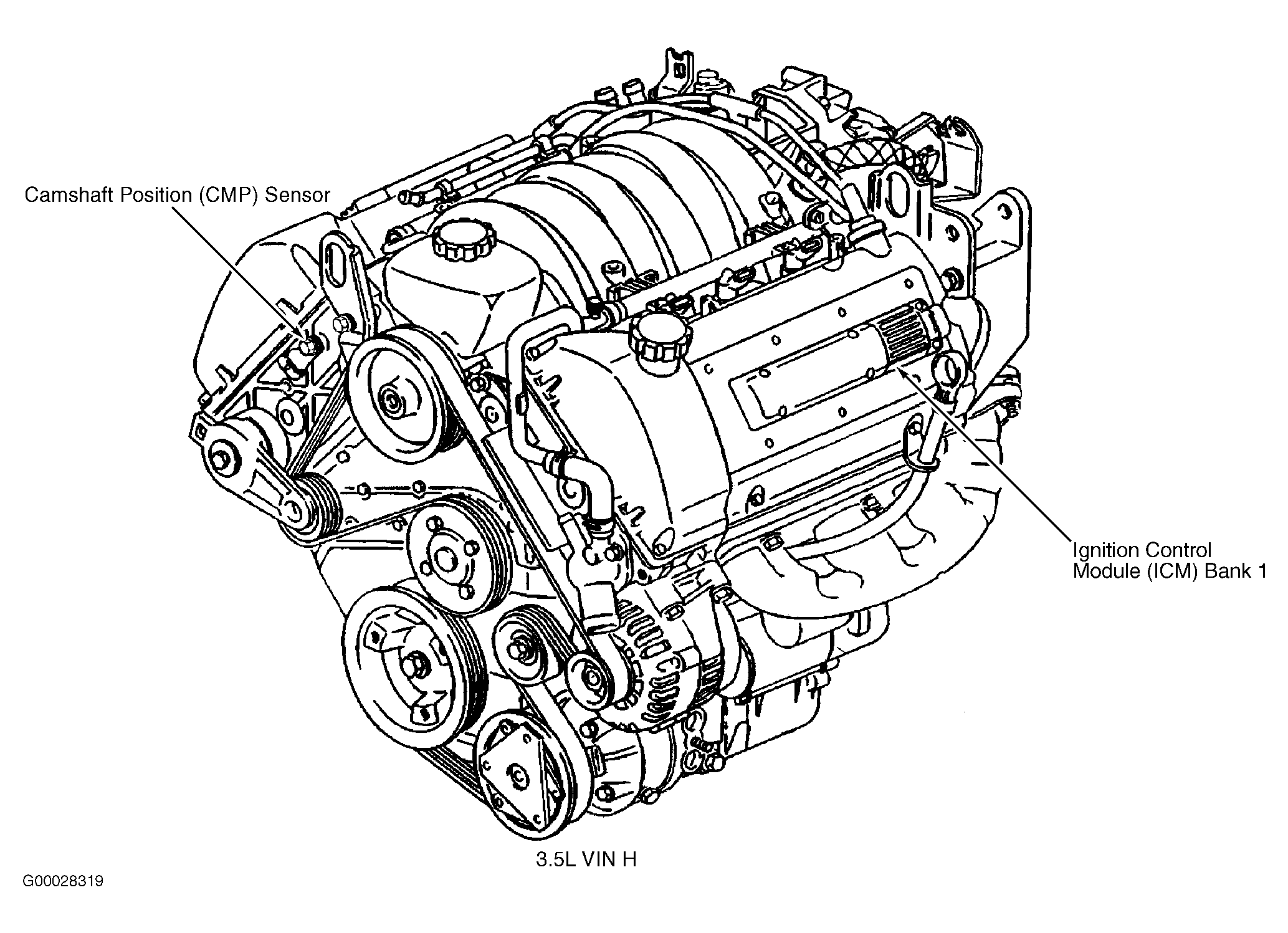

| Ignition Control Module (ICM) Bank 1 | On top of left engine valve cover. See Figure . |

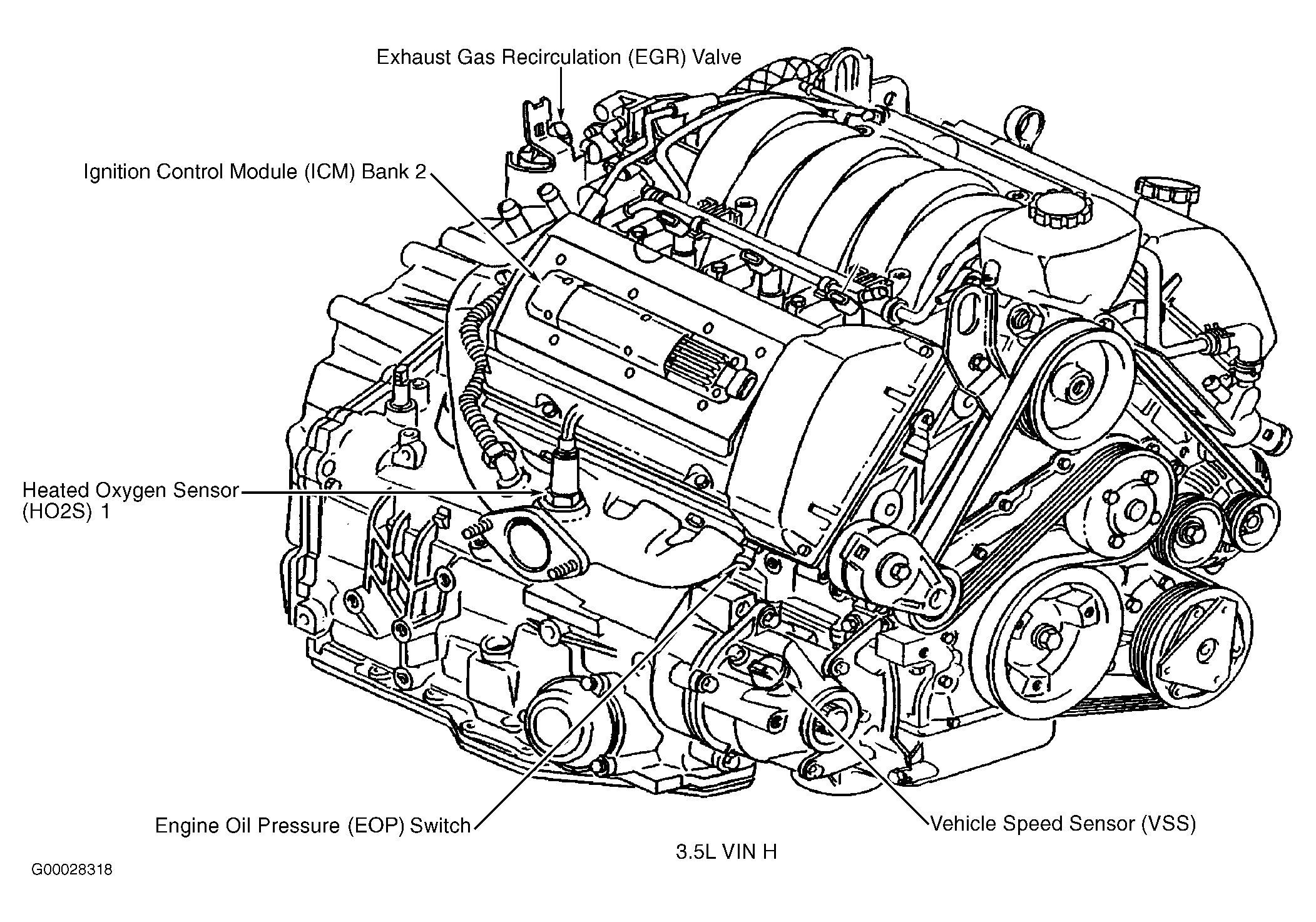

| Ignition Control Module (ICM) Bank 2 | On top of right engine valve cover. See Figure . |
| Inflatable Restraint Sensing & Diagnostic Module (SDM) | Below carpet, under right front seat. |
| OnStar Module | On left rear wheelhouse. |
| Powertrain Control Module (PCM) | Left front side of engine compartment, in air cleaner assembly. |
| Remote Control Door Lock Receiver (RCDLR) | Behind instrument cluster. |
| Sun Roof Module | Right rear corner of sun roof. |
