Connector Identification

Fig 1: Identifying Camshaft Position Sensor Harness Connector Terminals (Aurora)

G00132269

Courtesy of GENERAL MOTORS CORP.

Fig 2: Identifying Camshaft Position Sensor Harness Connector Terminals (Intrigue)

G00132270

Courtesy of GENERAL MOTORS CORP.

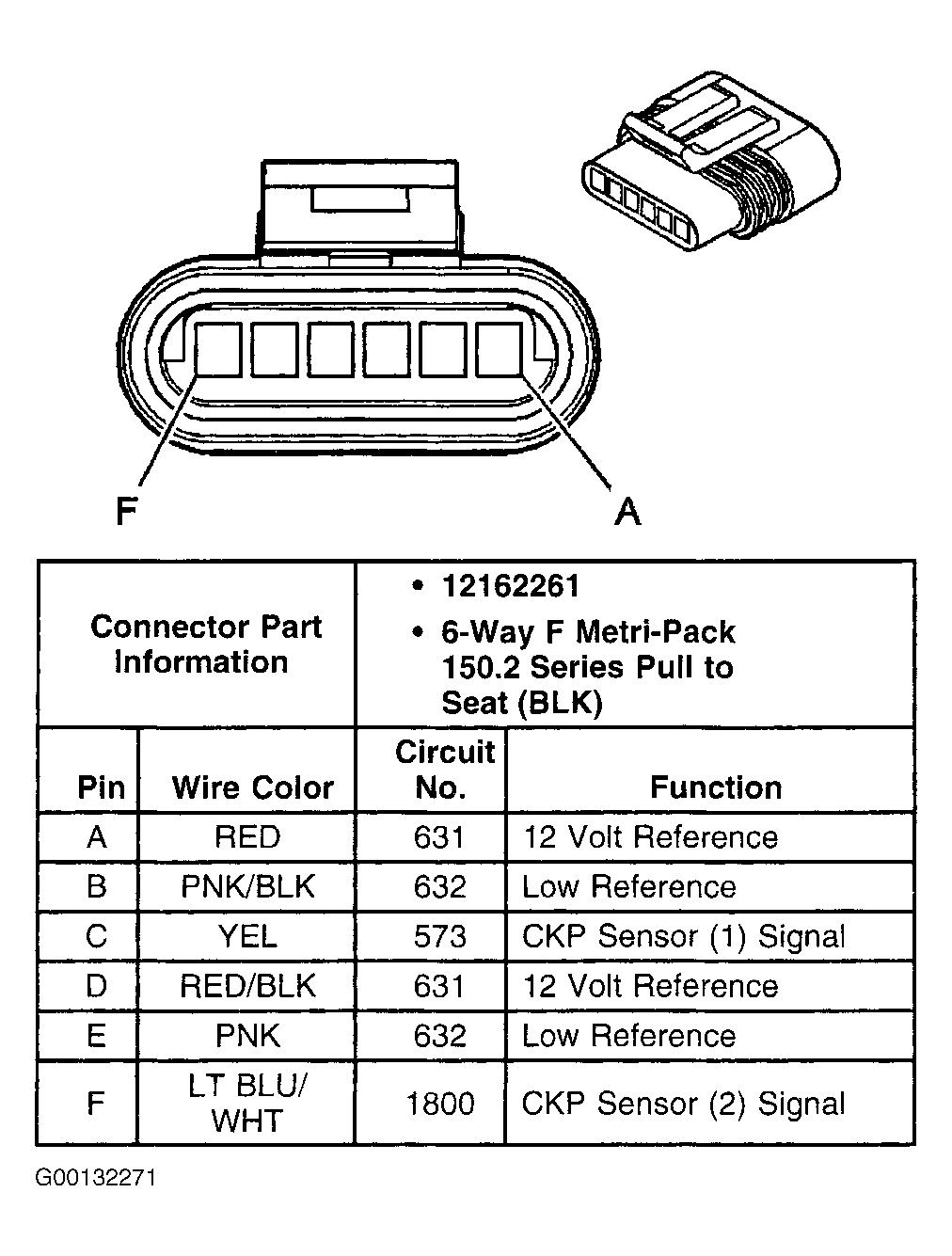

Fig 3: Identifying Crankshaft Position Sensor Harness Connector Terminals (Aurora)

G00132271

Courtesy of GENERAL MOTORS CORP.

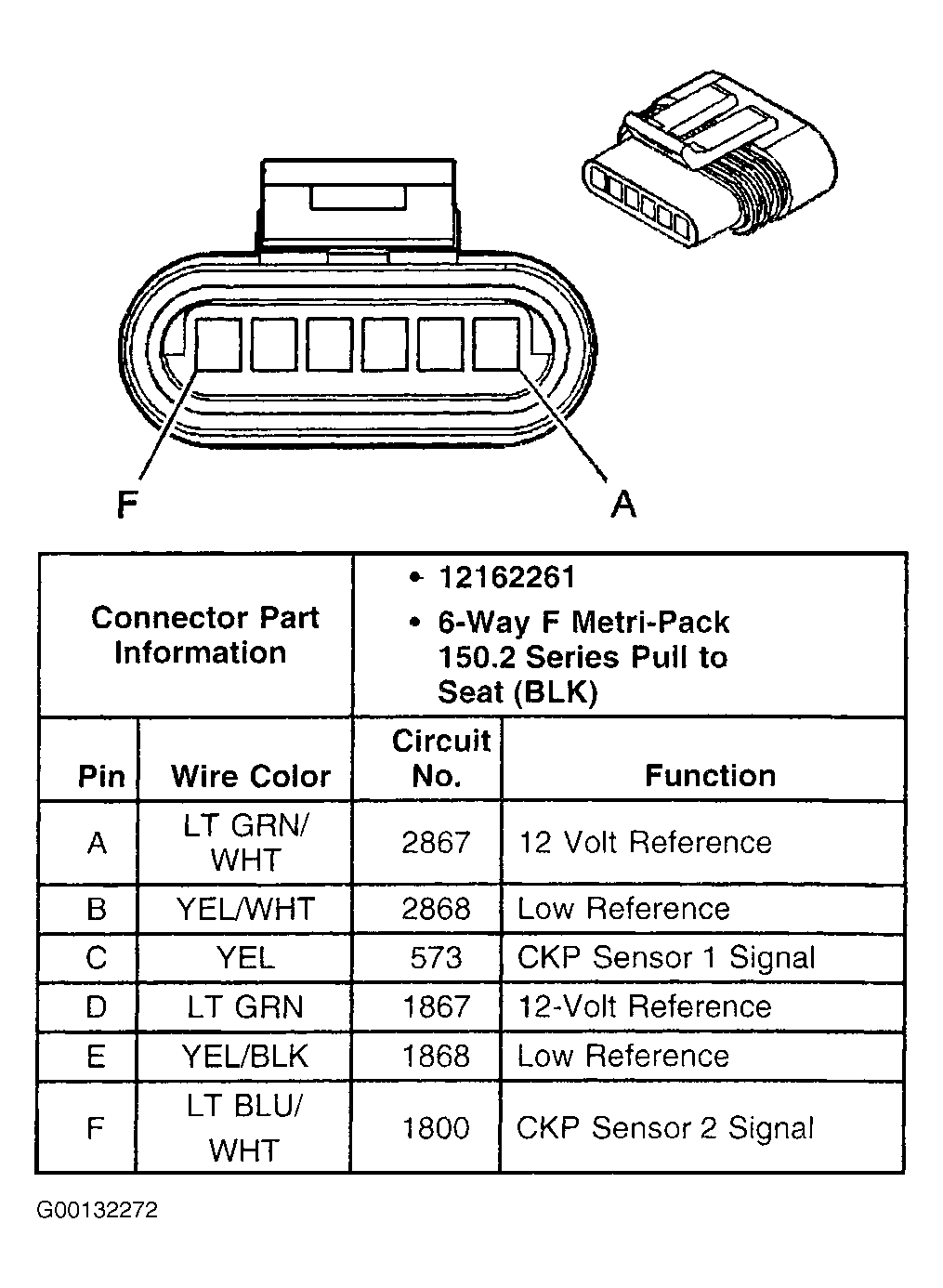

Fig 4: Identifying Crankshaft Position Sensor Harness Connector Terminals (Intrigue)

G00132272

Courtesy of GENERAL MOTORS CORP.

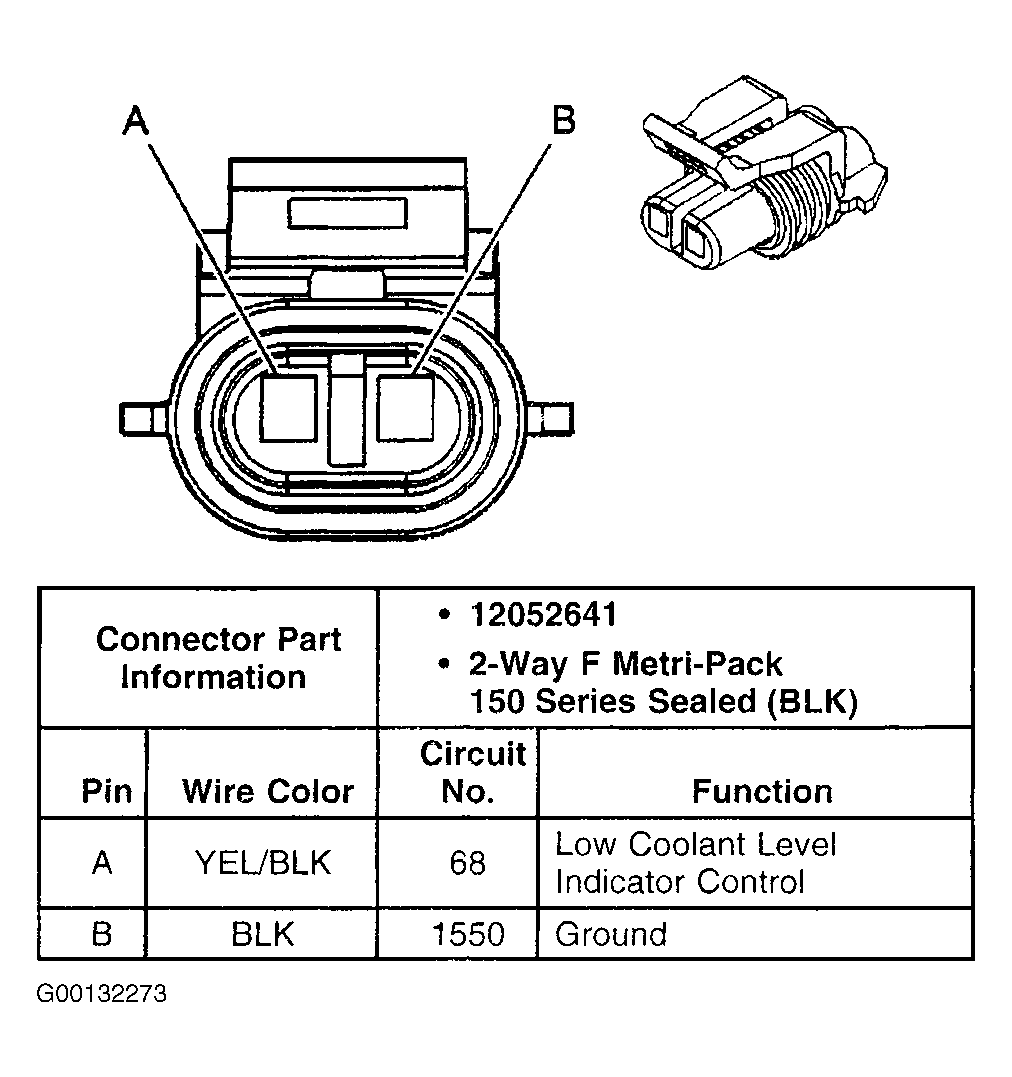

Fig 5: Identifying Engine Coolant Level Module Harness Connector Terminals (Intrigue Only)

G00132273

Courtesy of GENERAL MOTORS CORP.

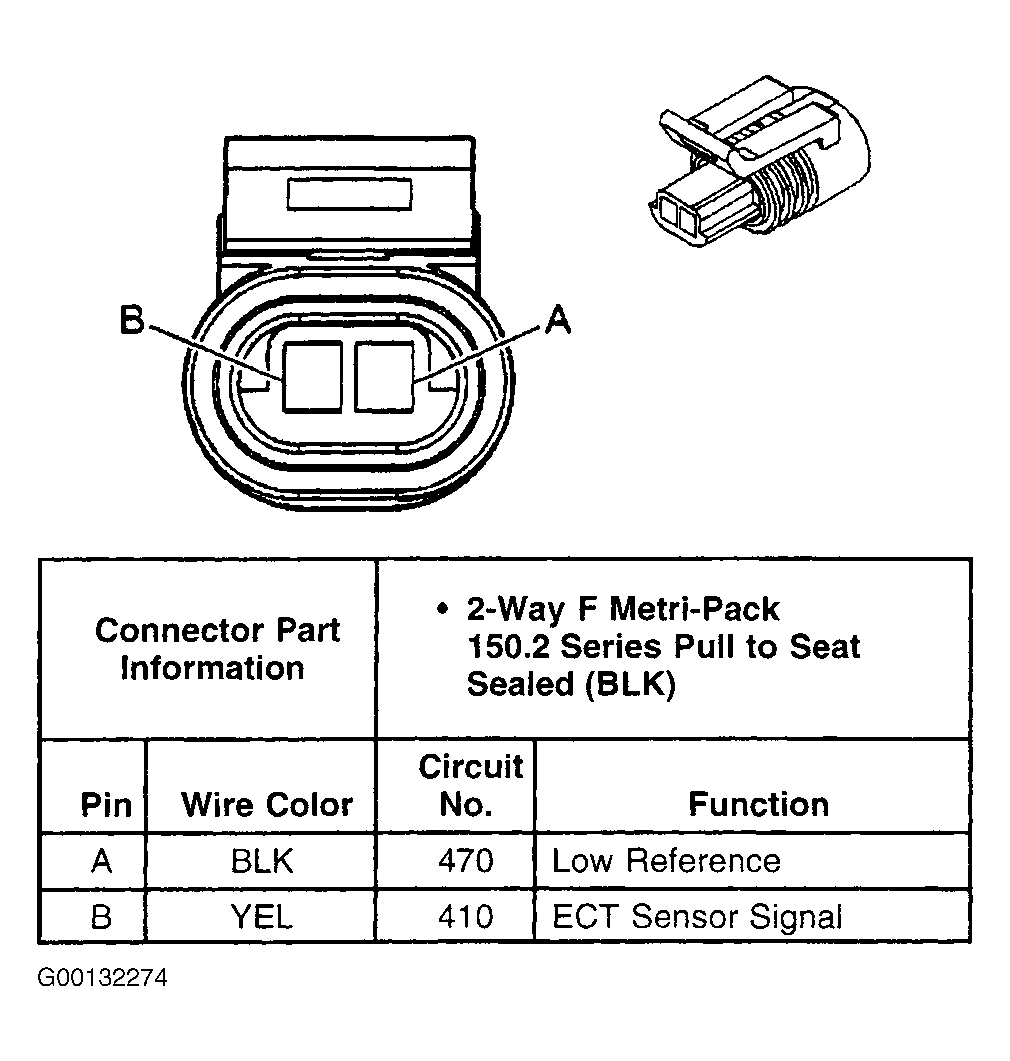

Fig 6: Identifying Engine Coolant Temperature Sensor Harness Connector Terminals (Aurora & Intrigue)

G00132274

Courtesy of GENERAL MOTORS CORP.

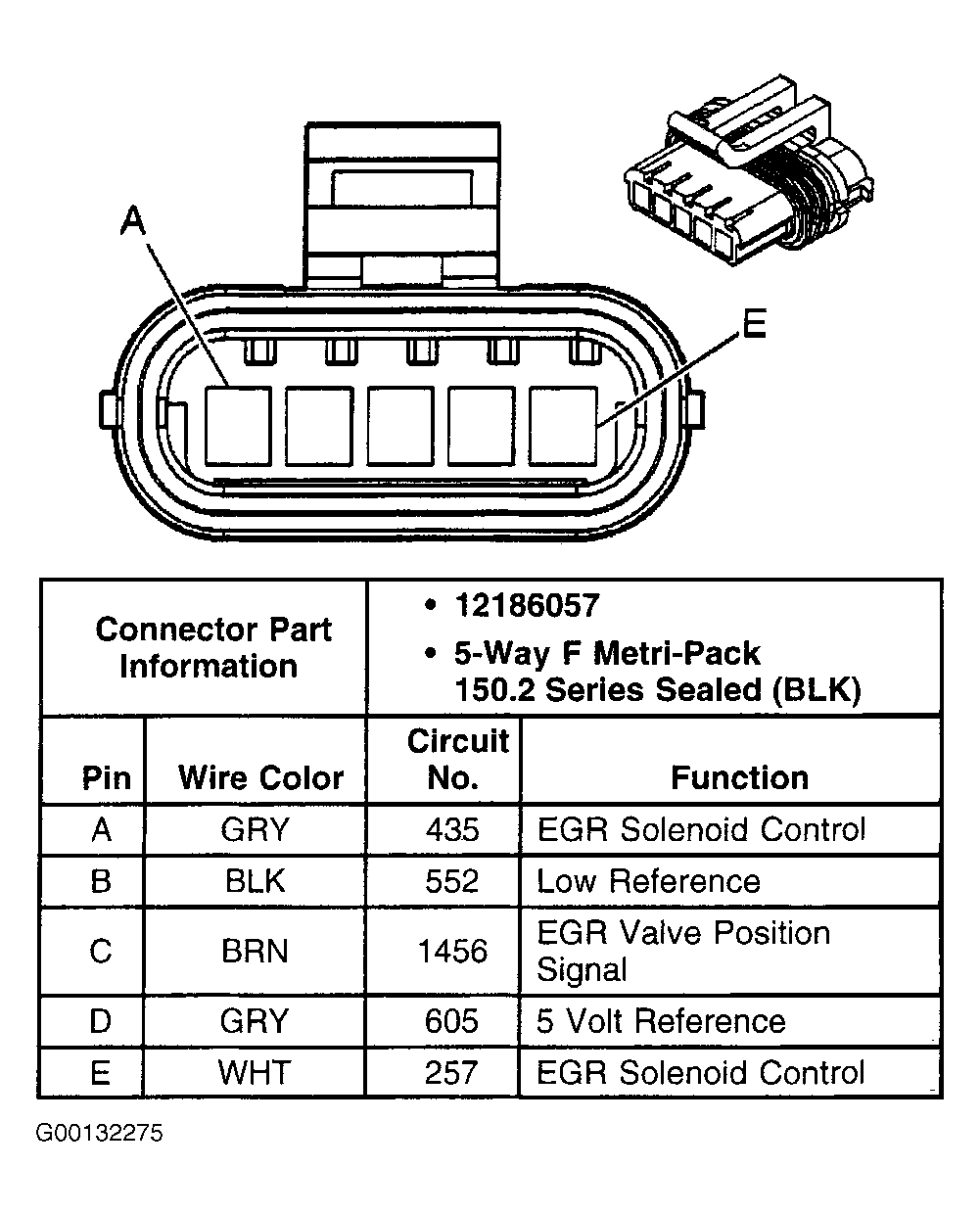

Fig 7: Identifying EGR Valve Harness Connector Terminals (Aurora)

G00132275

Courtesy of GENERAL MOTORS CORP.

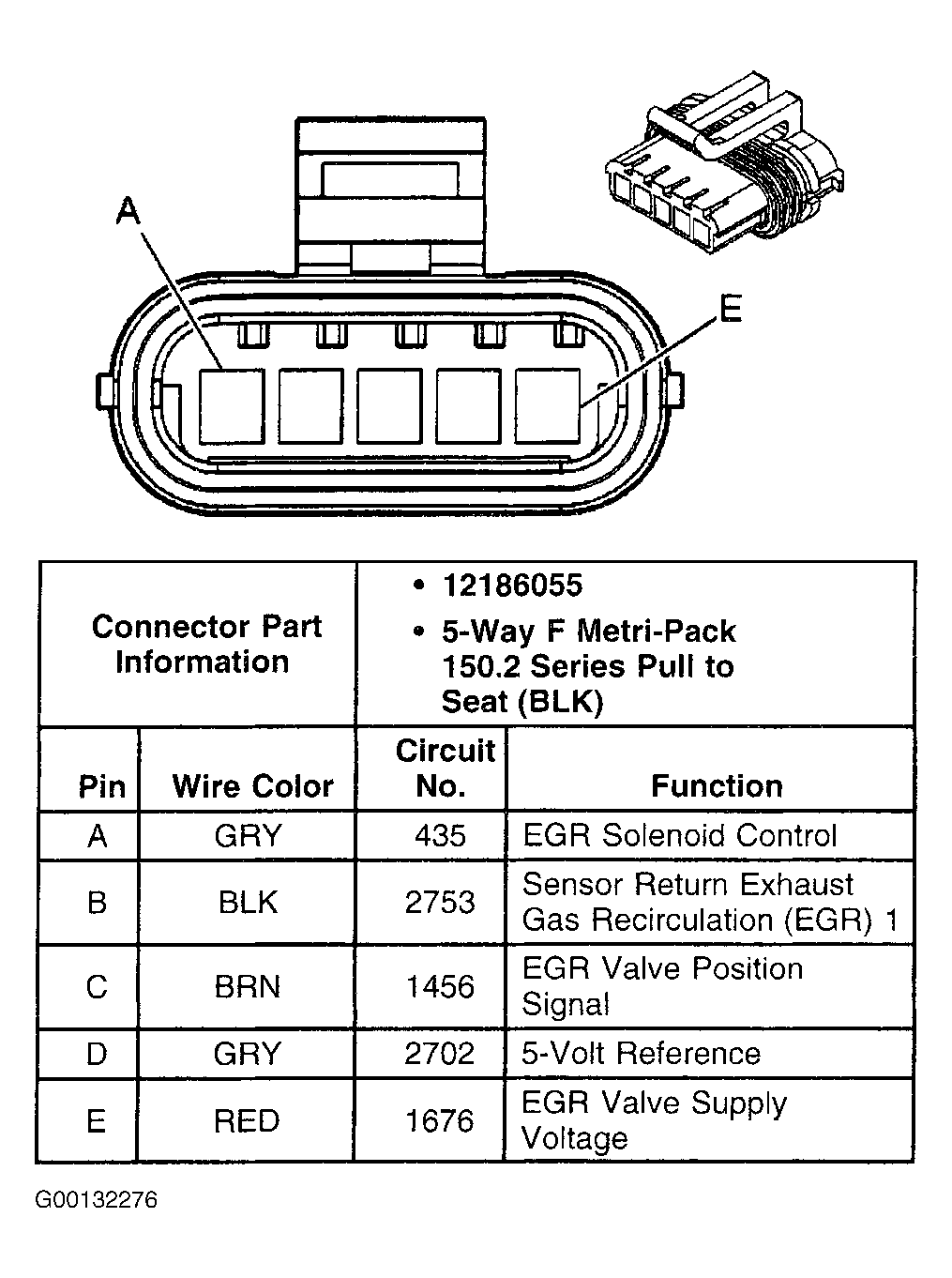

Fig 8: Identifying EGR Valve Harness Connector Terminals (Intrigue)

G00132276

Courtesy of GENERAL MOTORS CORP.

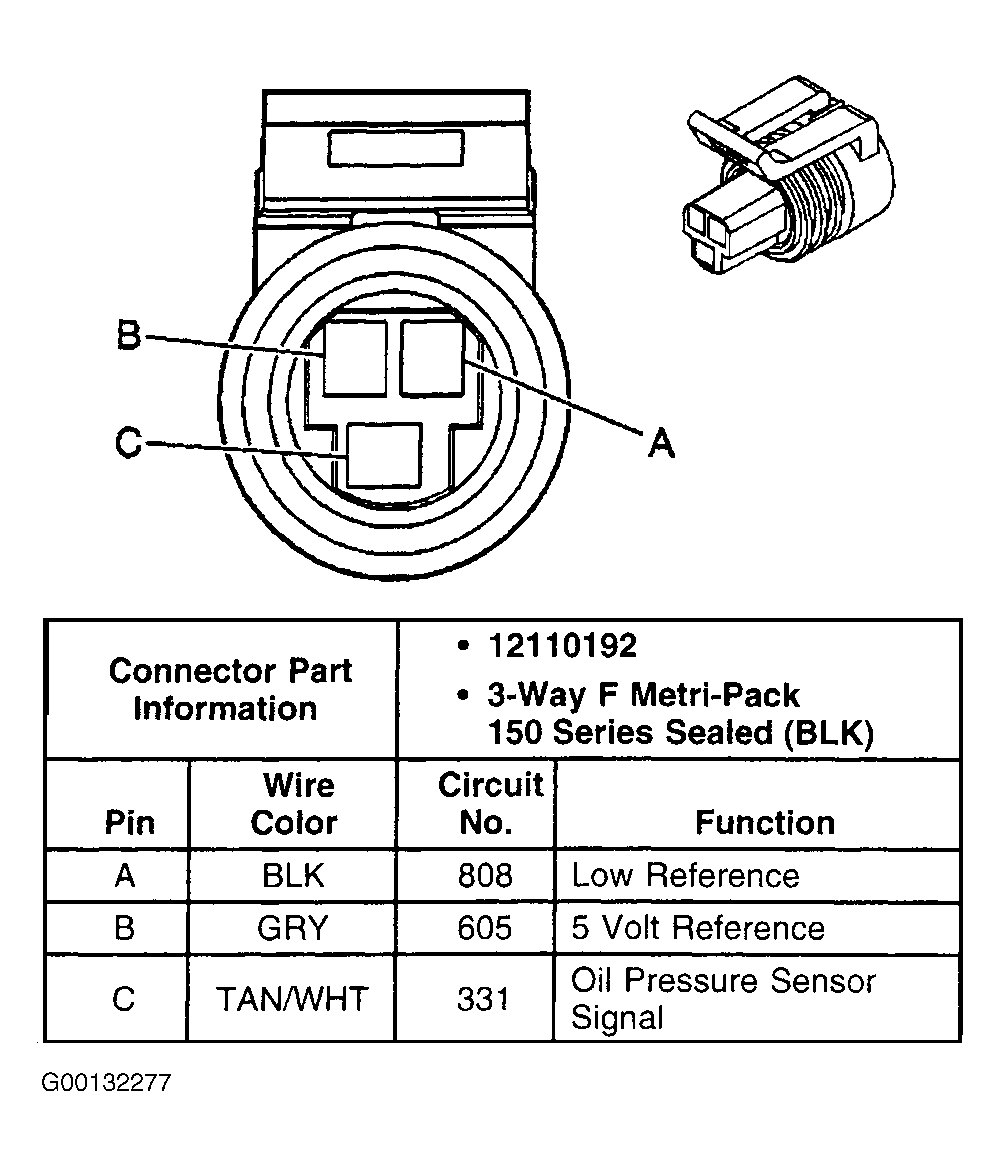

Fig 9: Identifying Engine Oil Pressure Sensor Harness Connector Terminals (Aurora)

G00132277

Courtesy of GENERAL MOTORS CORP.

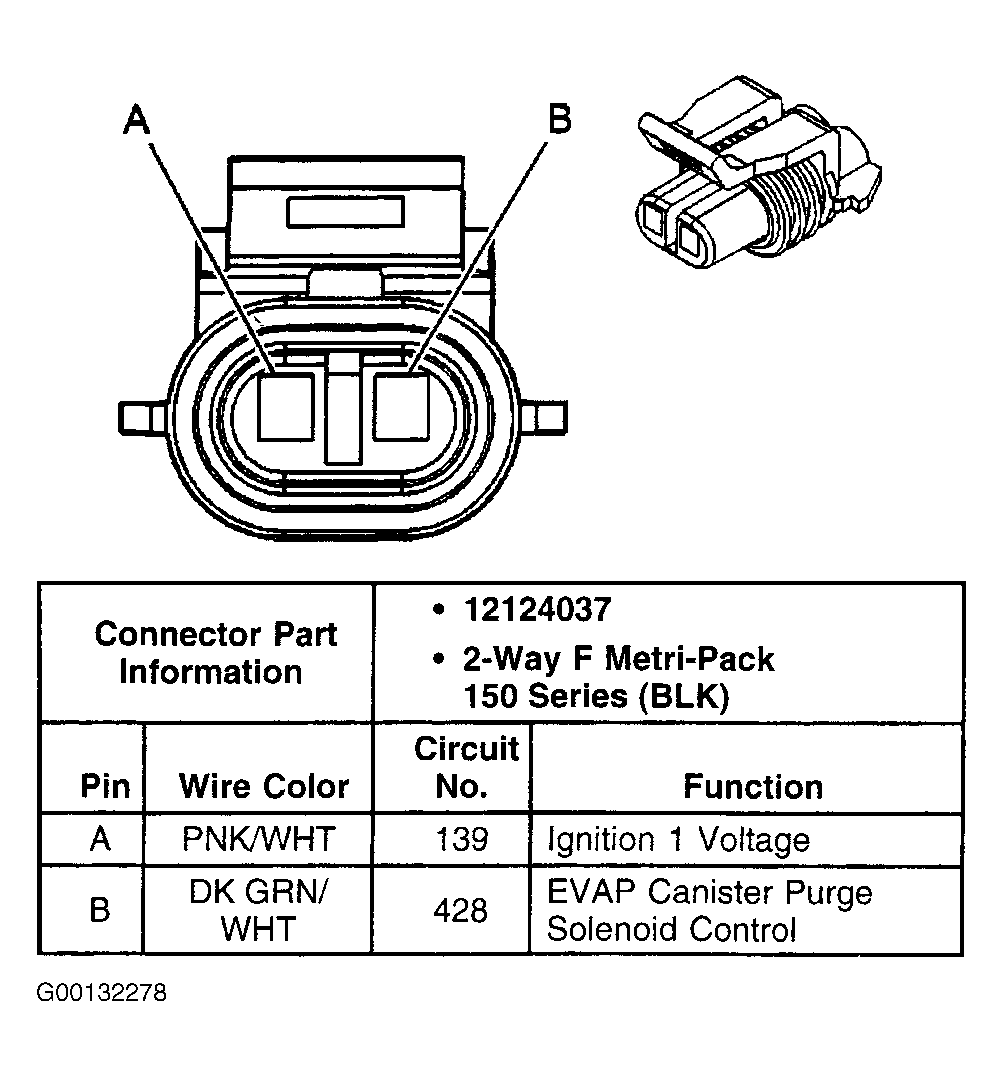

Fig 10: Identifying EVAP Canister Purge Solenoid Harness Connector Terminals (Aurora)

G00132278

Courtesy of GENERAL MOTORS CORP.

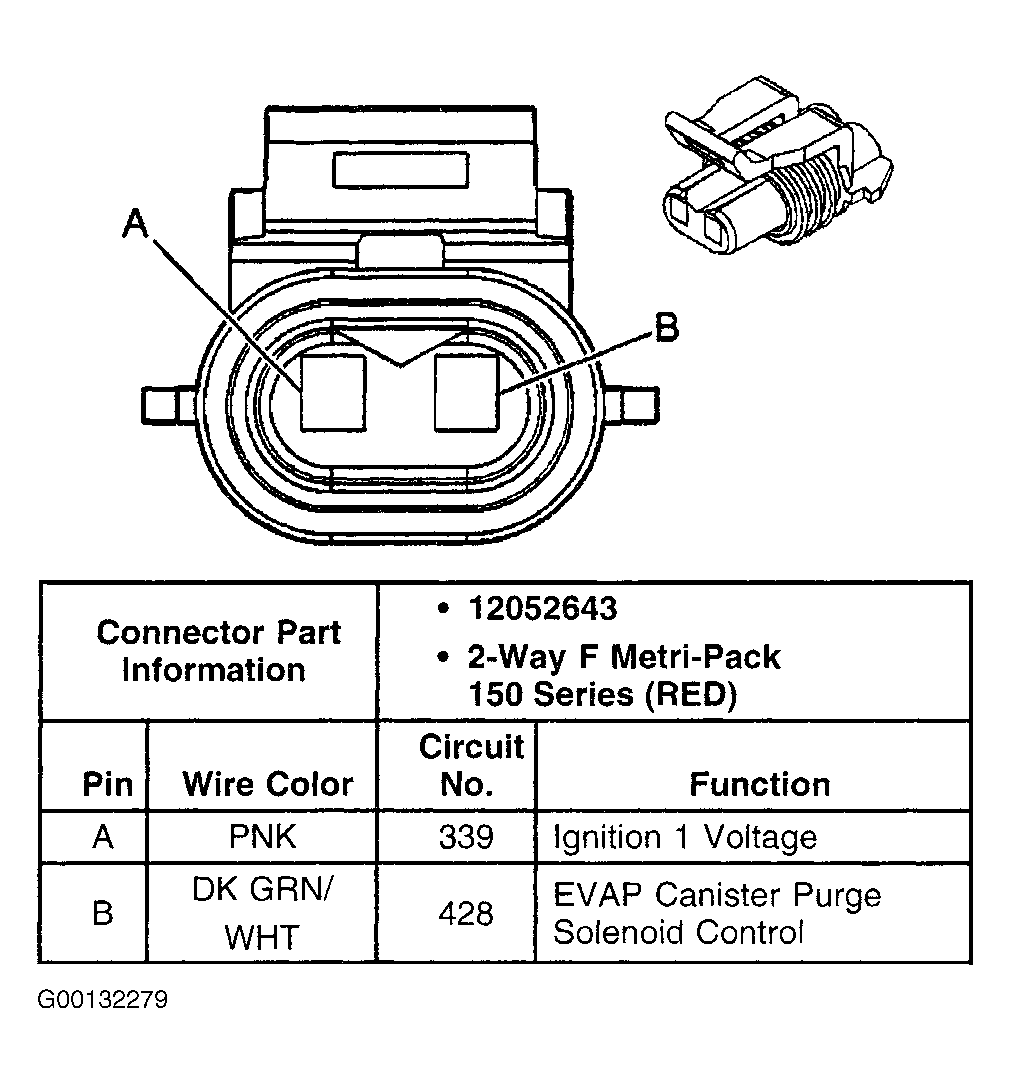

Fig 11: Identifying EVAP Canister Purge Solenoid Harness Connector Terminals (Intrigue)

G00132279

Courtesy of GENERAL MOTORS CORP.

Fig 12: Identifying EVAP Canister Vent Solenoid Harness Connector Terminals (Aurora)

G00132280

Courtesy of GENERAL MOTORS CORP.

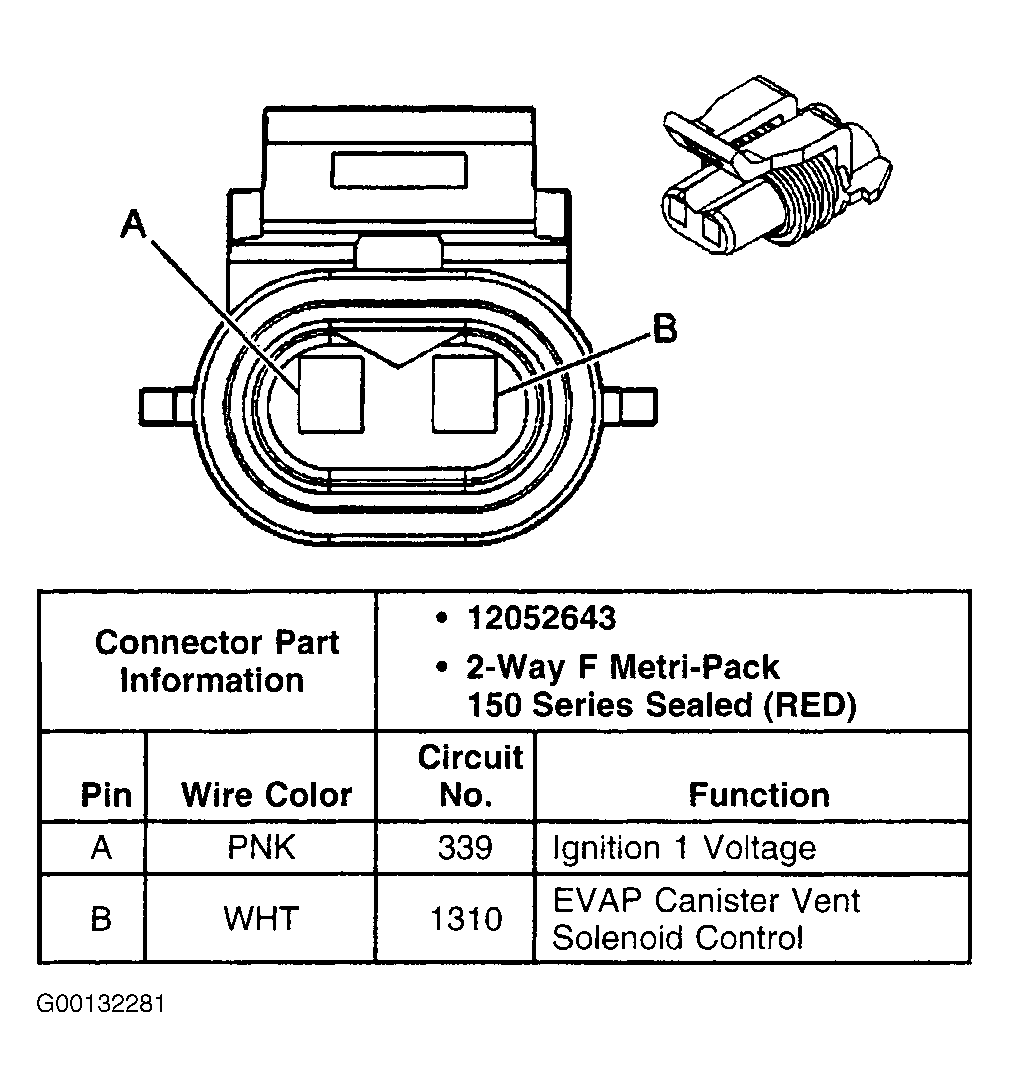

Fig 13: Identifying EVAP Canister Vent Solenoid Harness Connector Terminals (Intrigue)

G00132281

Courtesy of GENERAL MOTORS CORP.

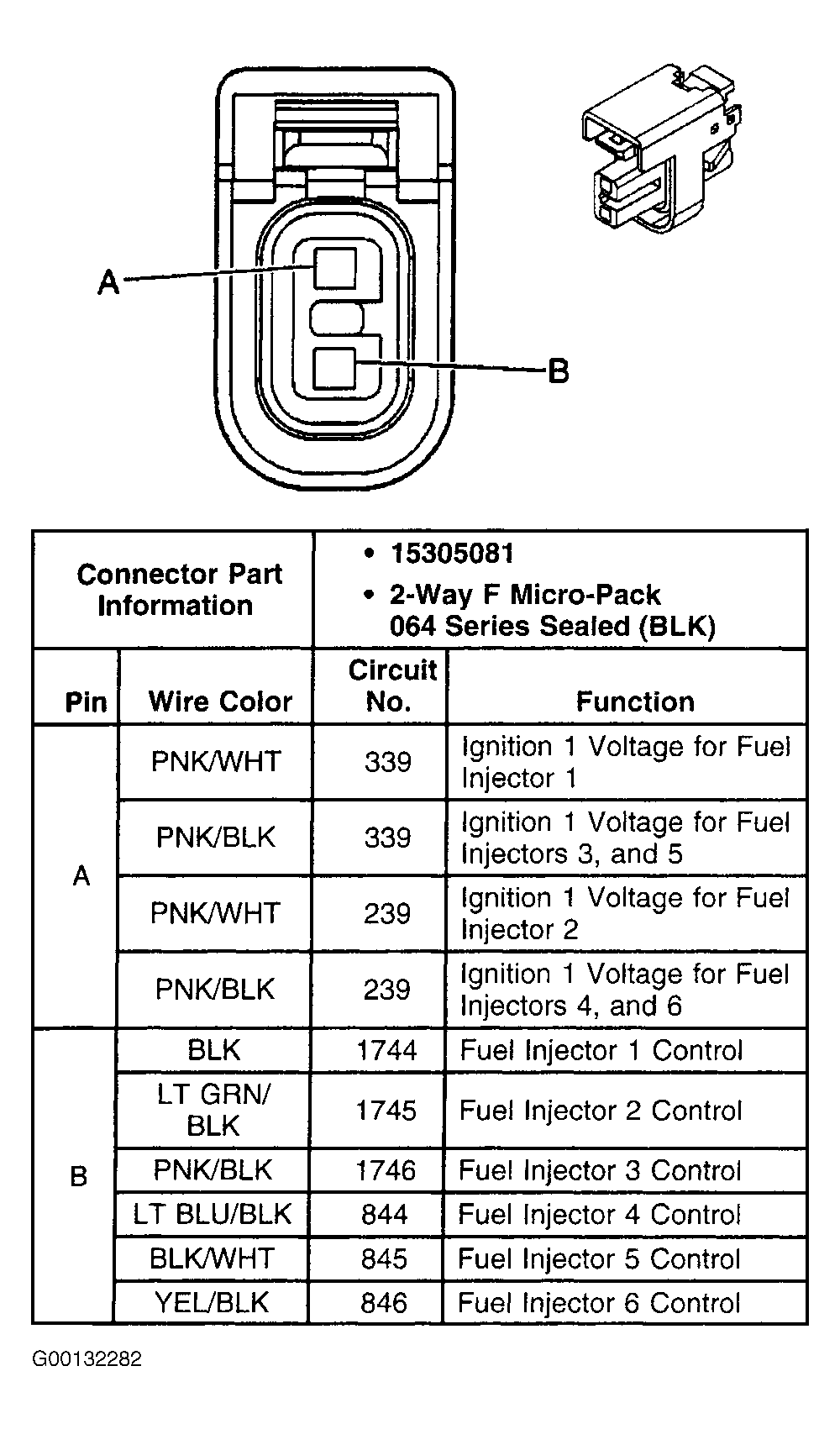

Fig 14: Identifying Fuel Injectors Harness Connector Terminals (Aurora)

G00132282

Courtesy of GENERAL MOTORS CORP.

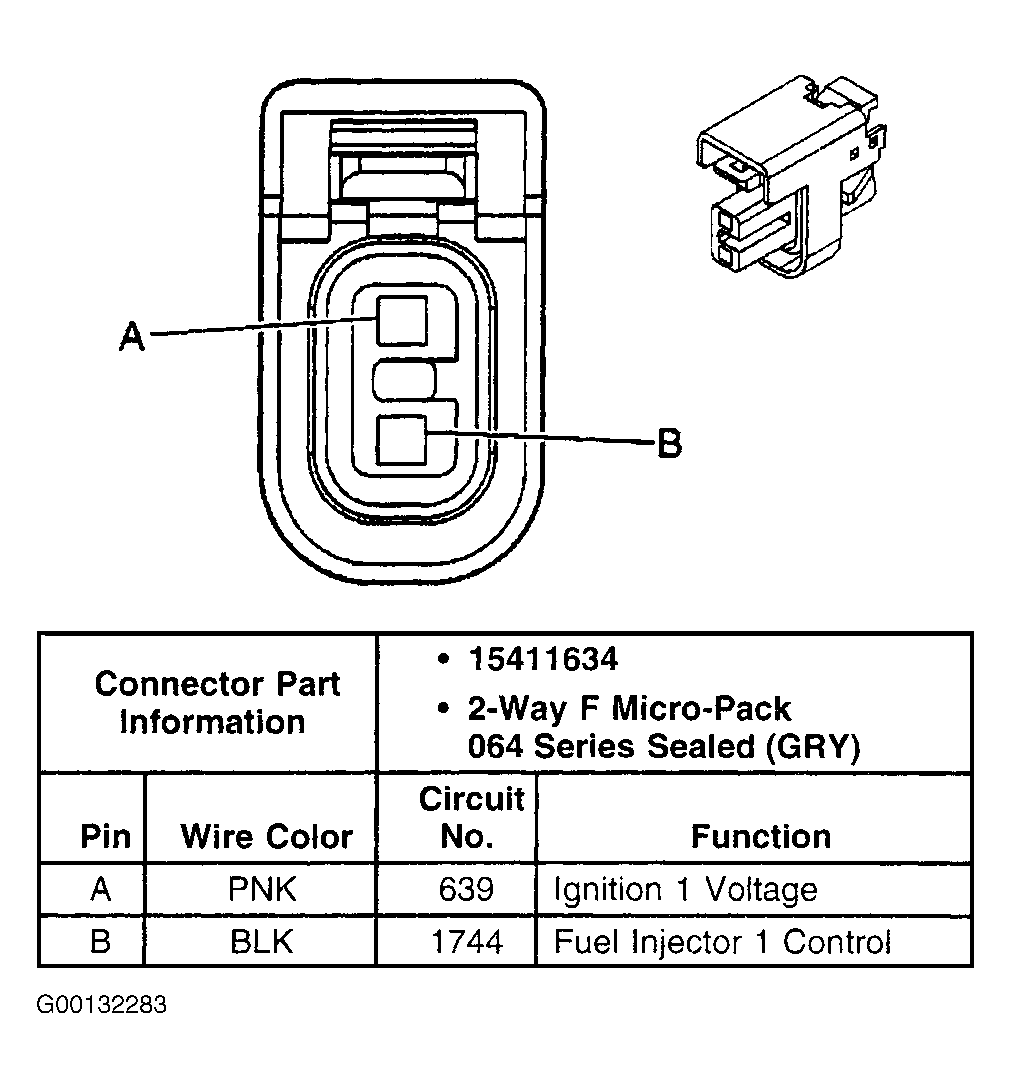

Fig 15: Identifying Fuel Injector No. 1 Harness Connector Terminals (Intrigue)

G00132283

Courtesy of GENERAL MOTORS CORP.

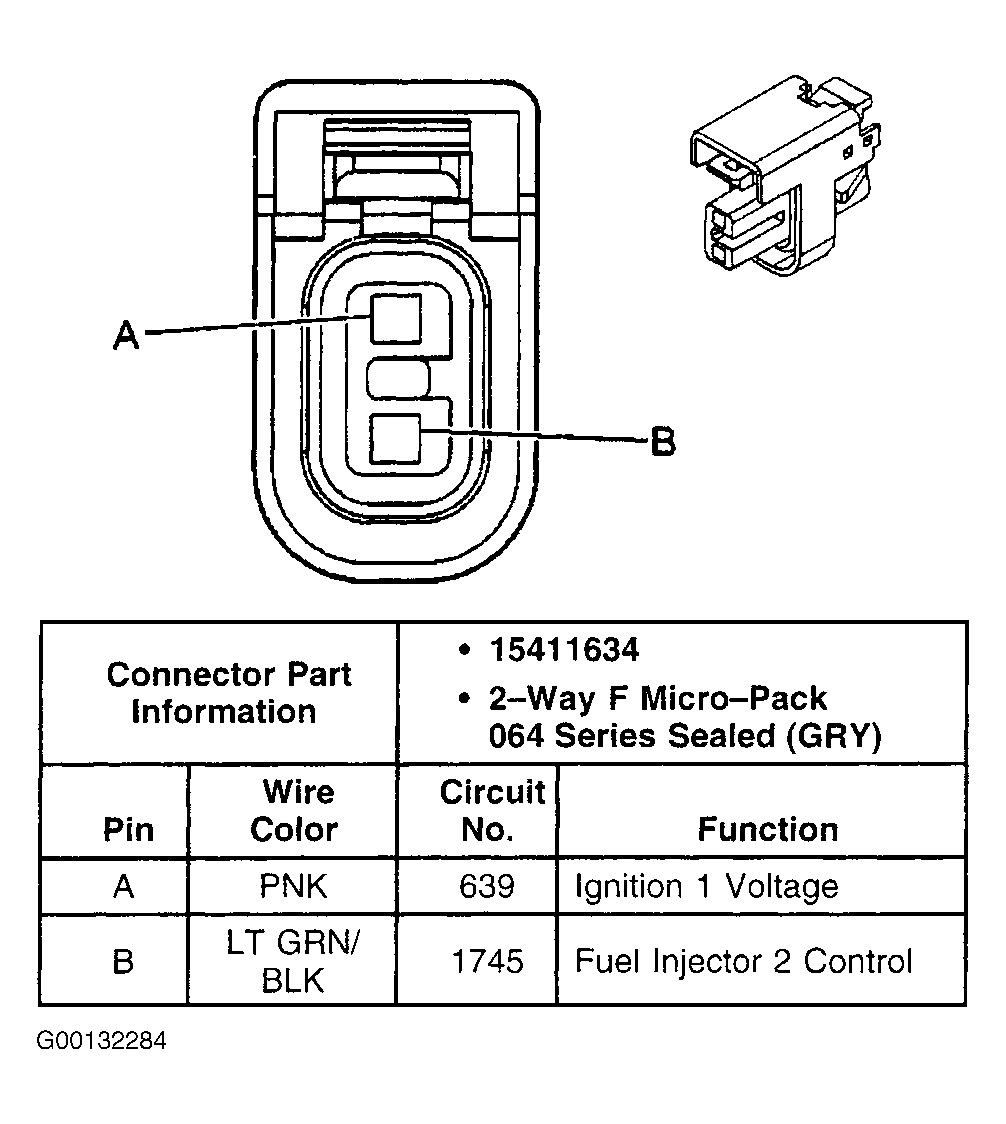

Fig 16: Identifying Fuel Injector No. 2 Harness Connector Terminals (Intrigue)

G00132284

Courtesy of GENERAL MOTORS CORP.

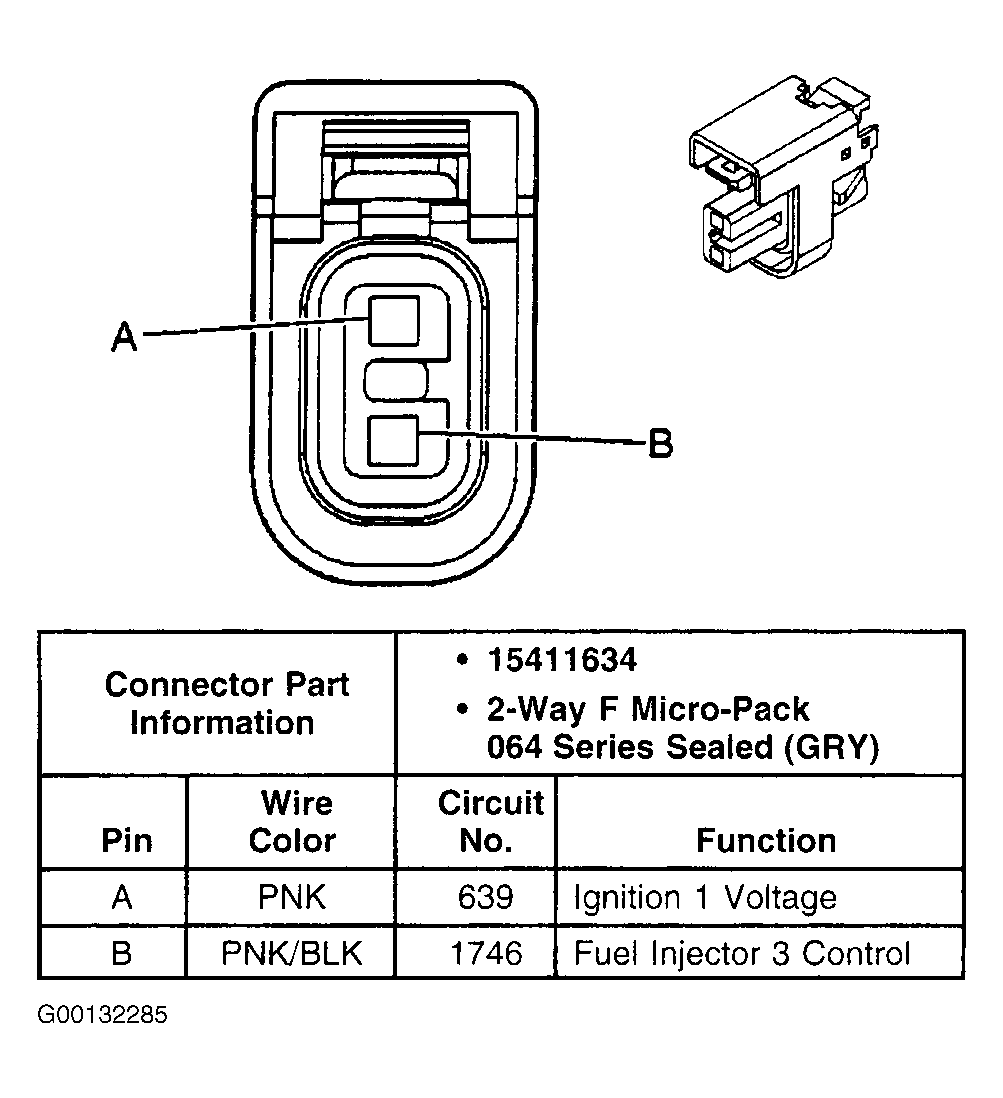

Fig 17: Identifying Fuel Injector No. 3 Harness Connector Terminals (Intrigue)

G00132285

Courtesy of GENERAL MOTORS CORP.

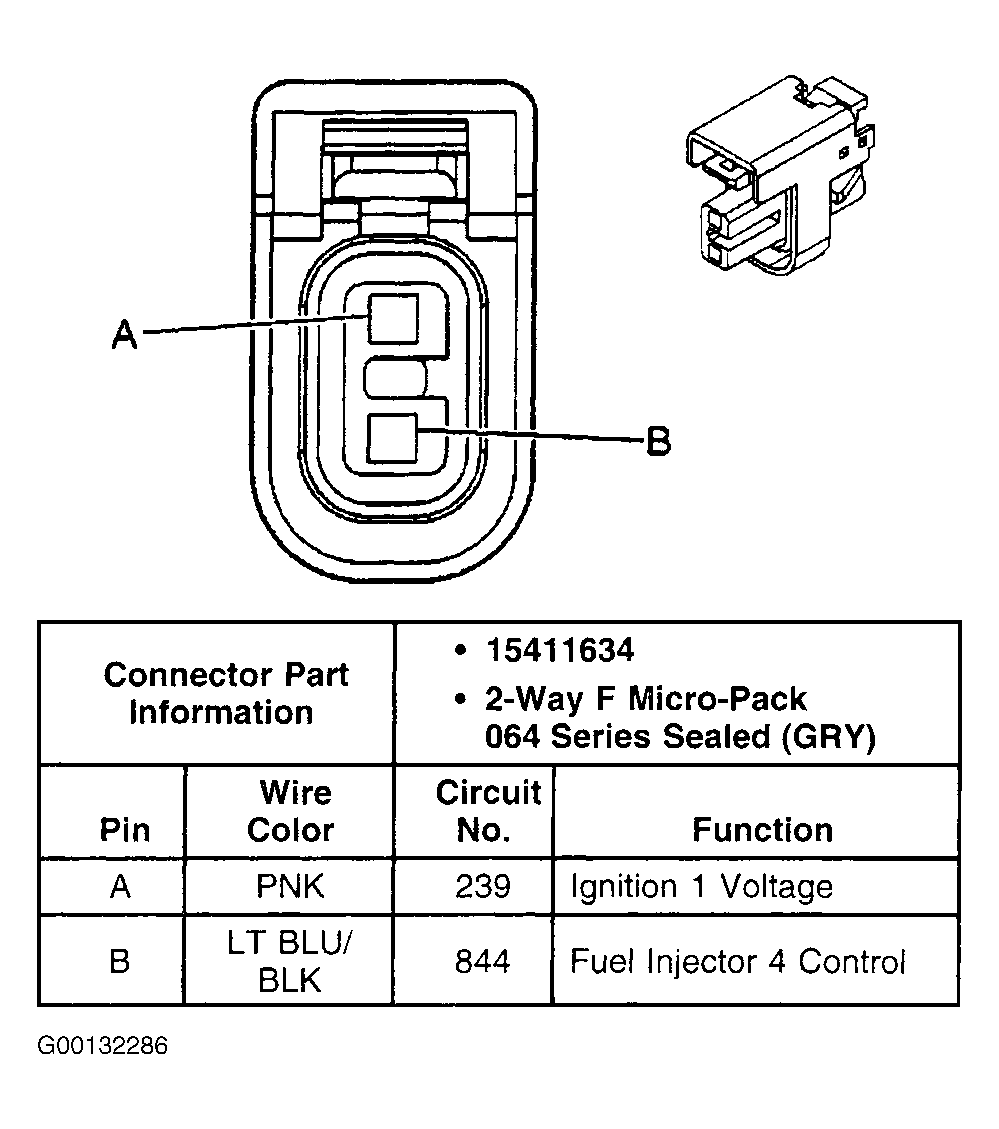

Fig 18: Identifying Fuel Injector No. 4 Harness Connector Terminals (Intrigue)

G00132286

Courtesy of GENERAL MOTORS CORP.

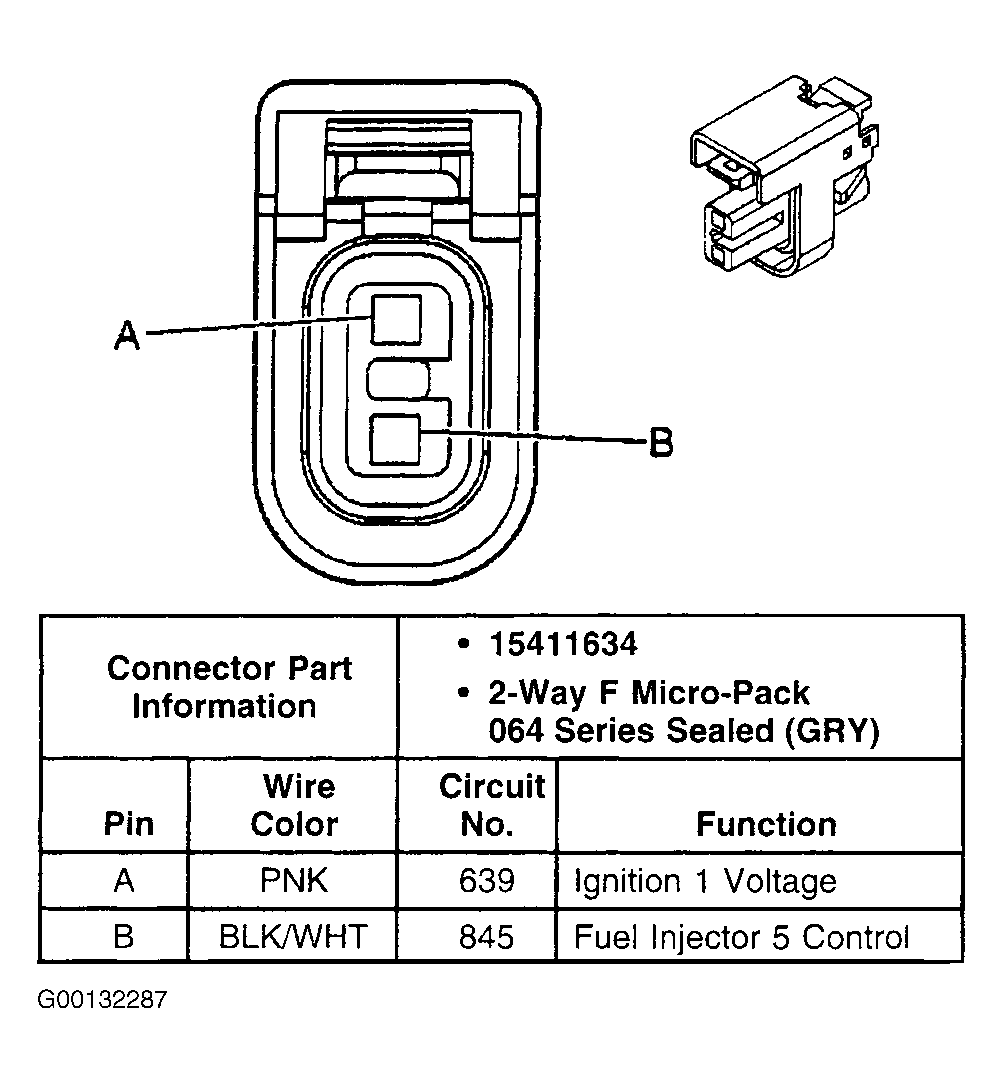

Fig 19: Identifying Fuel Injector No. 5 Harness Connector Terminals (Intrigue)

G00132287

Courtesy of GENERAL MOTORS CORP.

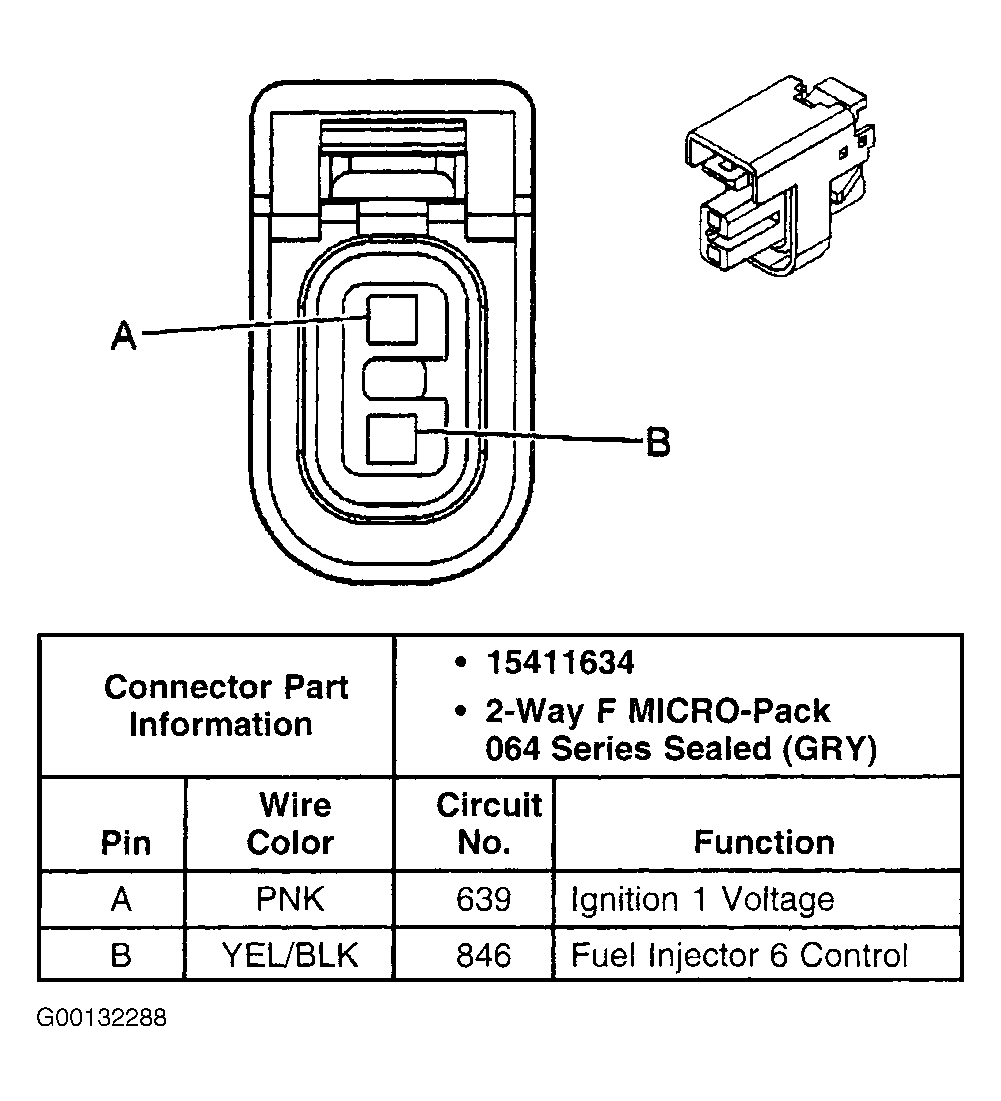

Fig 20: Identifying Fuel Injector No. 6 Harness Connector Terminals (Intrigue)

G00132288

Courtesy of GENERAL MOTORS CORP.

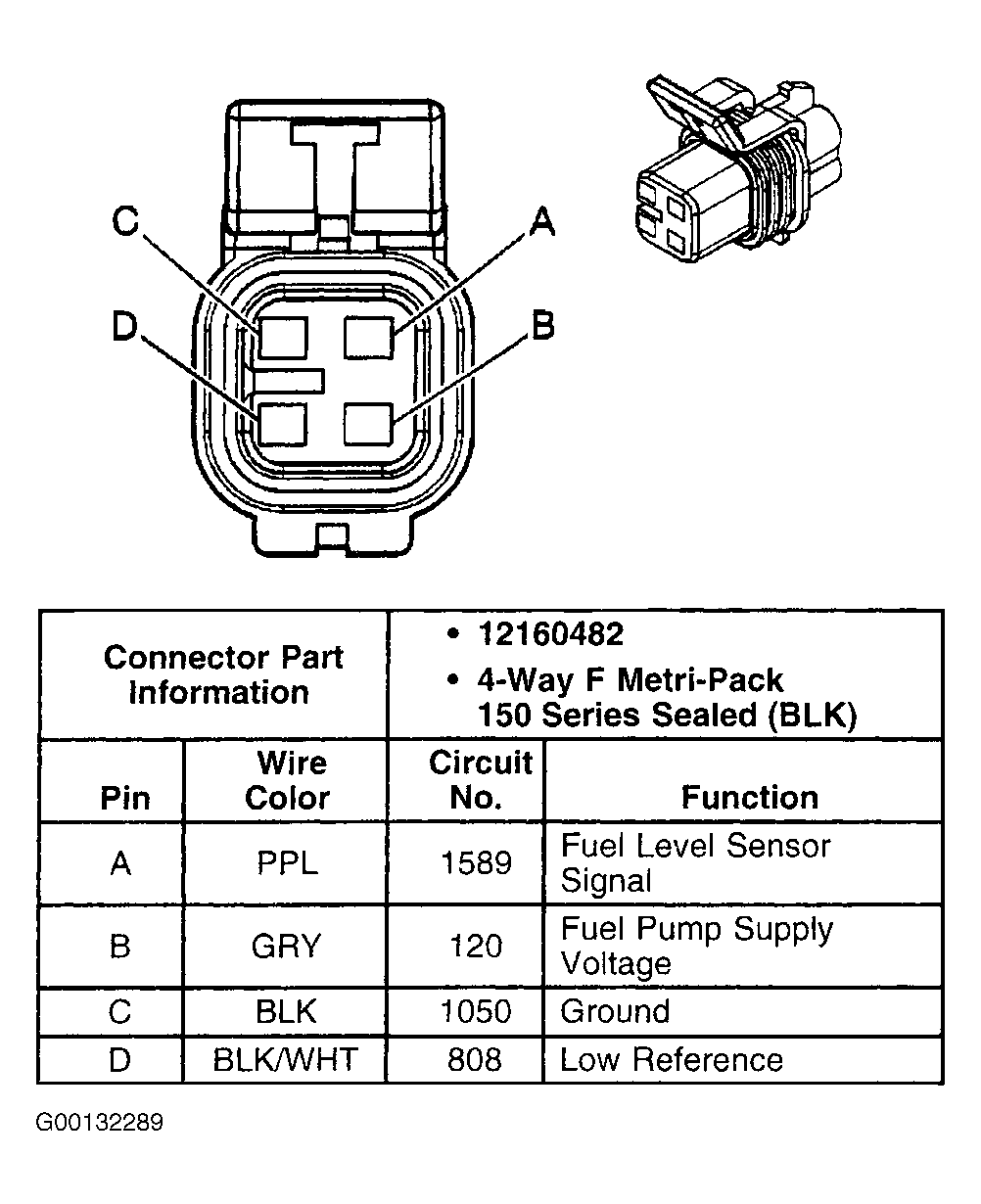

Fig 21: Identifying Fuel Pump & Sender Assembly Harness Connector Terminals (Aurora)

G00132289

Courtesy of GENERAL MOTORS CORP.

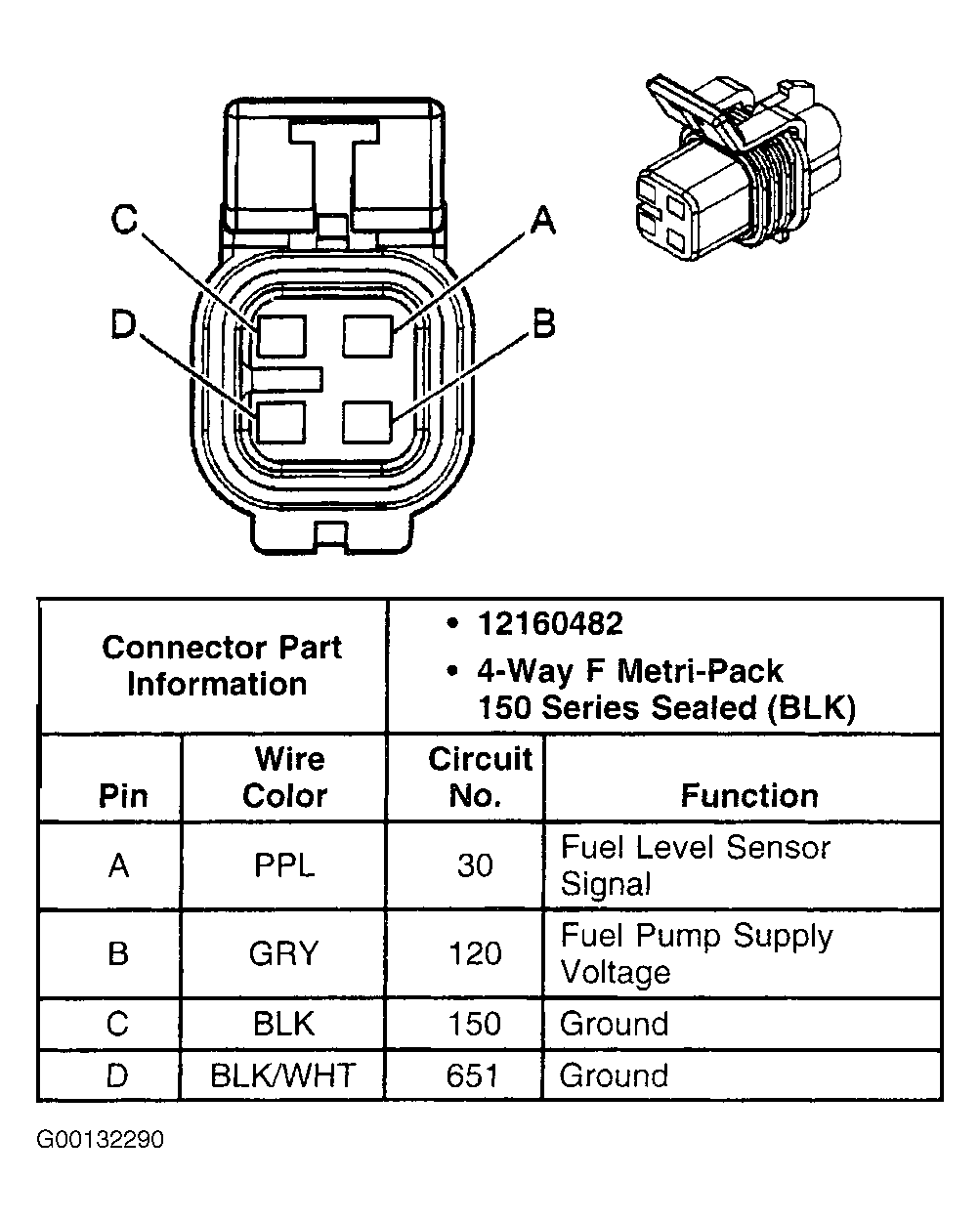

Fig 22: Identifying Fuel Pump & Sender Assembly Harness Connector Terminals (Intrigue)

G00132290

Courtesy of GENERAL MOTORS CORP.

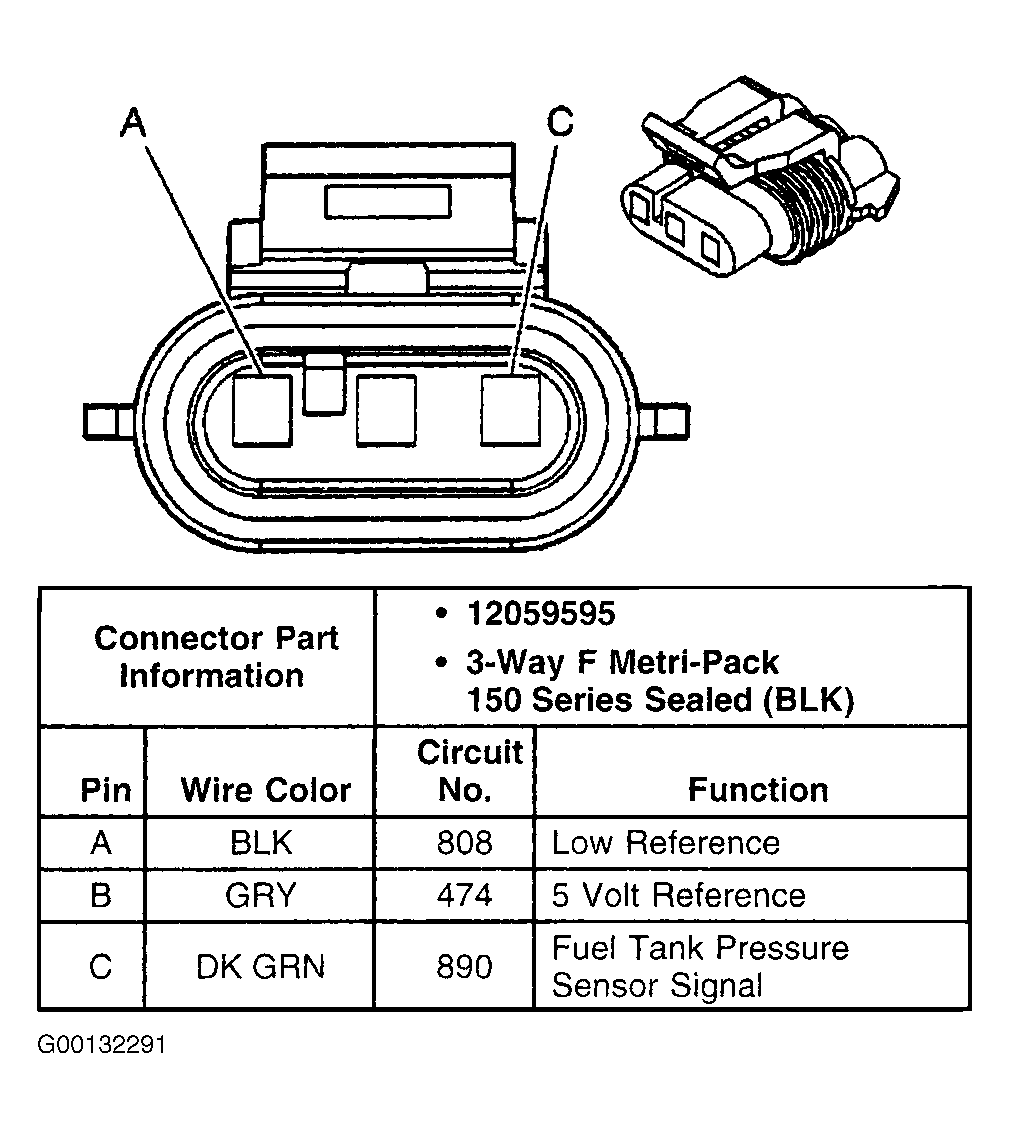

Fig 23: Identifying Fuel Tank Pressure Sensor Harness Connector Terminals (Aurora)

G00132291

Courtesy of GENERAL MOTORS CORP.

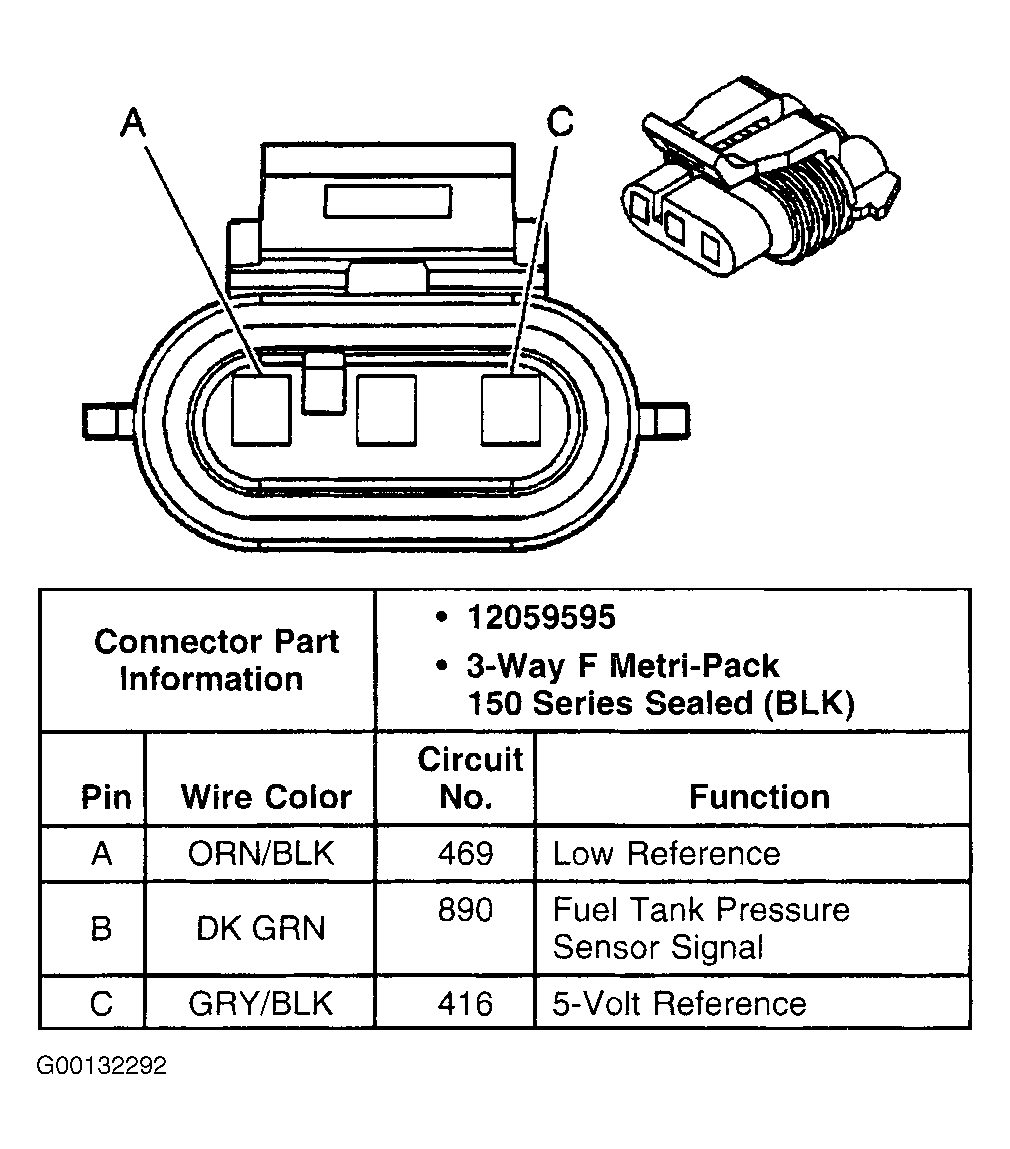

Fig 24: Identifying Fuel Tank Pressure Sensor Harness Connector Terminals (Intrigue)

G00132292

Courtesy of GENERAL MOTORS CORP.

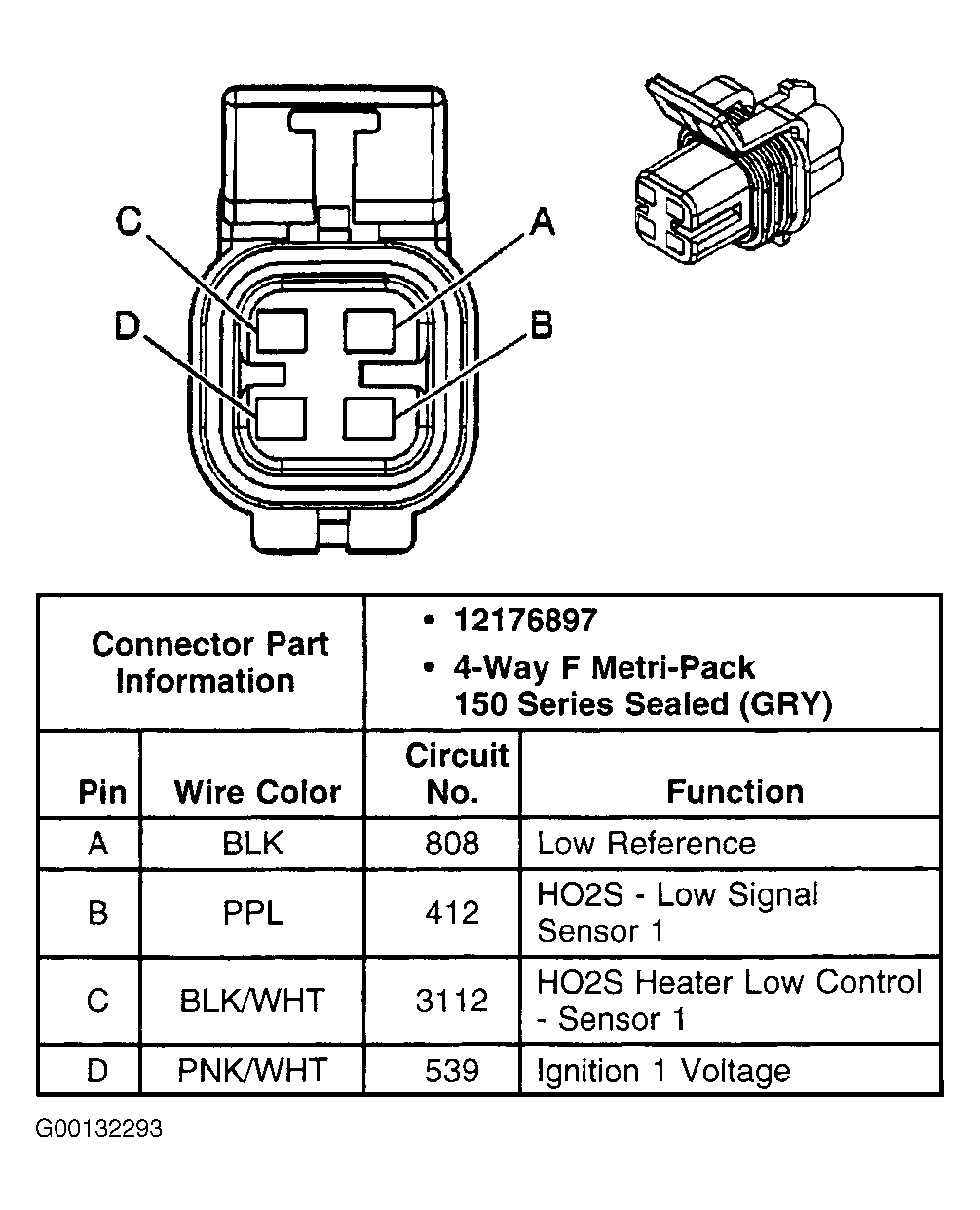

Fig 25: Identifying HO2S 1 Harness Connector Terminals (Aurora)

G00132293

Courtesy of GENERAL MOTORS CORP.

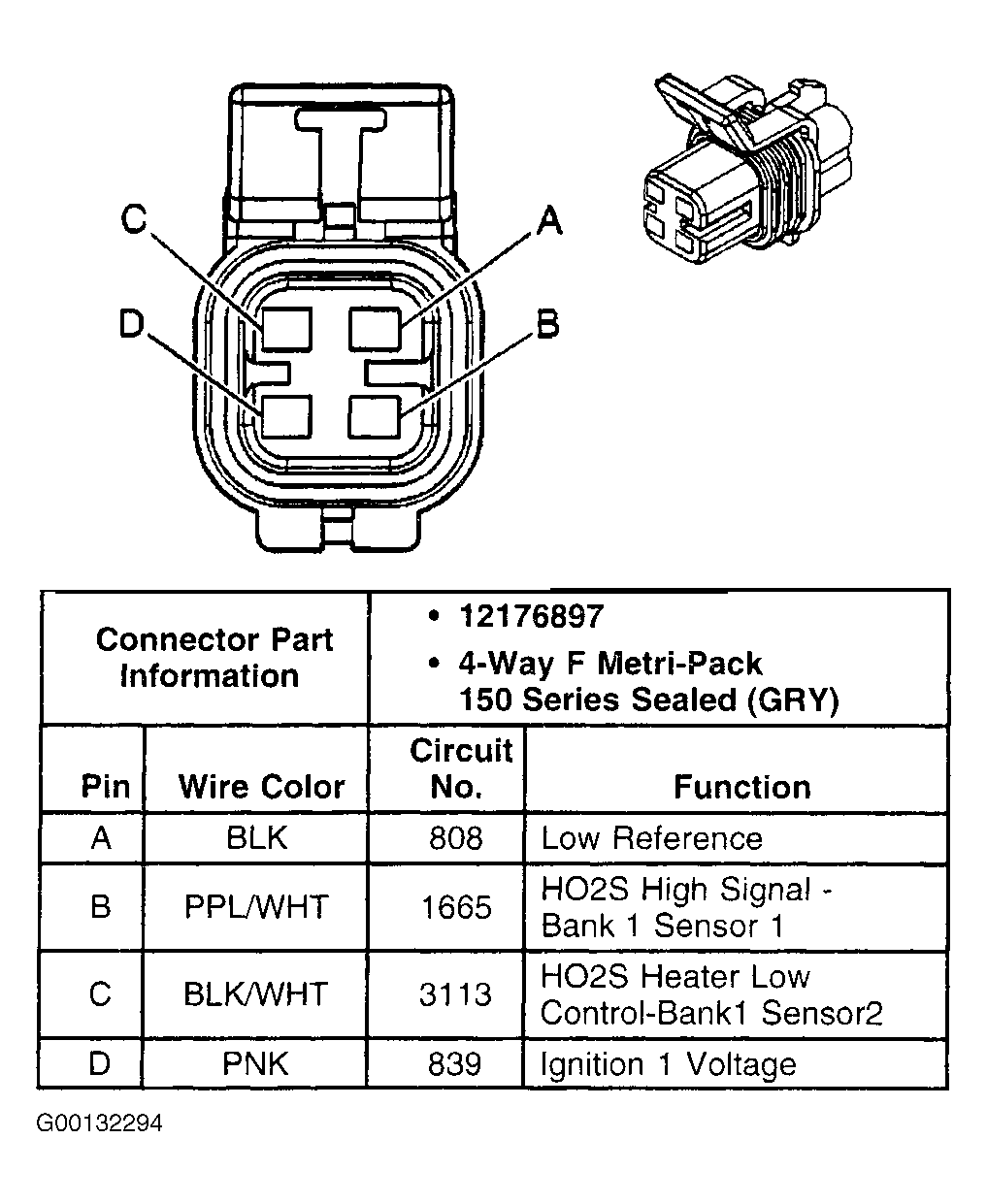

Fig 26: Identifying HO2S 1 Harness Connector Terminals (Intrigue)

G00132294

Courtesy of GENERAL MOTORS CORP.

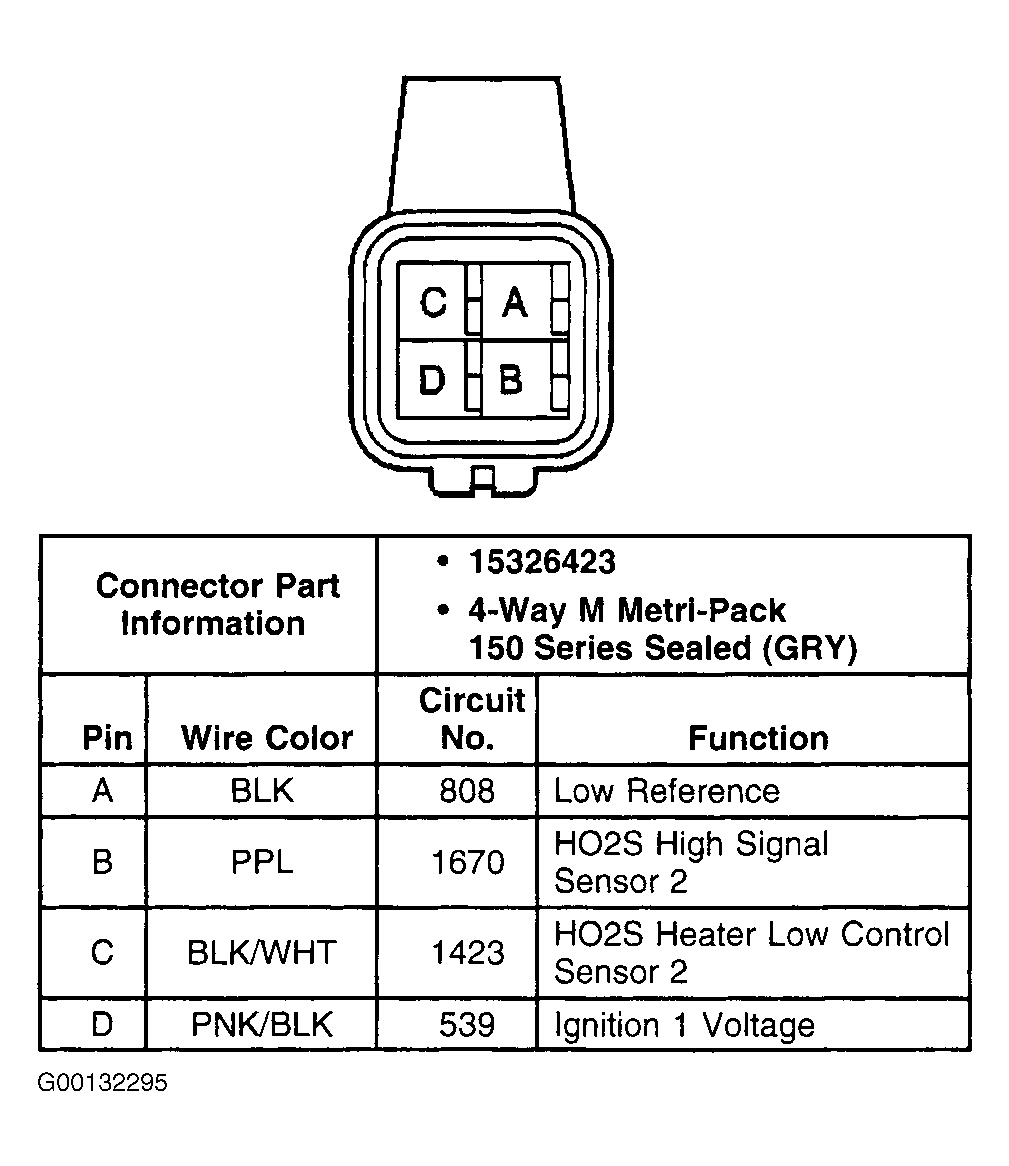

Fig 27: Identifying HO2S 2 Harness Connector Terminals (Aurora)

G00132295

Courtesy of GENERAL MOTORS CORP.

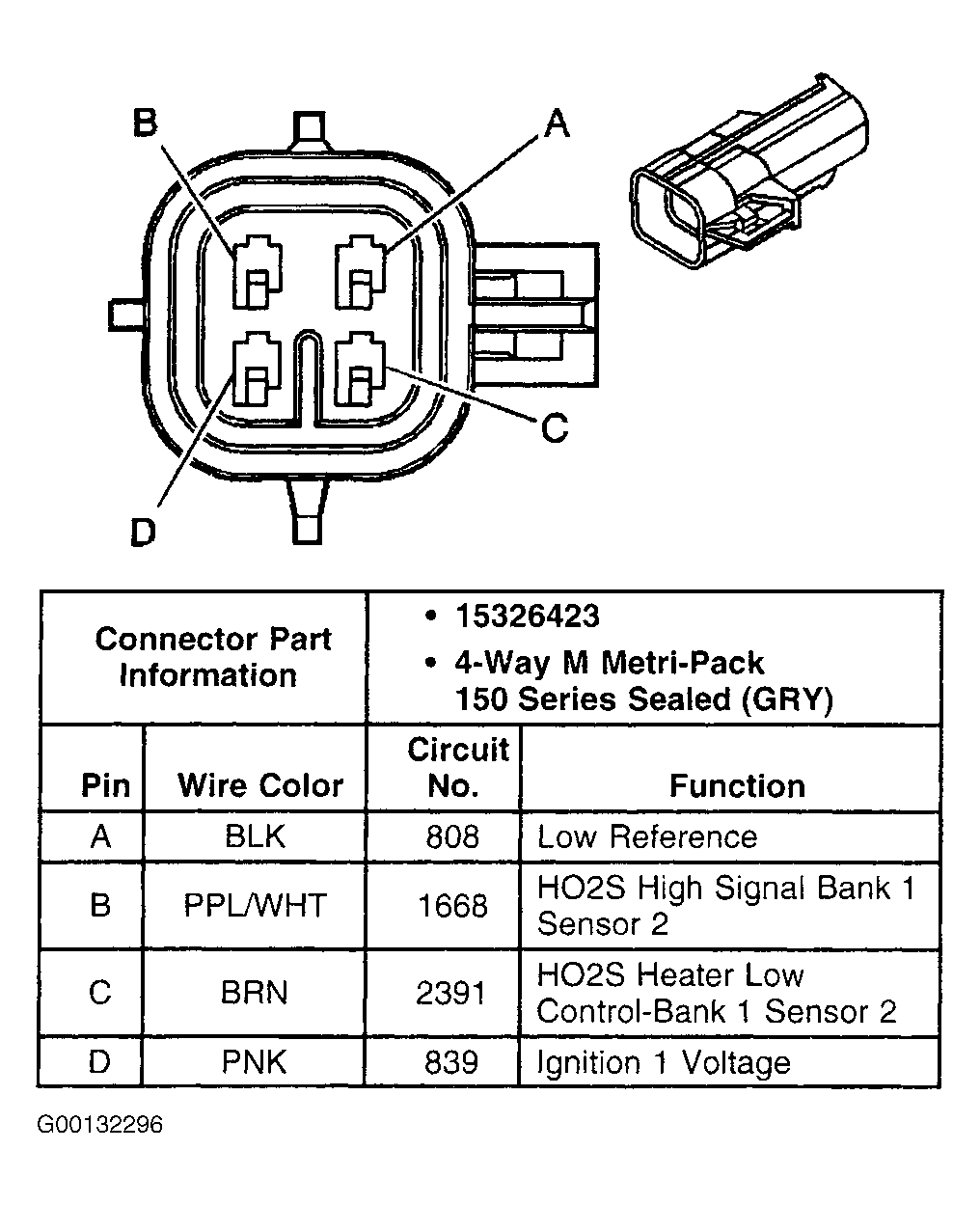

Fig 28: Identifying HO2S 2 Harness Connector Terminals (Intrigue)

G00132296

Courtesy of GENERAL MOTORS CORP.

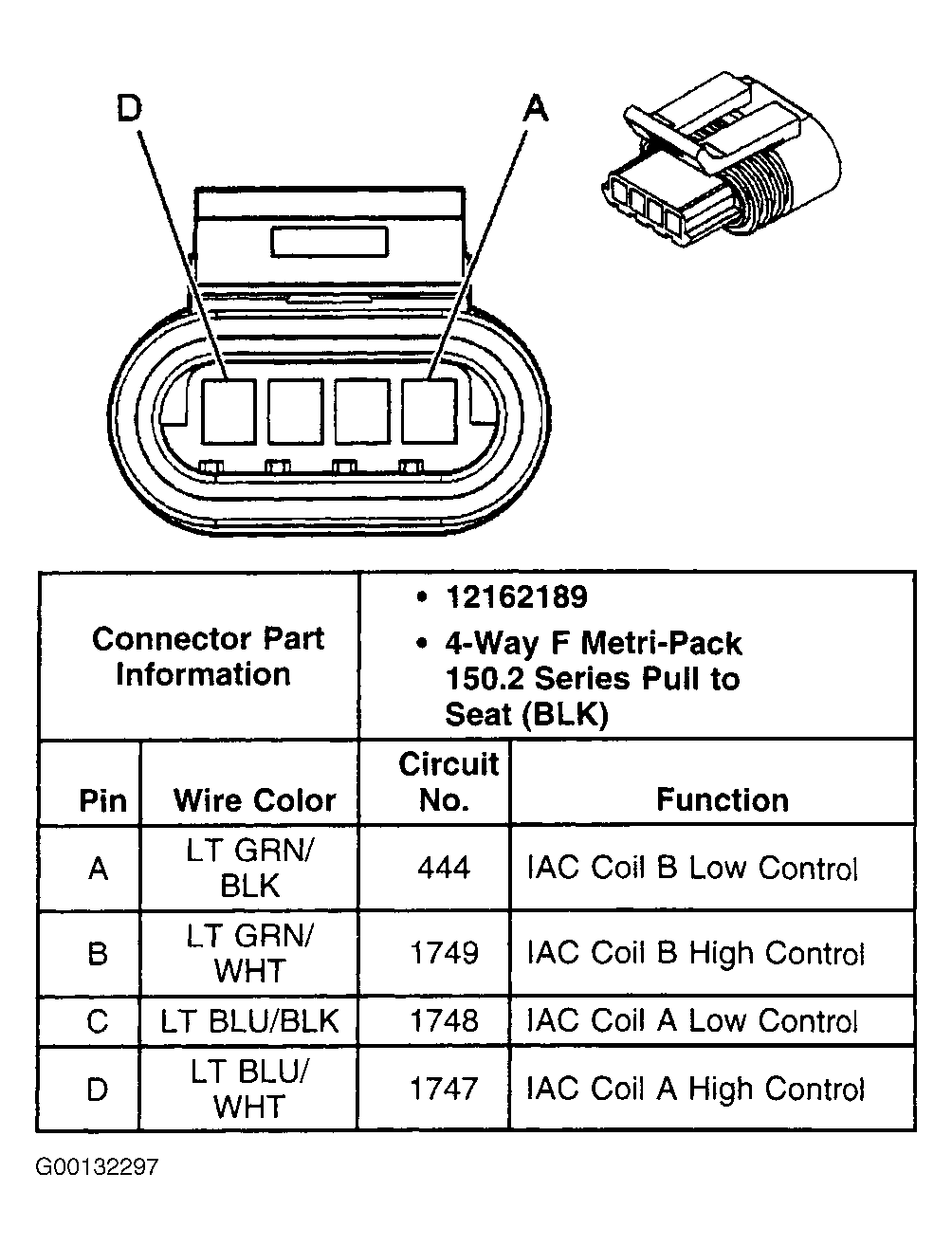

Fig 29: Identifying Idle Air Control Valve Harness Connector Terminals (Aurora)

G00132297

Courtesy of GENERAL MOTORS CORP.

Fig 30: Identifying Idle Air Control Valve Harness Connector Terminals (Intrigue)

G00132298

Courtesy of GENERAL MOTORS CORP.

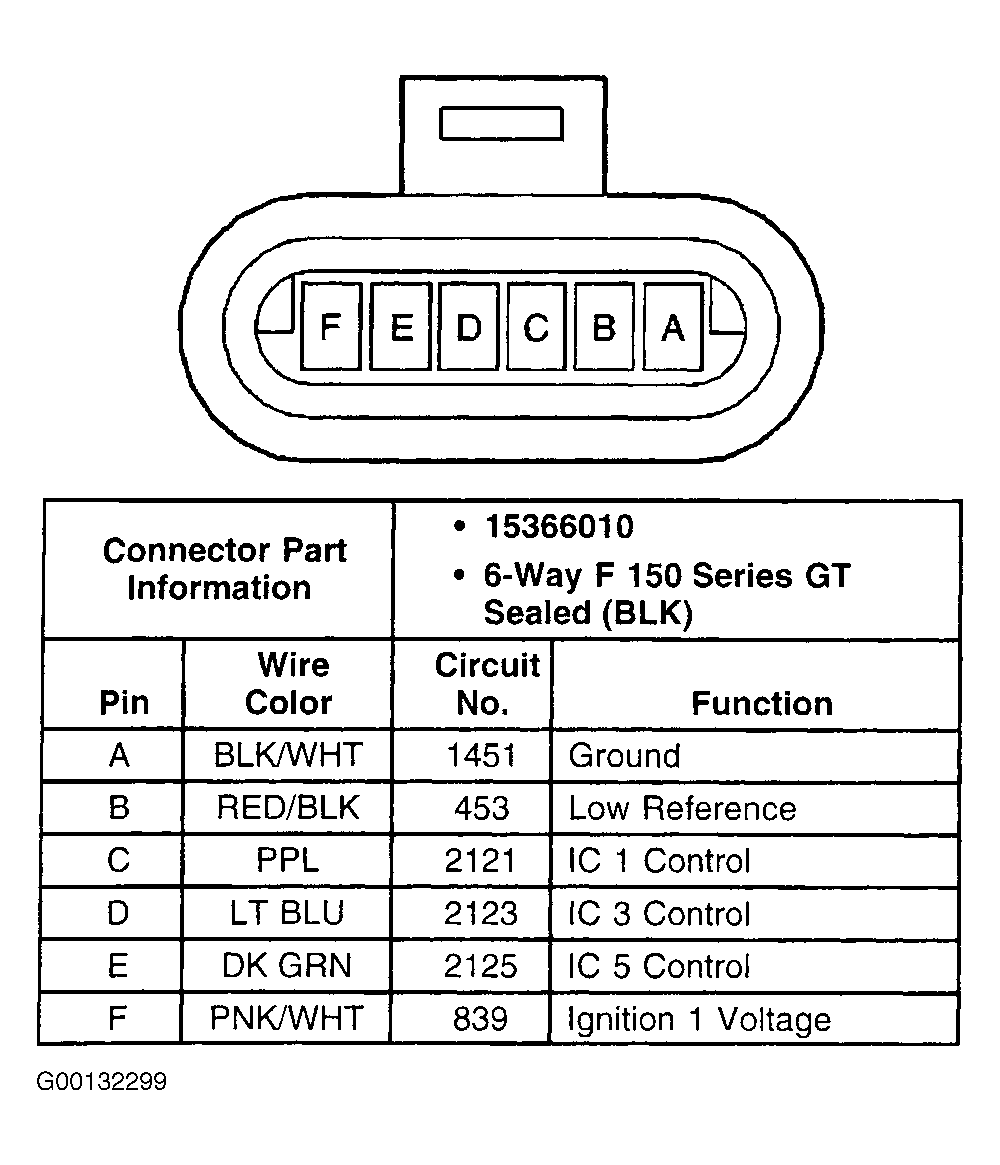

Fig 31: Identifying Ignition Control Module - Bank 1 Harness Connector Terminals (Aurora)

G00132299

Courtesy of GENERAL MOTORS CORP.

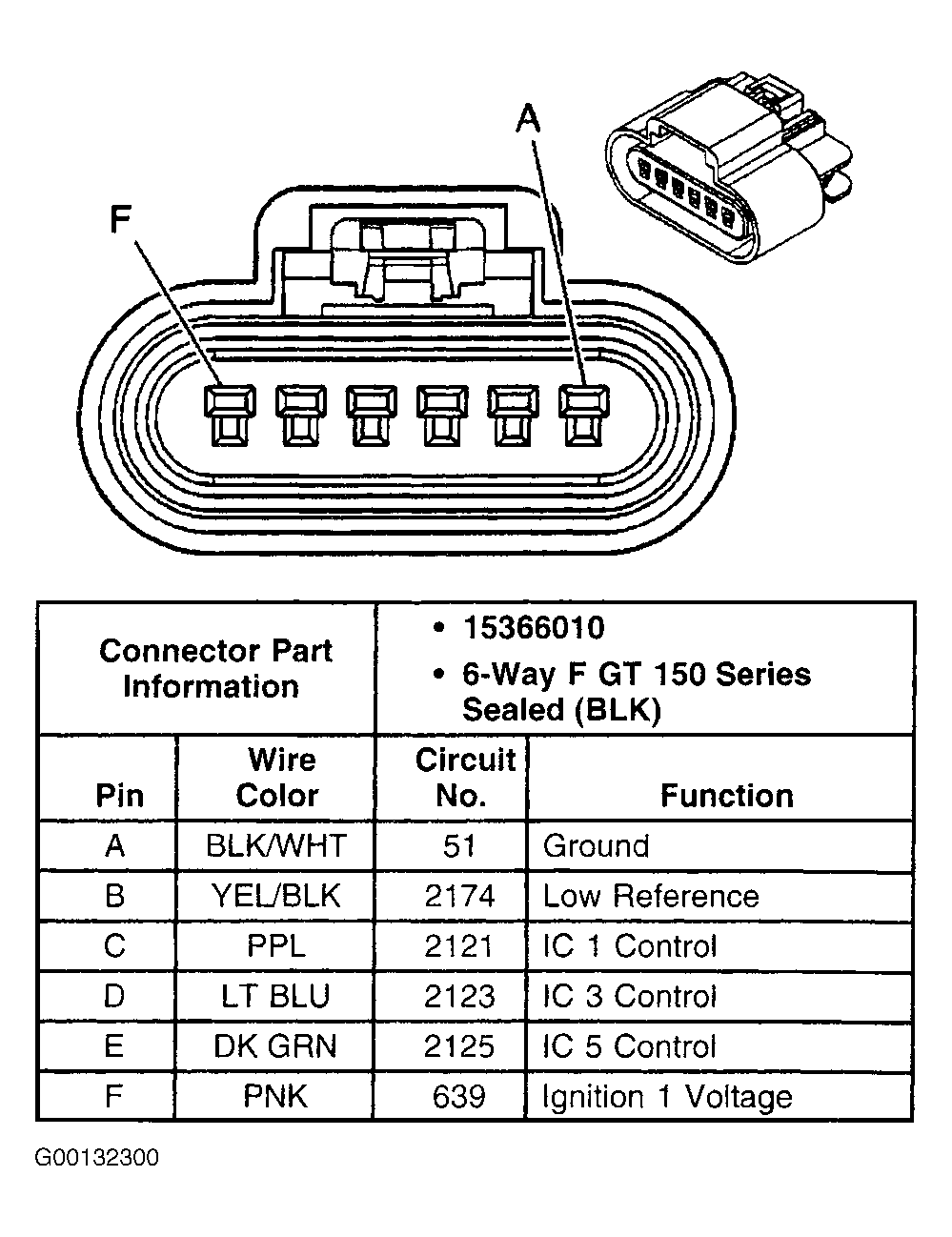

Fig 32: Identifying Ignition Control Module - Bank 1 Harness Connector Terminals (Intrigue)

G00132300

Courtesy of GENERAL MOTORS CORP.

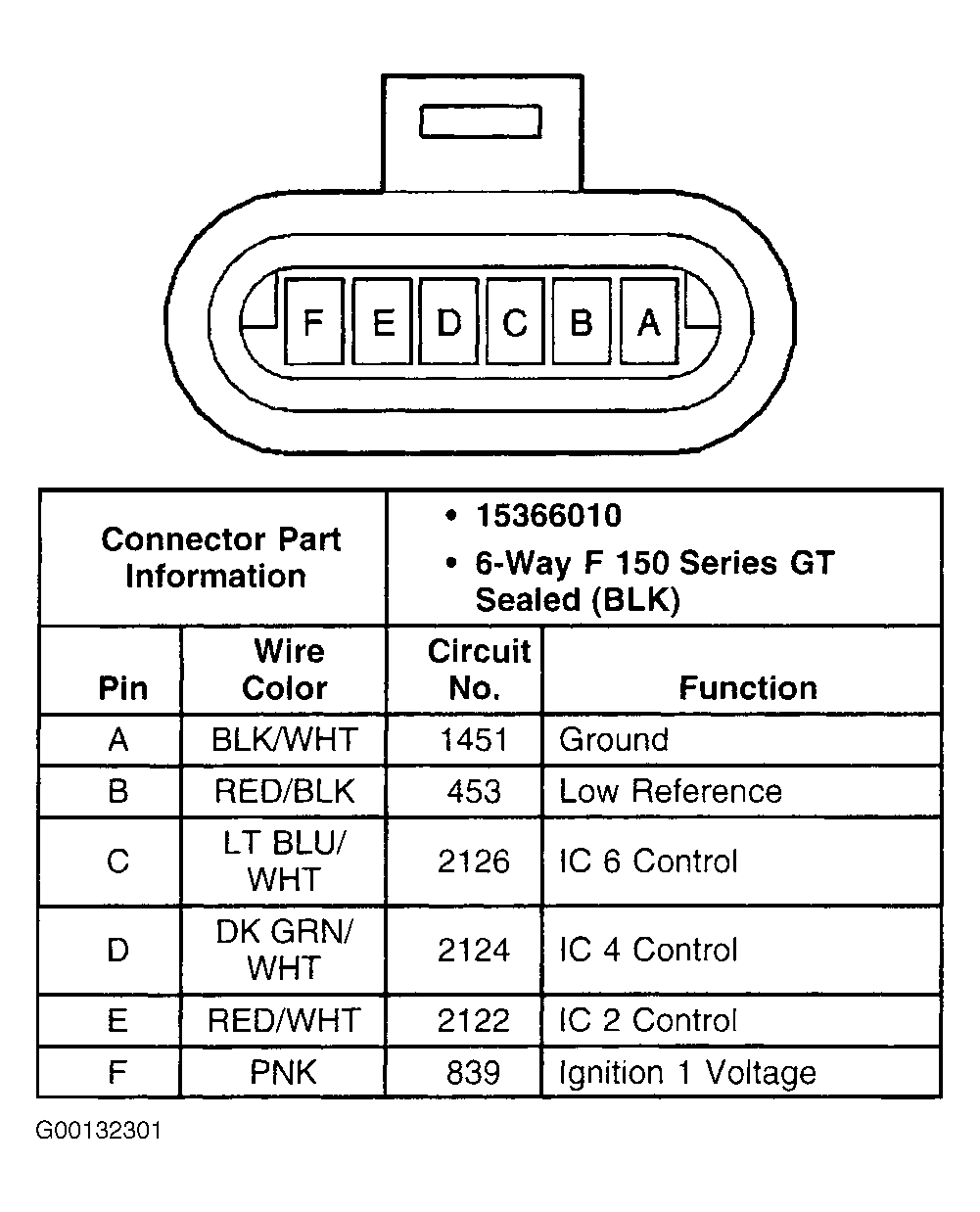

Fig 33: Identifying Ignition Control Module - Bank 2 Harness Connector Terminals (Aurora)

G00132301

Courtesy of GENERAL MOTORS CORP.

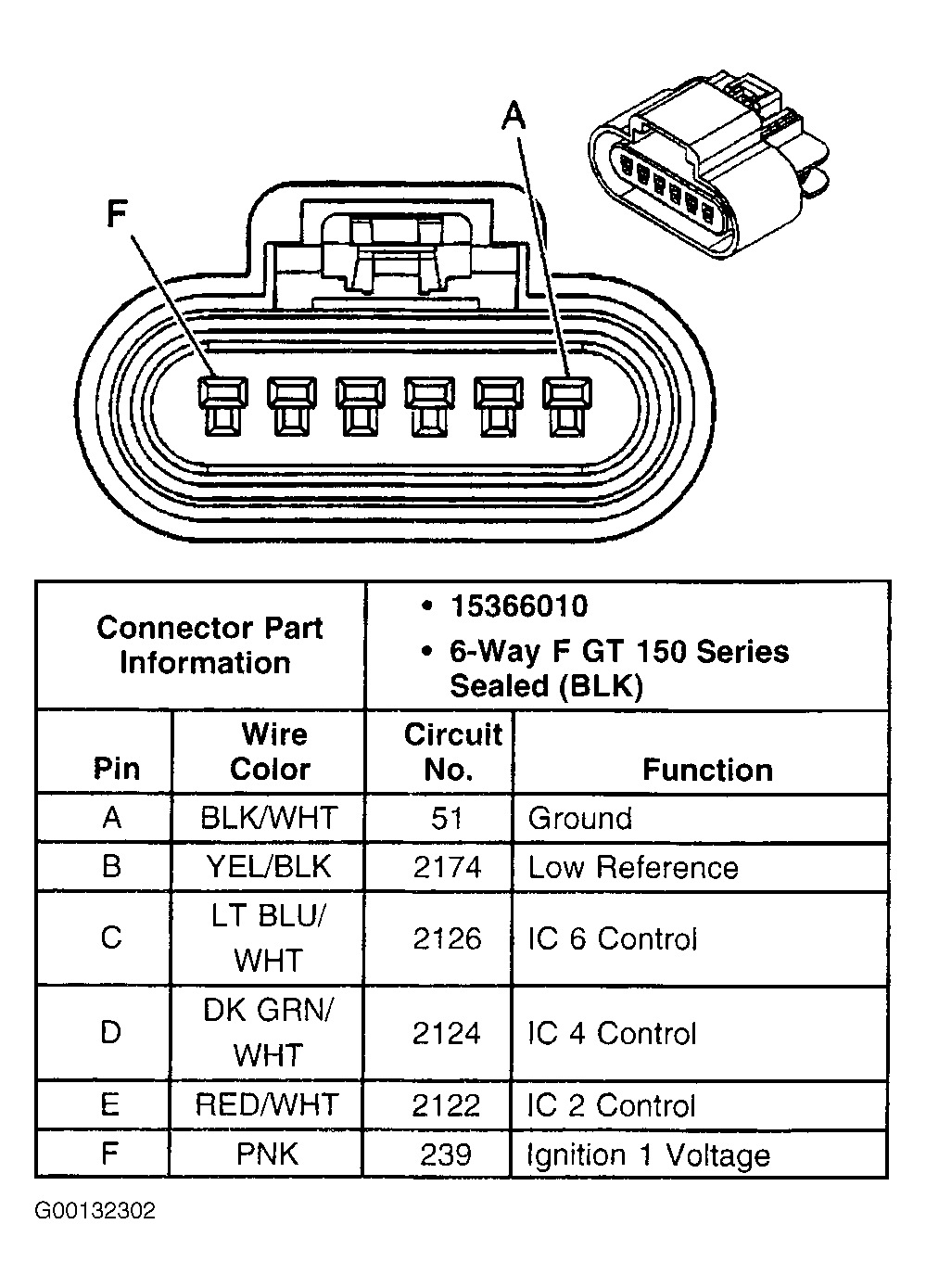

Fig 34: Identifying Ignition Control Module - Bank 2 Harness Connector Terminals (Intrigue)

G00132302

Courtesy of GENERAL MOTORS CORP.

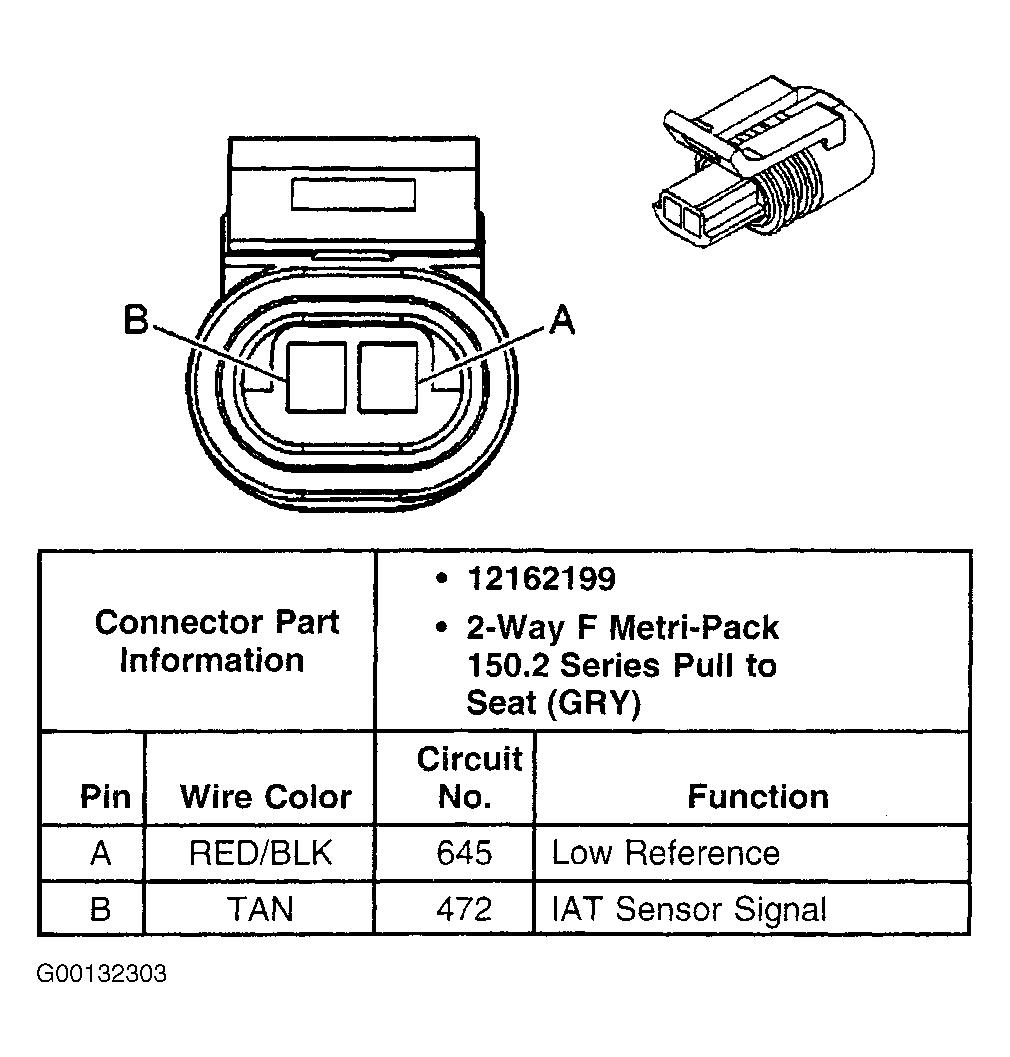

Fig 35: Identifying Intake Air Temperature Sensor Harness Connector Terminals (Aurora)

G00132303

Courtesy of GENERAL MOTORS CORP.

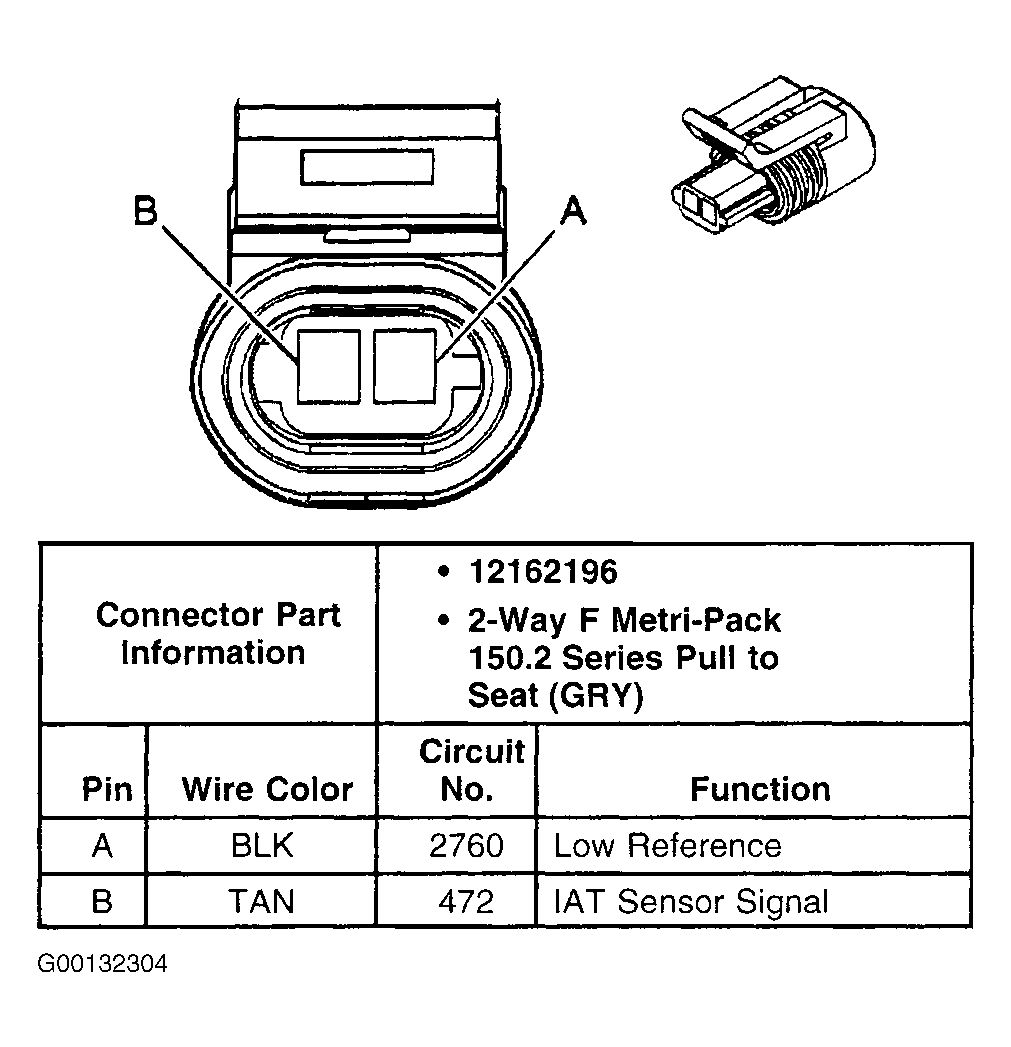

Fig 36: Identifying Intake Air Temperature Sensor Harness Connector Terminals (Intrigue)

G00132304

Courtesy of GENERAL MOTORS CORP.

Fig 37: Identifying Instrument Panel Cluster Harness Connector C1 Terminals (Aurora)

G00132318

Courtesy of GENERAL MOTORS CORP.

Fig 38: Identifying Instrument Panel Cluster Harness Connector C2 Terminals (Aurora)

G00132319

Courtesy of GENERAL MOTORS CORP.

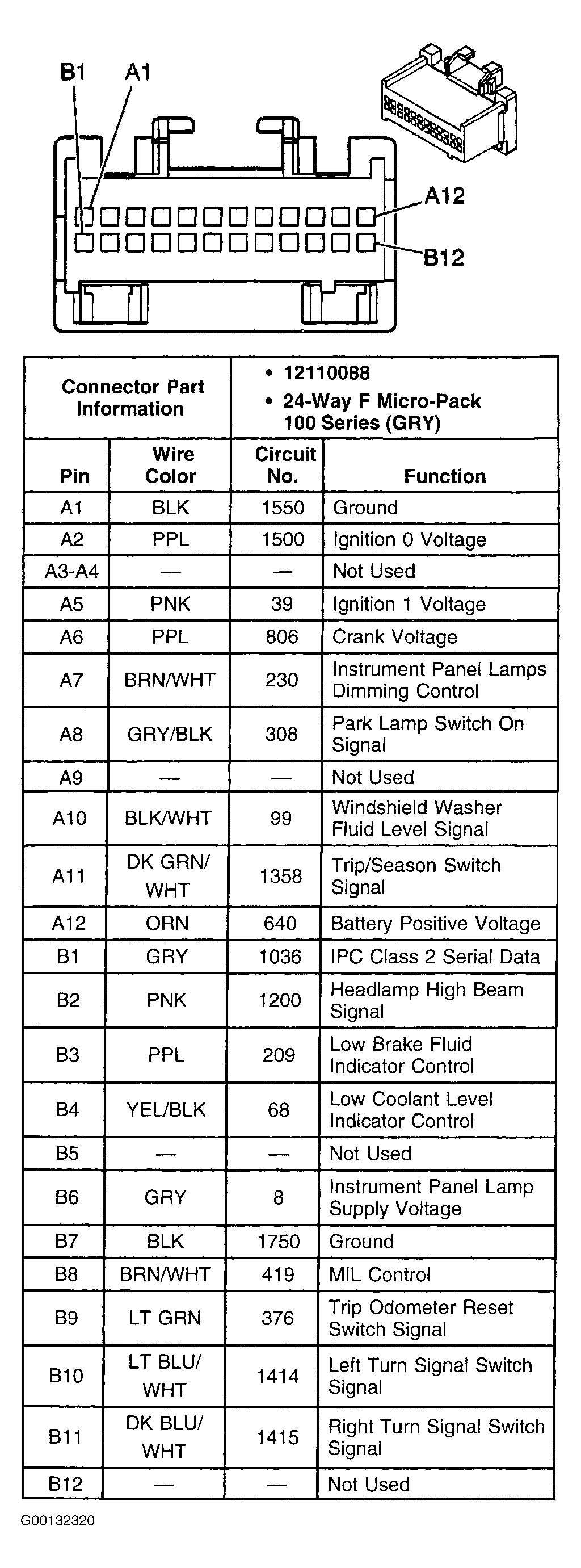

Fig 39: Identifying Instrument Panel Cluster Harness Connector Terminals (Intrigue)

G00132320

Courtesy of GENERAL MOTORS CORP.

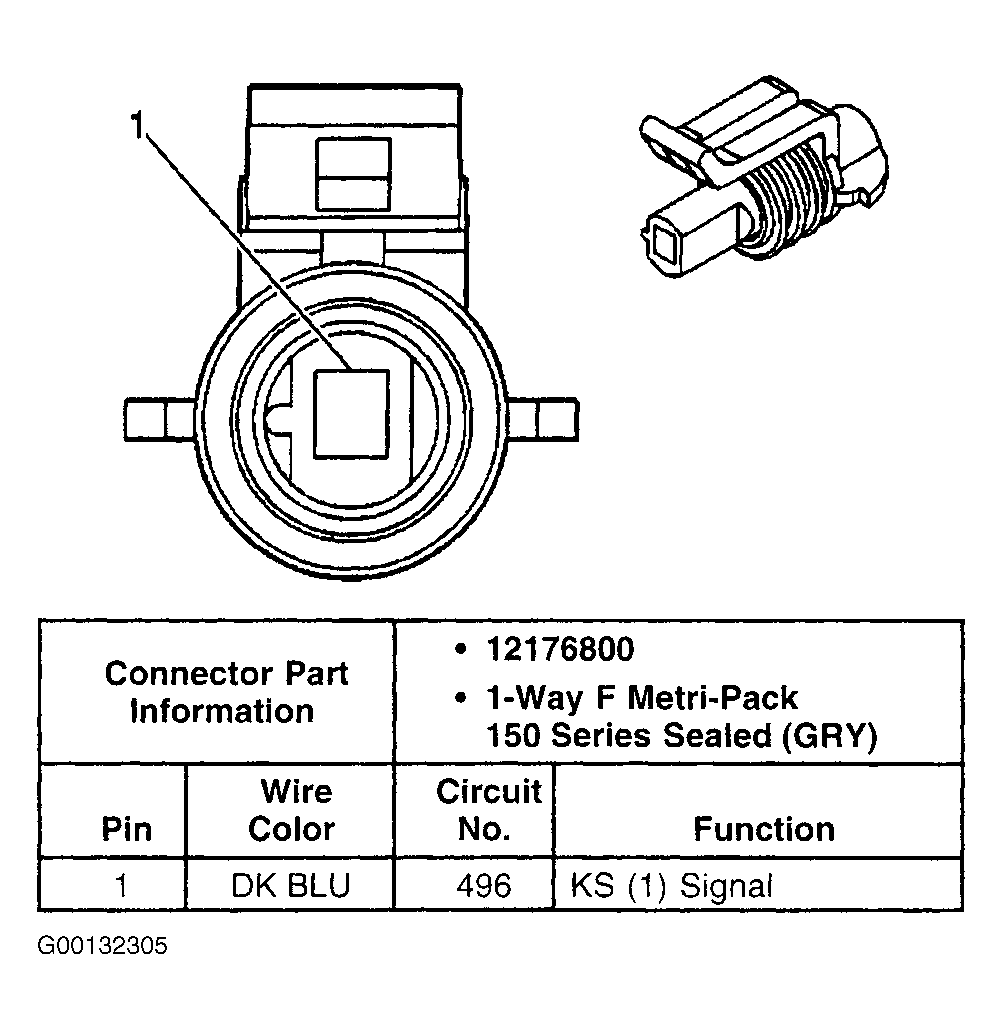

Fig 40: Identifying Knock Sensor Harness Connector Terminals (Aurora & Intrigue)

G00132305

Courtesy of GENERAL MOTORS CORP.

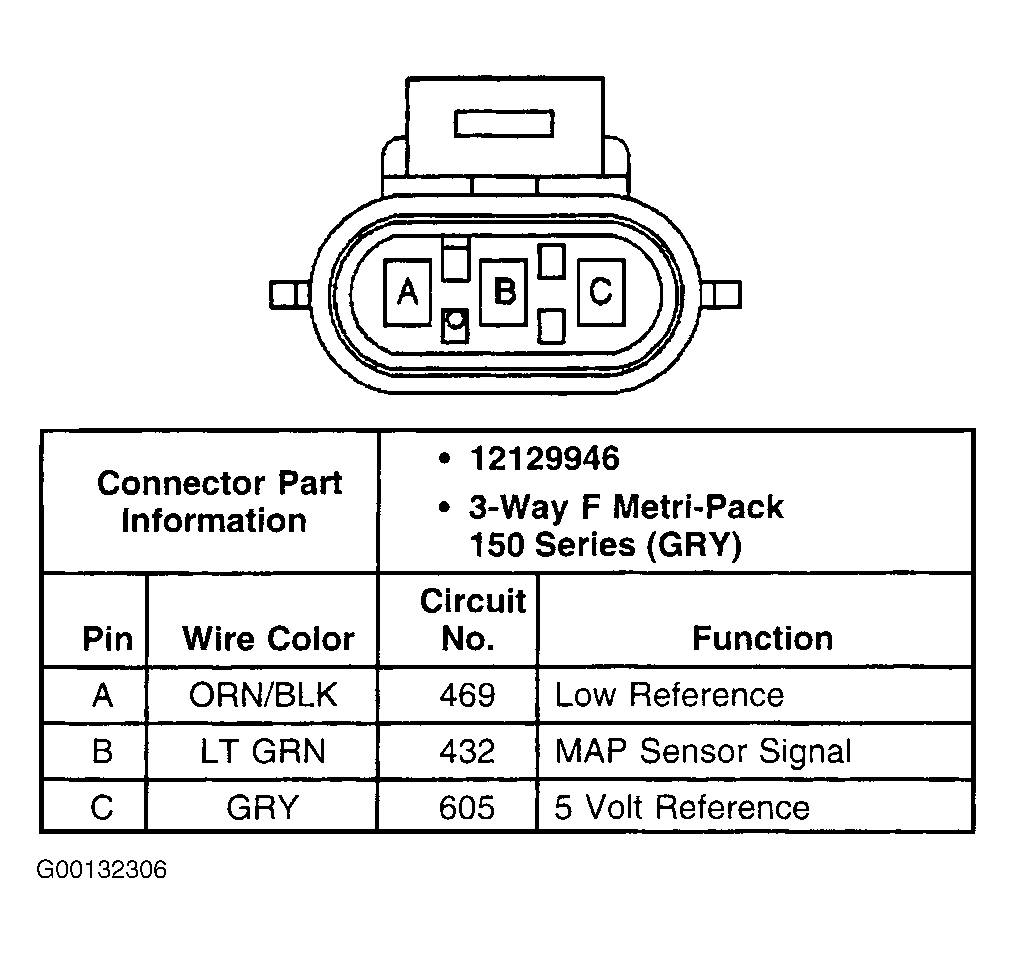

Fig 41: Identifying MAP Sensor Harness Connector Terminals (Aurora)

G00132306

Courtesy of GENERAL MOTORS CORP.

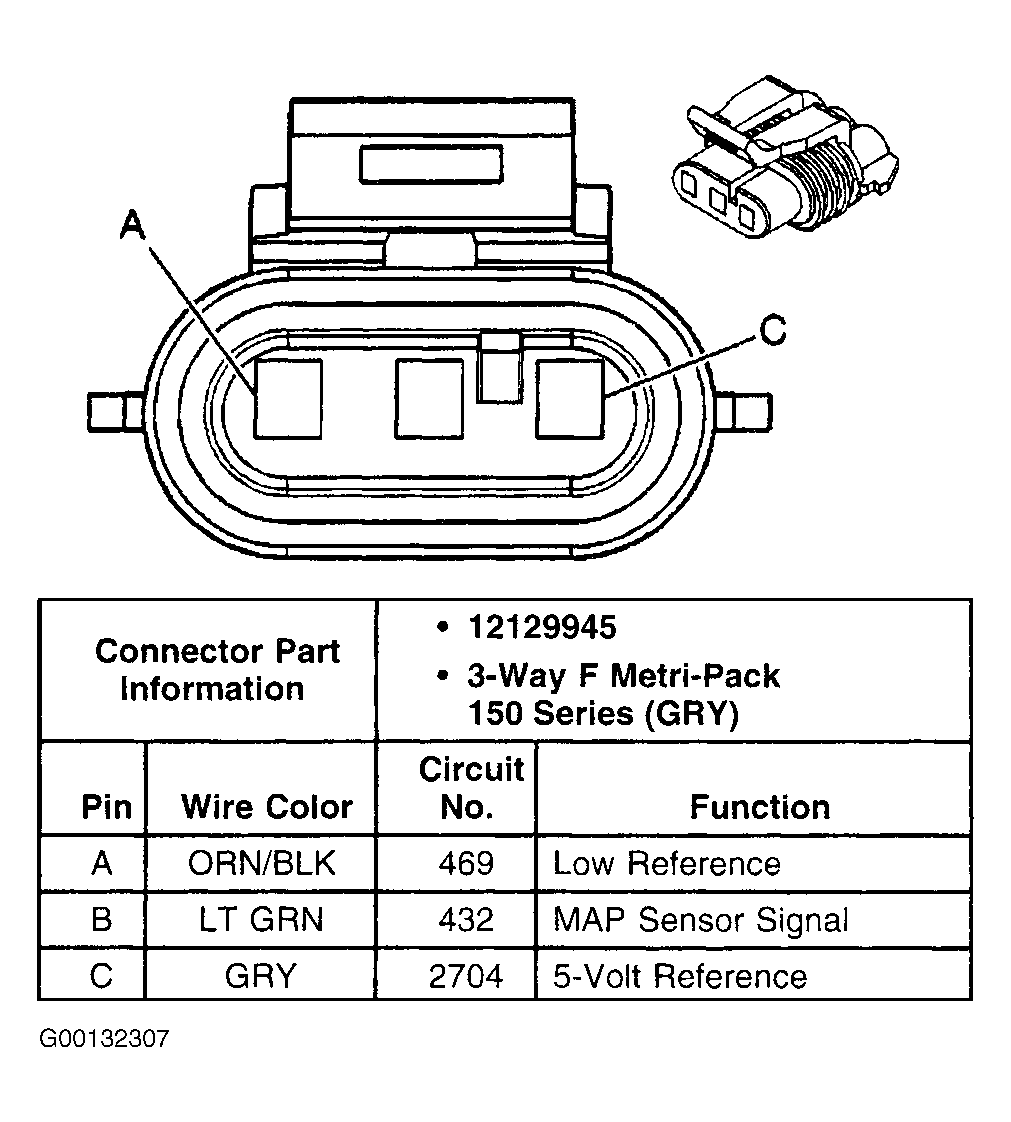

Fig 42: Identifying MAP Sensor Harness Connector Terminals (Intrigue)

G00132307

Courtesy of GENERAL MOTORS CORP.

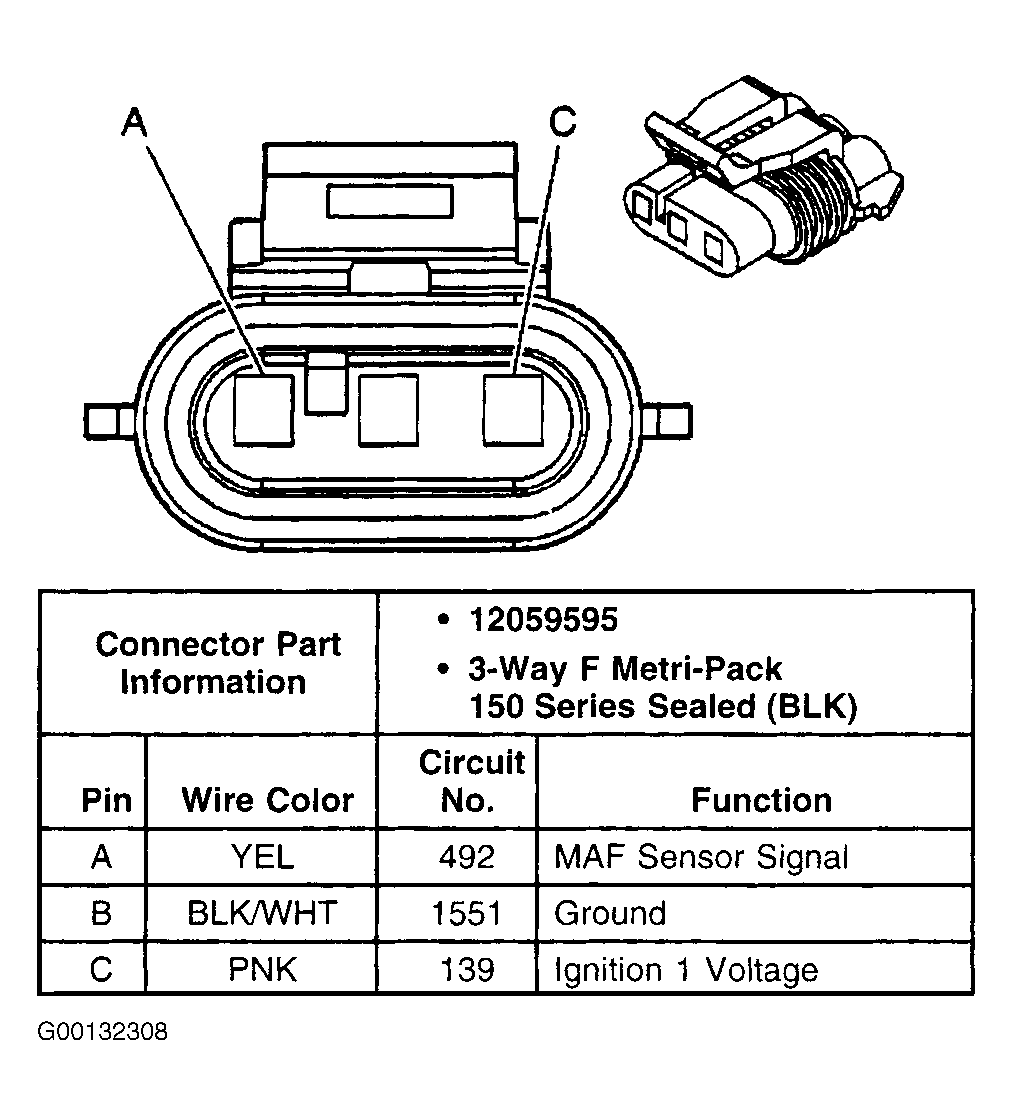

Fig 43: Identifying Mass Airflow Sensor Harness Connector Terminals (Aurora)

G00132308

Courtesy of GENERAL MOTORS CORP.

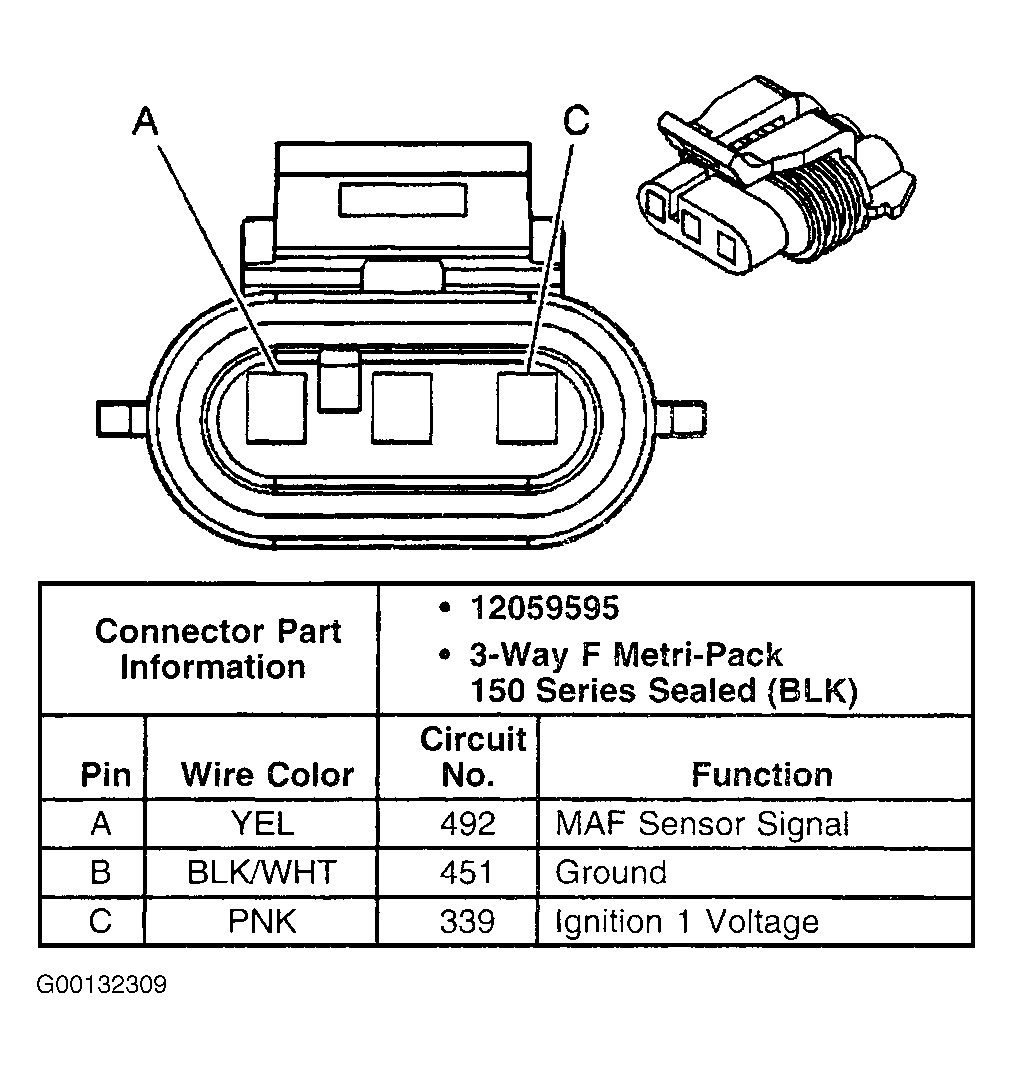

Fig 44: Identifying Mass Airflow Sensor Harness Connector Terminals (Intrigue)

G00132309

Courtesy of GENERAL MOTORS CORP.

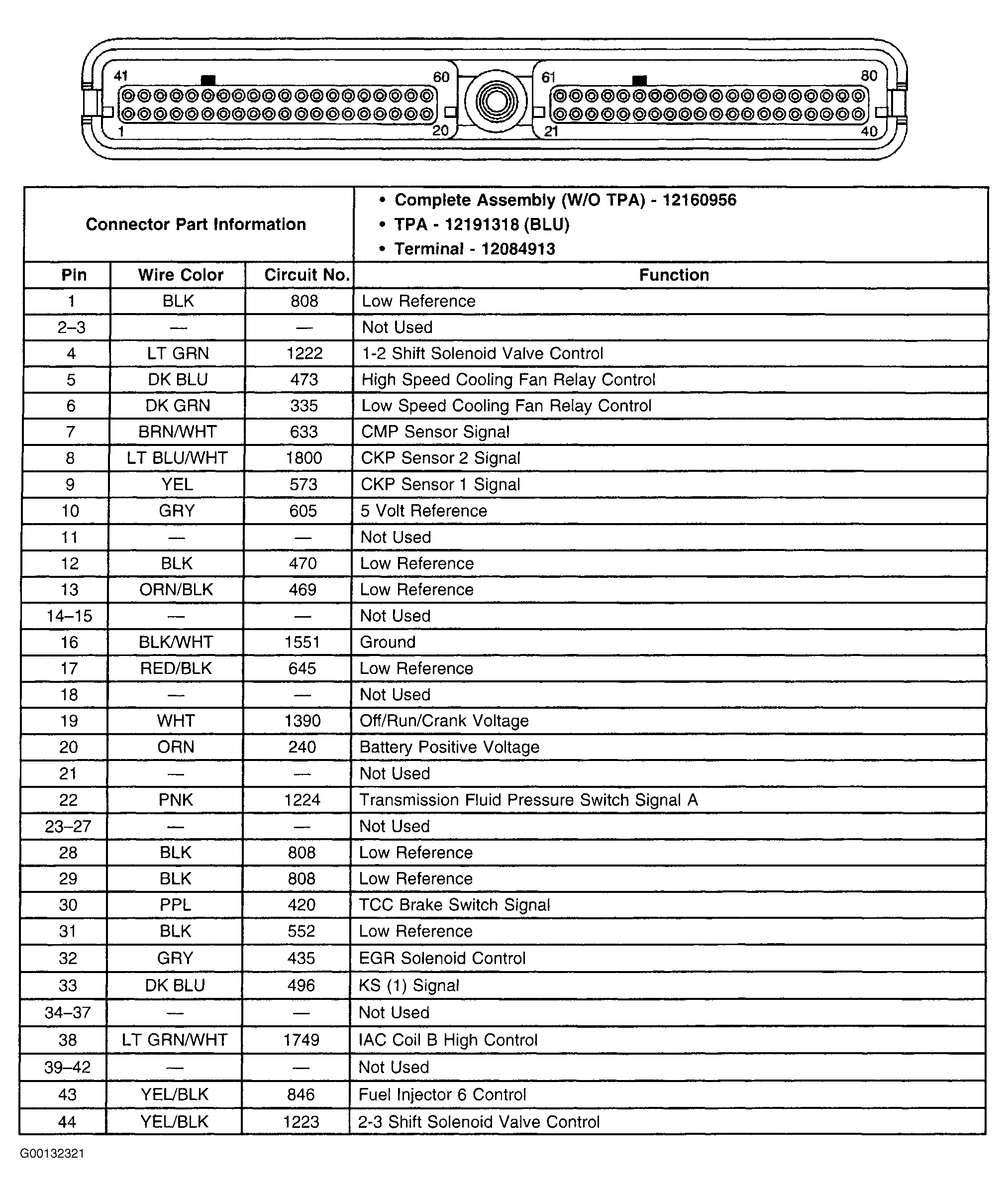

Fig 45: Identifying PCM Harness Connector C1 Terminals (1 Of 2 - Aurora)

G00132321

Courtesy of GENERAL MOTORS CORP.

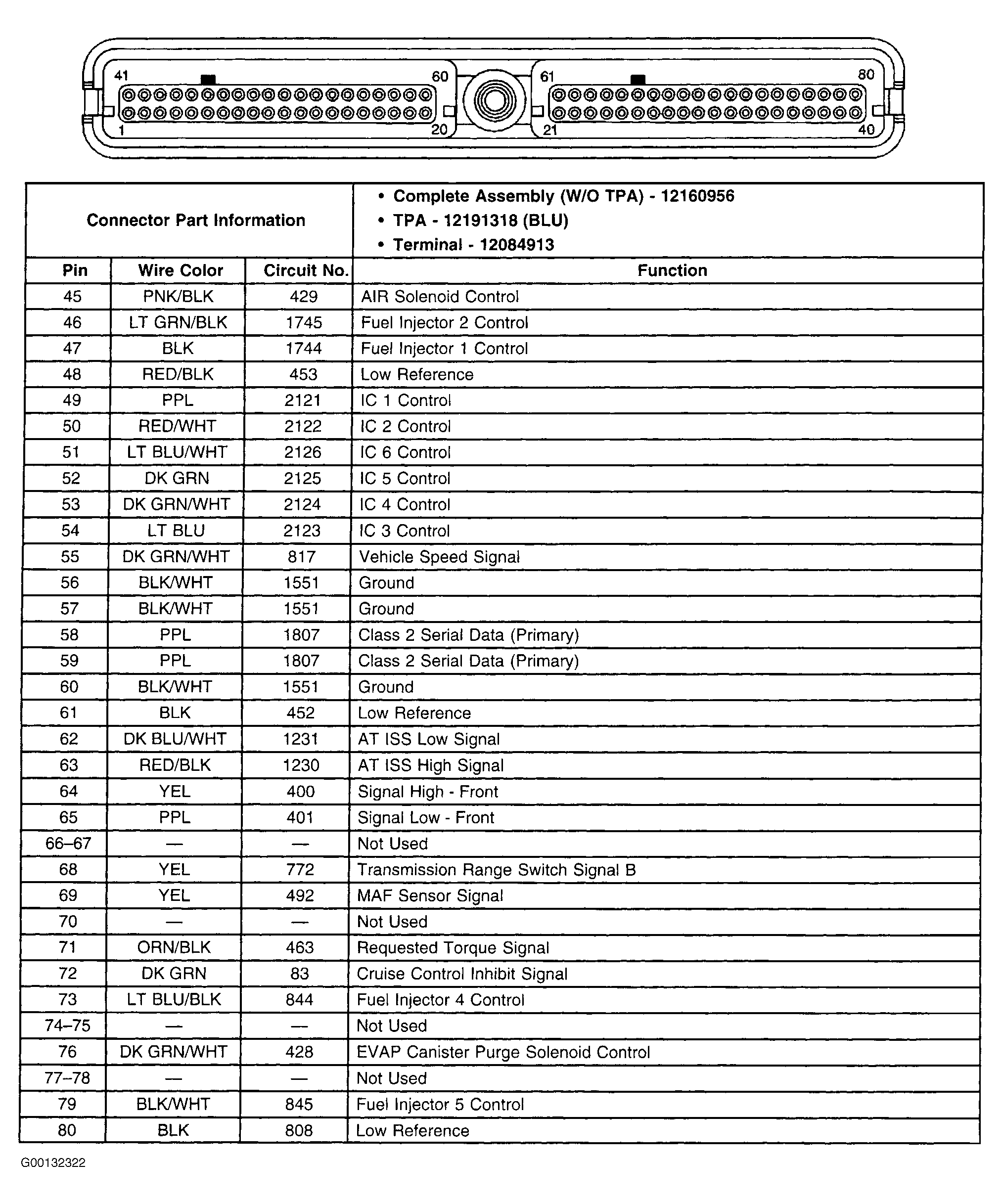

Fig 46: Identifying PCM Harness Connector C1 Terminals (2 Of 2 - Aurora)

G00132322

Courtesy of GENERAL MOTORS CORP.

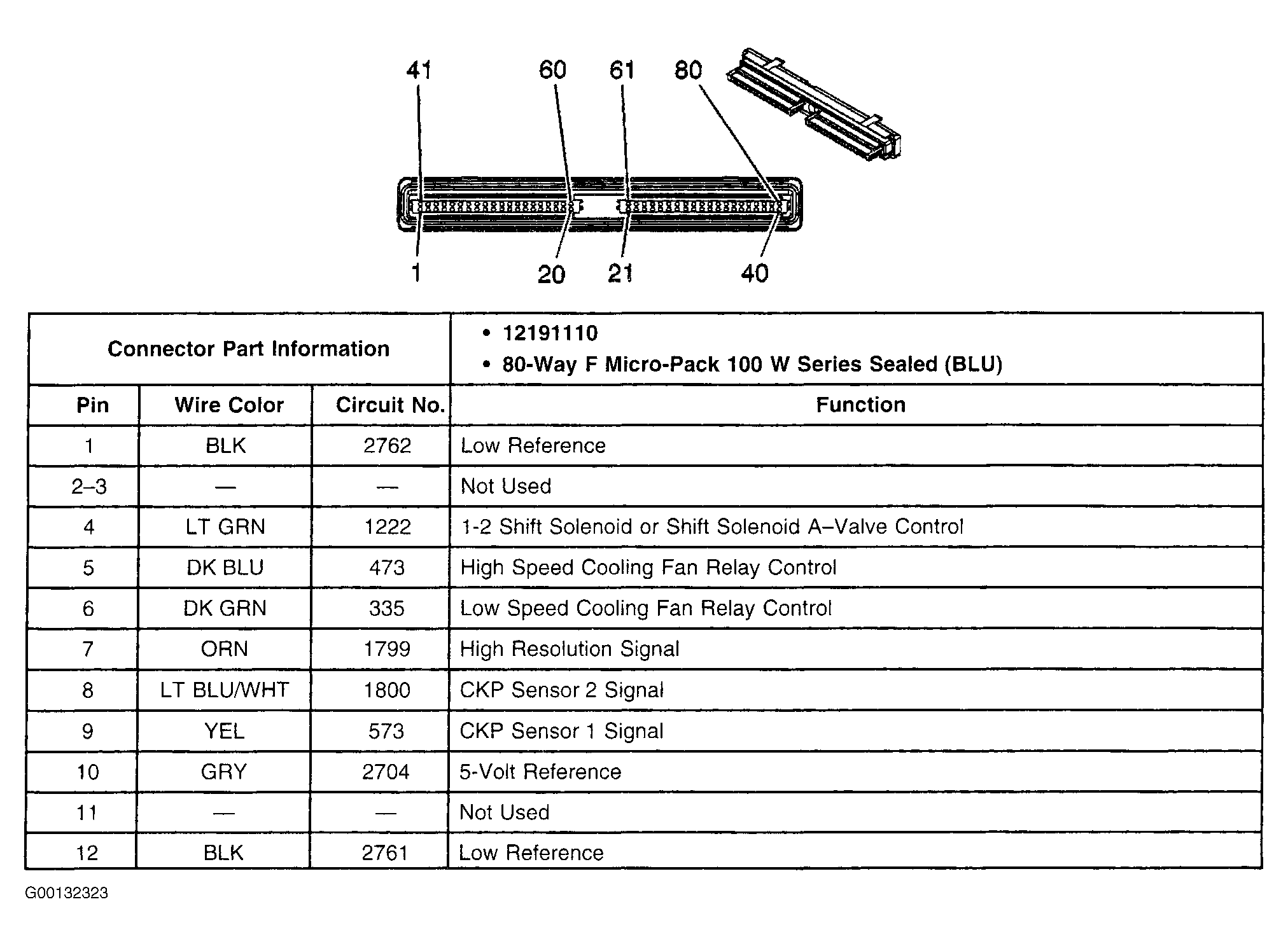

Fig 47: Identifying PCM Harness Connector C1 Terminals (1 Of 3 - Intrigue)

G00132323

Courtesy of GENERAL MOTORS CORP.

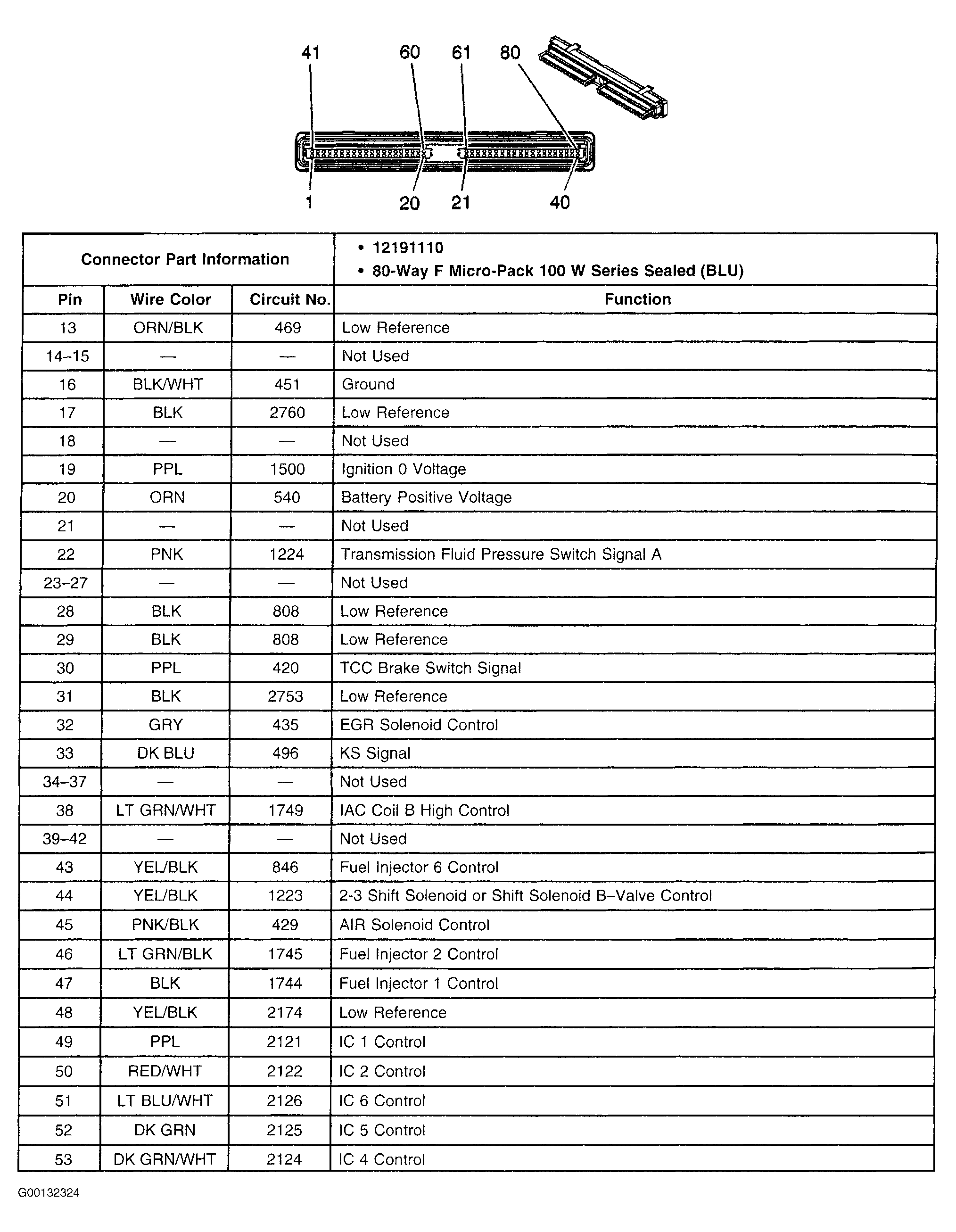

Fig 48: Identifying PCM Harness Connector C1 Terminals (2 Of 3 - Intrigue)

G00132324

Courtesy of GENERAL MOTORS CORP.

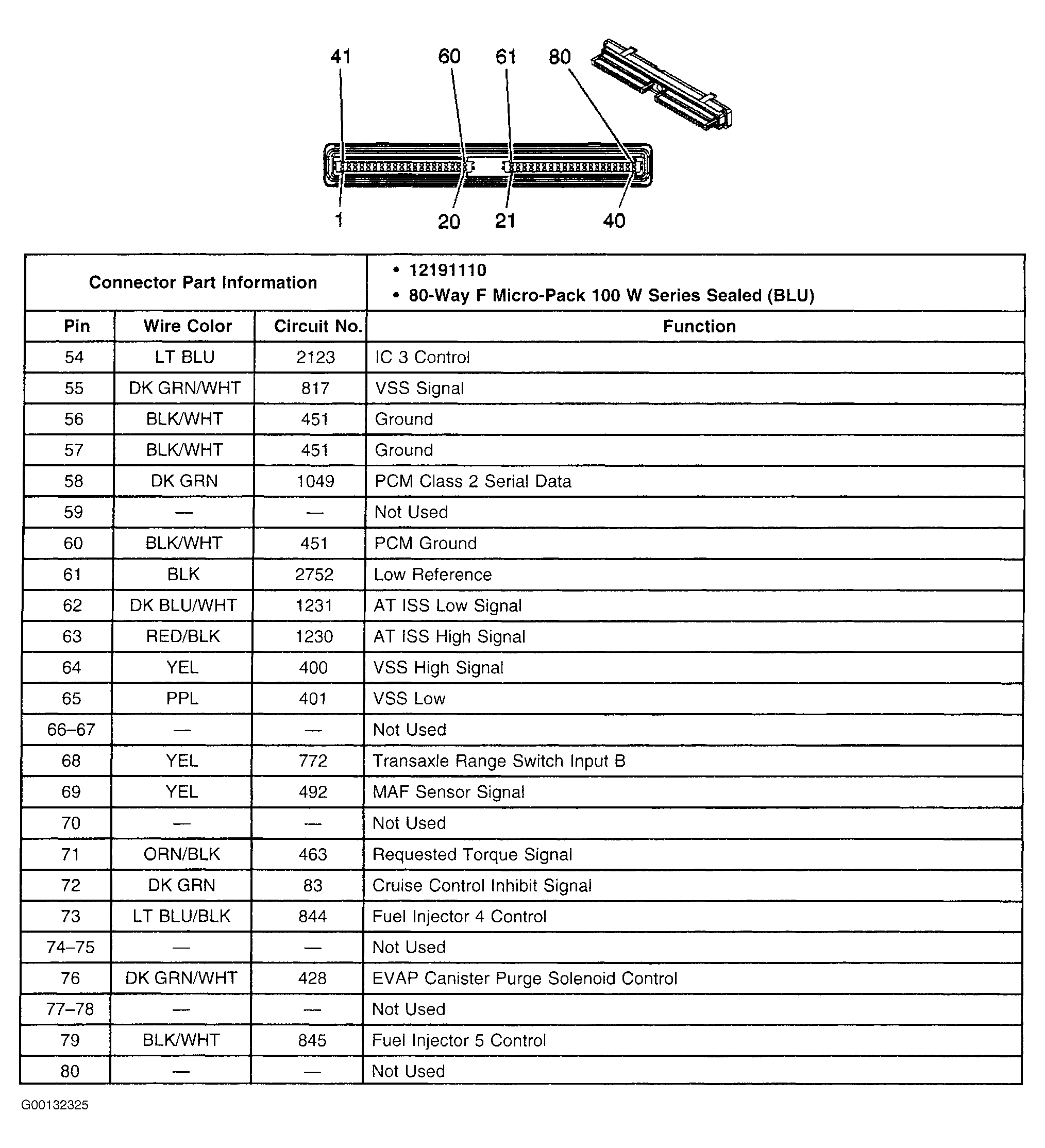

Fig 49: Identifying PCM Harness Connector C1 Terminals (3 Of 3 - Intrigue)

G00132325

Courtesy of GENERAL MOTORS CORP.

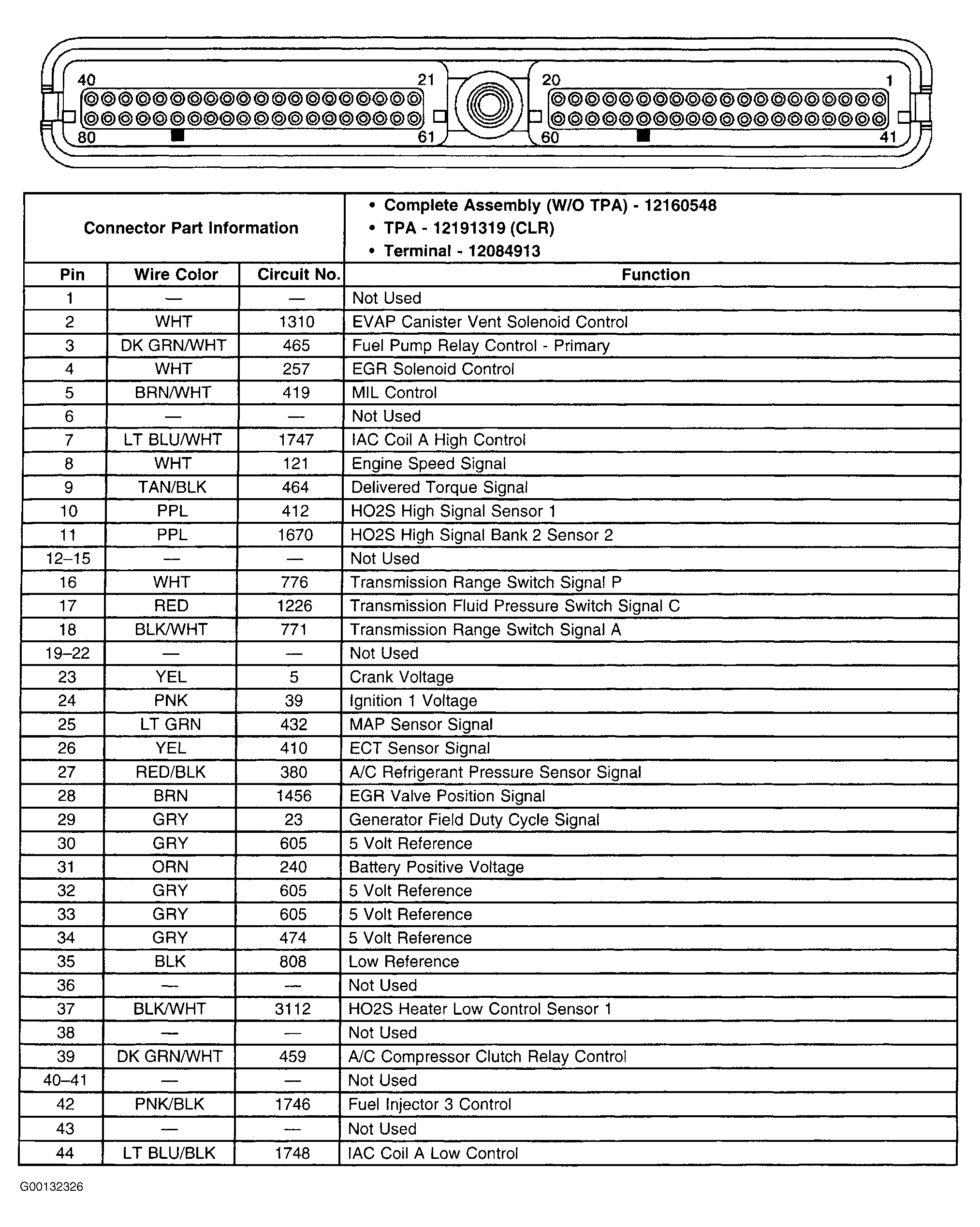

Fig 50: Identifying PCM Harness Connector C2 Terminals (1 Of 2 - Aurora)

G00132326

Courtesy of GENERAL MOTORS CORP.

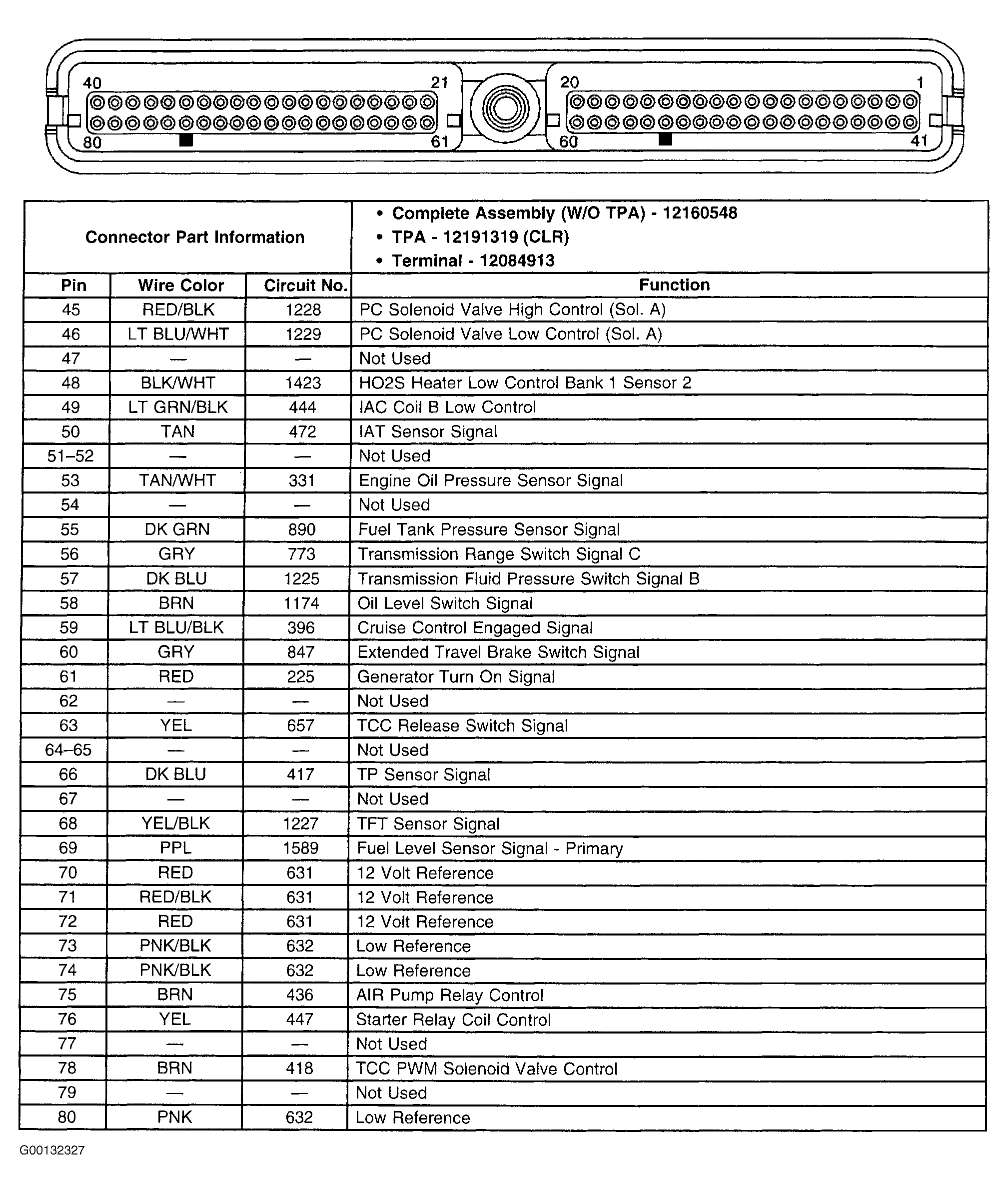

Fig 51: Identifying PCM Harness Connector C2 Terminals (2 Of 2 - Aurora)

G00132327

Courtesy of GENERAL MOTORS CORP.

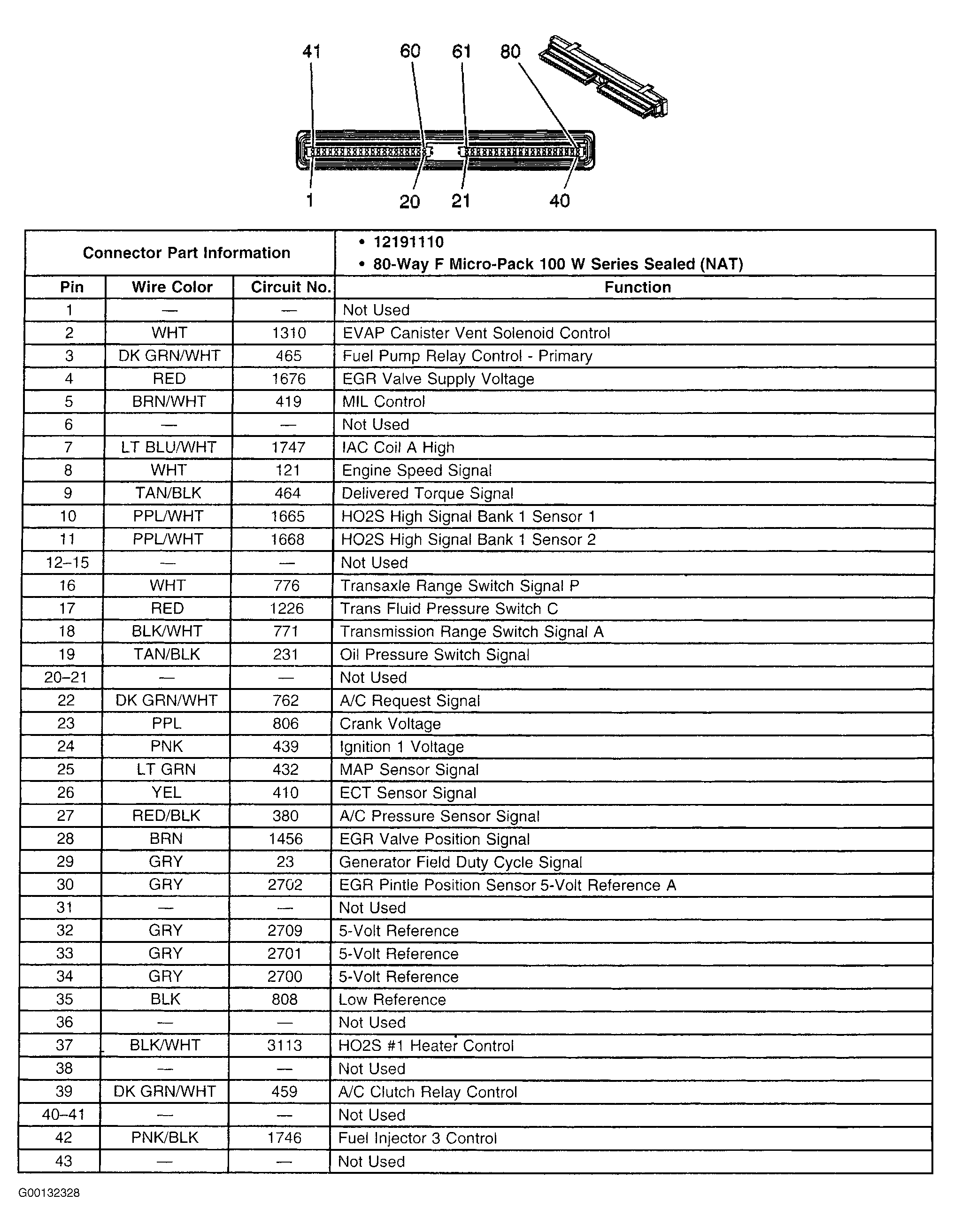

Fig 52: Identifying PCM Harness Connector C2 Terminals (1 Of 2 - Intrigue)

G00132328

Courtesy of GENERAL MOTORS CORP.

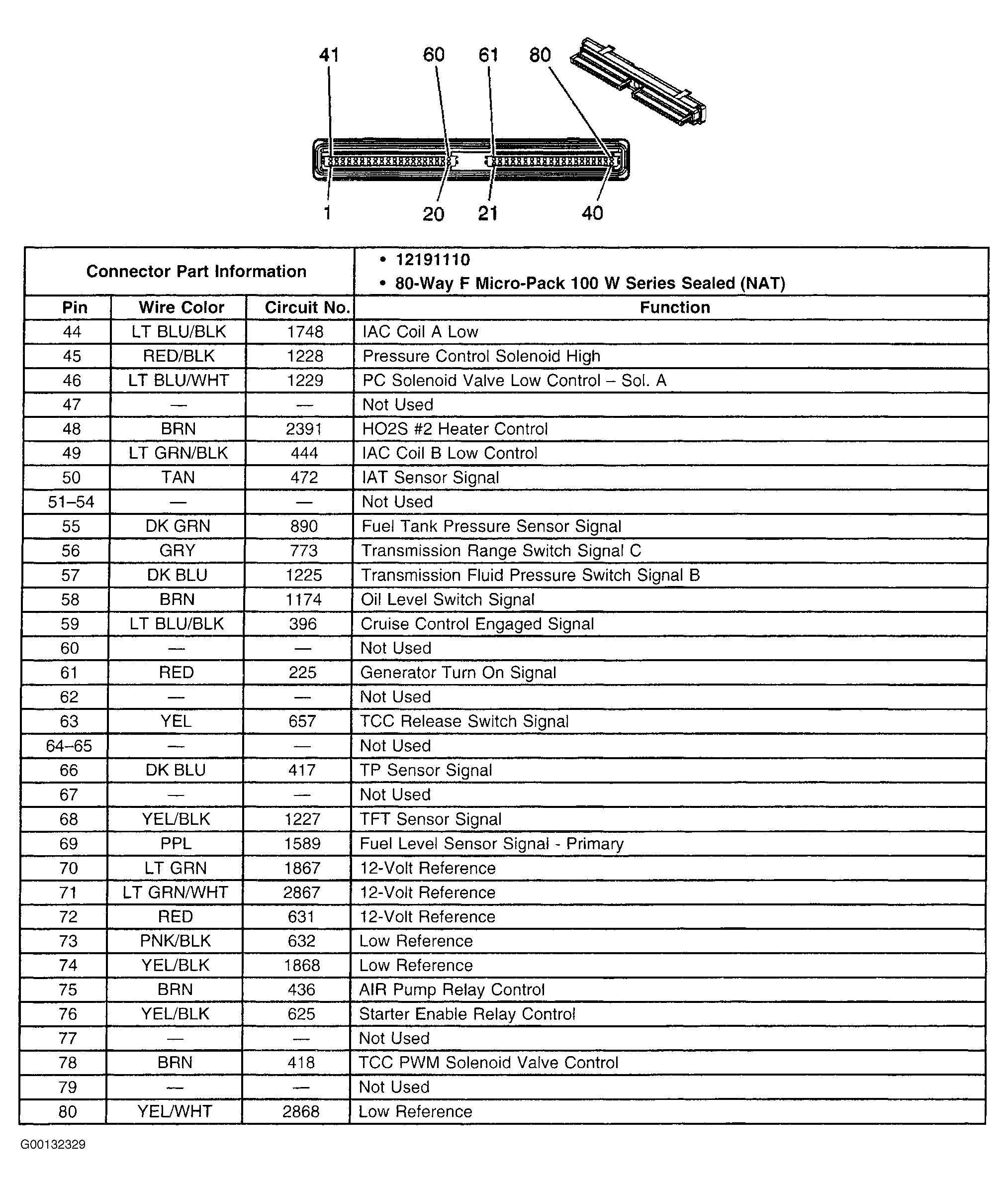

Fig 53: Identifying PCM Harness Connector C2 Terminals (2 Of 2 - Intrigue)

G00132329

Courtesy of GENERAL MOTORS CORP.

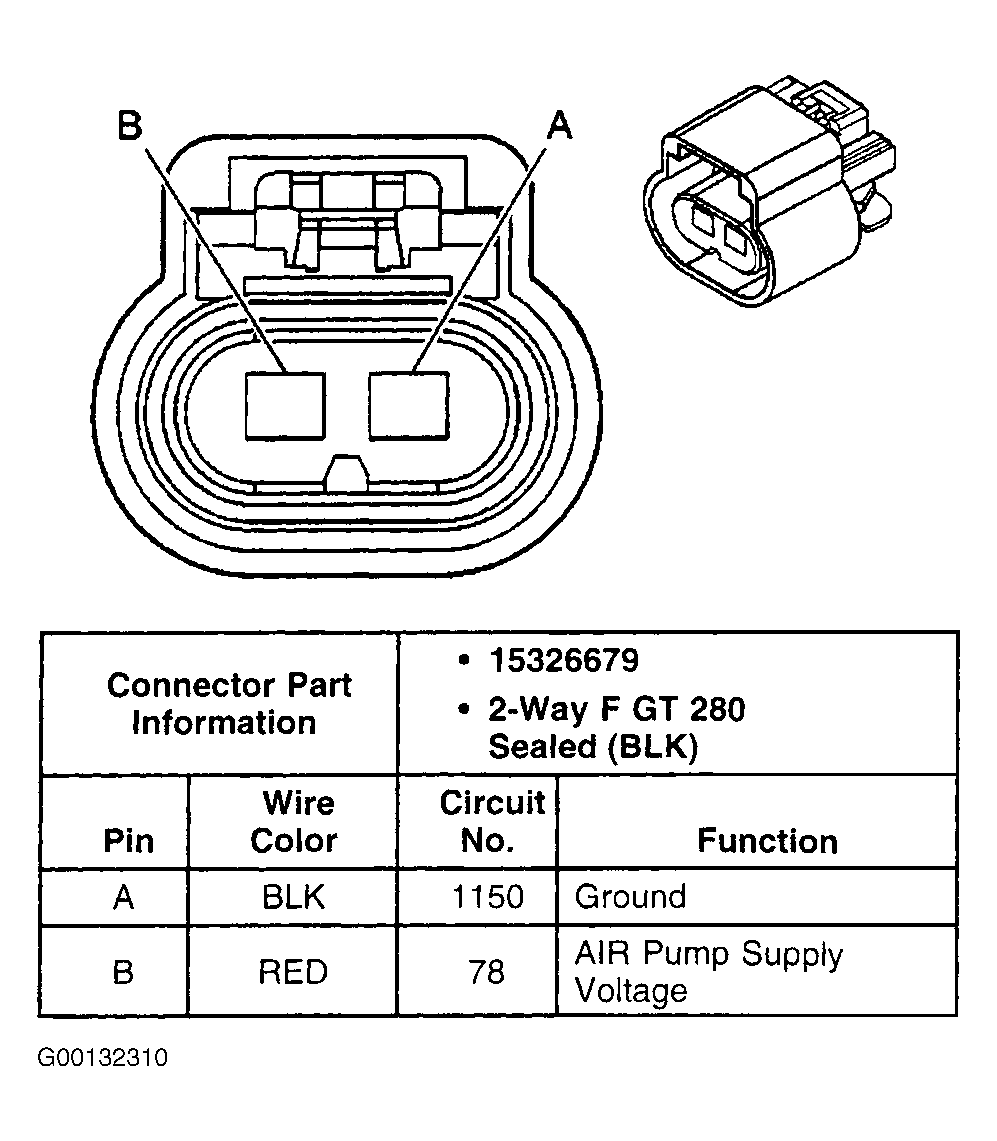

Fig 54: Identifying Secondary Air Injection Pump Harness Connector Terminals (Aurora)

G00132310

Courtesy of GENERAL MOTORS CORP.

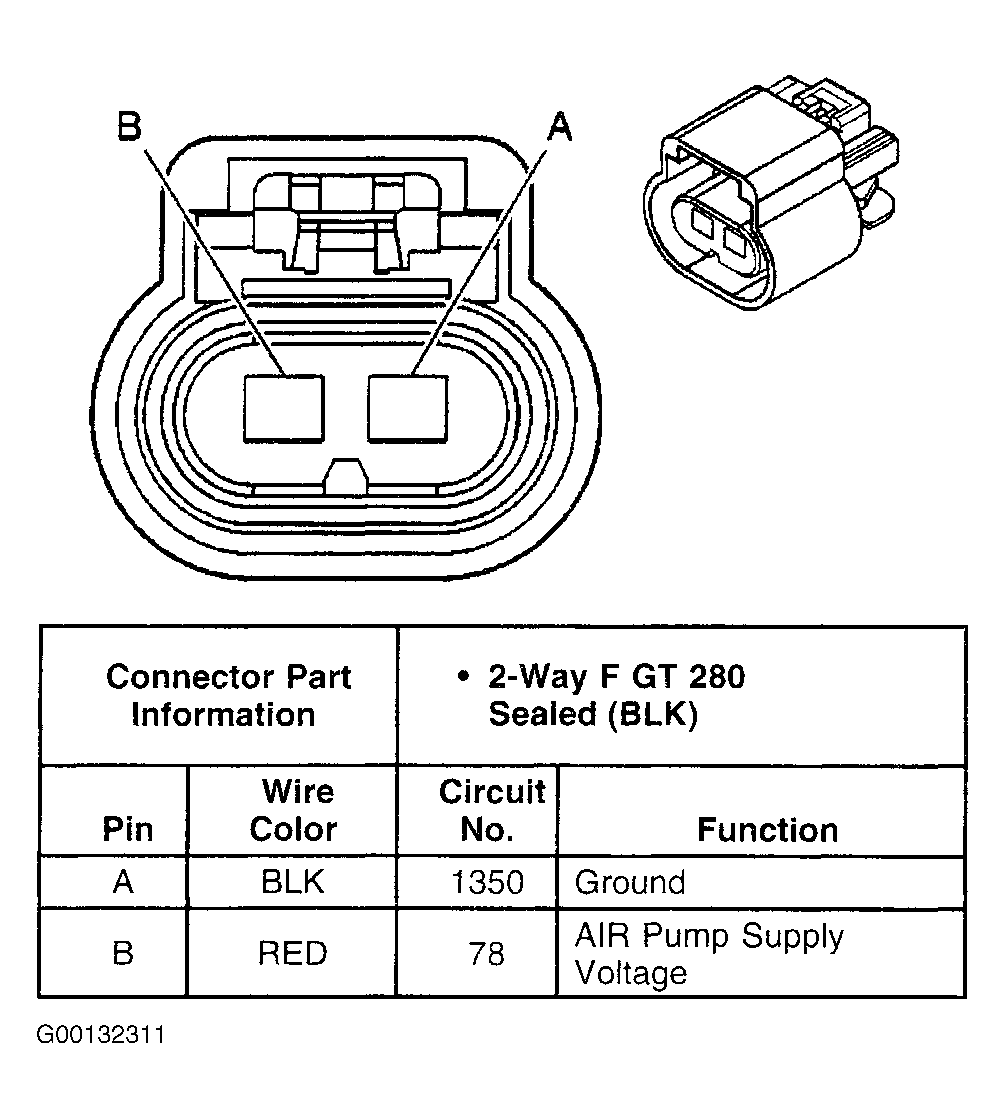

Fig 55: Identifying Secondary Air Injection Pump Harness Connector Terminals (Intrigue)

G00132311

Courtesy of GENERAL MOTORS CORP.

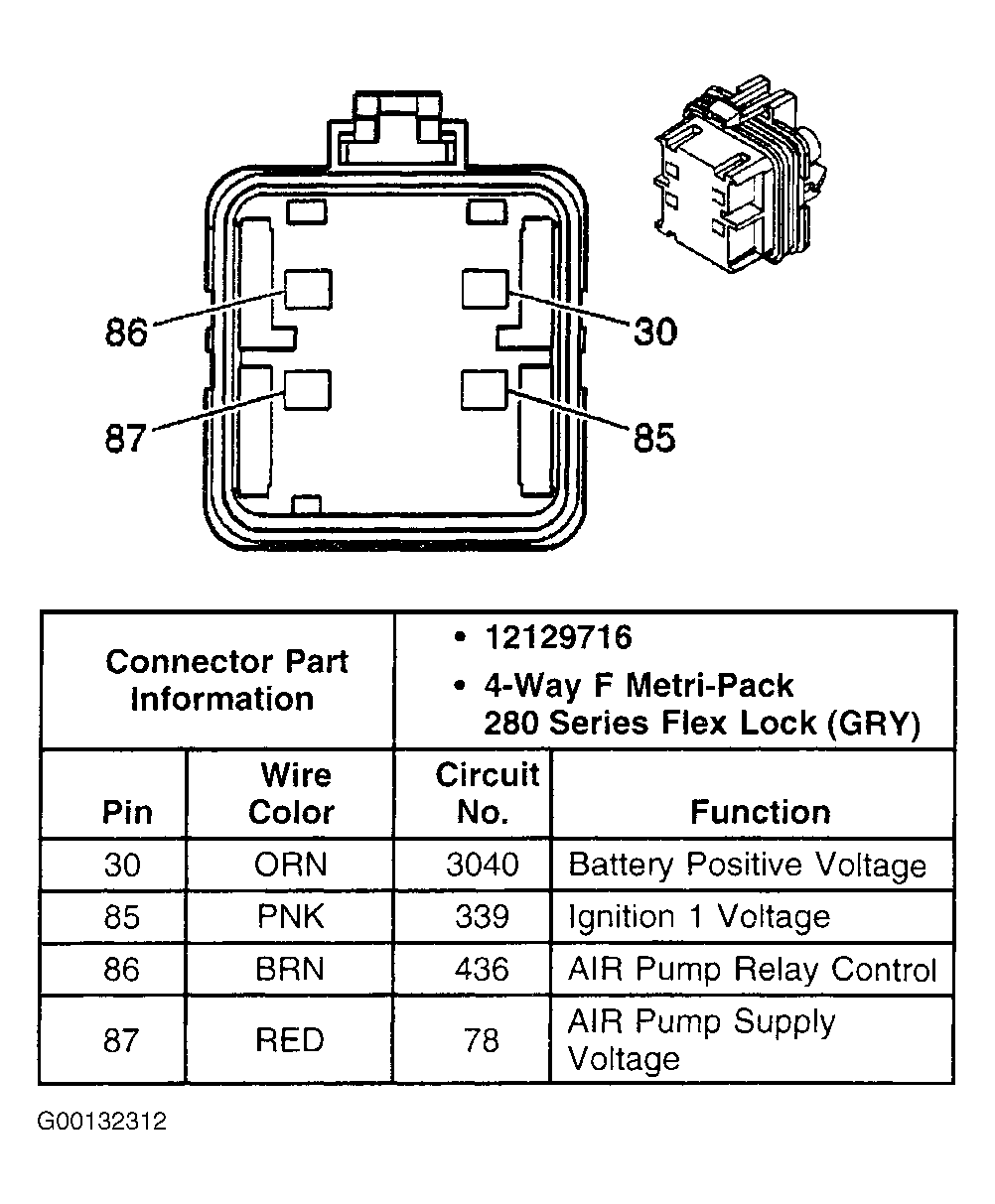

Fig 56: Identifying Secondary Air Injection Pump Relay Harness Connector Terminals (Intrigue)

G00132312

Courtesy of GENERAL MOTORS CORP.

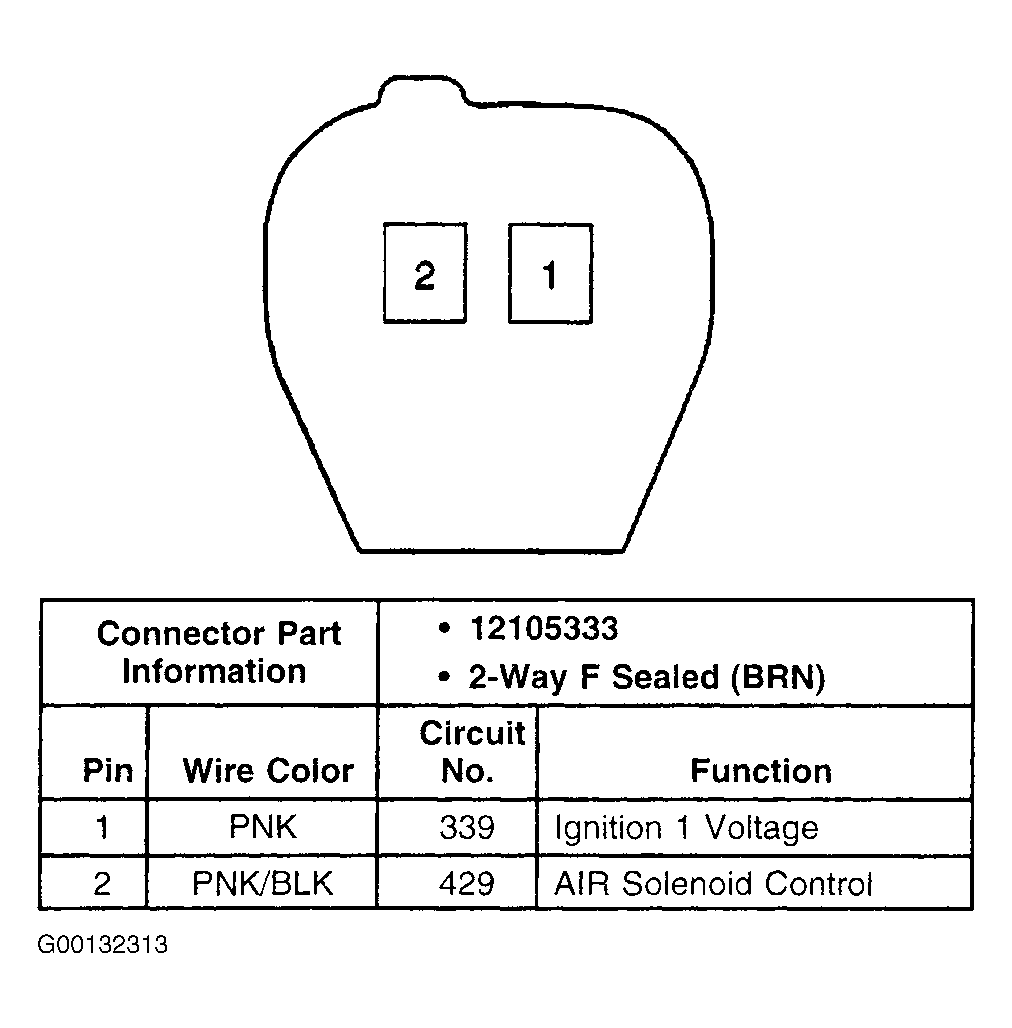

Fig 57: Identifying Secondary Air Injection Valve Solenoid Harness Connector Terminals (Intrigue)

G00132313

Courtesy of GENERAL MOTORS CORP.

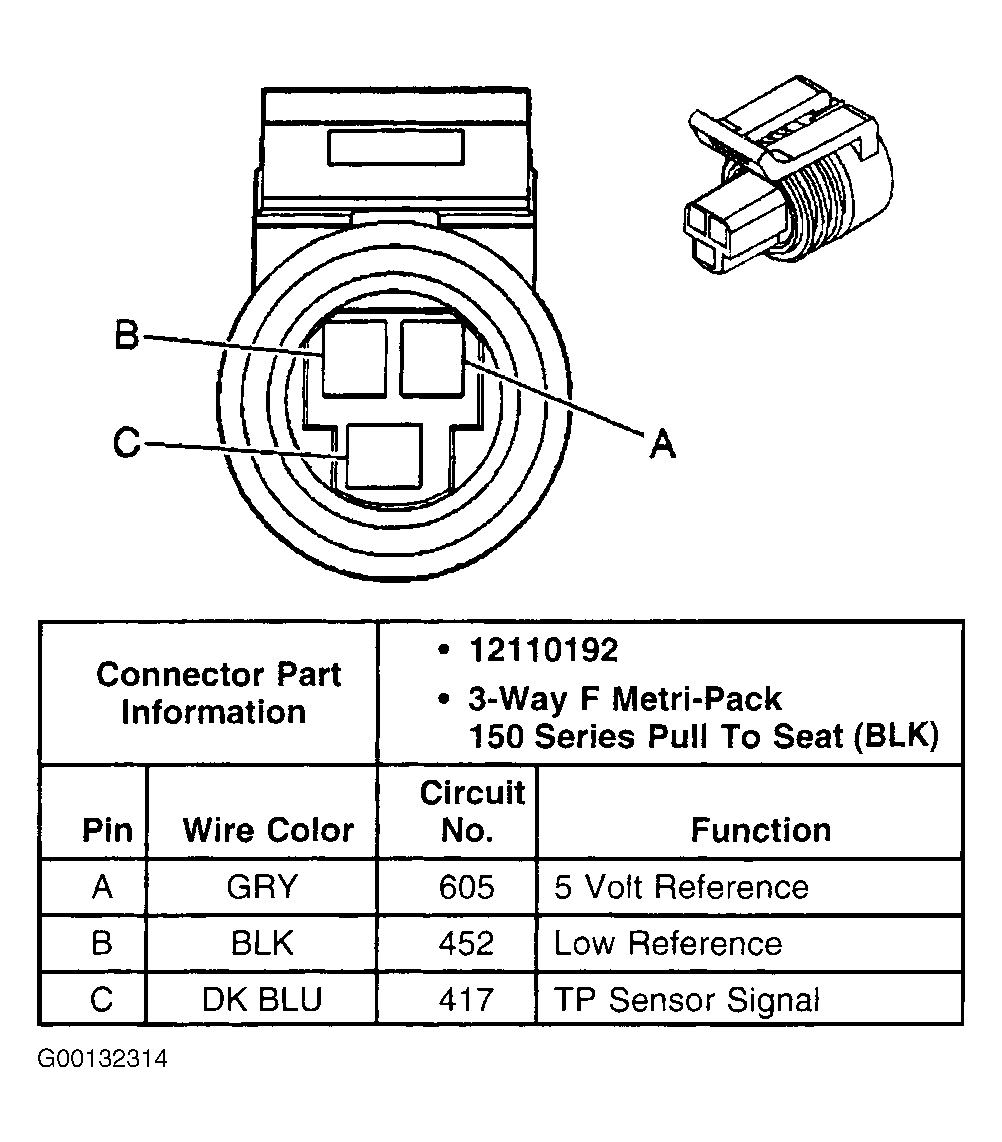

Fig 58: Identifying TP Sensor Harness Connector Terminals (Aurora)

G00132314

Courtesy of GENERAL MOTORS CORP.

Fig 59: Identifying TP Sensor Harness Connector Terminals (Intrigue)

G00132315

Courtesy of GENERAL MOTORS CORP.

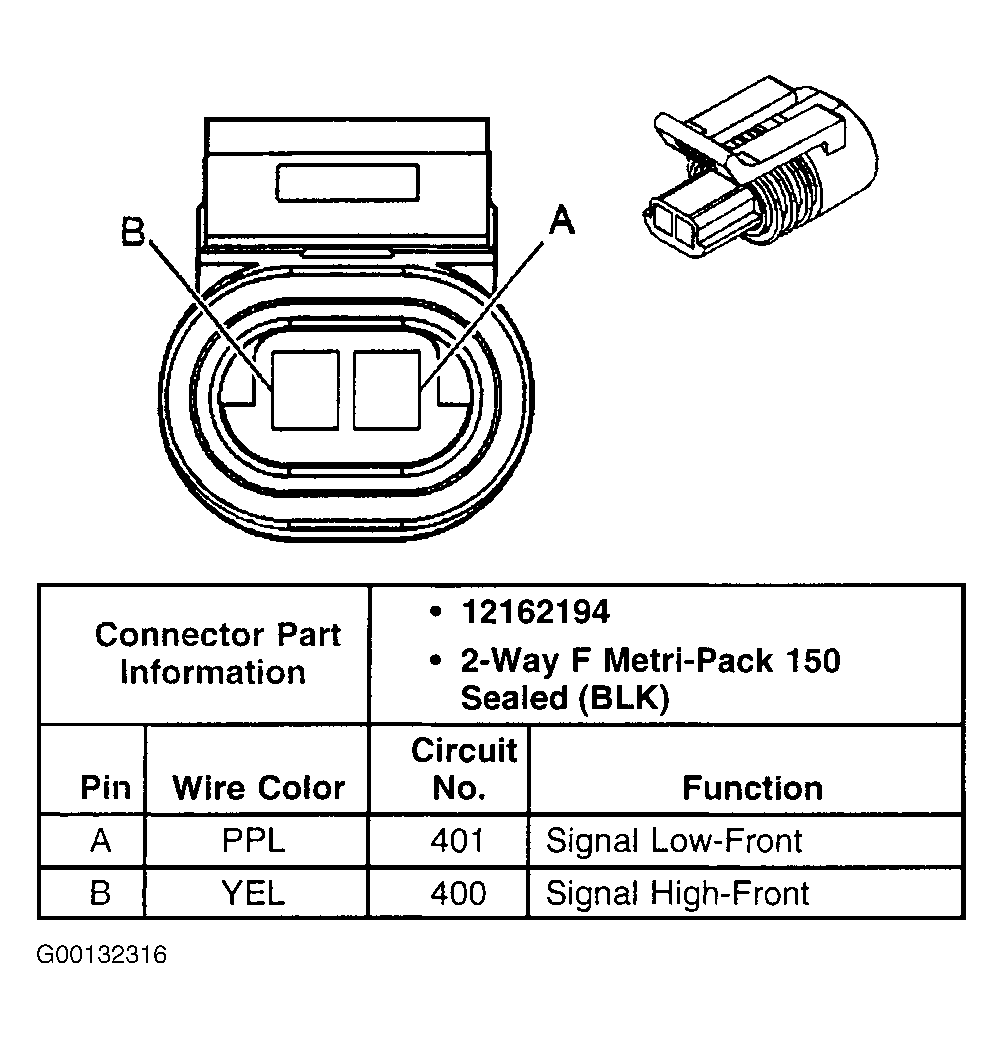

Fig 60: Identifying Vehicle Speed Sensor Harness Connector Terminals (Aurora)

G00132316

Courtesy of GENERAL MOTORS CORP.

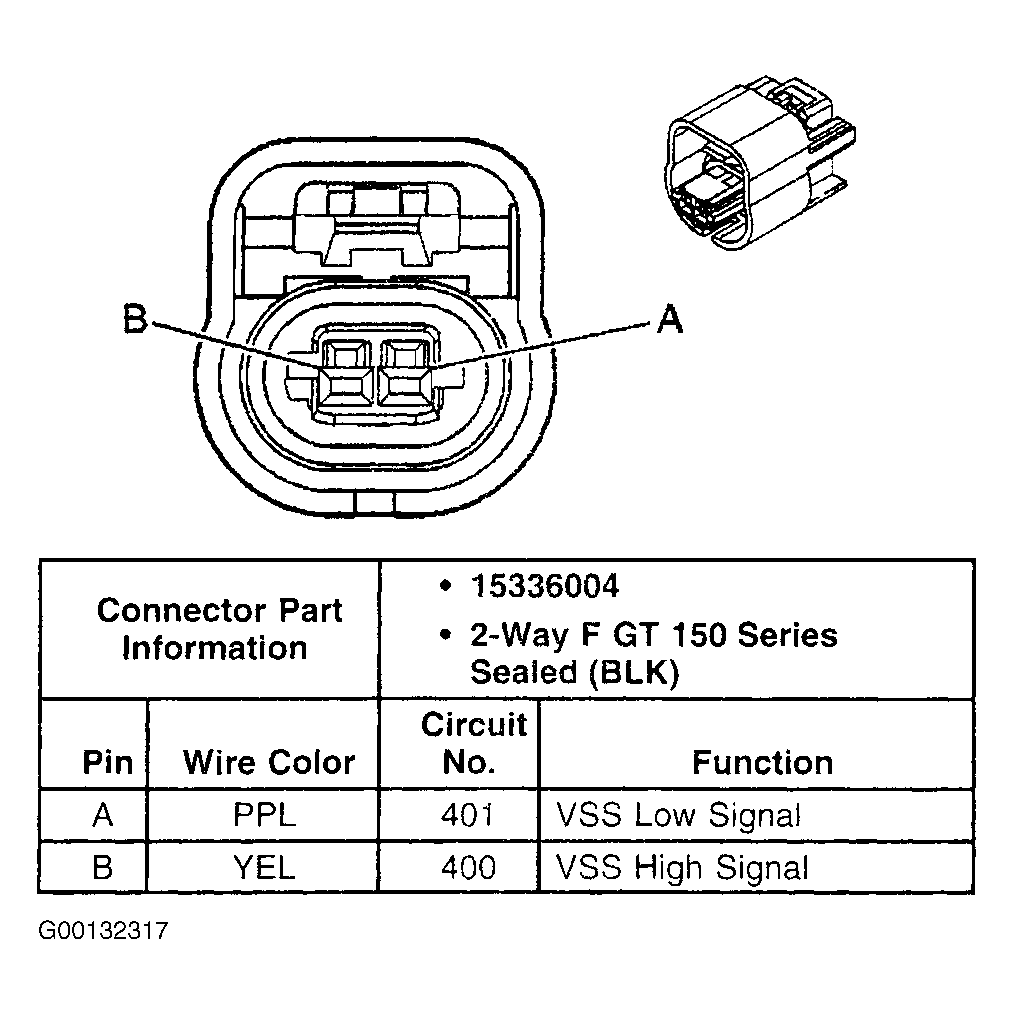

Fig 61: Identifying Vehicle Speed Sensor Harness Connector Terminals (Intrigue)

G00132317

Courtesy of GENERAL MOTORS CORP.
