Power Steering Pump Disassembled View

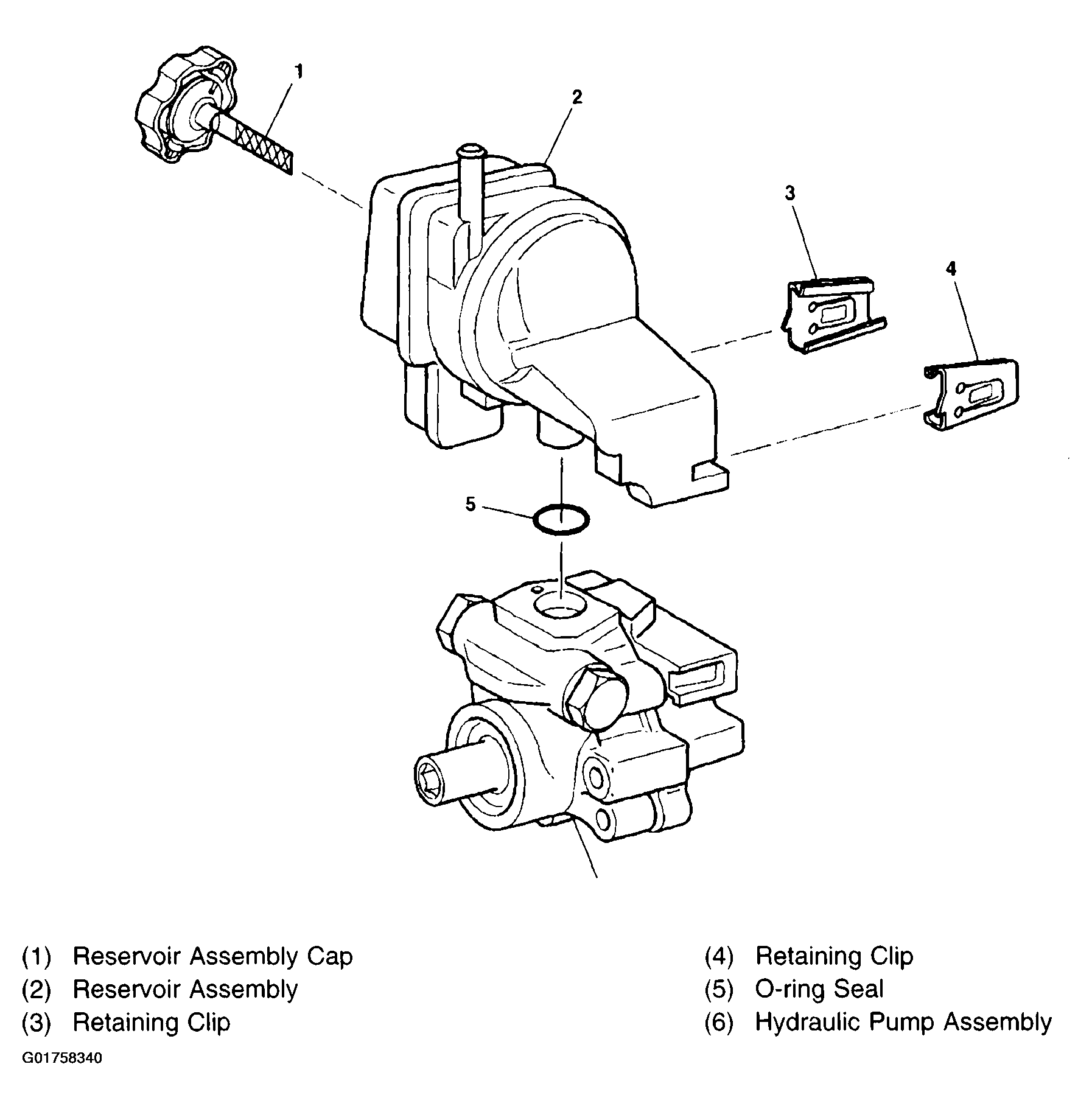

Fig 1: Power Steering Pump Components
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
