Automatic Transmission Shift Lock Control Component Views

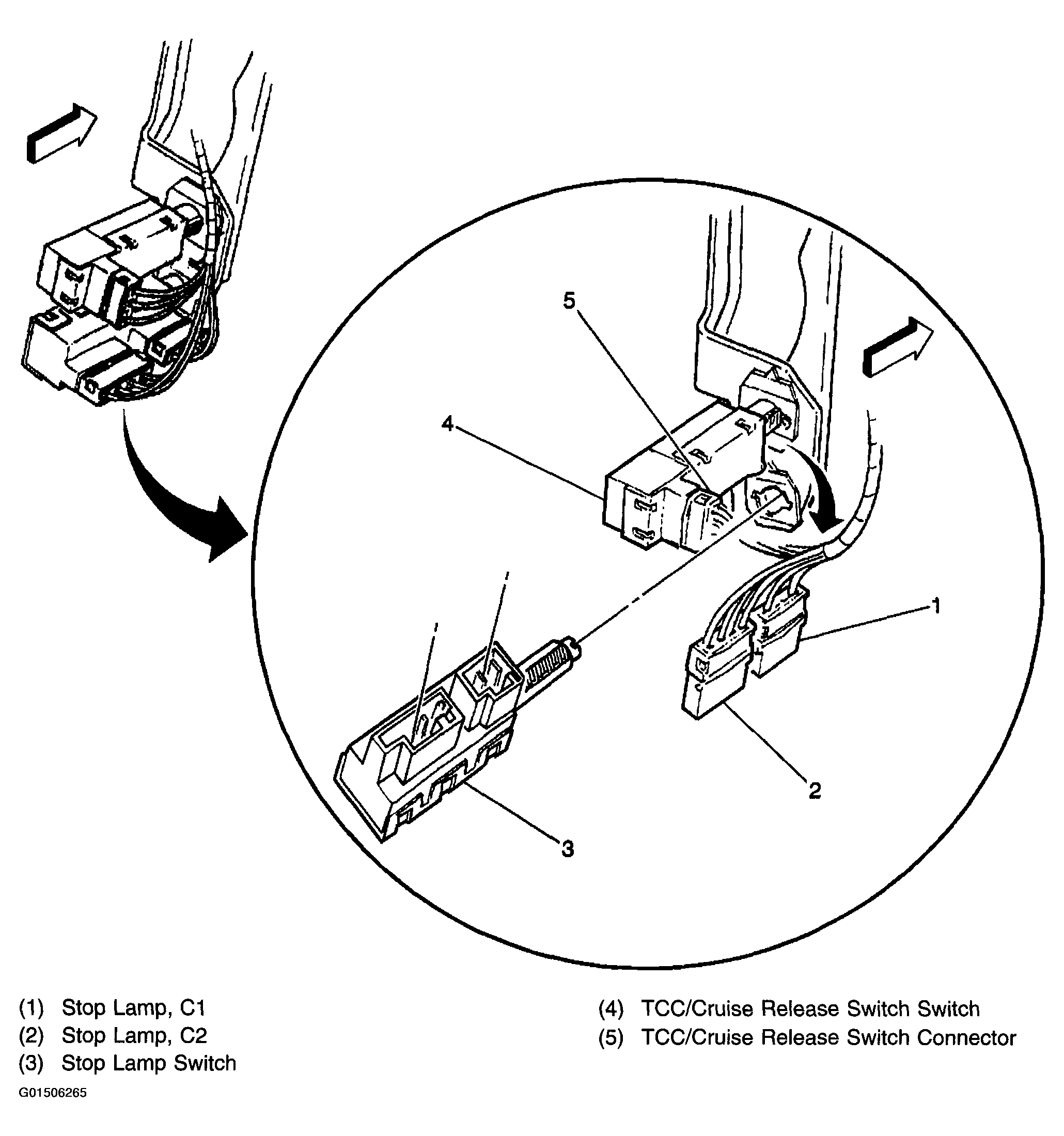

Fig 1: Locating Brake Switches
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
