Component Locations

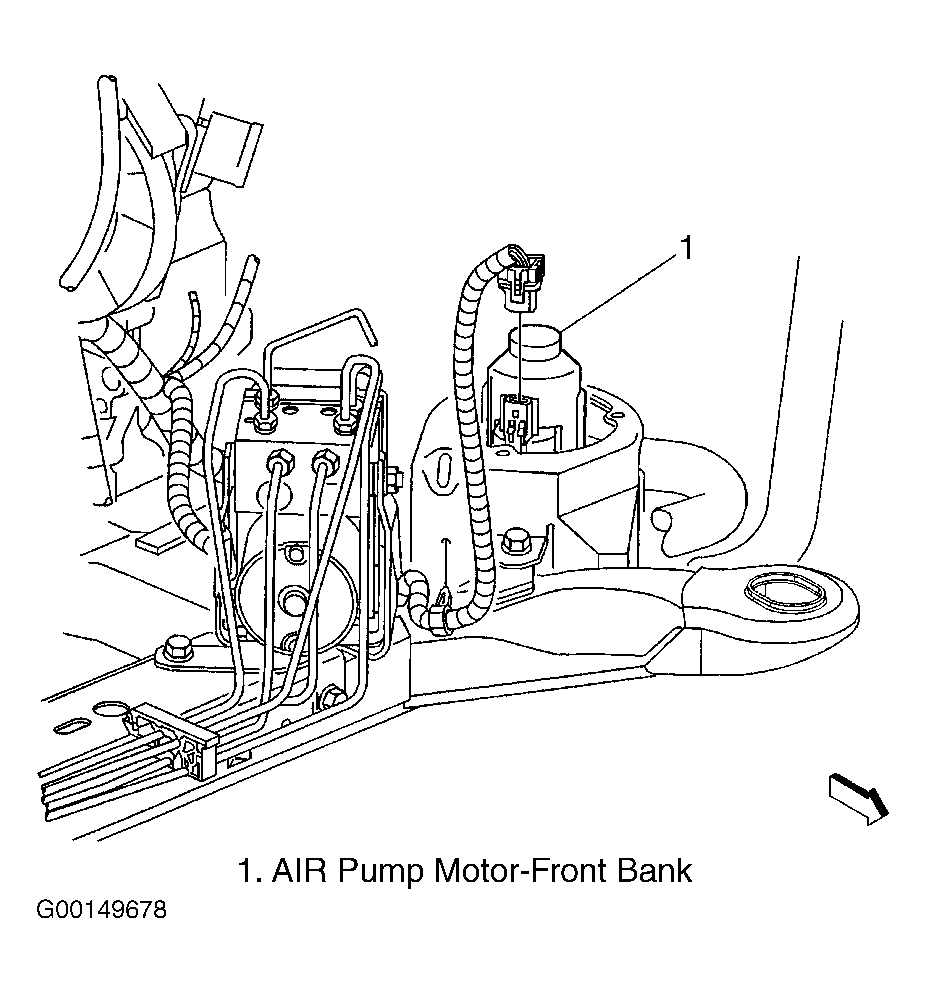

Fig 1: Locating AIR Pump Motor - Front Bank

Courtesy of GENERAL MOTORS CORP.

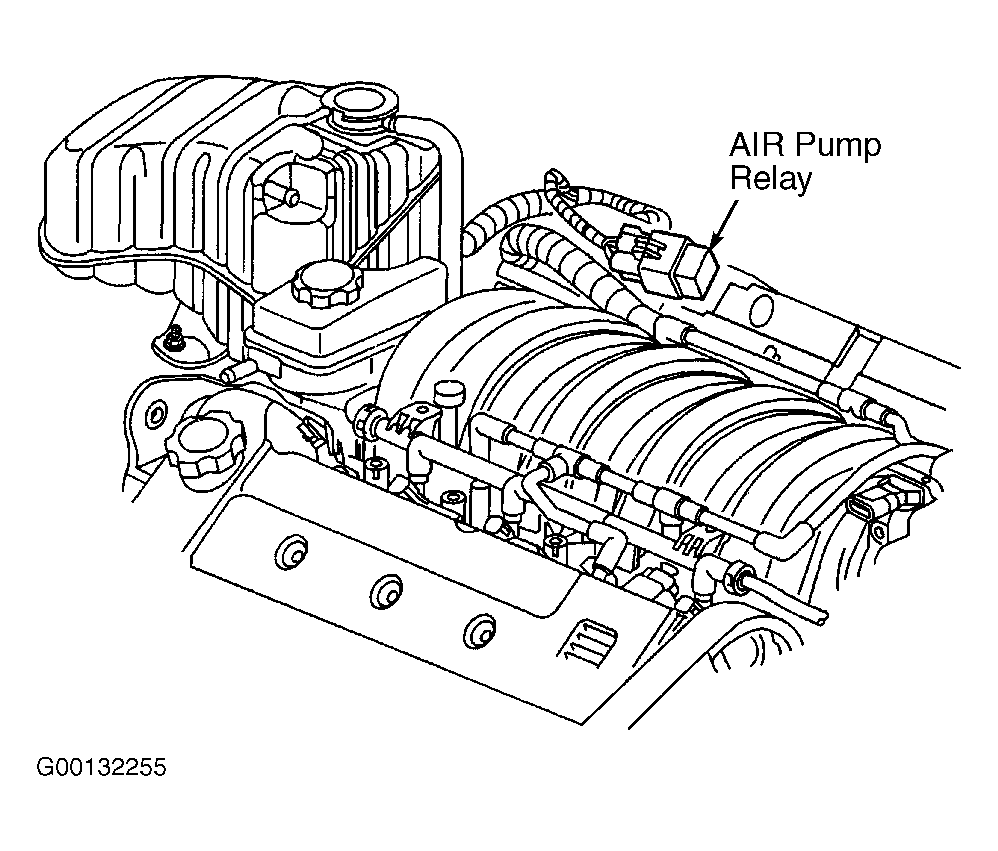

Fig 2: Locating AIR Pump Relay

Courtesy of GENERAL MOTORS CORP.

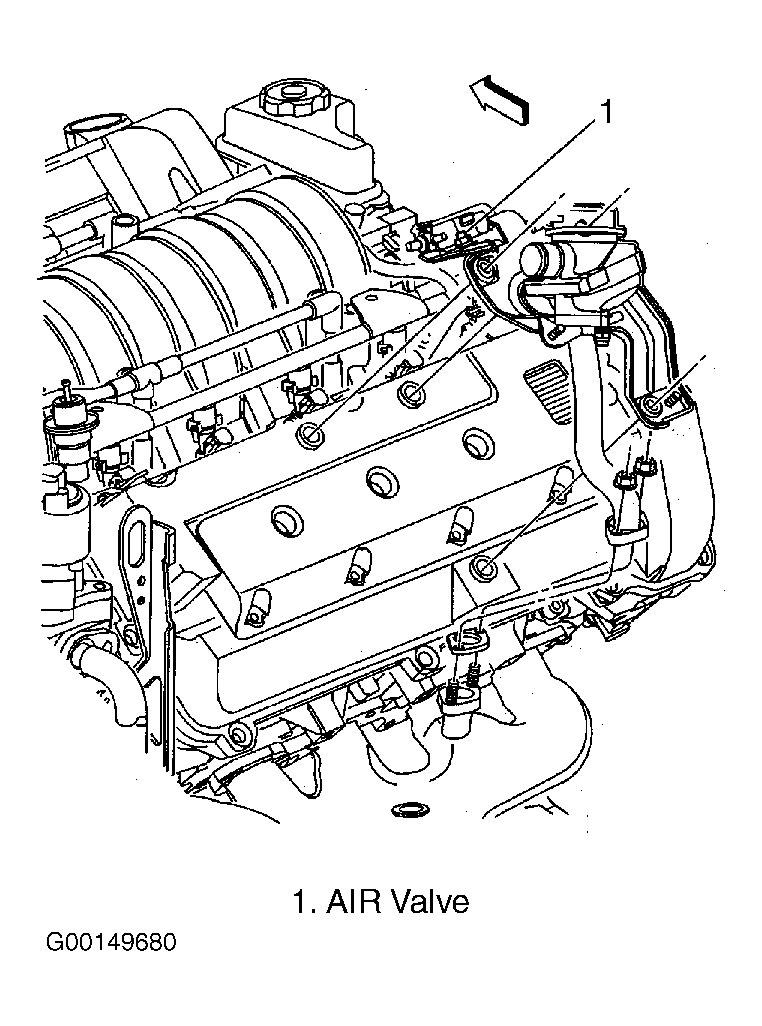

Fig 3: Locating AIR Valve

Courtesy of GENERAL MOTORS CORP.

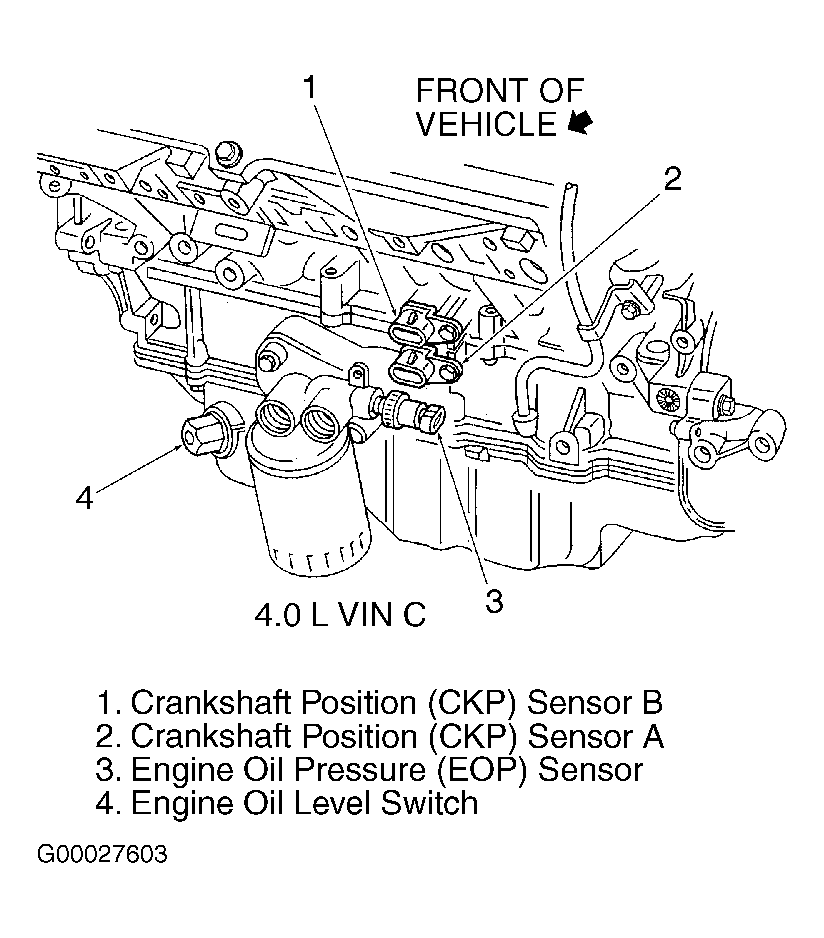

Fig 4: Locating CKP Sensors

Courtesy of GENERAL MOTORS CORP.

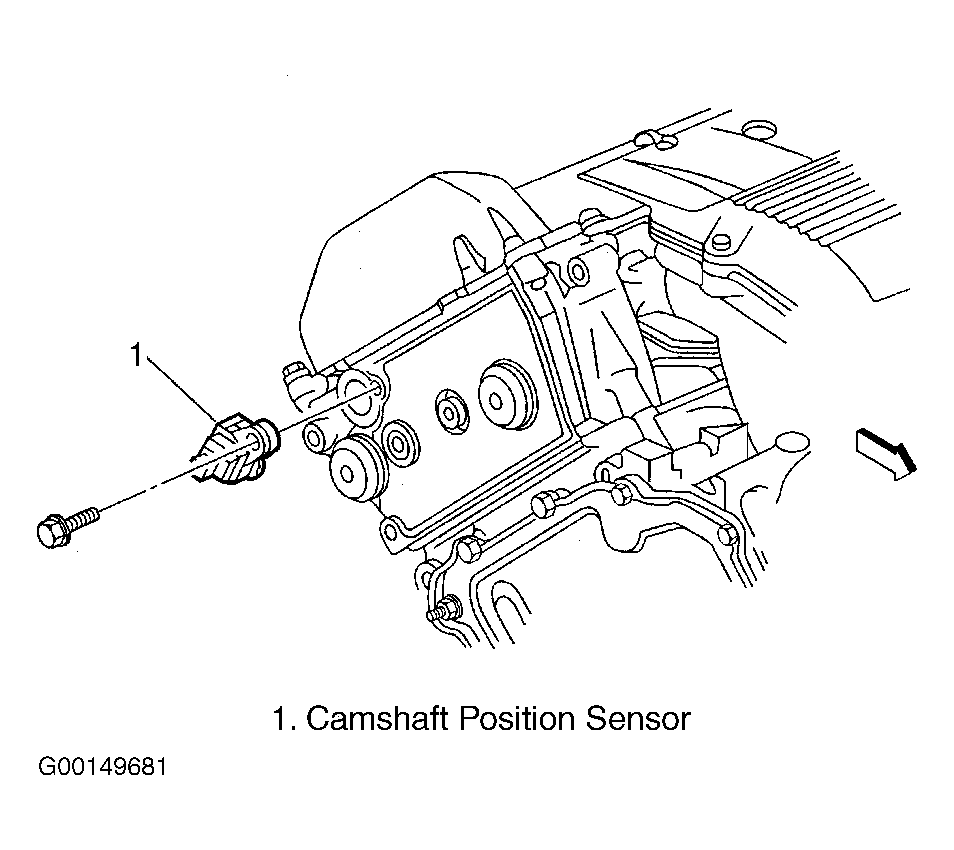

Fig 5: Locating CMP Sensor

Courtesy of GENERAL MOTORS CORP.

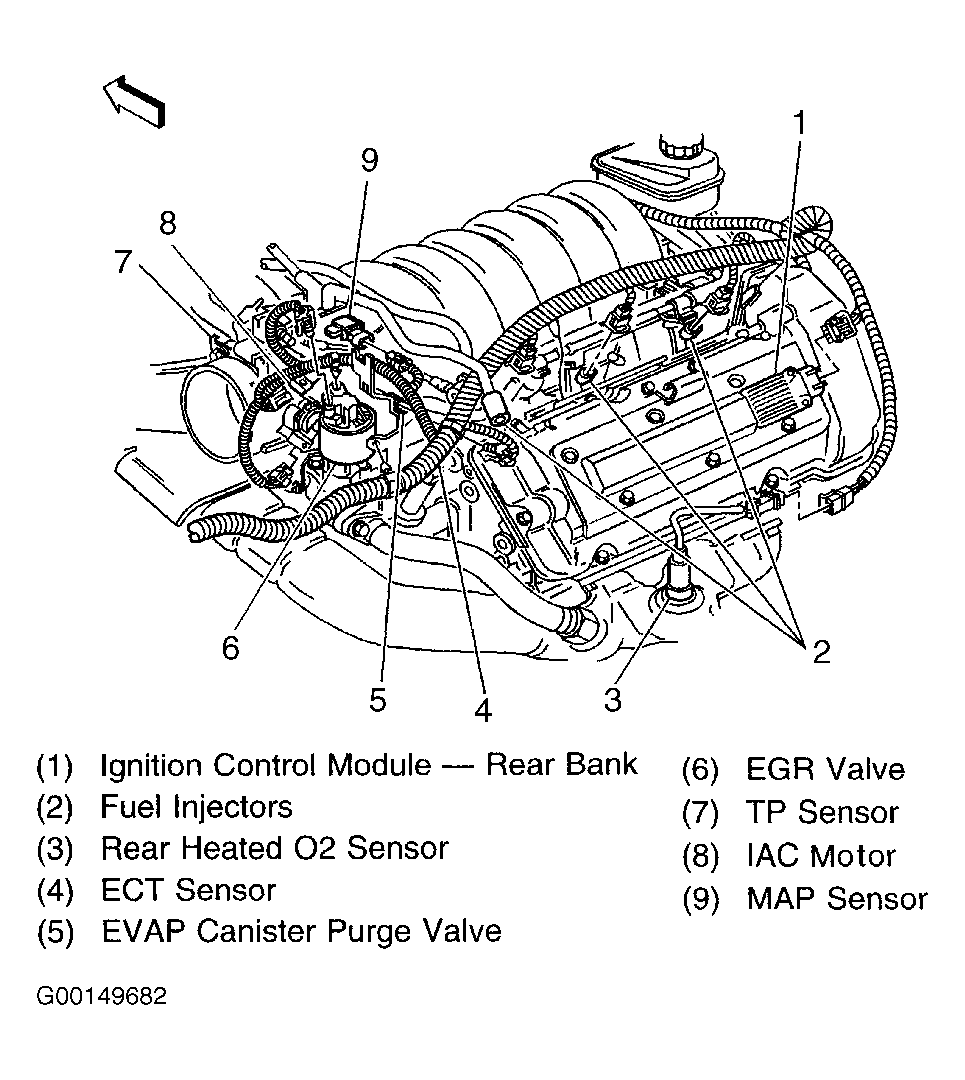

Fig 6: Locating ECT, MAP & TP Sensors, EGR Valve, EVAP Purge Solenoid, HO2S Bank 1 Sensor 1, IAC Motor & ICM

Courtesy of GENERAL MOTORS CORP.

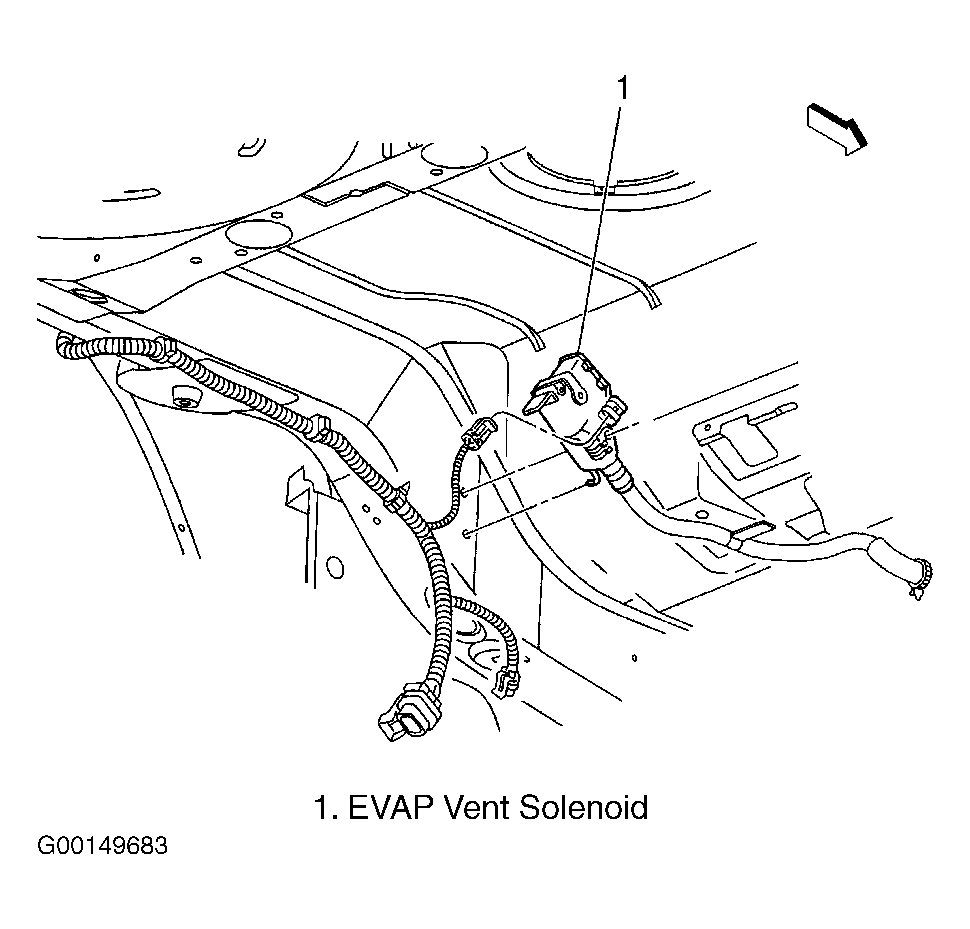

Fig 7: Locating EVAP Vent Solenoid

Courtesy of GENERAL MOTORS CORP.

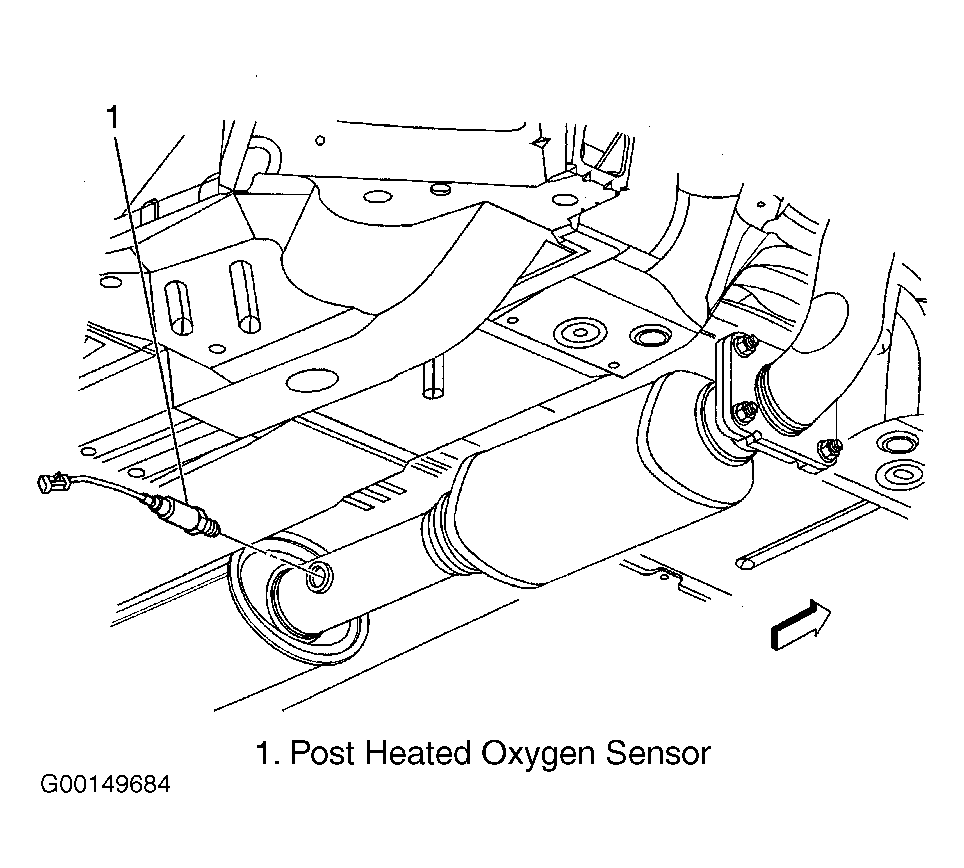

Fig 8: Locating HO2S Bank 1 Sensor 2

Courtesy of GENERAL MOTORS CORP.

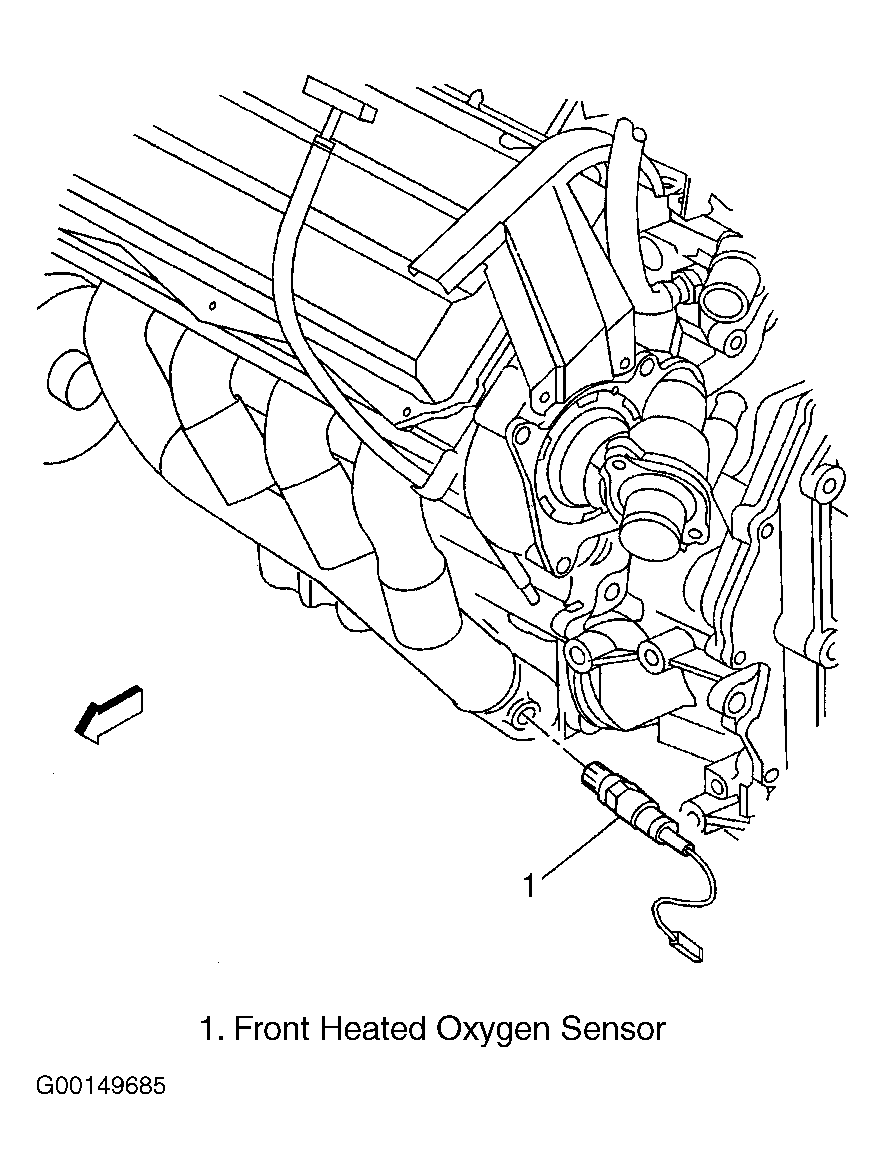

Fig 9: Locating HO2S Bank 2 Sensor 1

Courtesy of GENERAL MOTORS CORP.

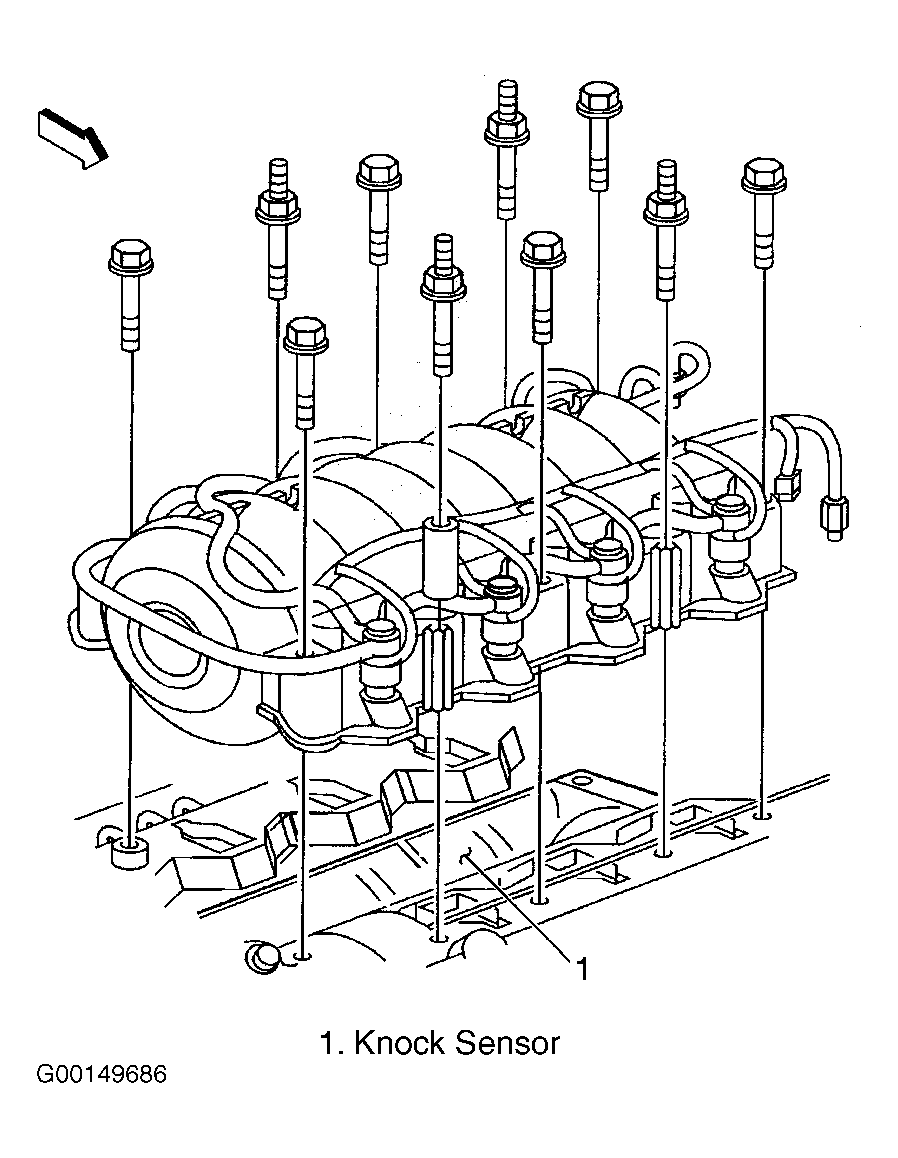

Fig 10: Locating Knock Sensor

Courtesy of GENERAL MOTORS CORP.

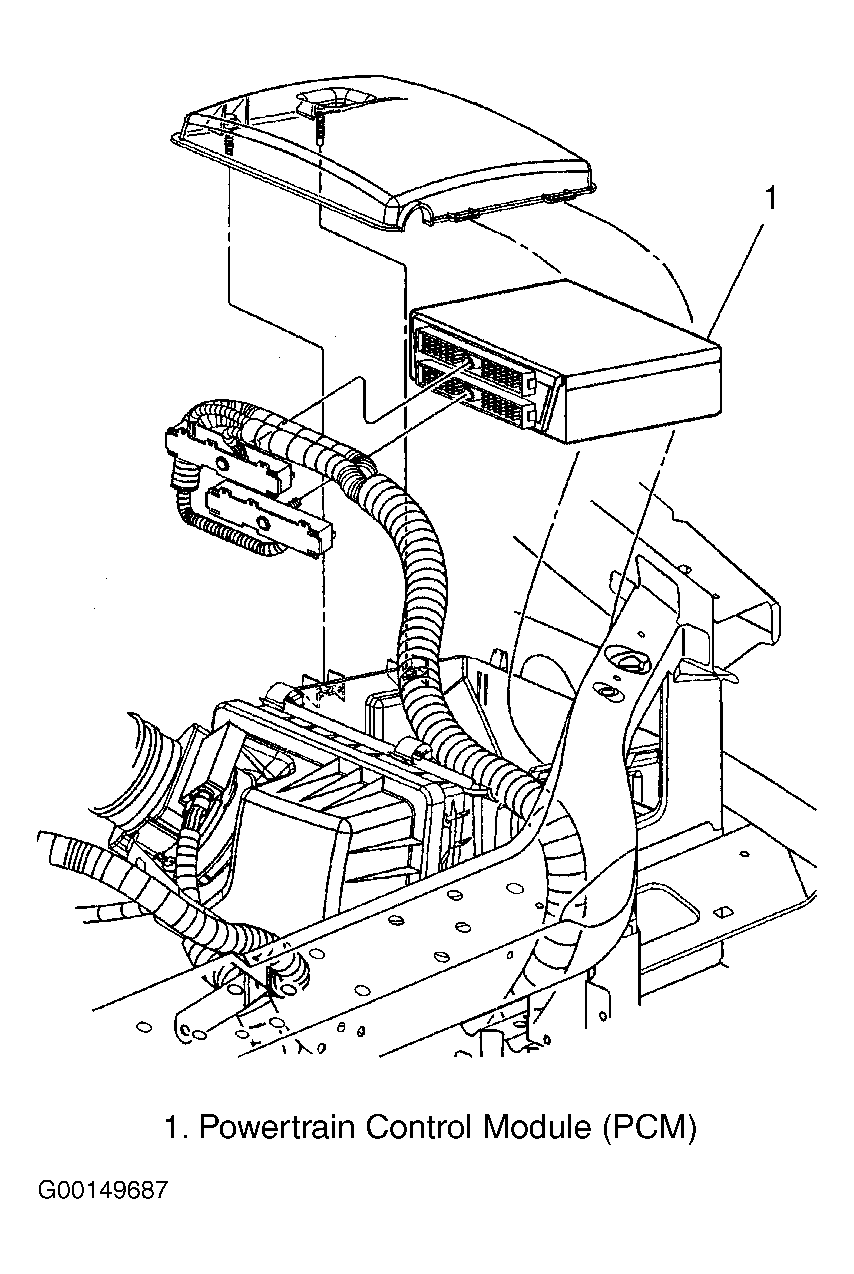

Fig 11: Locating PCM

Courtesy of GENERAL MOTORS CORP.
