Component Locations
NOTE:
For component locations, see COMPONENT LOCATIONS
table. See Fig 1
-Fig 8
.
COMPONENT LOCATIONS
| Component | Location |
|---|---|

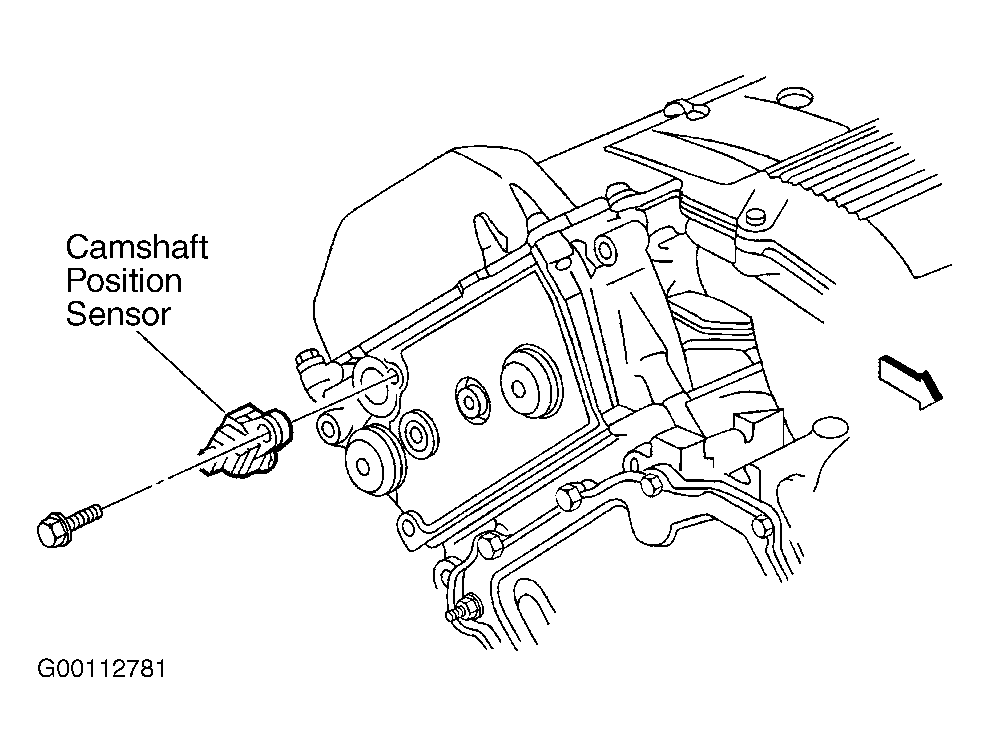

| Camshaft Position Sensor | On Front Of Right Cylinder Head |

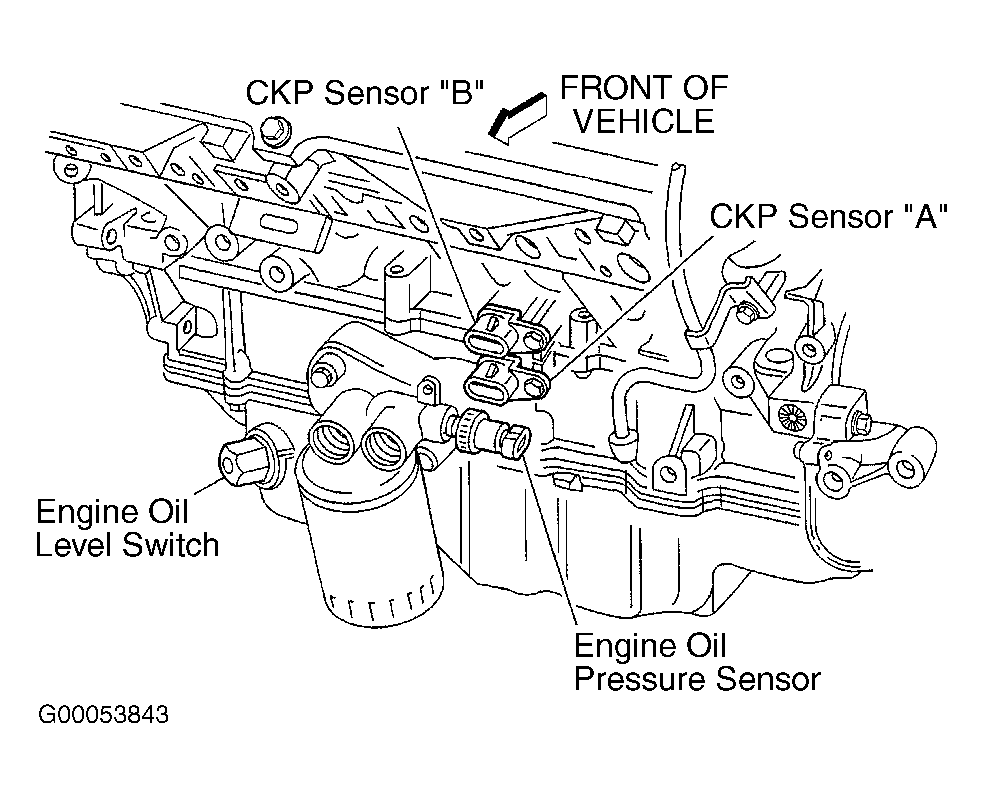

| Crankshaft Position Sensor "A" & "B" | Lower Left Side Of Engine Near Oil Filter |
| Engine Coolant Temperature Sensor | Left Rear Of Engine, Below EGR Valve Mount |
| Engine Oil Level Switch | Front Of Oil Pan |
| Engine Oil Pressure Sensor | Right Front Side Of Engine, Near Oil Filter Housing |
| EVAP Canister Purge Solenoid | On Top Of Engine, At Rear Of Throttle Body |
| EVAP Canister Vent Solenoid | Right Rear Of Vehicle |
| Exhaust Gas Recirculation Valve | On Top Of Engine, Rear Of Intake Manifold |
| Fuel Sender | Top Of Fuel Tank |

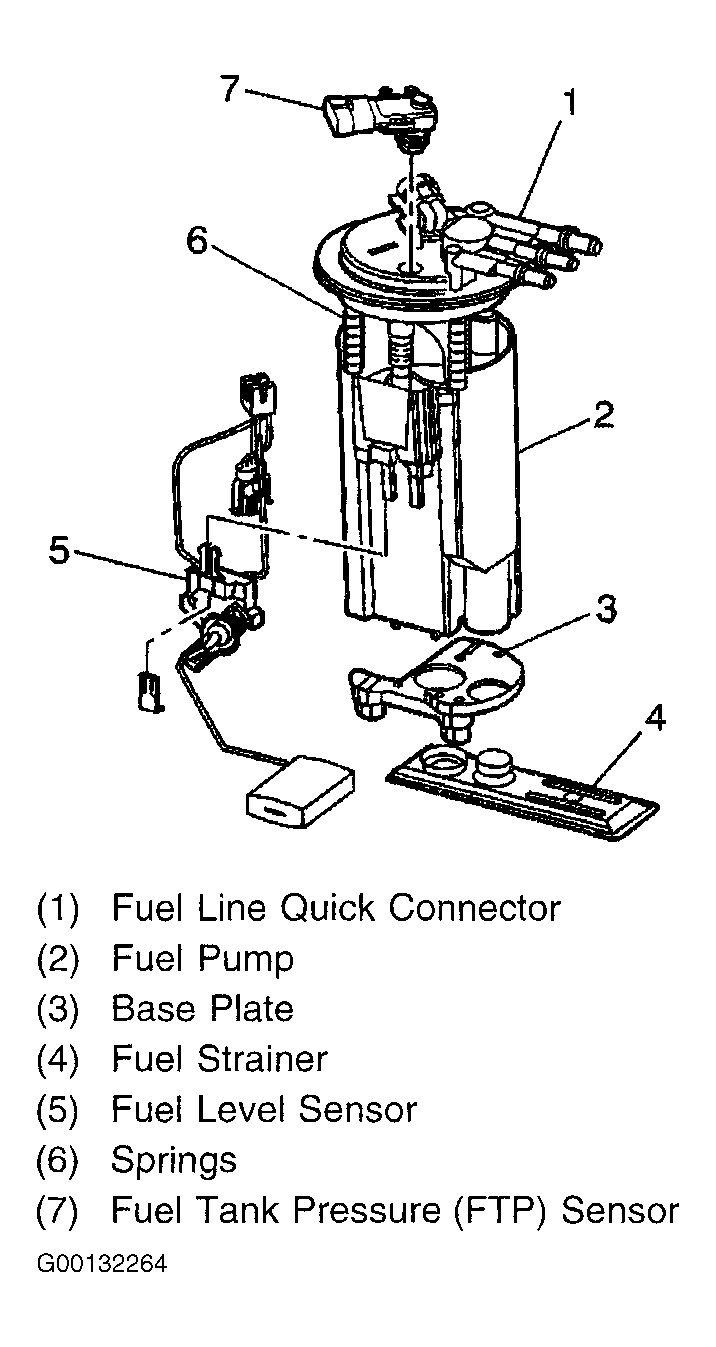

| Fuel Tank Pressure Sensor | Under Fuel Sensor Access Panel |
| Idle Air Control Valve | On Top Of Engine, At Front Of Throttle Body |

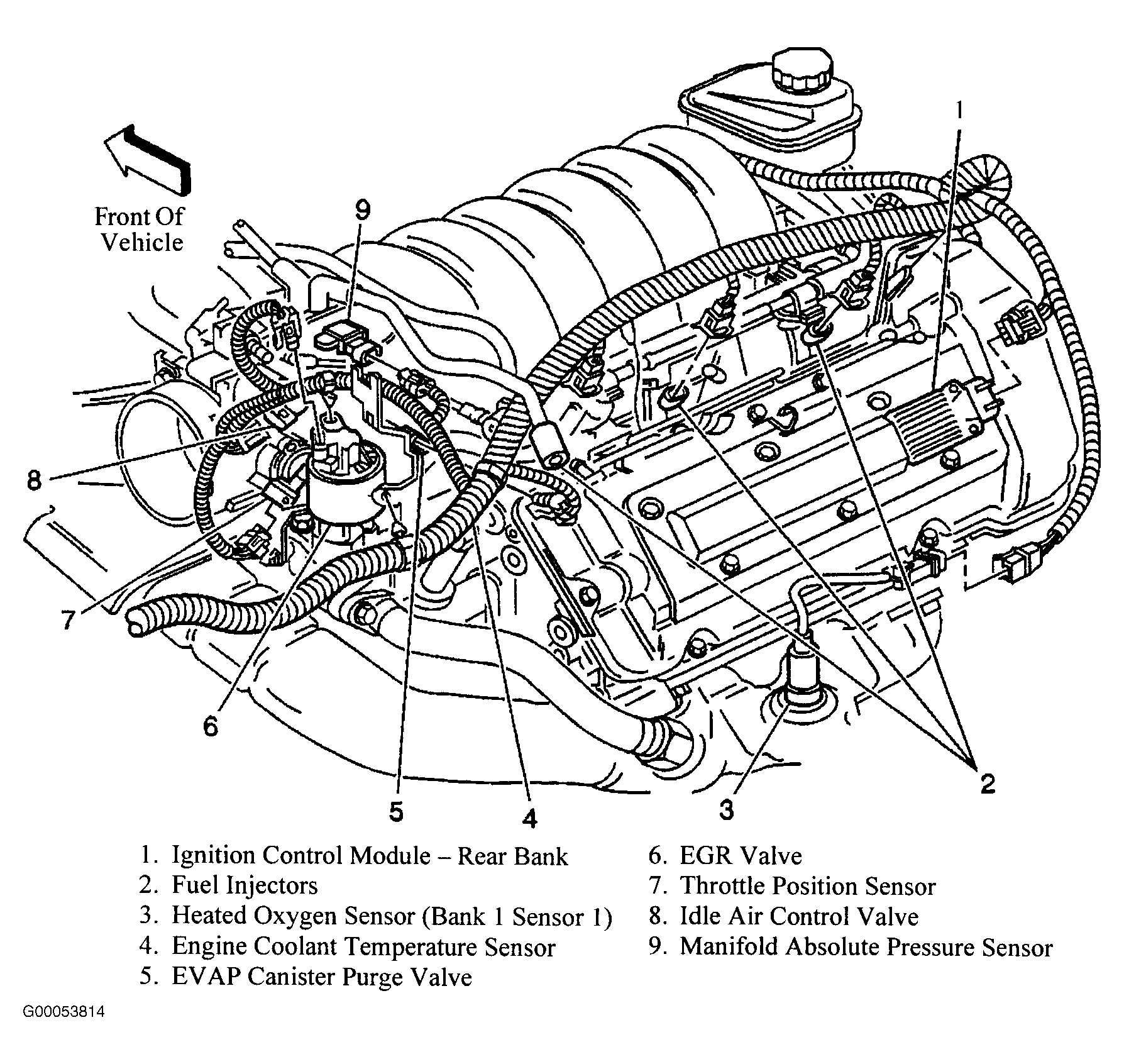

| Ignition Control Module (Right & Left) | Top Of Right & Left Cam Covers |
| Intake Air Temperature Sensor | Part Of Mass Airflow Sensor |

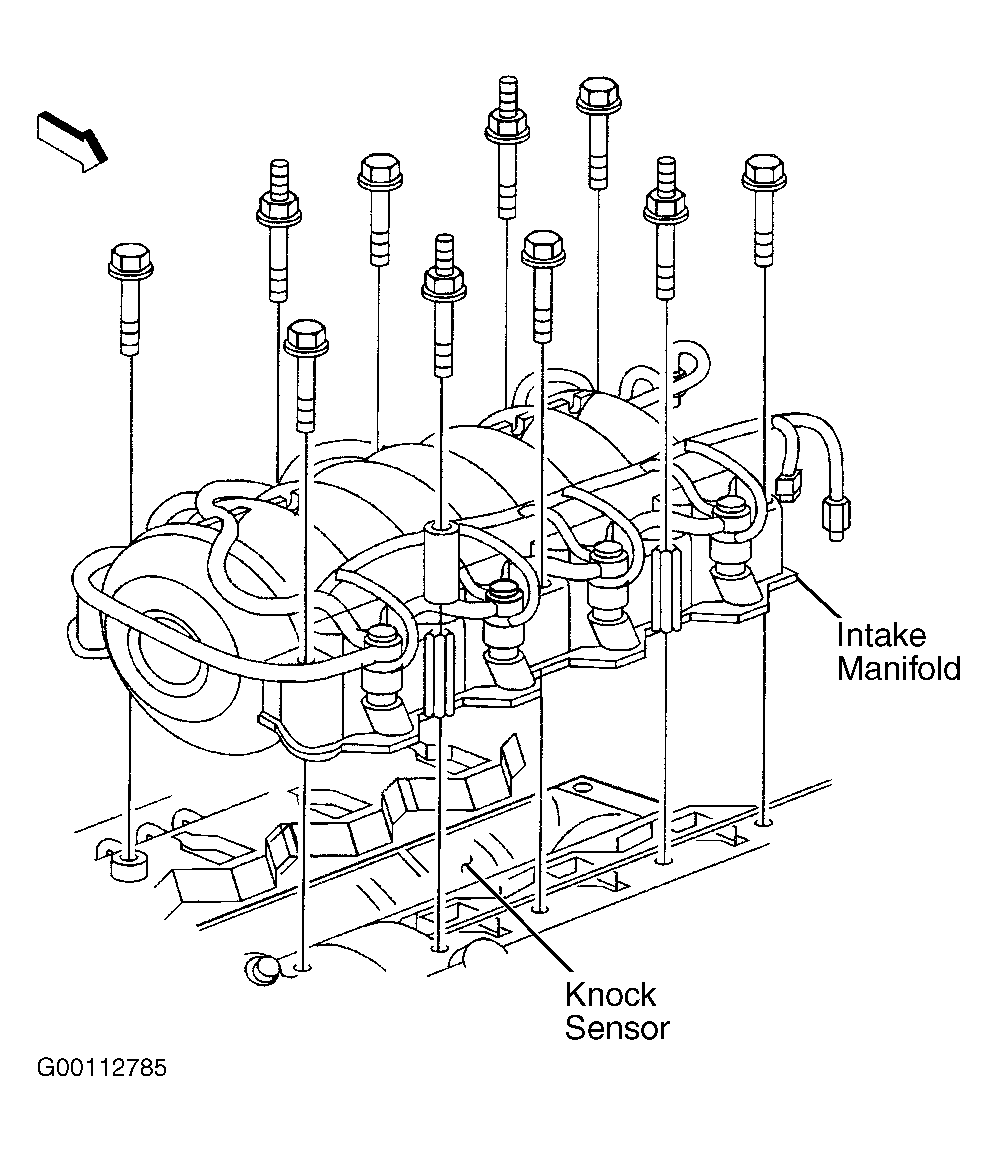

| Knock Sensor | On Engine, Beneath Intake Manifold |
| Manifold Absolute Pressure Sensor | Top Rear Of Engine, At Rear of Intake Manifold |

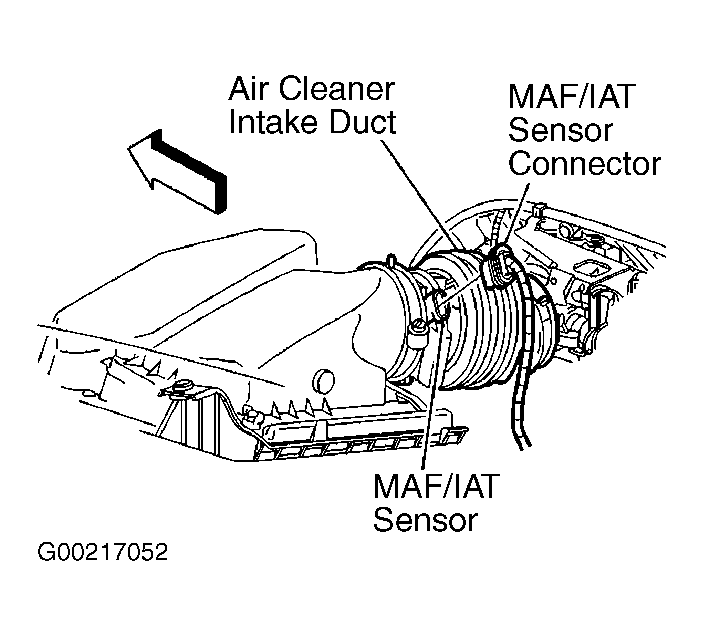

| Mass Airflow Sensor | On Left Side Of Engine Compartment, Attached To Throttle Body Intake Air Duct |

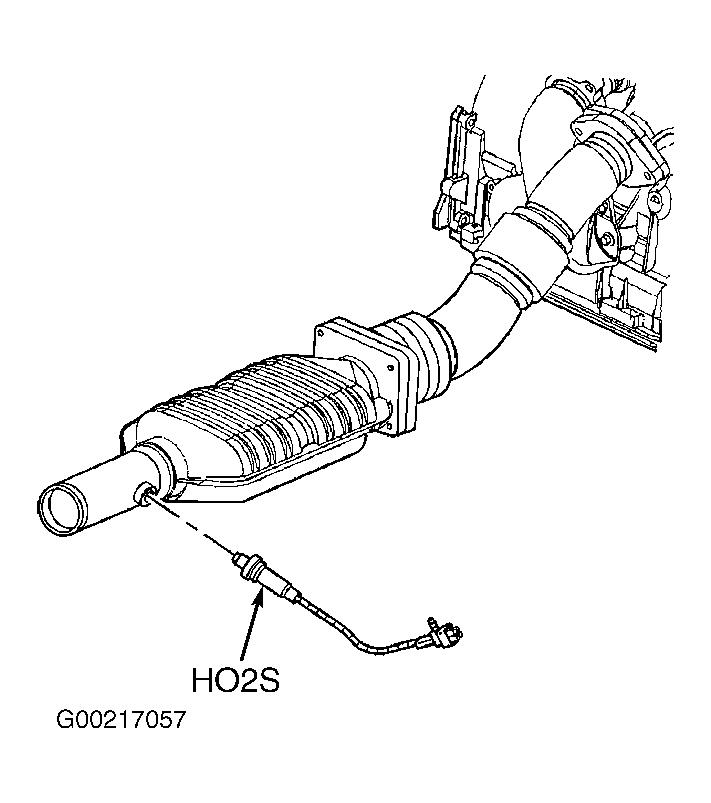

| Post-Converter Oxygen Sensor | On Exhaust Pipe Behind Catalytic Converter |

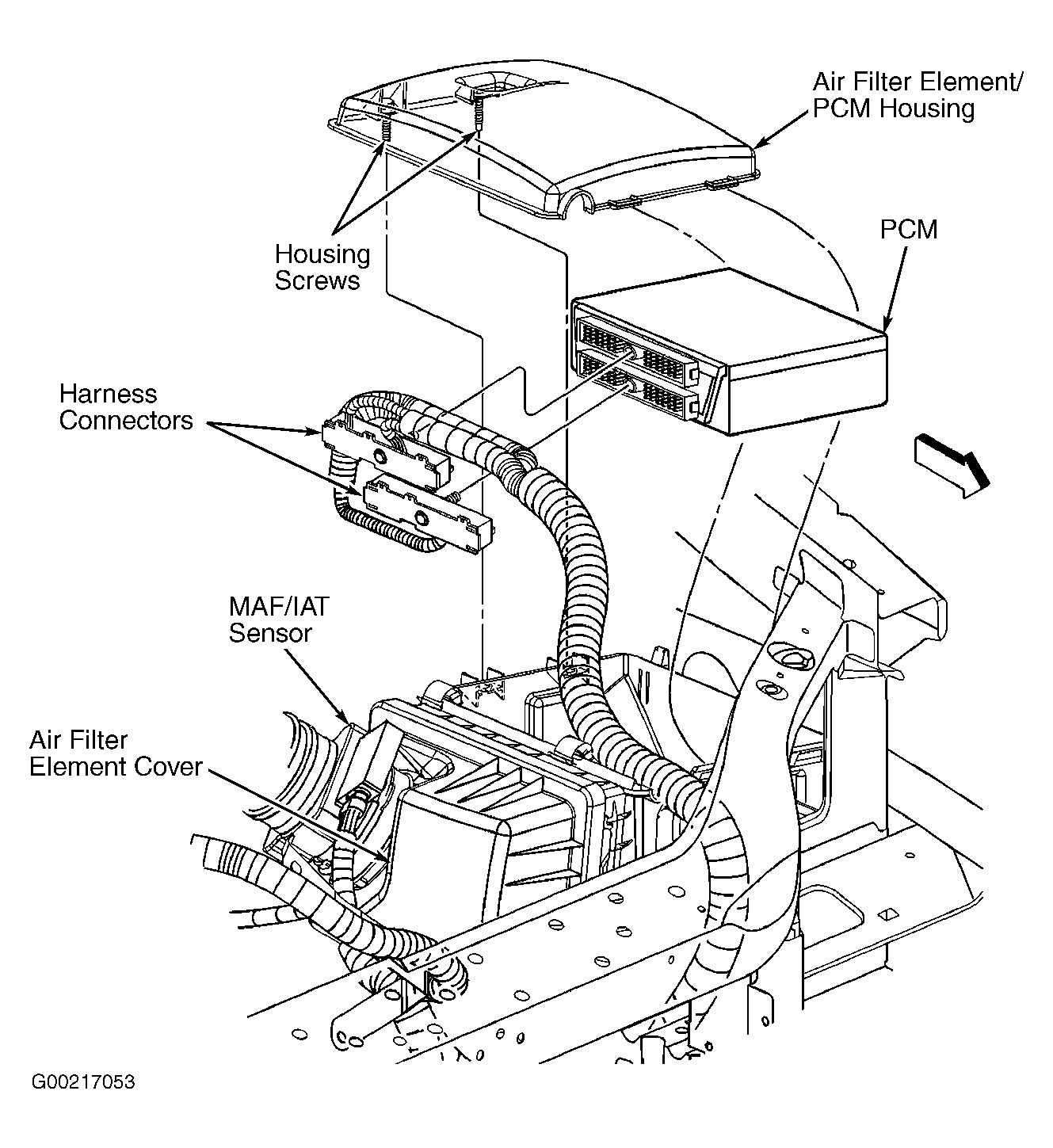

| Powertrain Control Module | Left Side Of Engine Compartment, Under Air Cleaner |
| Pre-Converter Oxygen Sensors | In Front & Rear Exhaust Manifolds |
| Secondary Air Injection Solenoid Valve | On Top Right Side Of Engine, Under Sight Shield |
| Throttle Position Sensor | On Top Right Side Of Engine, Near Throttle Body |

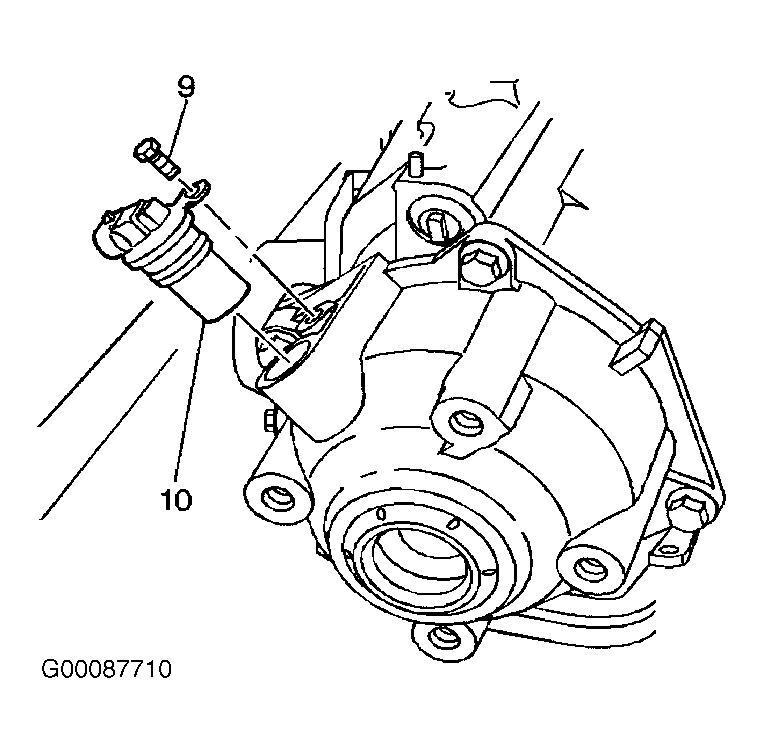

| Vehicle Speed Sensor | Top Right Side Of Transaxle Output Housing |
