Fuel Pump Electrical Circuit Diagnosis: Notes

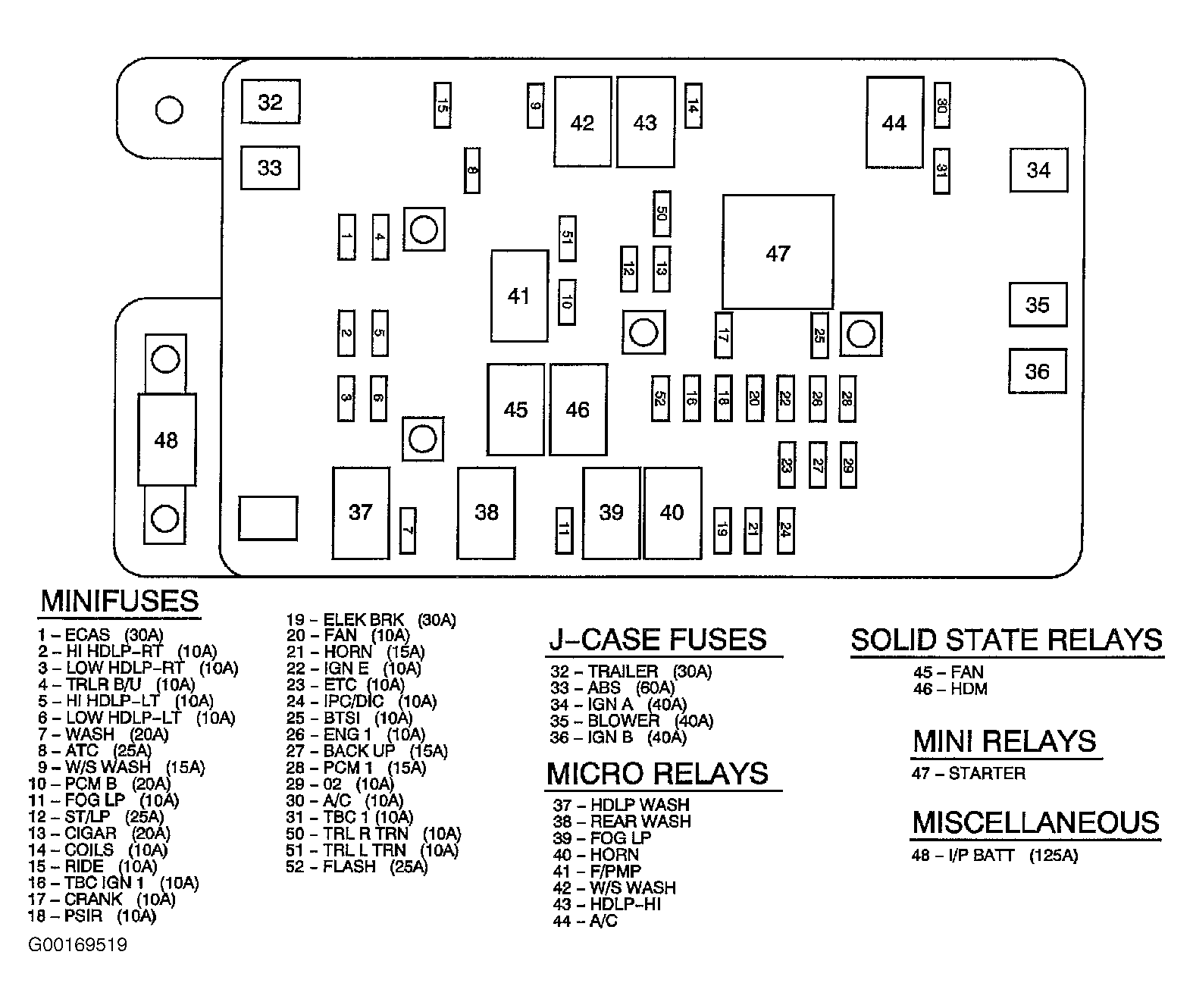

Fig 1: Identifying Underhood Fuse/Relay Block
G00169519Courtesy of GENERAL MOTORS CORP.

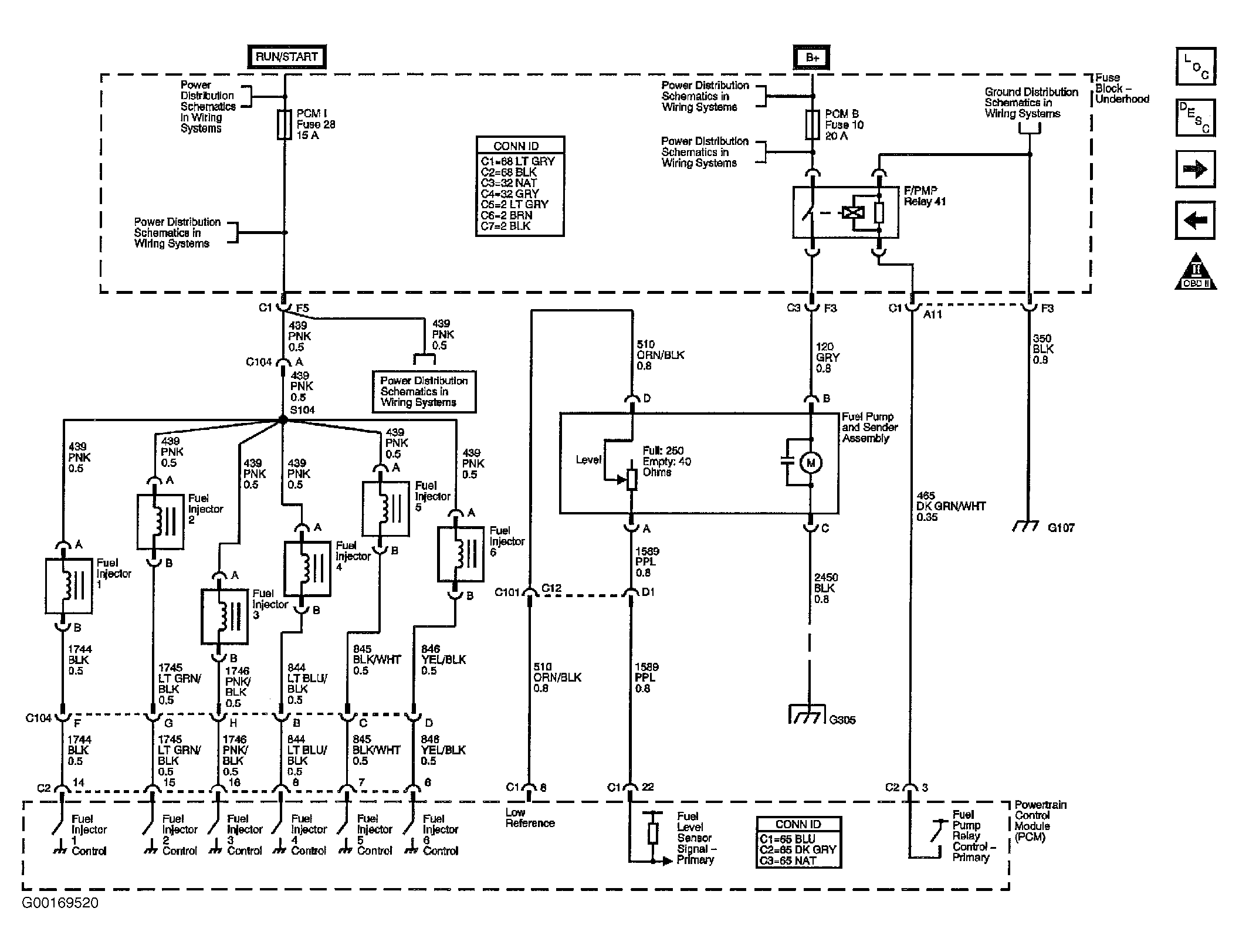

Fig 2: Fuel Pump Electrical Schematic
G00169520Courtesy of GENERAL MOTORS CORP.
