Removal Procedure

Remove the console. Refer to CONSOLE REPLACEMENT in Instrument Panel, Gages, and Console.

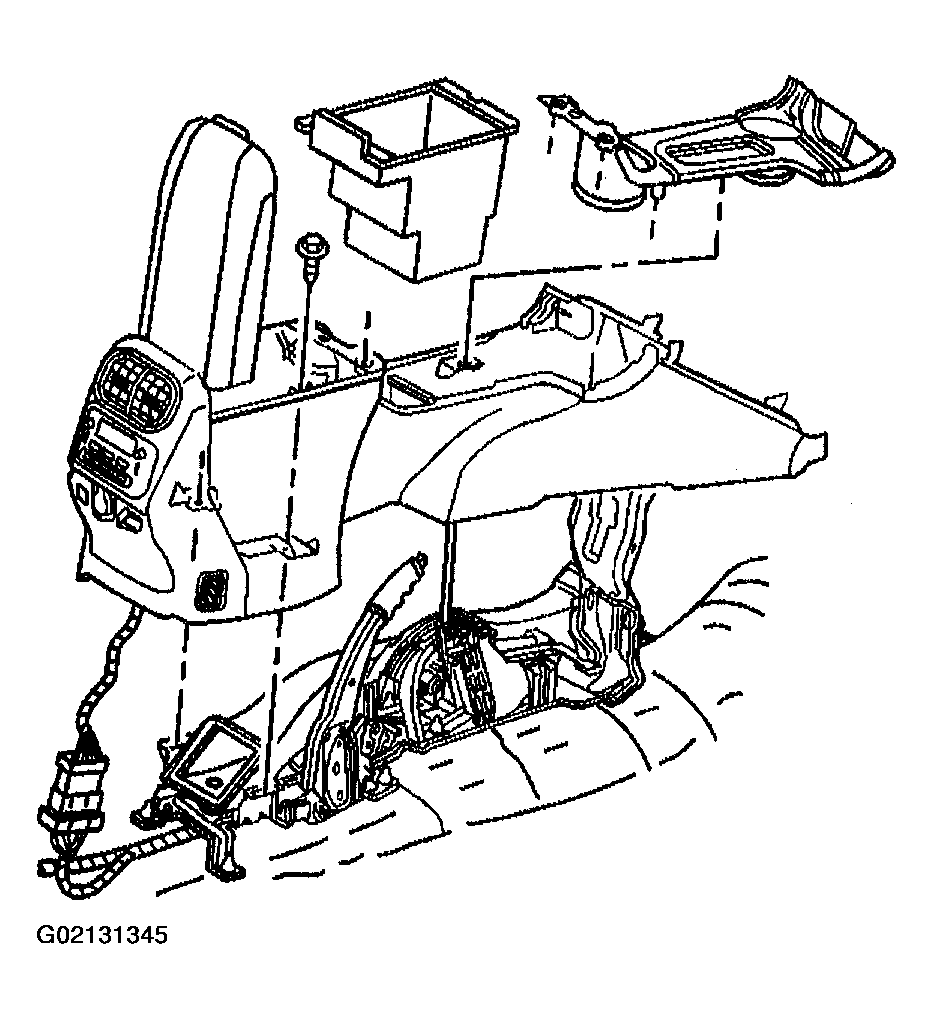

Fig 1: Removing Console
Courtesy of GENERAL MOTORS CORP.
Disconnect the shift lock actuator (3) electrical connector.

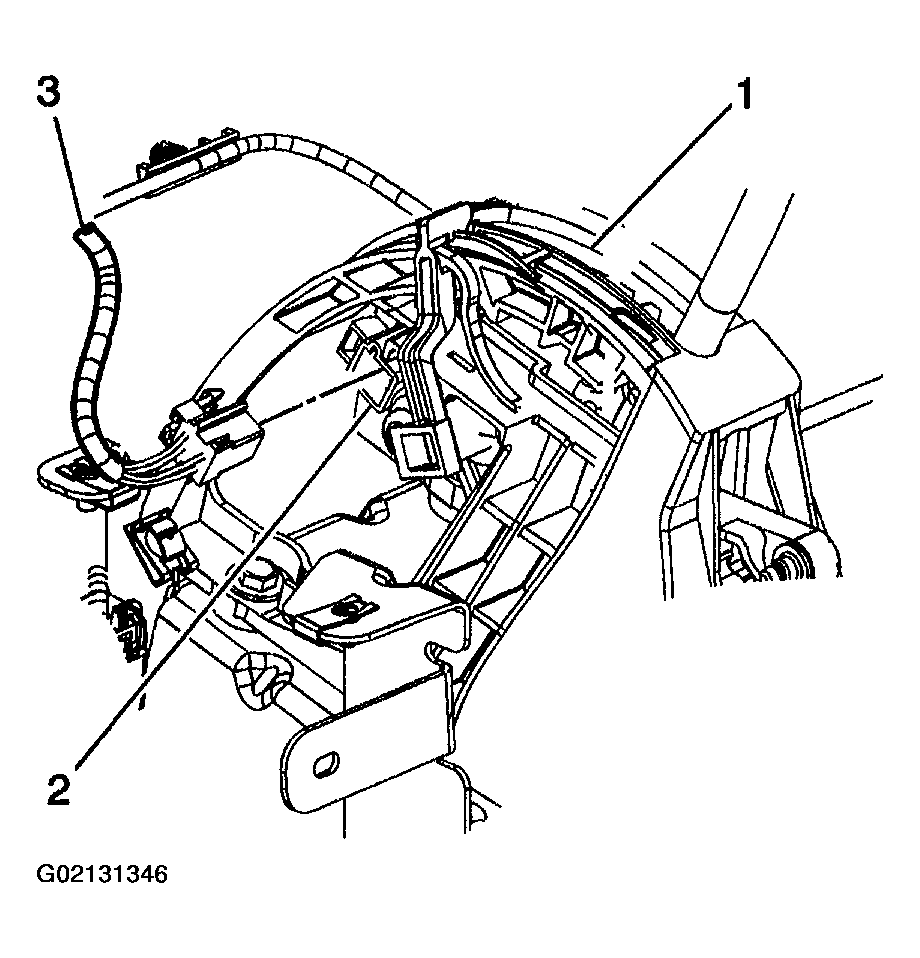

Fig 2: Disconnecting Shift Lock Actuator Electrical Connector
Courtesy of GENERAL MOTORS CORP.
Remove the shift lock actuator manual release lever.

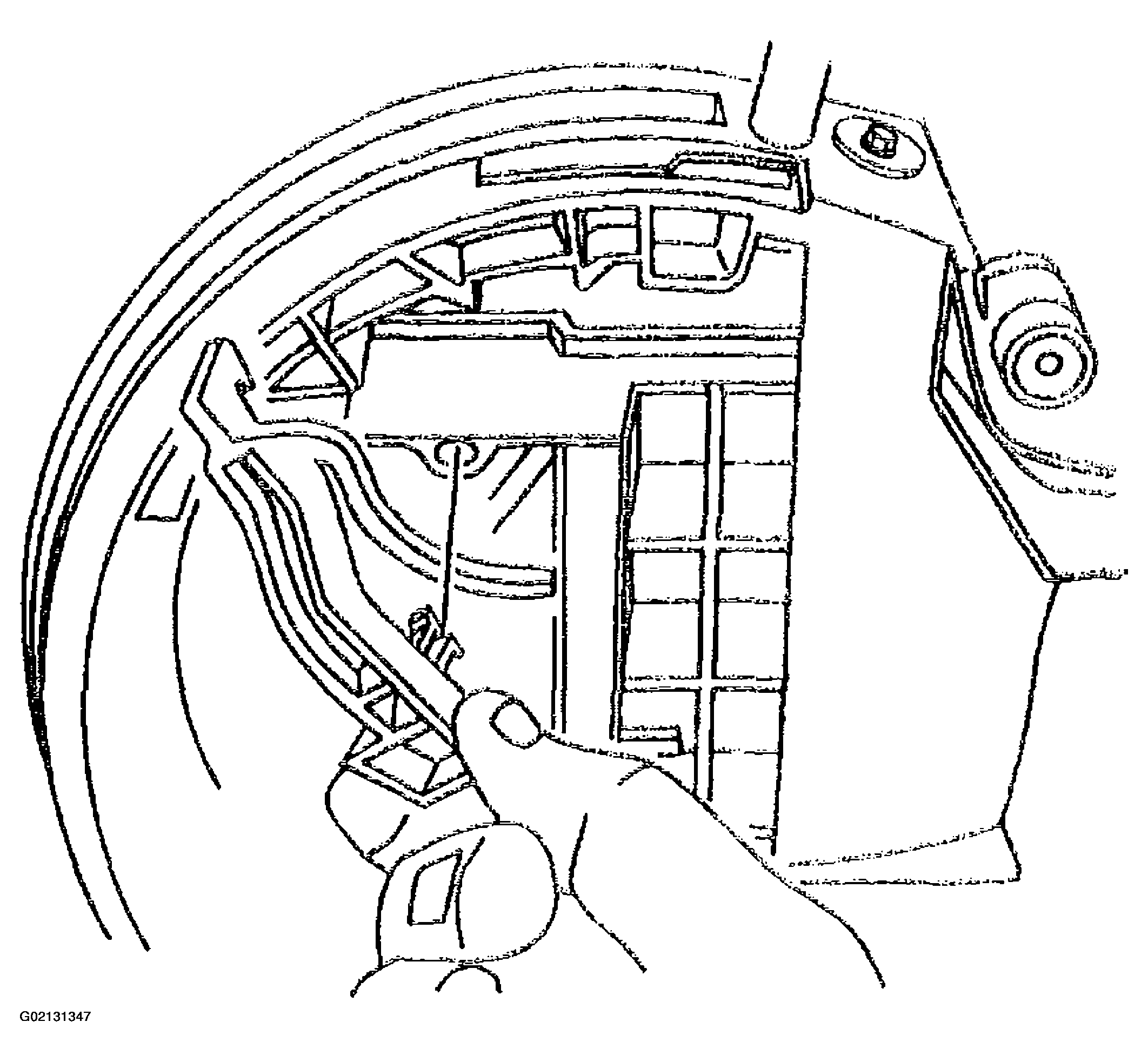

Fig 3: Removing Shift Lock Actuator Manual Release Lever
Courtesy of GENERAL MOTORS CORP.
Remove the shift lock actuator fasteners and remove the shift lock actuator.

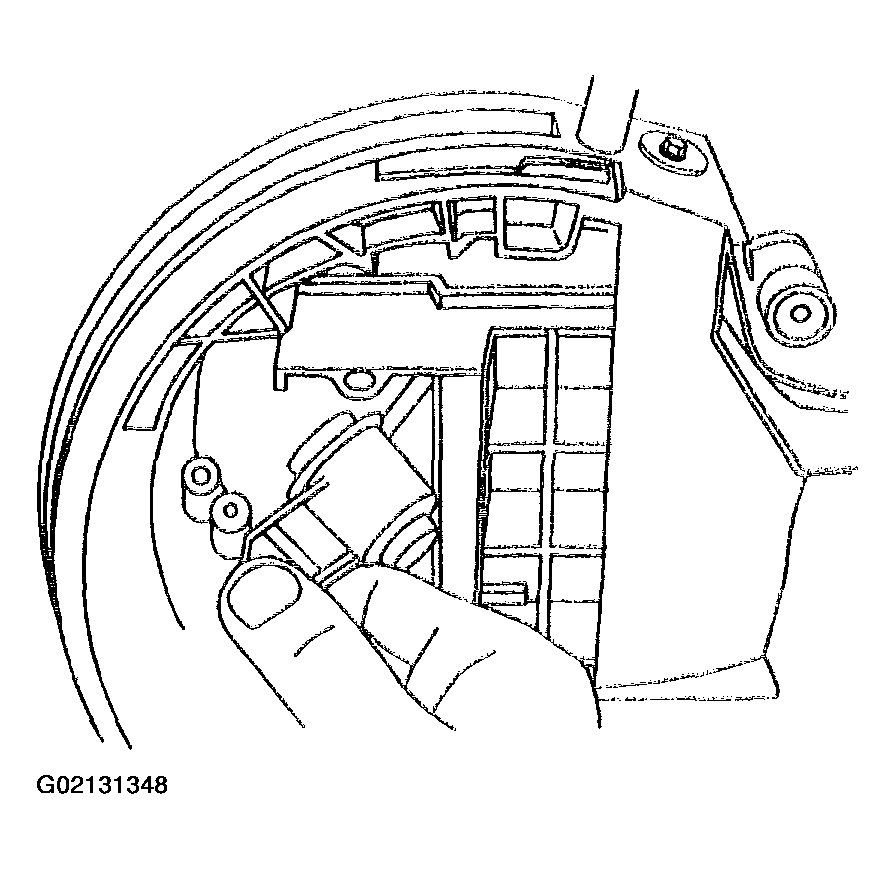

Fig 4: Removing Shift Lock Actuator Fasteners & Shift Lock Actuator
Courtesy of GENERAL MOTORS CORP.
