Wiring Diagrams

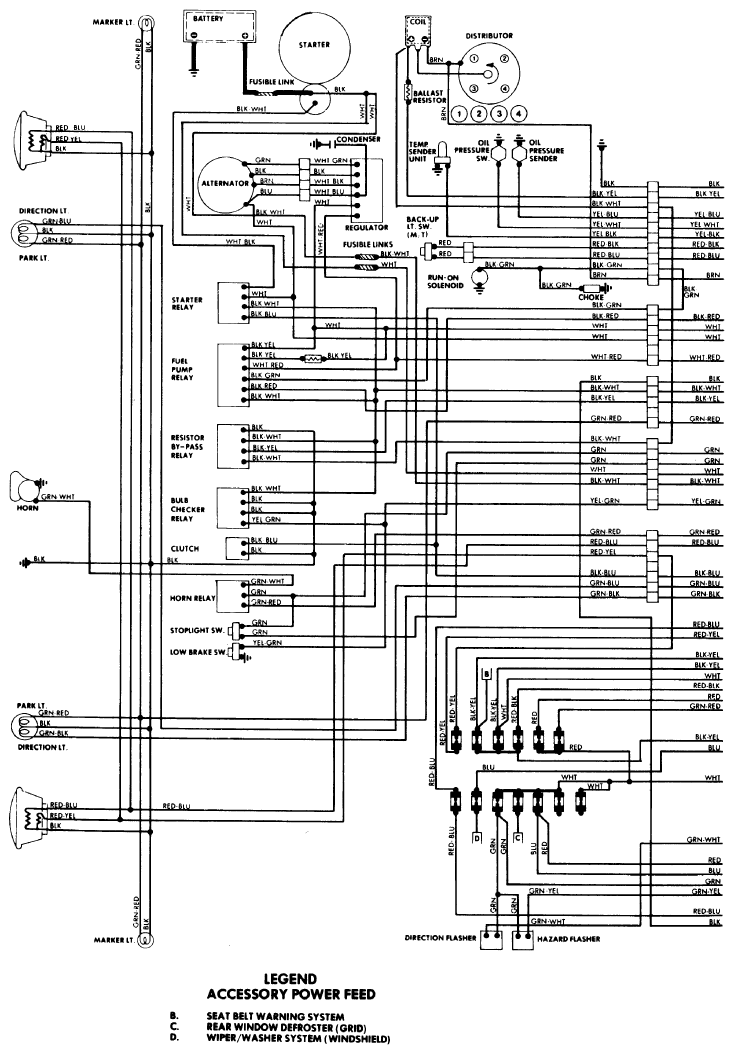

Fig 1: Wiring diagrams - Opel (1 of 2)
G09302981Courtesy of NOT AVAILABLE

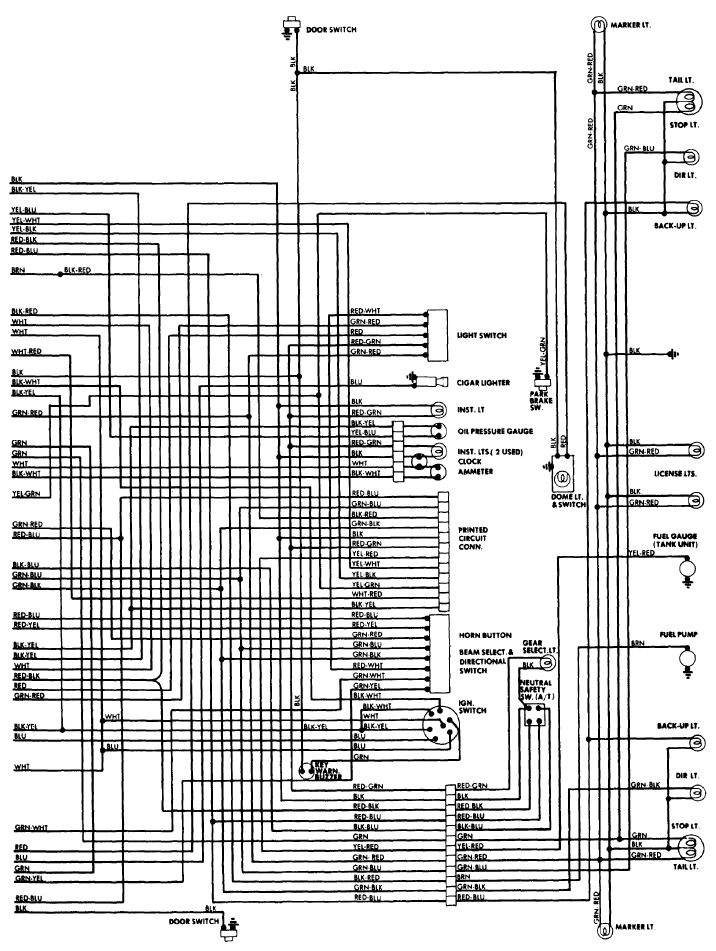

Fig 2: Wiring diagrams - Opel (2 of 2)
G09302982Courtesy of NOT AVAILABLE
