Speed Sensor

The speed sensor mounts on the flywheel housing and monitors the rotation of 2 slots in the flywheel. It provides a signal to the ECB which permits EGR to only occur above 1300 RPM.

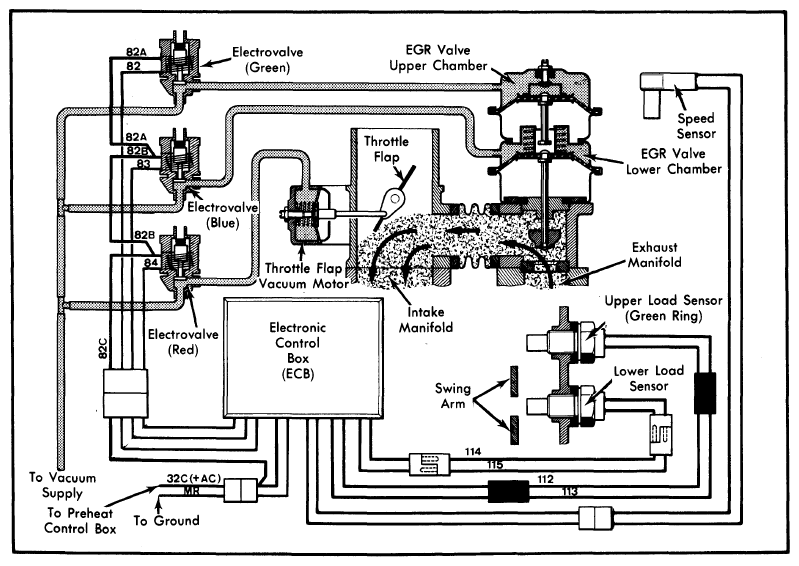

Fig 1: Peugeot Diesel EGR System Vacuum and Wiring Diagram

Courtesy of PEUGEOT MOTORS OF AMERICA, INC.
