Load Sensor

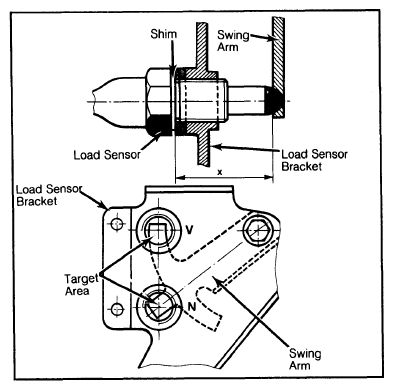

  1. Position swing arm as shown in Figure. The target area must be positioned in front of threaded holes of bracket as shown. Using a depth gauge, measure distance "X" as shown in Figure.
  2. Distance "X" must be 1.14-1.15" (28.9-29.1 mm). If not, remove load sensor and adjust distance "X" using shims.
    NOTE: Upper load sensor has a Green ring or a Green electrical connector and must be mounted in bracket hole with letter "V" stamped next to it.
