Speed Sensor

Loosen clamp holding speed sensor in place on top of flywheel housing. Push sensor down until it contacts flywheel. Pull sensor back up a maximum of 0.020" (0.5 mm). Tighten sensor clamp.

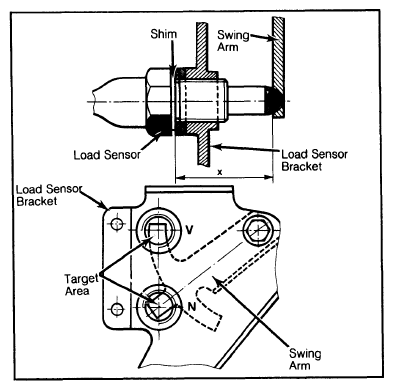

Fig 1: EGR Load Sensor Adjustment

Courtesy of PEUGEOT MOTORS OF AMERICA, INC.

Position swing arm as shown.
