ROOTES Group Single Carburetor Engine Modification: Description: Notes

Single carburetor exhaust emission system consists of the following items: A Stromberg CDSE (CDSET on 1972-73 Cricket) carburetor, equipped with a throttle by-pass valve; control valve and a distributor with overrun (deceleration) retard control. These components operate to give precise control of air/fuel mixture such that hydrocarbon and carbon monoxide emissions are held to a minimum.

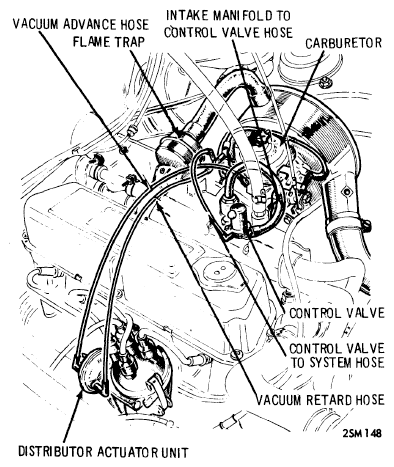

Fig 1: Single Carburetor Emission Control System
G09309441Courtesy of CHRYSLER GROUP, LLC
