Switch "Down" Test

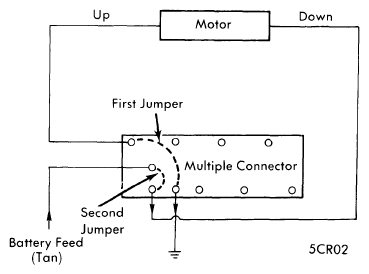

- Using two jumper wires, connect one jumper wire end to tan wire terminal and other end of jumper wire to DOWN terminal (see Fig 1). Connect other jumper wire to UP terminal and ground (see Fig 1).
- If motor runs, power circuit to motor or switch is good. Reinstall switch to multiple connector and actuate switch. If motor does not run, replace switch body. If motor still does not run with switch replaced, perform MOTOR LIFT TEST . Test each window switch using same procedure.
Courtesy of CHRYSLER GROUP, LLC
