Crankcase Ventilation: Maintenance

Check and clean entire crankcase ventilation system every 15, 000 miles.

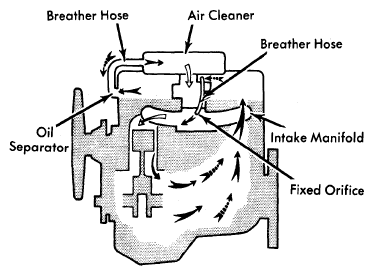

Fig 1: Crankcase Ventilation System
G09313035Courtesy of CHRYSLER GROUP, LLC
