Two-Way Valve

This valve consist of a pressure/vacuum valve. The pressure valve is designed to open when fuel tank internal pressure has increased over normal pressure. The vacuum valve prevents a vacuum from forming in fuel tank.

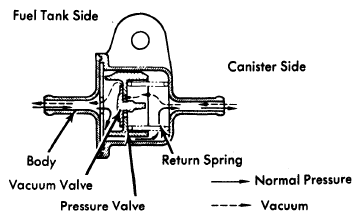

Fig 1: Fuel Evaporation Two-Way Valve
G09313041Courtesy of CHRYSLER GROUP, LLC
