Orifice Spark Advance Control: Description

The Orifice Spark Advance Control (OSAC) valve, located between the distributor and carburetor, is a device for controlling oxides of nitrogen (NOx) and hydrocarbon (HC) emissions.

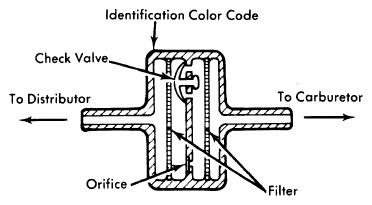

Fig 1: Cutaway View Of OSAC Valve

Courtesy of CHRYSLER GROUP, LLC
