Wiring Diagrams

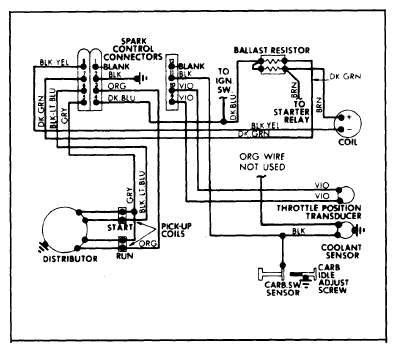

Fig 1: 1976-77 ELB (Dual Pick-Up Distributor) System Wiring Diagram

Courtesy of CHRYSLER GROUP, LLC

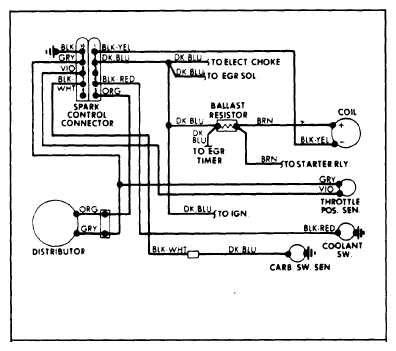

Fig 2: 1977 ELB (Single Pick-Up Distributor) System Wiring Diagram

Courtesy of CHRYSLER GROUP, LLC

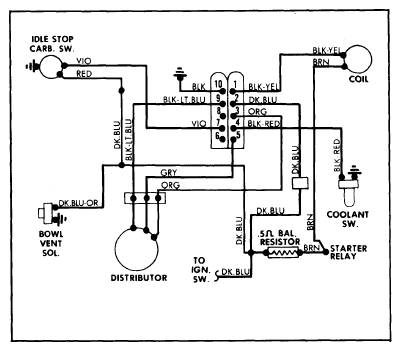

Fig 3: 1979 Omni & Horizon ESC System Wiring Diagram

Courtesy of CHRYSLER GROUP, LLC

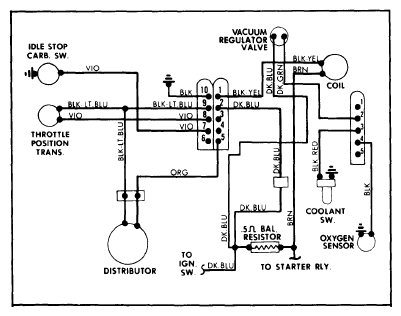

Fig 4: 1979 Aspen & Volare (Calif.) ESC System Wiring Diagram

Courtesy of CHRYSLER GROUP, LLC

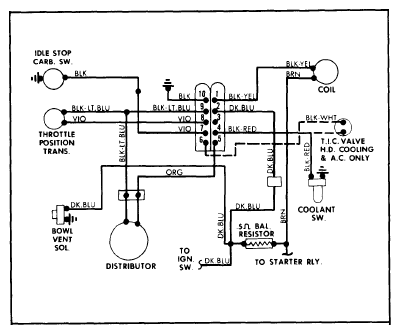

Fig 5: 1978-79 ELB/ESC System Wiring Diagram (All Other Models)

Courtesy of CHRYSLER GROUP, LLC
