All Other Models

The only service normally required for this system is to replace the filter located in bottom of canister every 30, 000 miles. More frequent replacement may be necessary if vehicle is driven in dusty areas.

NOTE: The hoses used in this system are specially manufactured and if replacement is necessary it is important to use only fuel resistant hose.

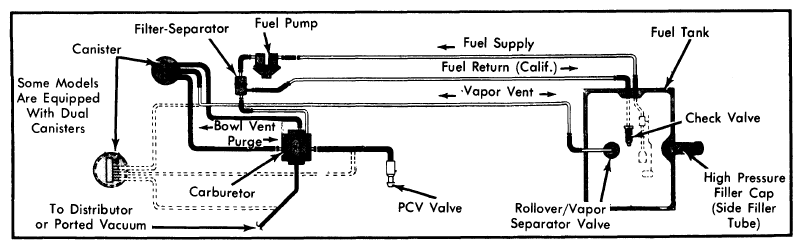

Fig 1: Evaporation Control System For All Models Except Omni and Horizon

Courtesy of CHRYSLER GROUP, LLC

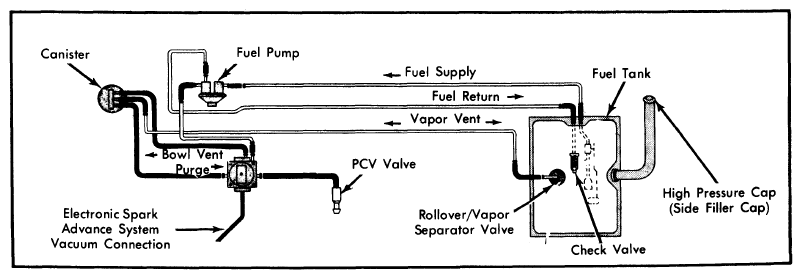

Fig 2: Omni and Horizon Evaporation Control System

Courtesy of CHRYSLER GROUP, LLC
