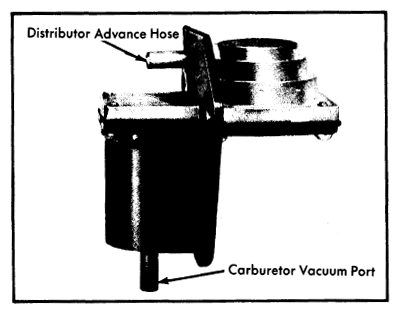

Orifice Spark Advance Control: Operation
Vacuum is obtained by a ported vacuum tap just above throttle valves of carburetor. Ported vacuum provides no vacuum at idle, but provides manifold vacuum as soon as throttle valves are slightly opened.
Courtesy of CHRYSLER GROUP, LLC
