Pick-Up Coil Resistance

Connect an ohmmeter to terminals shown in Fig 1. With ignition switch off, resistance should read 920-1120 ohms. If not, replace pick-up coil assembly.

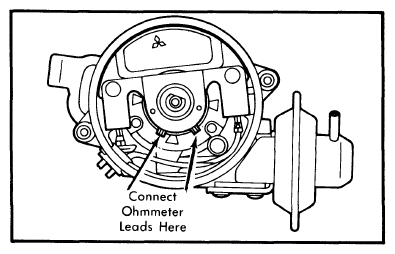

Fig 1: Measuring Pick-Up Coil Resistance

Courtesy of CHRYSLER GROUP, LLC
