Base Ignition Timing Specifications

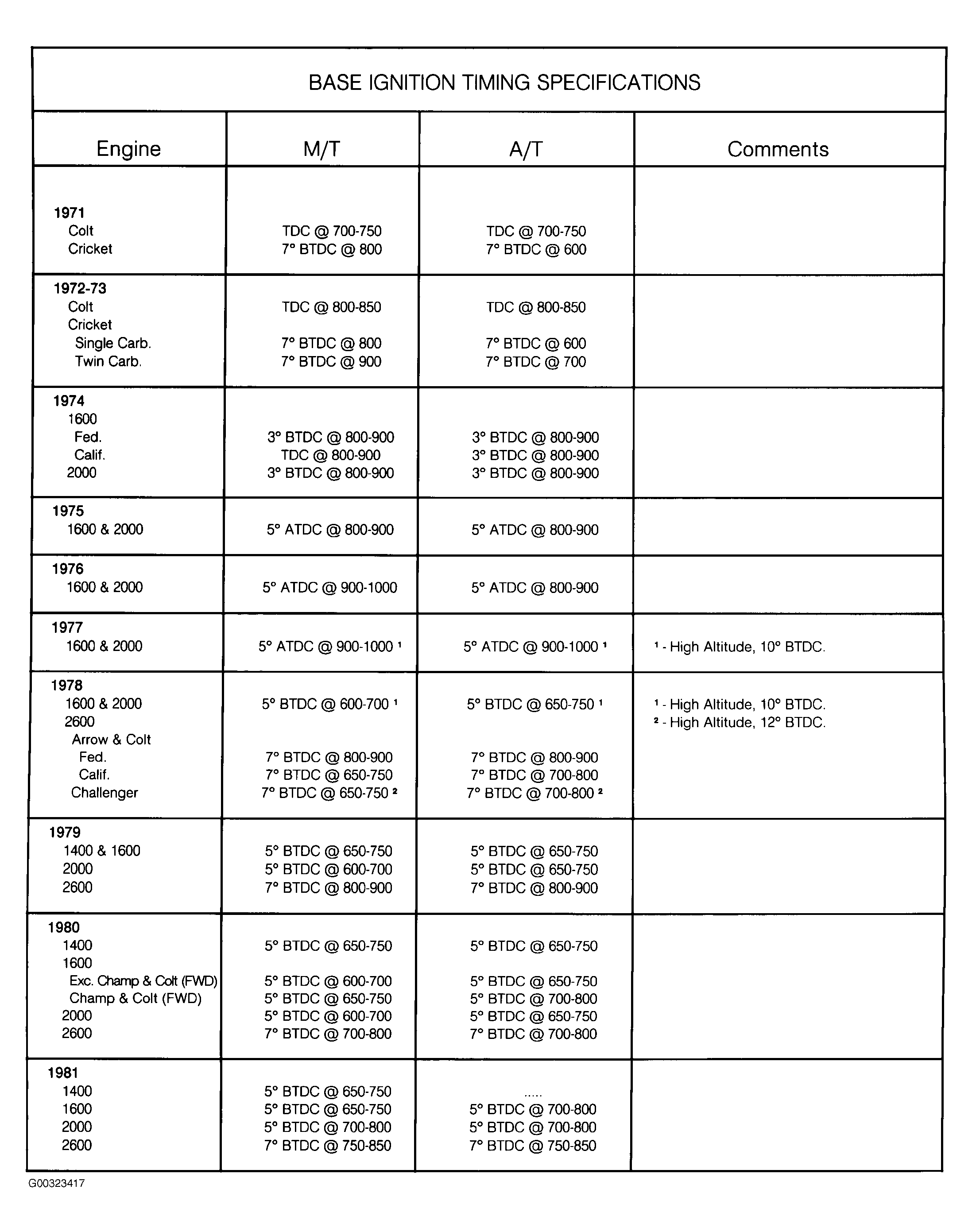

Fig 1:

G00323417

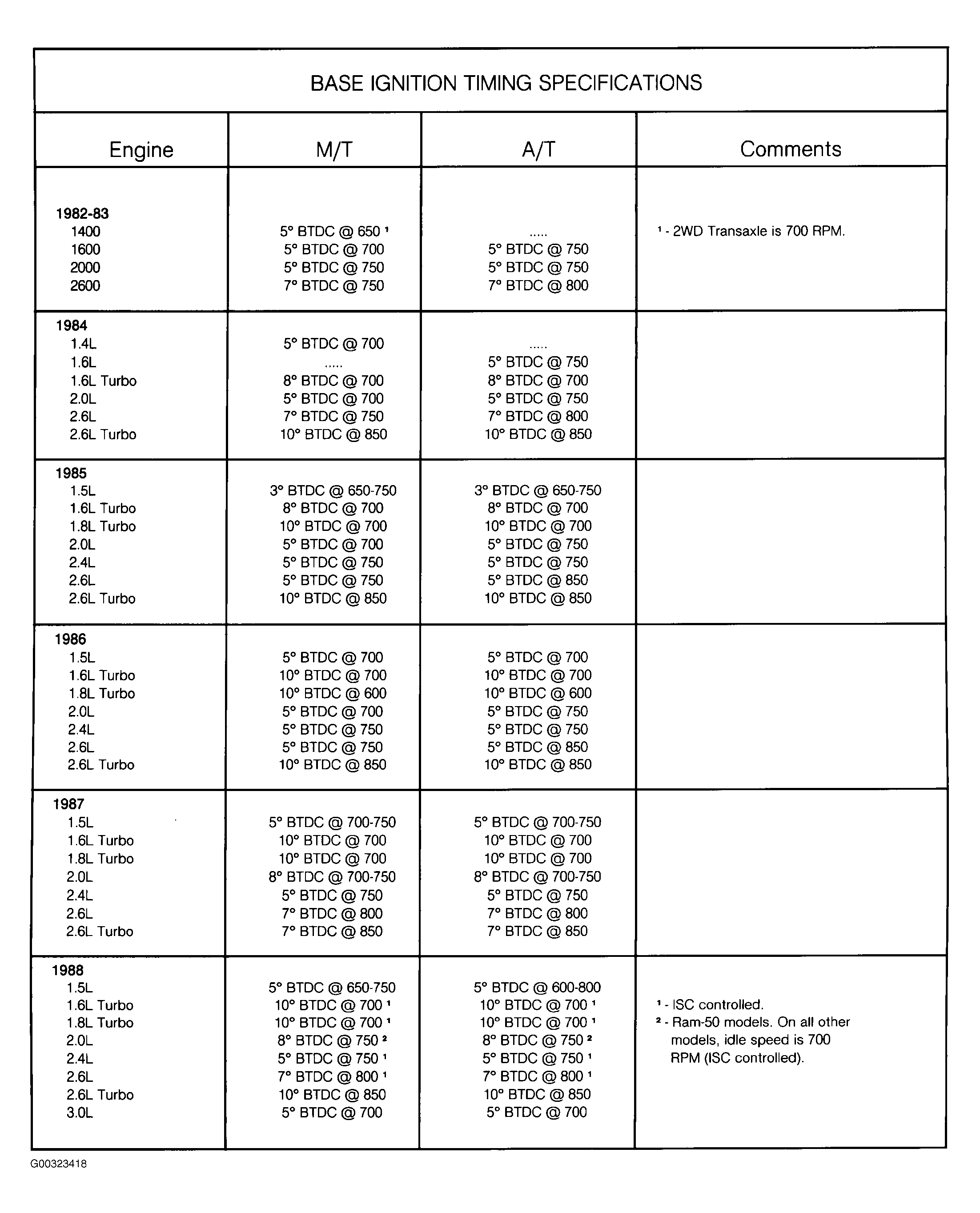

Fig 2:

G00323418

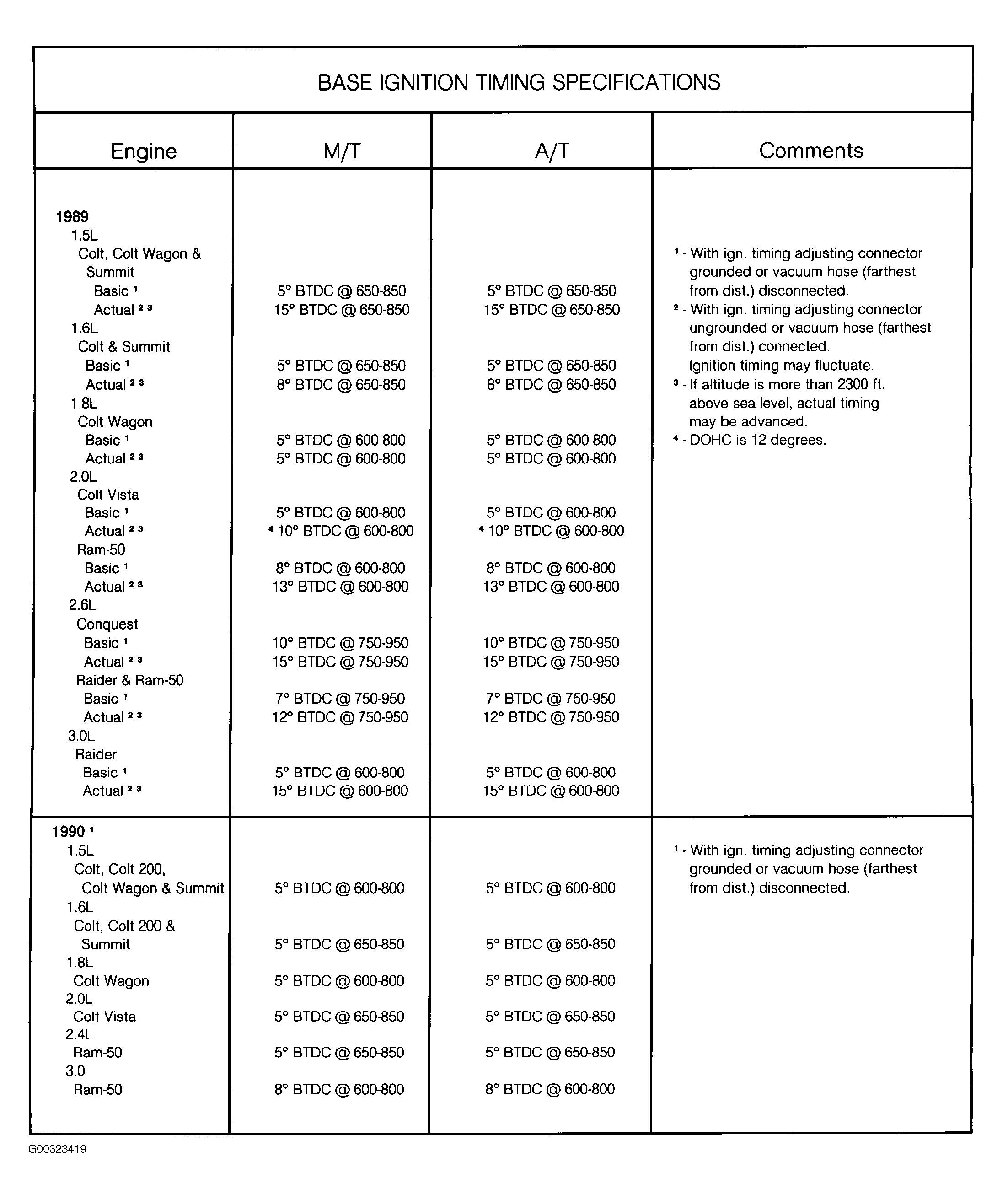

Fig 3:

G00323419

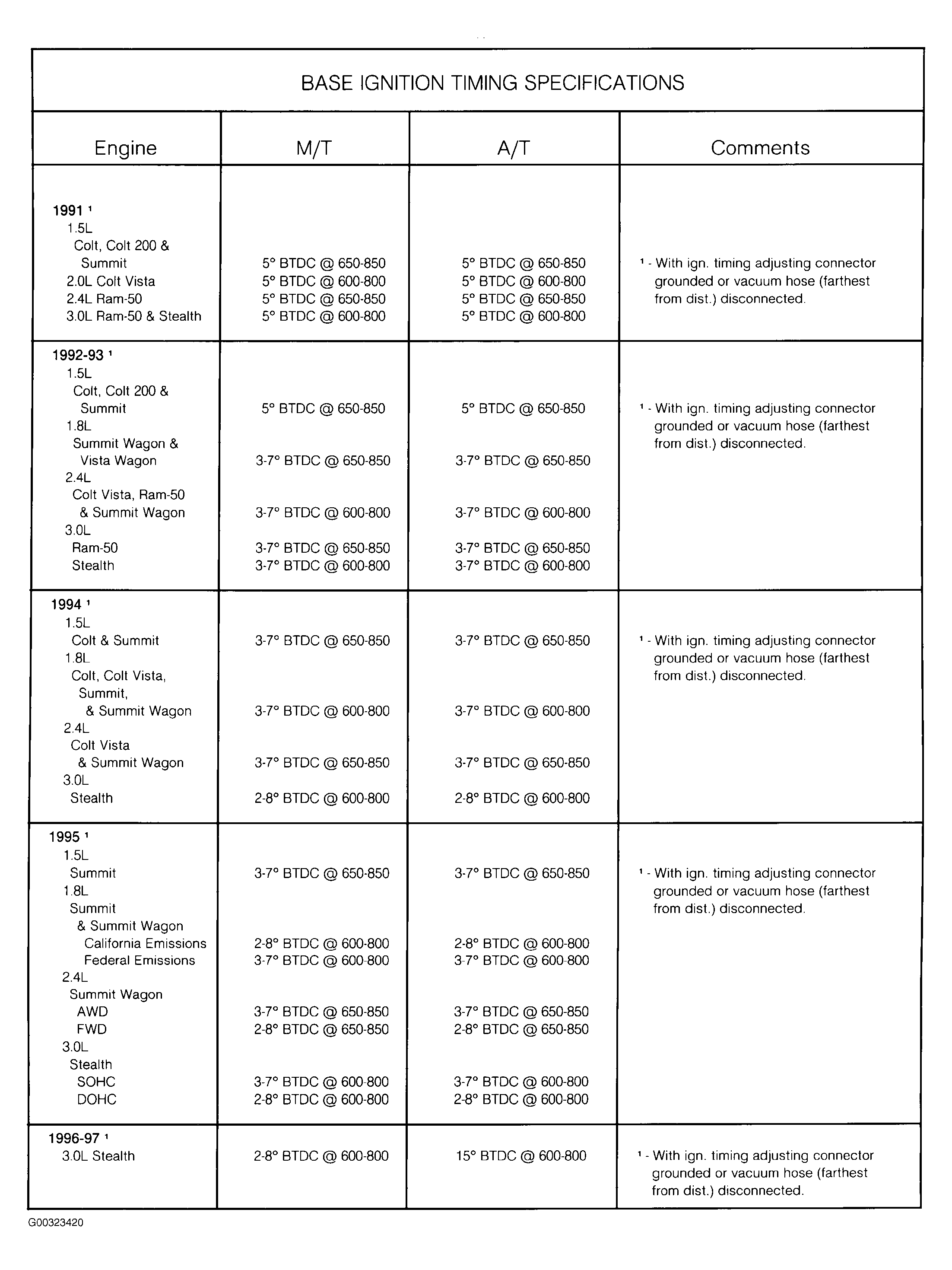

Fig 4:

G00323420
