Sub EGR Control Valve

This valve is mounted so it is directly linked to throttle valve and thus mechanically controlled. This valve more closely modulates EGR flow in response to throttle valve position.

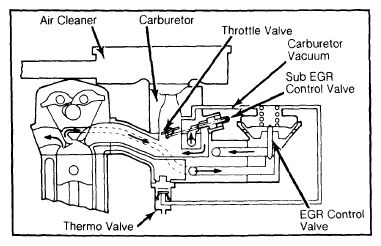

Fig 1: EGR System with Single Thermo Valve

Courtesy of CHRYSLER GROUP, LLC

Note direction of flow.
